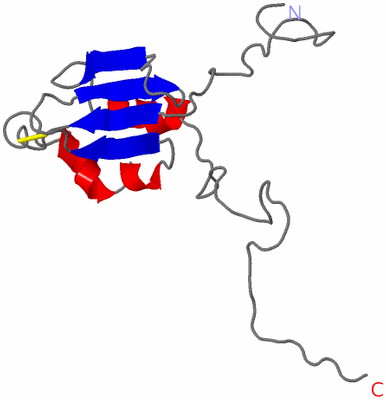

Image NMR Structure - model 1
NMR Structure - model 1  (Jmol Viewer)

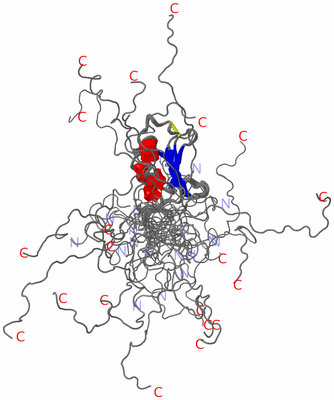

Image NMR Structure - all models
NMR Structure - all models  (Jmol Viewer)

(-) Description

Title :  SOLUTION STRUCTURE OF SEP15 FROM DROSOPHILA MELANOGASTER

Authors :  A. D. Ferguson, V. M. Labunskyy, D. E. Fomenko, Y. Chelliah, C. A. Amezcua, J. Rizo, V. N. Gladyshev, J. Deisenhofer
Date :  28 Jun 05  (Deposition) - 13 Dec 05  (Release) - 24 Feb 09  (Revision)
Method :  SOLUTION NMR
Resolution :  NOT APPLICABLE
Chains :  NMR Structure  :  A  (20x)
Keywords :  Selenoprotein, Redox, Oxidoreductase (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  A. D. Ferguson, V. M. Labunskyy, D. E. Fomenko, Y. Chelliah, C. A. Amezcua, J. Rizo, V. N. Gladyshev, J. Deisenhofer
Nmr Structures Of The Selenoproteins Sep15 And Selm Reveal Redox Activity Of A New Thioredoxin-Like Family.
J. Biol. Chem. V. 281 3536 2006
PubMed-ID: 16319061  |  Reference-DOI: 10.1074/JBC.M511386200
(for further references see the PDB file header)

(-) Compounds

Molecule 1 - SELENOPROTEIN SEP15
    Chains: A
    Engineered: YES
    Expression System: ESCHERICHIA COLI BL21(DE3)
    Expression System Plasmid: PET21A
    Expression System Strain: BL21(DE3)
    Expression System Taxid: 469008
    Expression System Vector Type: PLASMID
    Fragment: REDOX DOMAIN
    Gene: SEP15
    Organism Common: FRUIT FLY
    Organism Scientific: DROSOPHILA MELANOGASTER
    Organism Taxid: 7227

 Structural Features

(-) Chains, Units


NMR Structure (20x):

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (0, 0)

(no "Ligand,Modified Residues,Ions" information available for 2A4H)

(-) Sites  (0, 0)

(no "Site" information available for 2A4H)

(-) SS Bonds  (1, 1)

NMR Structure
No.Residues
1A:80 -A:82

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 2A4H)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 2A4H)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 2A4H)

(-) Exons   (0, 0)

(no "Exon" information available for 2A4H)

(-) Sequences/Alignments

NMR Structure
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:126
 aligned with Q9VVJ7_DROME | Q9VVJ7 from UniProtKB/TrEMBL  Length:178

    Alignment length:142
                                    46        56        66        76        86        96       106       116       126       136       146       156       166       176
         Q9VVJ7_DROME    37 MCSSCEKLDDFGLDTIKPQCKQCCTLDQQPAAQRTYAKAILEVCTCKFRAYPQIQAFIQSGRPAKFPNLQIKYVRGLDPVVKLLDASGKVQETLSITKWNTDTVEEFFETHLAKDGAGKNSYSVVEDADGDDDEDYLRTNRI 178
               SCOP domains -------------------------d2a4ha1 A:62-178 Selenoprotein sep15                                                                                  SCOP domains
               CATH domains ---------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ---------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ...----------------...................eeee...........hhhhhhh..hhh...eeee.......eeeee.......eeee.......hhhhhhhhh............................... Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ---------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ---------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 2a4h A  53 MAS----------------HHHHHHLDQQPAAQRTYAKAILEVCTCKFRAYPQIQAFIQSGRPAKFPNLQIKYVRGLDPVVKLLDASGKVQETLSITKWNTDTVEEFFETHLAKDGAGKNSYSVVEDADGDDDEDYLRTNRI 178
                              |      -        56        66        76        86        96       106       116       126       136       146       156       166       176
                             55               56
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (1, 1)

NMR Structure
(-)
Class: Alpha and beta proteins (a/b) (23833)

(-) CATH Domains  (0, 0)

(no "CATH Domain" information available for 2A4H)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 2A4H)

(-) Gene Ontology  (7, 7)

NMR Structure(hide GO term definitions)
Chain A   (Q9VVJ7_DROME | Q9VVJ7)
molecular function
    GO:0015036    disulfide oxidoreductase activity    Catalysis of the reaction: substrate with reduced sulfide groups = substrate with oxidized disulfide bonds.
    GO:0005515    protein binding    Interacting selectively and non-covalently with any protein or protein complex (a complex of two or more proteins that may include other nonprotein molecules).
biological process
    GO:0045454    cell redox homeostasis    Any process that maintains the redox environment of a cell or compartment within a cell.
    GO:0055114    oxidation-reduction process    A metabolic process that results in the removal or addition of one or more electrons to or from a substance, with or without the concomitant removal or addition of a proton or protons.
cellular component
    GO:0012505    endomembrane system    A collection of membranous structures involved in transport within the cell. The main components of the endomembrane system are endoplasmic reticulum, Golgi bodies, vesicles, cell membrane and nuclear envelope. Members of the endomembrane system pass materials through each other or though the use of vesicles.
    GO:0005783    endoplasmic reticulum    The irregular network of unit membranes, visible only by electron microscopy, that occurs in the cytoplasm of many eukaryotic cells. The membranes form a complex meshwork of tubular channels, which are often expanded into slitlike cavities called cisternae. The ER takes two forms, rough (or granular), with ribosomes adhering to the outer surface, and smooth (with no ribosomes attached).
    GO:0005634    nucleus    A membrane-bounded organelle of eukaryotic cells in which chromosomes are housed and replicated. In most cells, the nucleus contains all of the cell's chromosomes except the organellar chromosomes, and is the site of RNA synthesis and processing. In some species, or in specialized cell types, RNA metabolism or DNA replication may be absent.

 Visualization

(-) Interactive Views

NMR Structure
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
(no "Ligands, Modified Residues, Ions" information available for 2a4h)

  Sites
(no "Sites" information available for 2a4h)

  Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 2a4h)


(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick

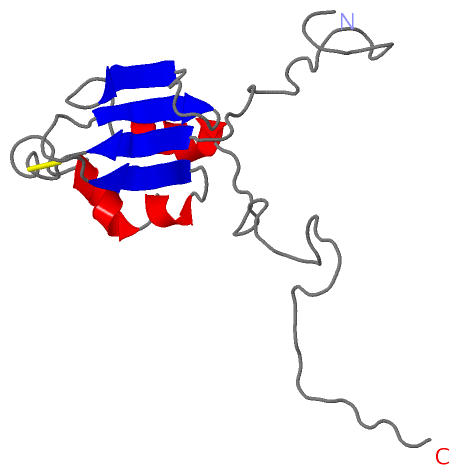

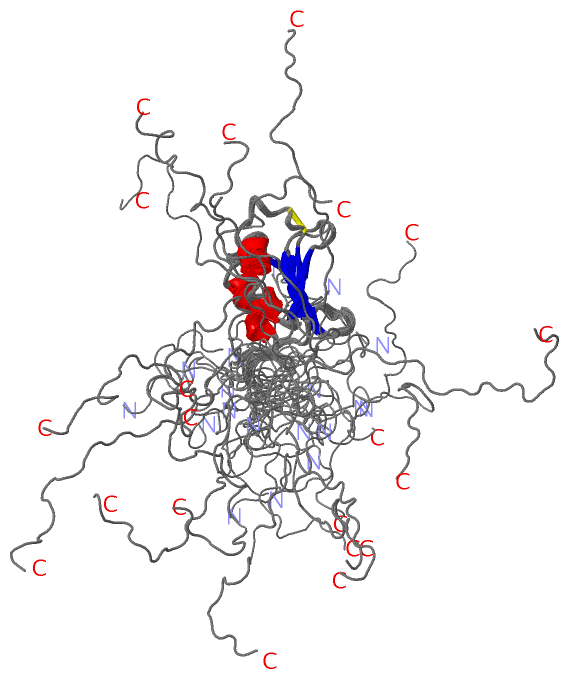

[ NMR Structure - model 1 PNG format | NMR Structure - all models PNG format ](automatic orientation, automatically generated)
