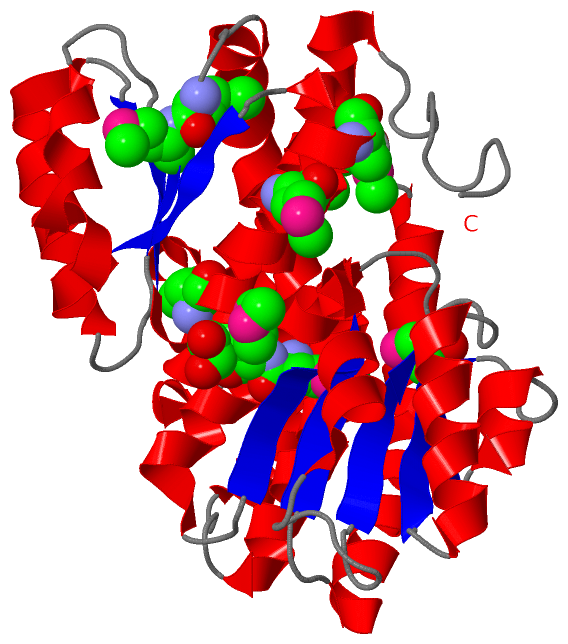

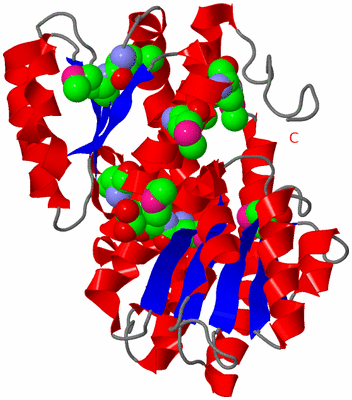

Image Asymmetric Unit
Asymmetric Unit  (Jmol Viewer)
Image Asym. Unit - sites
Asym. Unit - sites  (Jmol Viewer)

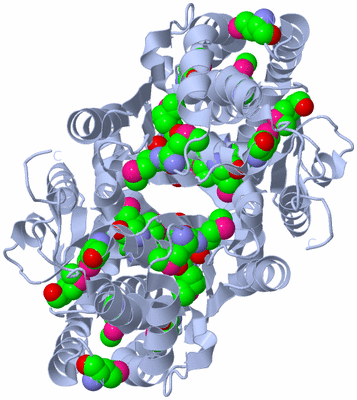

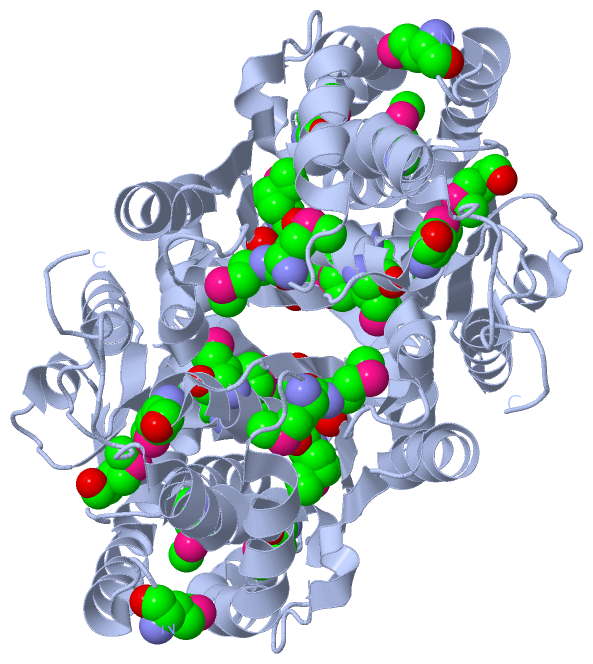

Image Biological Unit 1
Biological Unit 1  (Jmol Viewer)

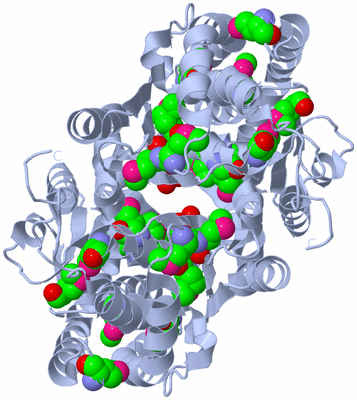

Image Biol. Unit 1 - sites
Biol. Unit 1 - sites  (Jmol Viewer)

(-) Description

Title :  CRYSTAL STRUCTURE OF A PUTATIVE GLUCOSAMINE-FRUCTOSE-6-PHOSPHATE AMINOTRANSFERASE (STM4540.S) FROM SALMONELLA TYPHIMURIUM LT2 AT 1.35 A RESOLUTION

Authors :  Joint Center For Structural Genomics (Jcsg)
Date :  25 Jun 05  (Deposition) - 26 Jul 05  (Release) - 13 Jul 11  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  1.23
Chains :  Asym. Unit :  A
Biol. Unit 1:  A  (2x)
Keywords :  Structural Genomics, Joint Center For Structural Genomics, Jcsg, Protein Structure Initiative, Psi, Sugar Binding Protein (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  Joint Center For Structural Genomics (Jcsg)
Crystal Structure Of Putative Glucosamine-Fructose-6-Phosphate Aminotransferase (16423107 From Salmonella Typhimurium Lt2 At 1. 35 A Resolution
To Be Published
PubMed: search

(-) Compounds

Molecule 1 - PUTATIVE GLUCOSAMINE-FRUCTOSE-6-PHOSPHATE AMINOTRANSFERASE
    Chains: A
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Plasmid: HK100
    Expression System Taxid: 562
    Expression System Vector Type: PLASMID
    Gene: 16423107
    Organism Scientific: SALMONELLA TYPHIMURIUM
    Organism Taxid: 99287
    Strain: LT2

 Structural Features

(-) Chains, Units

  1
Asymmetric Unit : A
Biological Unit 1 (2x): A

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (2, 12)

Asymmetric Unit (2, 12)
No.NameCountTypeFull Name
1EDO1Ligand/Ion1,2-ETHANEDIOL
2MSE11Mod. Amino AcidSELENOMETHIONINE
Biological Unit 1 (2, 24)
No.NameCountTypeFull Name
1EDO2Ligand/Ion1,2-ETHANEDIOL
2MSE22Mod. Amino AcidSELENOMETHIONINE

(-) Sites  (1, 1)

Asymmetric Unit (1, 1)
No.NameEvidenceResiduesDescription
1AC1SOFTWAREMSE A:58 , ASN A:61 , GLU A:62 , HOH A:648BINDING SITE FOR RESIDUE EDO A 344

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 2A3N)

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 2A3N)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 2A3N)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 2A3N)

(-) Exons   (0, 0)

(no "Exon" information available for 2A3N)

(-) Sequences/Alignments

Asymmetric Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:336
 aligned with Q8ZJX7_SALTY | Q8ZJX7 from UniProtKB/TrEMBL  Length:343

    Alignment length:336
                                    17        27        37        47        57        67        77        87        97       107       117       127       137       147       157       167       177       187       197       207       217       227       237       247       257       267       277       287       297       307       317       327       337
         Q8ZJX7_SALTY     8 MLGFNQDEYLTSAREIIAARQKAEQVADEIYQAGFSSLFFASVGGSLAPMMAINEFAKELTTLPVYVEQAAELIHKGNKRLNKDSVVITLSKSGDTKESVAIAEWCKAQGIRVVAITKNADSPLAQAATWHIPMRHKNGVEYEYMLLYWLFFRVLSRNNEFASYDRFASQLEILPANLLKAKQKFDPQADAIASRYHNSDYMMWVGGAEMWGEVYLFSMCILEEMQWKRTRPVSSAEFFHGALELLEKDVPLILVKGEGKCRALDERVERFASKITDNLVVIDPKAYALDGIDDEFRWIMAPCVVSTLLVDRLAAHFEKYTGHSLDIRRYYRQFDY 343
               SCOP domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Pfam domains
         Sec.struct. author ....hhhhhhhhhhhhhhhhhhhhhhhhhhhhhh...eeeeehhhhhhhhhhhhhhhhhhh...eeeeehhhhhhhh........eeeee.....hhhhhhhhhhhhhh..eeeeee....hhhhhh..eeee.....hhhhhhhhhhhhhhhhhhhh....hhhhhhhhh.hhhhhhhhhhhhhhhhhhhhhhhhh....eeeeehhhhhhhhhhhhhhhhhhhhh..eeeeehhhhhhhhhhhh.....eeee.....hhhhhhhhhhhhhhhh..eeeehhhhh.....hhhhhhhhhhhhhhhhhhhhhhhhhhhhhh.............. Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Transcript
                 2a3n A   8 mLGFNQDEYLTSAREIIAARQKAEQVADEIYQAGFSSLFFASVGGSLAPmmAINEFAKELTTLPVYVEQAAELIHKGNKRLNKDSVVITLSKSGDTKESVAIAEWCKAQGIRVVAITKNADSPLAQAATWHIPmRHKNGVEYEYmLLYWLFFRVLSRNNEFASYDRFASQLEILPANLLKAKQKFDPQADAIASRYHNSDYmmWVGGAEmWGEVYLFSmCILEEmQWKRTRPVSSAEFFHGALELLEKDVPLILVKGEGKCRALDERVERFASKITDNLVVIDPKAYALDGIDDEFRWImAPCVVSTLLVDRLAAHFEKYTGHSLDIRRYYRQFDY 343
                            |       17        27        37        47        57|       67        77        87        97       107       117       127       137   |   147    |  157       167       177       187       197       207 ||    217       227    |  237       247       257       267       277       287       297       307       317       327       337
                            |                                               57-MSE                                                                             141-MSE    152-MSE                                                  209-MSE   |      226-MSE |                                                                        307-MSE
                            8-MSE                                            58-MSE                                                                                                                                                 210-MSE  |            232-MSE
                                                                                                                                                                                                                                           217-MSE
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (0, 0)

(no "SCOP Domain" information available for 2A3N)

(-) CATH Domains  (0, 0)

(no "CATH Domain" information available for 2A3N)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 2A3N)

(-) Gene Ontology  (7, 7)

Asymmetric Unit(hide GO term definitions)
Chain A   (Q8ZJX7_SALTY | Q8ZJX7)
molecular function
    GO:0030246    carbohydrate binding    Interacting selectively and non-covalently with any carbohydrate, which includes monosaccharides, oligosaccharides and polysaccharides as well as substances derived from monosaccharides by reduction of the carbonyl group (alditols), by oxidation of one or more hydroxy groups to afford the corresponding aldehydes, ketones, or carboxylic acids, or by replacement of one or more hydroxy group(s) by a hydrogen atom. Cyclitols are generally not regarded as carbohydrates.
    GO:0004360    glutamine-fructose-6-phosphate transaminase (isomerizing) activity    Catalysis of the reaction: beta-D-fructose 6-phosphate + L-glutamine = D-glucosamine 6-phosphate + L-glutamate.
    GO:0008483    transaminase activity    Catalysis of the transfer of an amino group to an acceptor, usually a 2-oxo acid.
    GO:0016740    transferase activity    Catalysis of the transfer of a group, e.g. a methyl group, glycosyl group, acyl group, phosphorus-containing, or other groups, from one compound (generally regarded as the donor) to another compound (generally regarded as the acceptor). Transferase is the systematic name for any enzyme of EC class 2.
biological process
    GO:0006047    UDP-N-acetylglucosamine metabolic process    The chemical reactions and pathways involving UDP-N-acetylglucosamine, a substance composed of N-acetylglucosamine, a common structural unit of oligosaccharides, in glycosidic linkage with uridine diphosphate.
    GO:0005975    carbohydrate metabolic process    The chemical reactions and pathways involving carbohydrates, any of a group of organic compounds based of the general formula Cx(H2O)y. Includes the formation of carbohydrate derivatives by the addition of a carbohydrate residue to another molecule.
    GO:0006002    fructose 6-phosphate metabolic process    The chemical reactions and pathways involving fructose 6-phosphate, also known as F6P. The D-enantiomer is an important intermediate in glycolysis, gluconeogenesis, and fructose metabolism.
