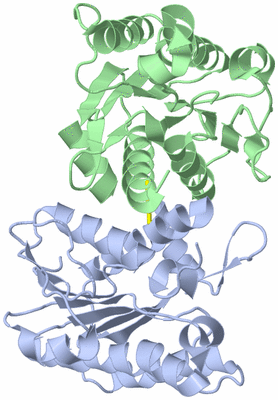

Image Asym./Biol. Unit
Asym./Biol. Unit  (Jmol Viewer)

(-) Description

Title :  1.5 A CRYSTAL STRUCTURE OF A PROTEIN OF UNKNOWN FUNCTION PA4017 FROM PSEUDOMONAS AERUGINOSA PAO1, POSSIBLE EPIMERASE

Authors :  R. Zhang, L. Xu, M. Cuff, A. Savchenko, M. Cymborowski, W. Minor, A. Edwa A. Joachimiak, Midwest Center For Structural Genomics (Mcsg)
Date :  23 Jun 05  (Deposition) - 09 Aug 05  (Release) - 13 Jul 11  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  1.50
Chains :  Asym./Biol. Unit :  A,B
Keywords :  Pseudomonas Aeruginosa, Alpha-Beta-Alpha Sandwich, Structural Genomics, Psi, Protein Structure Initiative, Midwest Center For Structural Genomics, Mcsg, Unknown Function (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  R. Zhang, L. Xu, M. Cuff, A. Savchenko, M. Cymborowski, W. Minor, A. Edwards, A. Joachimiak
1. 5A Crystal Structure Of A Hypothetical Protein Pa4017 Fro Pseudomonas Aeruginosa Pao1
To Be Published
PubMed: search

(-) Compounds

Molecule 1 - HYPOTHETICAL PROTEIN PA4017
    Chains: A, B
    Engineered: YES
    Expression System: ESCHERICHIA COLI BL21(DE3)
    Expression System Plasmid: PET15B
    Expression System Strain: BL21 (DE3)
    Expression System Taxid: 469008
    Expression System Vector Type: PLASMID
    Organism Scientific: PSEUDOMONAS AERUGINOSA
    Organism Taxid: 208964
    Strain: PAO1

 Structural Features

(-) Chains, Units

  12
Asymmetric/Biological Unit : AB

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (0, 0)

(no "Ligand,Modified Residues,Ions" information available for 2A35)

(-) Sites  (0, 0)

(no "Site" information available for 2A35)

(-) SS Bonds  (1, 1)

Asymmetric/Biological Unit
No.Residues
1A:183 -B:183

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 2A35)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 2A35)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 2A35)

(-) Exons   (0, 0)

(no "Exon" information available for 2A35)

(-) Sequences/Alignments

Asymmetric/Biological Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:208
 aligned with Q9HX10_PSEAE | Q9HX10 from UniProtKB/TrEMBL  Length:213

    Alignment length:212
                                                                                                                                                                                                                                           213
                                    13        23        33        43        53        63        73        83        93       103       113       123       133       143       153       163       173       183       193       203       213
         Q9HX10_PSEAE     4 TPKRVLLAGATGLTGEHLLDRILSEPTLAKVIAPARKALAEHPRLDNPVGPLAELLPQLDGSIDTAFCCLGTTIKEAGSEEAFRAVDFDLPLAVGKRALEMGARHYLVVSALGADAKSSIFYNRVKGELEQALQEQGWPQLTIARPSLLFGPREEFRLAEILAAPIARILPGKYHGIEACDLARALWRLALEEGKGVRFVESDELRKLGK--   -
               SCOP domains d2a35a1 A:4-215 Hypothetical protein PA4017                                                                                                                                                                          SCOP domains
               CATH domains 2a35A00 A:4-215 NAD(P)-binding Rossmann-like Domain                                                                                                                                                                  CATH domains
               Pfam domains -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ...eeeee...hhhhhhhhhhhhhh....eee............ee....hhhhhhhhh.....eeee....hhhhhhhhhhhhhhhhhhhhhhhhhhhhh...eeeee..........hhhhhhhhhhhhhhh.....eeeeee...ee.....ee.hhhh.....----hhhhhhhhhhhhhhhhhhhh....eeeeeehhhhhhhhhh. Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 2a35 A   4 TPKRVLLAGATGLTGEHLLDRILSEPTLAKVIAPARKALAEHPRLDNPVGPLAELLPQLDGSIDTAFCCLGTTIKEAGSEEAFRAVDFDLPLAVGKRALEMGARHYLVVSALGADAKSSIFYNRVKGELEQALQEQGWPQLTIARPSLLFGPREEFRLAEILAAPIA----GKYHGIEACDLARALWRLALEEGKGVRFVESDELRKLGKGS 215
                                    13        23        33        43        53        63        73        83        93       103       113       123       133       143       153       163      |  - |     183       193       203       213
                                                                                                                                                                                                170  175


Chain B from PDB  Type:PROTEIN  Length:208
 aligned with Q9HX10_PSEAE | Q9HX10 from UniProtKB/TrEMBL  Length:213

    Alignment length:212
                                                                                                                                                                                                                                           213
                                    13        23        33        43        53        63        73        83        93       103       113       123       133       143       153       163       173       183       193       203       213
         Q9HX10_PSEAE     4 TPKRVLLAGATGLTGEHLLDRILSEPTLAKVIAPARKALAEHPRLDNPVGPLAELLPQLDGSIDTAFCCLGTTIKEAGSEEAFRAVDFDLPLAVGKRALEMGARHYLVVSALGADAKSSIFYNRVKGELEQALQEQGWPQLTIARPSLLFGPREEFRLAEILAAPIARILPGKYHGIEACDLARALWRLALEEGKGVRFVESDELRKLGK--   -
               SCOP domains d2a35b_ B: Hypothetical protein PA4017                                                                                                                                                                               SCOP domains
               CATH domains 2a35B00 B:4-215 NAD(P)-binding Rossmann-like Domain                                                                                                                                                                  CATH domains
               Pfam domains -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ...eeeee...hhhhhhhhhhhhhh....eee............ee....hhhhhhhhh.....eeee....hhhhhhhhhhhhhhhhhhhhhhhhhhhhh...eeeee..........hhhhhhhhhhhhhhh.....eeeeee...ee.....ee.hhhh....----.hhhhhhhhhhhhhhhhhhhh....eeeeeehhhhhhhhhhh Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 2a35 B   4 TPKRVLLAGATGLTGEHLLDRILSEPTLAKVIAPARKALAEHPRLDNPVGPLAELLPQLDGSIDTAFCCLGTTIKEAGSEEAFRAVDFDLPLAVGKRALEMGARHYLVVSALGADAKSSIFYNRVKGELEQALQEQGWPQLTIARPSLLFGPREEFRLAEILAAPI----PGKYHGIEACDLARALWRLALEEGKGVRFVESDELRKLGKGS 215
                                    13        23        33        43        53        63        73        83        93       103       113       123       133       143       153       163     |   -|      183       193       203       213
                                                                                                                                                                                               169  174
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (1, 2)

Asymmetric/Biological Unit
(-)
Class: Alpha and beta proteins (a/b) (23833)

(-) CATH Domains  (1, 2)

Asymmetric/Biological Unit
(-)
Class: Alpha Beta (26913)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 2A35)

(-) Gene Ontology  (0, 0)

Asymmetric/Biological Unit(hide GO term definitions)
    (no "Gene Ontology" information available for 2A35)

 Visualization

(-) Interactive Views

Asymmetric/Biological Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
(no "Ligands, Modified Residues, Ions" information available for 2a35)

  Sites
(no "Sites" information available for 2a35)

  Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 2a35)


(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick

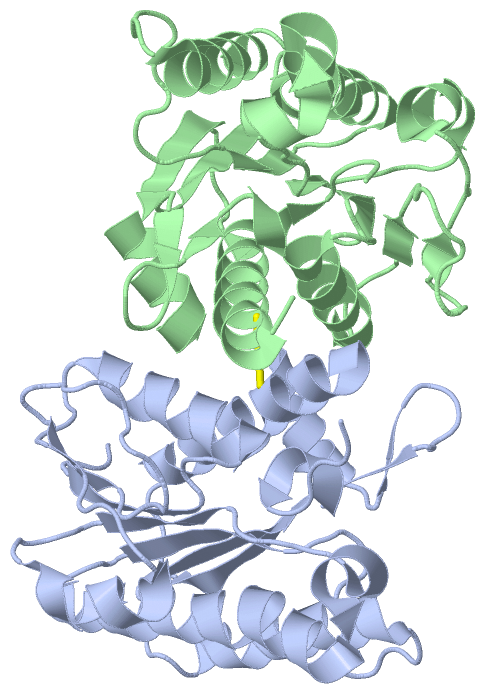

[ Asym./Biol. Unit PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)
