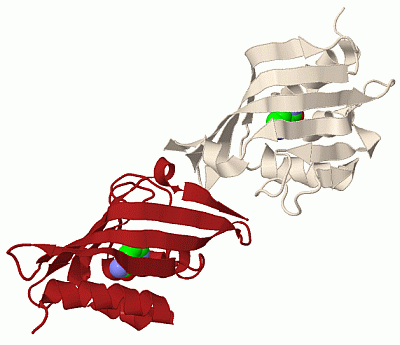

Image Biol.Unit 1 - manually
Biol.Unit 1 - manually  (Jmol Viewer)

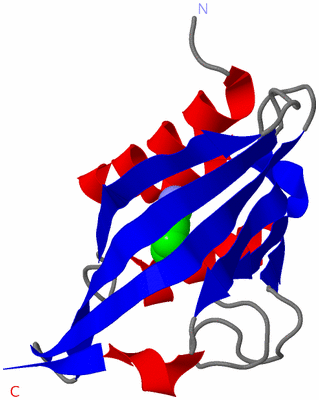

Image Asymmetric Unit
Asymmetric Unit  (Jmol Viewer)
Image Asym. Unit - sites
Asym. Unit - sites  (Jmol Viewer)

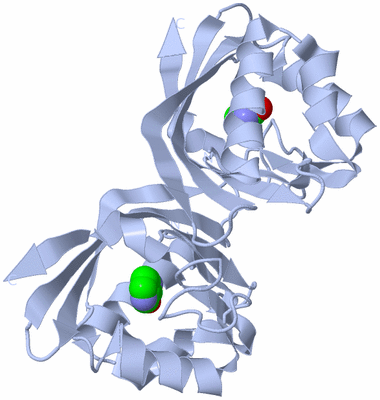

Image Biological Unit 1
Biological Unit 1  (Jmol Viewer)

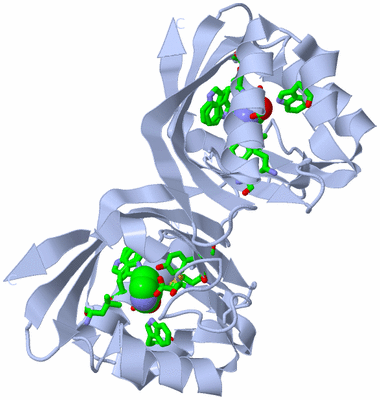

Image Biol. Unit 1 - sites
Biol. Unit 1 - sites  (Jmol Viewer)

(-) Description

Title :  X-RAY CRYSTAL STRUCTURE OF RV0760 FROM MYCOBACTERIUM TUBERCULOSIS AT 1.68 ANGSTROM RESOLUTION

Authors :  C. R. Garen, M. M. Cherney, M. N. G. James, Tb Structural Genomics Consortium (Tbsgc)
Date :  17 Jun 05  (Deposition) - 11 Oct 05  (Release) - 23 Dec 08  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  1.68
Chains :  Asym. Unit :  A
Biol. Unit 1:  A  (2x)
Keywords :  Beta-Alpha-Barrel, Structural Genomics, Psi, Protein Structure Initiative, Tb Structural Genomics Consortium, Tbsgc, Unknown Function (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  M. M. Cherney, C. R. Garen, M. N. G. James
Crystal Structure Of Mycobacterium Tuberculosis Rv0760C At 1. 50 A Resolution, A Structural Homolog Of Delta(5)-3-Ketosteroid Isomerase
Biochim. Biophys. Acta V. 1784 1625 2008
PubMed-ID: 18589008  |  Reference-DOI: 10.1016/J.BBAPAP.2008.05.012
(for further references see the PDB file header)

(-) Compounds

Molecule 1 - HYPOTHETICAL PROTEIN RV0760C
    Chains: A
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Taxid: 562
    Gene: RV0760
    Organism Scientific: MYCOBACTERIUM TUBERCULOSIS
    Organism Taxid: 1773
    Other Details: SIMILARITY WITH PDB IDS 1BUQ, 1CQS, 1E3R, 1E3V, 1OH0 ETC. SUGGESTS THAT THIS PROTEIN IS KETOSTEROID ISOMERASE

 Structural Features

(-) Chains, Units

  1
Asymmetric Unit : A
Biological Unit 1 (2x): A

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (1, 1)

Asymmetric Unit (1, 1)
No.NameCountTypeFull Name
1NCA1Ligand/IonNICOTINAMIDE
Biological Unit 1 (1, 2)
No.NameCountTypeFull Name
1NCA2Ligand/IonNICOTINAMIDE

(-) Sites  (1, 1)

Asymmetric Unit (1, 1)
No.NameEvidenceResiduesDescription
1AC1SOFTWARESER A:16 , TRP A:17 , TRP A:28 , ASP A:40 , LEU A:73 , TYR A:113 , MET A:124BINDING SITE FOR RESIDUE NCA A 1001

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 2A15)

(-) Cis Peptide Bonds  (1, 1)

Asymmetric Unit
No.Residues
1Asp A:40 -Pro A:41

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 2A15)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 2A15)

(-) Exons   (0, 0)

(no "Exon" information available for 2A15)

(-) Sequences/Alignments

Asymmetric Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:133
 aligned with P71817_MYCTO | P71817 from UniProtKB/TrEMBL  Length:139

    Alignment length:133
                                    14        24        34        44        54        64        74        84        94       104       114       124       134
         P71817_MYCTO     5 TQSPALIASQSSWRCVQAHDREGWLALMADDVVIEDPIGKSVTNPDGSGIKGKEAVGAFFDTHIAANRLTVTCEETFPSSSPDEIAHILVLHSEFDGGFTSEVRGVFTYRVNKAGLITNMRGYWNLDMMTFGN 137
               SCOP domains d2a15a1 A:5-136 Hypothetical protein Rv0760c                                                                                        - SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ..hhhhhhhhhhhhhhhh.hhhhhhhheeeeeeee..............eehhhhhhhhhhhhh.....eeeeeeeee.....eeeeeeeeeeee...eeeeeeeeeeeee.....eeeeeee.hhhhheee. Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 2a15 A   5 TQSPALIASQSSWRCVQAHDREGWLALMADDVVIEDPIGKSVTNPDGSGIKGKEAVGAFFDTHIAANRLTVTCEETFPSSSPDEIAHILVLHSEFDGGFTSEVRGVFTYRVNKAGLITNMRGYWNLDMMTFGN 137
                                    14        24        34        44        54        64        74        84        94       104       114       124       134
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (1, 1)

Asymmetric Unit
(-)
Class: Alpha and beta proteins (a+b) (23004)

(-) CATH Domains  (0, 0)

(no "CATH Domain" information available for 2A15)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 2A15)

(-) Gene Ontology  (5, 5)

Asymmetric Unit(hide GO term definitions)
Chain A   (P71817_MYCTO | P71817)
molecular function
    GO:0016853    isomerase activity    Catalysis of the geometric or structural changes within one molecule. Isomerase is the systematic name for any enzyme of EC class 5.
    GO:0042803    protein homodimerization activity    Interacting selectively and non-covalently with an identical protein to form a homodimer.
    GO:0032934    sterol binding    Interacting selectively and non-covalently with a sterol, any steroid containing a hydroxy group in the 3 position, closely related to cholestan-3-ol.
biological process
    GO:0006810    transport    The directed movement of substances (such as macromolecules, small molecules, ions) or cellular components (such as complexes and organelles) into, out of or within a cell, or between cells, or within a multicellular organism by means of some agent such as a transporter, pore or motor protein.
cellular component
    GO:0005622    intracellular    The living contents of a cell; the matter contained within (but not including) the plasma membrane, usually taken to exclude large vacuoles and masses of secretory or ingested material. In eukaryotes it includes the nucleus and cytoplasm.

 Visualization

(-) Interactive Views

Asymmetric Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
    NCA  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]

  Sites
    AC1  [ RasMol ]  +environment [ RasMol ]

  Cis Peptide Bonds
    Asp A:40 - Pro A:41   [ RasMol ]

Biological Unit
  Complete Structure
    Biological Unit 1  [ Jena3D ]

(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick

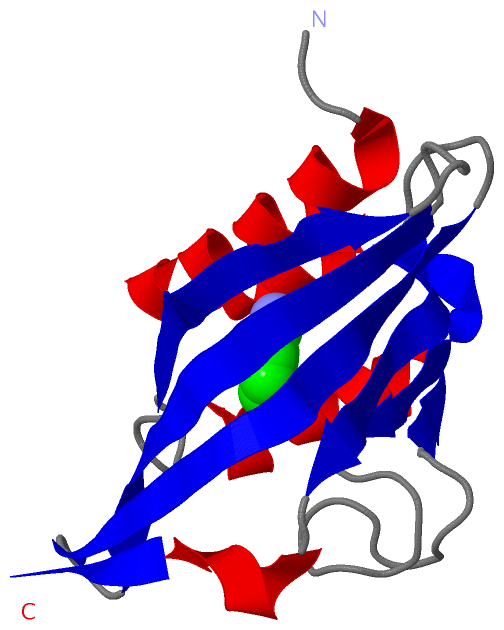

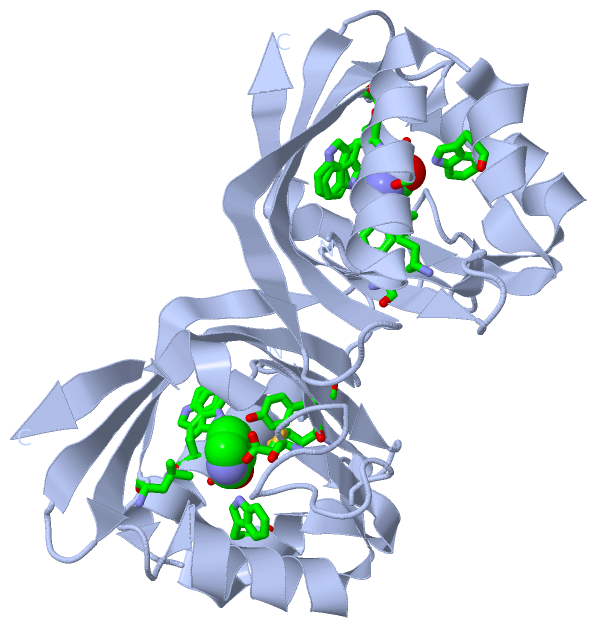

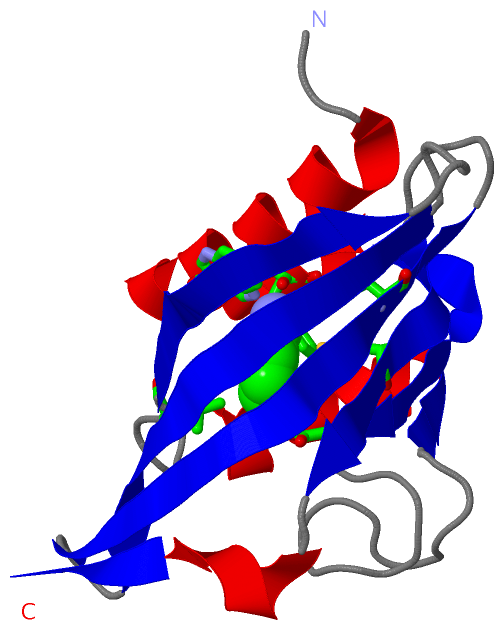

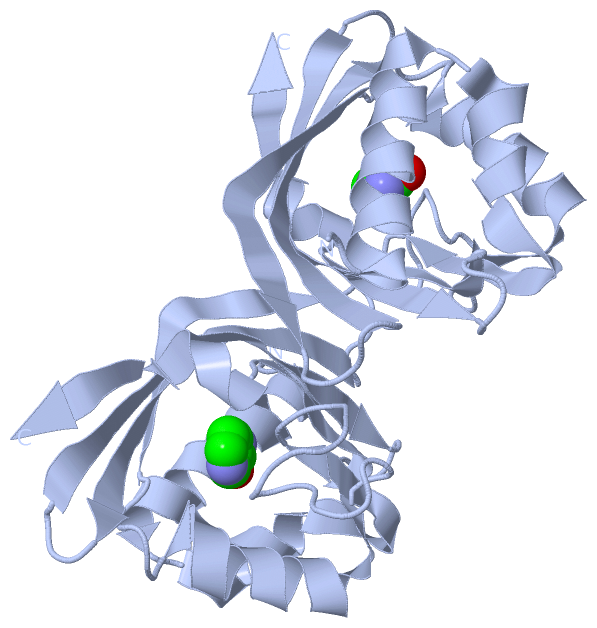

[ Asym. Unit PNG format | Asym. Unit - sites PNG format | Biol. Unit 1 PNG format | Biol. Unit 1 - sites PNG format ](automatic orientation, automatically generated)
