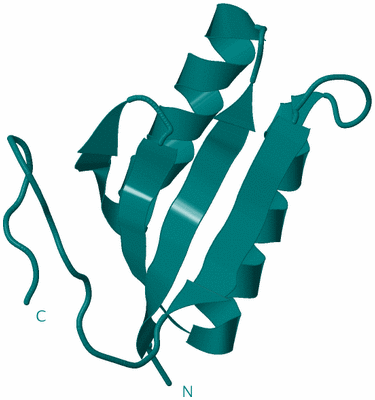

Image Biological Unit 1
Biological Unit 1  (Jmol Viewer)
Image Biological Unit 2
Biological Unit 2  (Jmol Viewer)

(-) Description

Title :  CRYSTAL STRUCTURE OF A HYPOTHETICAL PROTEIN TT1823 FROM THERMUS THERMOPHILUS

Authors :  Ihsanawati, K. Murayama, M. Shirouzu, S. Yokoyama, Riken Structural Genomics/Proteomics Initiative (Rsgi)
Date :  18 May 05  (Deposition) - 18 Nov 05  (Release) - 13 Jul 11  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  1.64
Chains :  Asym. Unit :  X
Biol. Unit 1:  X  (1x)
Biol. Unit 2:  X  (2x)
Keywords :  Hyphotetical Protein, Thermus Thermophilus, Structural Genomics, Nppsfa, National Project On Protein Structural And Functional Analyses, Riken Structural Genomics/Proteomics Initiative, Rsgi, Unknown Function (Keyword Search: [Gene Ontology, PubMed, Web (Google))

Reference :  Ihsanawati, K. Murayama, M. Shirouzu, S. Yokoyama
Crystal Structure Of A Hypothetical Protein Tt1823 From Thermus Thermophilus
To Be Published
PubMed: search

(-) Compounds

Molecule 1 - HYPOTHETICAL PROTEIN TT1823
    ChainsX
    EngineeredYES
    Expression SystemESCHERICHIA COLI
    Expression System Taxid562
    Organism ScientificTHERMUS THERMOPHILUS
    Organism Taxid274

 Structural Features

(-) Chains, Units

  1
Asymmetric Unit X
Biological Unit 1 (1x)X
Biological Unit 2 (2x)X

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (0, 0)

(no "Ligand,Modified Residues,Ions" information available for 1ZPW)

(-) Sites  (0, 0)

(no "Site" information available for 1ZPW)

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 1ZPW)

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 1ZPW)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 1ZPW)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 1ZPW)

(-) Exons   (0, 0)

(no "Exon" information available for 1ZPW)

(-) Sequences/Alignments

Asymmetric Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain X from PDB  Type:PROTEIN  Length:82
 aligned with CAS2B_THET2 | Q746F4 from UniProtKB/Swiss-Prot  Length:90

    Alignment length:82
                                    11        21        31        41        51        61        71        81
           CAS2B_THET2    2 GKRLYAVAYDIPDDTRRVKLANLLKSYGERVQLSVFECYLDERLLEDLRRRARRLLDLGQDALRIYPVAGQVEVLGVGPLPE 83
               SCOP domains d1zpwx1 X:2-83 Hypothetical protein TTP0101 (TT1823)                               SCOP domains
               CATH domains ---------------------------------------------------------------------------------- CATH domains
               Pfam domains ---------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ..eeeeeeee..hhhhhhhhhhhhhh.eeeee..eeeeeehhhhhhhhhhhhhhhh.....eeeeee............... Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ---------------------------------------------------------------------------------- PROSITE
                 Transcript ---------------------------------------------------------------------------------- Transcript
                  1zpw X  2 GKRLYAVAYDIPDDTRRVKLANLLKSYGERVQLSVFECYLDERLLEDLRRRARRLLDLGQDALRIYPVAGQVEVLGVGPLPE 83
                                    11        21        31        41        51        61        71        81

   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (1, 1)

Asymmetric Unit

(-) CATH Domains  (0, 0)

(no "CATH Domain" information available for 1ZPW)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 1ZPW)

(-) Gene Ontology  (9, 9)

Asymmetric Unit(hide GO term definitions)
Chain X   (CAS2B_THET2 | Q746F4)
molecular function
    GO:0004519    endonuclease activity    Catalysis of the hydrolysis of ester linkages within nucleic acids by creating internal breaks.
    GO:0004521    endoribonuclease activity    Catalysis of the hydrolysis of ester linkages within ribonucleic acid by creating internal breaks.
    GO:0016787    hydrolase activity    Catalysis of the hydrolysis of various bonds, e.g. C-O, C-N, C-C, phosphoric anhydride bonds, etc. Hydrolase is the systematic name for any enzyme of EC class 3.
    GO:0046872    metal ion binding    Interacting selectively and non-covalently with any metal ion.
    GO:0004518    nuclease activity    Catalysis of the hydrolysis of ester linkages within nucleic acids.
biological process
    GO:0090502    RNA phosphodiester bond hydrolysis, endonucleolytic    The chemical reactions and pathways involving the hydrolysis of internal 3',5'-phosphodiester bonds in one or two strands of ribonucleotides.
    GO:0051607    defense response to virus    Reactions triggered in response to the presence of a virus that act to protect the cell or organism.
    GO:0043571    maintenance of CRISPR repeat elements    Any process involved in sustaining CRISPR repeat clusters, including capture of new spacer elements, expansion or contraction of clusters, propagation of the leader sequence and repeat clusters within a genome, transfer of repeat clusters and CRISPR-associated (cas) genes to new genomes, transcription of the CRISPR repeat arrays into RNA and processing, and interaction of CRISPR/cas loci with the host genome. CRISPR (clustered regularly interspaced short palindromic repeat) elements are a family of sequence elements containing multiple direct repeats of 24-48 bp with weak dyad symmetry which are separated by regularly sized nonrepetitive spacer sequences.
    GO:0090305    nucleic acid phosphodiester bond hydrolysis    The nucleic acid metabolic process in which the phosphodiester bonds between nucleotides are cleaved by hydrolysis.
