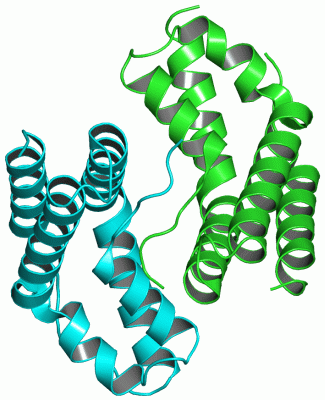

Image Asym./Biol. Unit - manually
Asym./Biol. Unit - manually  (Jmol Viewer)
Image Asym./Biol. Unit
Asym./Biol. Unit  (Jmol Viewer)

(-) Description

Title :  PREDICTED CODING REGION AF0941 FROM ARCHAEOGLOBUS FULGIDUS

Authors :  V. V. Lunin, R. Zhang, A. Savchenko, A. M. Edwards, A. Joachimiak, Midwest Center For Structural Genomics (Mcsg)
Date :  28 Jan 05  (Deposition) - 08 Feb 05  (Release) - 24 Feb 09  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  2.00
Chains :  Asym./Biol. Unit :  A,B
Keywords :  Af0941, Apc5573, Midwest Center For Structural Genomics, Mcsg, Protein Structure Initiative, Psi, Structural Genomics, Unknown Function (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  V. V. Lunin, E. Botchkareva, R. Zhang, A. Joachimiak, A. M. Edwards, A. Savchenko
The Crystal Structure Of Predicted Coding Region Af0941 From Archaeoglobus Fulgidus
To Be Published
PubMed: search
(for further references see the PDB file header)

(-) Compounds

Molecule 1 - HYPOTHETICAL PROTEIN AF0941
    Chains: A, B
    Engineered: YES
    Expression System: ESCHERICHIA COLI BL21(DE3)
    Expression System Plasmid: MODIFIED PET15B
    Expression System Strain: BL21 DE3
    Expression System Taxid: 469008
    Expression System Vector Type: PLASMID
    Organism Scientific: ARCHAEOGLOBUS FULGIDUS
    Organism Taxid: 2234

 Structural Features

(-) Chains, Units

  12
Asymmetric/Biological Unit : AB

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (0, 0)

(no "Ligand,Modified Residues,Ions" information available for 1YOZ)

(-) Sites  (0, 0)

(no "Site" information available for 1YOZ)

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 1YOZ)

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 1YOZ)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 1YOZ)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 1YOZ)

(-) Exons   (0, 0)

(no "Exon" information available for 1YOZ)

(-) Sequences/Alignments

Asymmetric/Biological Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:113
 aligned with Y941_ARCFU | O29321 from UniProtKB/Swiss-Prot  Length:114

    Alignment length:116
                              1
                              |      8        18        28        38        48        58        68        78        88        98       108
           Y941_ARCFU     - --MLYINSFLDRMGEIIRGEKSVEEADKLLDQKNIFEMFRSDCEEILNLYKSGKAEKEEVQRNFYLLKTYVVSQLSIHFERLKEFAESKGFKIEKKLDPEVINEIALYIDRVEKEV 114
               SCOP domains --d1yoza1 A:11-124 Hypothetical protein AF0941                                                                       SCOP domains
               CATH domains 1yozA00 A:9-124 Hypothetical protein af0941                                                                          CATH domains
               Pfam domains -------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ......hhhhhhhhhhhh...hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh...hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh..---....hhhhhhhhhhhhhhhhhh. Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript -------------------------------------------------------------------------------------------------------------------- Transcript
                 1yoz A   9 GHMLYINSFLDRMGEIIRGEKSVEEADKLLDQKNIFEMFRSDCEEILNLYKSGKAEKEEVQRNFYLLKTYVVSQLSIHFERLKEFAESKG---EKKLDPEVINEIALYIDRVEKEV 124
                                    18        28        38        48        58        68        78        88        98   |   108       118
                                                                                                                    98 102


Chain B from PDB  Type:PROTEIN  Length:116
 aligned with Y941_ARCFU | O29321 from UniProtKB/Swiss-Prot  Length:114

    Alignment length:116
                              1
                              |      8        18        28        38        48        58        68        78        88        98       108
           Y941_ARCFU     - --MLYINSFLDRMGEIIRGEKSVEEADKLLDQKNIFEMFRSDCEEILNLYKSGKAEKEEVQRNFYLLKTYVVSQLSIHFERLKEFAESKGFKIEKKLDPEVINEIALYIDRVEKEV 114
               SCOP domains d1yozb_ B: Hypothetical protein AF0941                                                                               SCOP domains
               CATH domains 1yozB00 B:9-124 Hypothetical protein af0941                                                                          CATH domains
               Pfam domains -------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ......hhhhhhhhhhhh...hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh...hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh........hhhhhhhhhhhhhhhhh.. Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript -------------------------------------------------------------------------------------------------------------------- Transcript
                 1yoz B   9 GHMLYINSFLDRMGEIIRGEKSVEEADKLLDQKNIFEMFRSDCEEILNLYKSGKAEKEEVQRNFYLLKTYVVSQLSIHFERLKEFAESKGFKIEKKLDPEVINEIALYIDRVEKEV 124
                                    18        28        38        48        58        68        78        88        98       108       118
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (1, 2)

Asymmetric/Biological Unit
(-)
Class: All alpha proteins (14657)

(-) CATH Domains  (1, 2)

Asymmetric/Biological Unit
(-)
Class: Mainly Alpha (13335)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 1YOZ)

(-) Gene Ontology  (0, 0)

Asymmetric/Biological Unit(hide GO term definitions)
    (no "Gene Ontology" information available for 1YOZ)

 Visualization

(-) Interactive Views

Asymmetric/Biological Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
(no "Ligands, Modified Residues, Ions" information available for 1yoz)

  Sites
(no "Sites" information available for 1yoz)

  Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 1yoz)


(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
[ Asym./Biol. Unit PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  1yoz
    Family and Domain Information: ProDom | SYSTERS
    General Structural Information: GlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in Membranes: OPM
    Protein Surface: SURFACE
    Secondary Structure: DSSP (structure derived) | HSSP (homology derived)
    Structural Genomics: GeneCensus
    Structural Neighbours: CE | VAST
    Structure Classification: CATH | Dali | SCOP
    Validation and Original Data: BMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  Y941_ARCFU | O29321
    Comparative Protein Structure Models: ModBase
    Genomic Information: Ensembl
    Protein-protein Interaction: DIP
    Sequence, Family and Domain Information: InterPro | Pfam | SMART | UniProtKB/SwissProt

Access by Enzyme Classificator   (EC Number)
  (no 'Enzyme Classificator' available)
    General Enzyme Information: BRENDA | EC-PDB | Enzyme | IntEnz
    Pathway: KEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease Information: OMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related Information: GenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain Information: XDom
    Interatomic Contacts of Structural Units: CSU
    Ligand-protein Contacts: LPC
    Protein Cavities: castP
    Sequence and Secondary Structure: PDBCartoon
    Structure Alignment: STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence Browser: STING

Access by UniProt ID/Accession number
  Y941_ARCFU | O29321
    Protein Disorder Prediction: DisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)

 Related Entries

(-) Entries Sharing at Least One Protein Chain (UniProt ID)

(no "Entries Sharing at Least One Protein Chain" available for 1YOZ)

(-) Related Entries Specified in the PDB File

(no "Related Entries Specified in the PDB File" available for 1YOZ)
