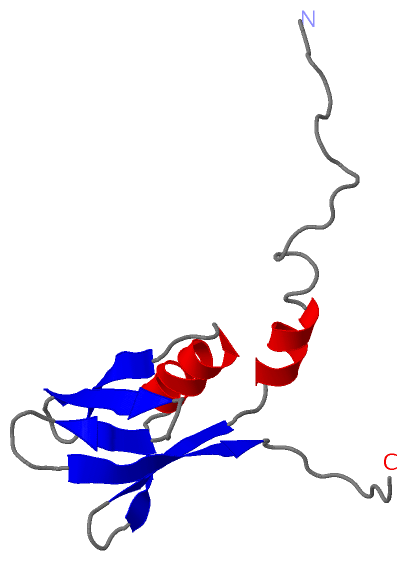

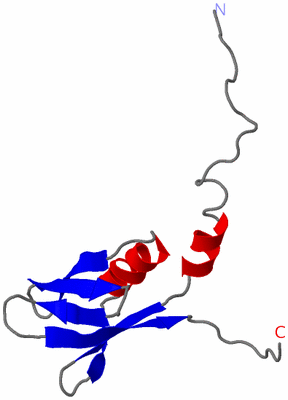

Image NMR Structure - model 1
NMR Structure - model 1  (Jmol Viewer)

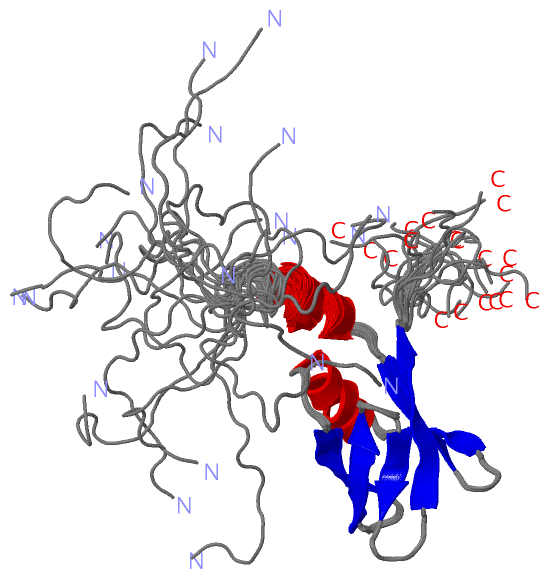

Image NMR Structure - all models
NMR Structure - all models  (Jmol Viewer)

(-) Description

Title :  SOLUTION STRUCTURE OF WWE DOMAIN IN PARP14 PROTEIN

Authors :  F. He, Y. Muto, M. Inoue, T. Kigawa, M. Shirouzu, T. Terada, S. Yokoyama, Riken Structural Genomics/Proteomics Initiative (Rsgi)
Date :  14 May 05  (Deposition) - 14 Nov 05  (Release) - 24 Feb 09  (Revision)
Method :  SOLUTION NMR
Resolution :  NOT APPLICABLE
Chains :  NMR Structure  :  A  (20x)
Keywords :  Nmr, Wwe Domain, Parp14 Protein, Structural Genomics, Nppsfa, National Project On Protein Structural And Functional Analyses, Riken Structural Genomics/Proteomics Initiative, Rsgi, Apoptosis (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  F. He, Y. Muto, M. Inoue, T. Kigawa, M. Shirouzu, T. Terada, S. Yokoyama
Solution Structure Of Wwe Domain In Parp14 Protein
To Be Published
PubMed: search
(for further references see the PDB file header)

(-) Compounds

Molecule 1 - PARP14 PROTEIN
    Chains: A
    Engineered: YES
    Expression System Plasmid: P050111-14
    Expression System Vector Type: PLASMID
    Fragment: WWE DOMAIN
    Gene: PARP14
    Organism Common: HOUSE MOUSE
    Organism Scientific: MUS MUSCULUS
    Organism Taxid: 10090
    Other Details: CELL FREE PROTEIN SYNTHESIS

 Structural Features

(-) Chains, Units


NMR Structure (20x):

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (0, 0)

(no "Ligand,Modified Residues,Ions" information available for 1X4R)

(-) Sites  (0, 0)

(no "Site" information available for 1X4R)

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 1X4R)

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 1X4R)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 1X4R)

(-) PROSITE Motifs  (2, 2)

NMR Structure (2, 2)
 PROSITEUniProtKBPDB
No.IDACDescriptionIDLocationCountLocation
1WWEPS50918 WWE domain profile.PAR14_MOUSE1539-1617  1A:15-93
2PARP_CATALYTICPS51059 PARP catalytic domain profile.PAR14_MOUSE1621-1817  1A:96-98

(-) Exons   (0, 0)

(no "Exon" information available for 1X4R)

(-) Sequences/Alignments

NMR Structure
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:99
 aligned with PAR14_MOUSE | Q2EMV9 from UniProtKB/Swiss-Prot  Length:1817

    Alignment length:179
                                  1458      1468      1478      1488      1498      1508      1518      1528      1538      1548      1558      1568      1578      1588      1598      1608      1618
         PAR14_MOUSE   1449 GSGVDSVNKTISWLKELITKEQLSYTNDDECVSDFDMEEYEKLNEIQKELNITIEMNQKKTSIQVSGISRDVIKARDEIEGMIKSIRLAKEKESQADYISTYVEWQYIDKNITQCFDKMTNMKLEVAWKAKKKDTVVQIHNQDFTVDLSTNTATAPQGQTFTVQRLVKAEAEIPANWSD 1627
               SCOP domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ..---------------------------------------------------------------.....-------------..........hhhhhhh...eeeee....eee..hhhhhhhhhhhh....eeeee....eeeee....eee.....eeeeeee.....--..--.. Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------WWE  PDB: A:15-93 UniProt: 1539-1617                                           ---PARP_CA PROSITE
                 Transcript ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                1x4r A    1 GS---------------------------------------------------------------SGSSG-------------KSIRLAKEKESQADYISTYVEWQYIDKNITQCFDKMTNMKLEVAWKAKKKDTVVQIHNQDFTVDLSTNTATAPQGQTFTVQRLVKASG--PS--SG   99
                             |       -         -         -         -         -         -     |   7         -   |    14        24        34        44        54        64        74        84        94|  ||  |
                             2                                                               3   7             8                                                                                     95 96| 98
                                                                                                                                                                                                         97
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (0, 0)

(no "SCOP Domain" information available for 1X4R)

(-) CATH Domains  (0, 0)

(no "CATH Domain" information available for 1X4R)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 1X4R)

(-) Gene Ontology  (9, 9)

NMR Structure(hide GO term definitions)
Chain A   (PAR14_MOUSE | Q2EMV9)
molecular function
    GO:0003950    NAD+ ADP-ribosyltransferase activity    Catalysis of the reaction: NAD+ + (ADP-D-ribosyl)(n)-acceptor = nicotinamide + (ADP-D-ribosyl)(n+1)-acceptor.
    GO:0005515    protein binding    Interacting selectively and non-covalently with any protein or protein complex (a complex of two or more proteins that may include other nonprotein molecules).
    GO:0016740    transferase activity    Catalysis of the transfer of a group, e.g. a methyl group, glycosyl group, acyl group, phosphorus-containing, or other groups, from one compound (generally regarded as the donor) to another compound (generally regarded as the acceptor). Transferase is the systematic name for any enzyme of EC class 2.
    GO:0016757    transferase activity, transferring glycosyl groups    Catalysis of the transfer of a glycosyl group from one compound (donor) to another (acceptor).
biological process
    GO:0006355    regulation of transcription, DNA-templated    Any process that modulates the frequency, rate or extent of cellular DNA-templated transcription.
    GO:0006351    transcription, DNA-templated    The cellular synthesis of RNA on a template of DNA.
cellular component
    GO:0005737    cytoplasm    All of the contents of a cell excluding the plasma membrane and nucleus, but including other subcellular structures.
    GO:0016020    membrane    A lipid bilayer along with all the proteins and protein complexes embedded in it an attached to it.
    GO:0005634    nucleus    A membrane-bounded organelle of eukaryotic cells in which chromosomes are housed and replicated. In most cells, the nucleus contains all of the cell's chromosomes except the organellar chromosomes, and is the site of RNA synthesis and processing. In some species, or in specialized cell types, RNA metabolism or DNA replication may be absent.
