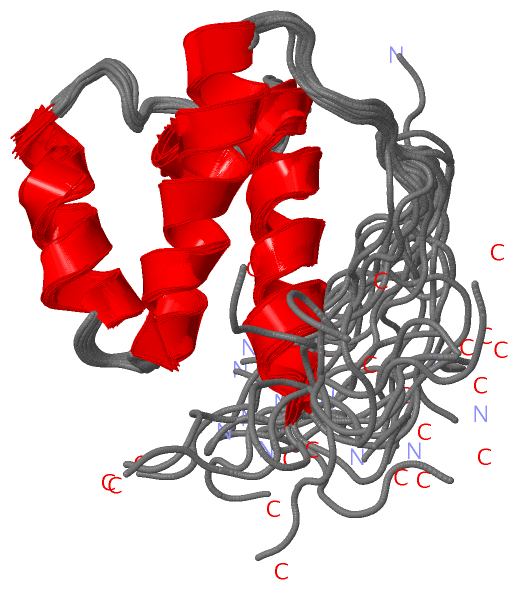

Image NMR Structure - all models
NMR Structure - all models  (Jmol Viewer)

(-) Description

Title :  SOLUTION STRUCTURE OF SURP DOMAIN IN SPLICING FACTOR 4

Authors :  F. He, Y. Muto, M. Inoue, T. Kigawa, M. Shirouzu, T. Terada, S. Yokoyama, Riken Structural Genomics/Proteomics Initiative (Rsgi)
Date :  14 May 05  (Deposition) - 14 Nov 05  (Release) - 24 Feb 09  (Revision)
Method :  SOLUTION NMR
Resolution :  NOT APPLICABLE
Chains :  NMR Structure  :  A  (20x)
Keywords :  Nmr, Surp Domain, Splicing Factor 4 (Sf4), Structural Genomics, Nppsfa, National Project On Protein Structural And Functional Analyses, Riken Structural Genomics/Proteomics Initiative, Rsgi, Rna Binding Protein (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  F. He, Y. Muto, M. Inoue, T. Kigawa, M. Shirouzu, T. Terada, S. Yokoyama
Solution Structure Of Surp Domain In Splicing Factor 4
To Be Published
PubMed: search
(for further references see the PDB file header)

(-) Compounds

Molecule 1 - SPLICING FACTOR 4
    Chains: A
    Engineered: YES
    Expression System Plasmid: P040614-02
    Expression System Vector Type: PLASMID
    Fragment: SURP DOMAIN
    Gene: SF4
    Organism Common: HOUSE MOUSE
    Organism Scientific: MUS MUSCULUS
    Organism Taxid: 10090
    Other Details: CELL FREE PROTEIN SYNTHESIS

 Structural Features

(-) Chains, Units


NMR Structure (20x):

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (0, 0)

(no "Ligand,Modified Residues,Ions" information available for 1X4O)

(-) Sites  (0, 0)

(no "Site" information available for 1X4O)

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 1X4O)

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 1X4O)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 1X4O)

(-) PROSITE Motifs  (1, 1)

NMR Structure (1, 1)
 PROSITEUniProtKBPDB
No.IDACDescriptionIDLocationCountLocation
1SURPPS50128 SURP motif repeat profile.SUGP1_MOUSE187-229
262-305		  1-
A:20-63

(-) Exons   (0, 0)

(no "Exon" information available for 1X4O)

(-) Sequences/Alignments

NMR Structure
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:78
 aligned with SUGP1_MOUSE | Q8CH02 from UniProtKB/Swiss-Prot  Length:643

    Alignment length:79
                                   252       262       272       282       292       302       312
          SUGP1_MOUSE   243 KPQAATQKVSPPEDEEAKNLAEKLARFIADGGPEVETIALQNNRENQAFSFLYDPNSQGYRYYRQKLDEFRKAKAGSTG 321
               SCOP domains -------d1x4oa1 A:8-72 Splicing factor 4                                 ------- SCOP domains
               CATH domains ------------------------------------------------------------------------------- CATH domains
               Pfam domains ----------------Surp-1x4oA01 A:17-71                                   -------- Pfam domains
         Sec.struct. author ..............hhhhhhhhhhhhhhhh....hhhhhhhhhhh.....hhh....hhhhhhhhhhhhhhh...-... Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -------------------SURP  PDB: A:20-63 UniProt: 262-305         ---------------- PROSITE
                 Transcript ------------------------------------------------------------------------------- Transcript
                 1x4o A   1 GSSGSSGKVSPPEDEEAKNLAEKLARFIADGGPEVETIALQNNRENQAFSFLYDPNSQGYRYYRQKLDEFRKSGP-SSG  78
                                    10        20        30        40        50        60        70    | |
                                                                                                     75 |
                                                                                                       76
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (1, 1)

NMR Structure
(-)
Class: All alpha proteins (14657)

(-) CATH Domains  (0, 0)

(no "CATH Domain" information available for 1X4O)

(-) Pfam Domains  (1, 1)

NMR Structure
(-)
Clan: no clan defined [family: Surp] (3)

(-) Gene Ontology  (7, 7)

NMR Structure(hide GO term definitions)
Chain A   (SUGP1_MOUSE | Q8CH02)
molecular function
    GO:0003723    RNA binding    Interacting selectively and non-covalently with an RNA molecule or a portion thereof.
    GO:0003676    nucleic acid binding    Interacting selectively and non-covalently with any nucleic acid.
biological process
    GO:0006396    RNA processing    Any process involved in the conversion of one or more primary RNA transcripts into one or more mature RNA molecules.
    GO:0008380    RNA splicing    The process of removing sections of the primary RNA transcript to remove sequences not present in the mature form of the RNA and joining the remaining sections to form the mature form of the RNA.
    GO:0006397    mRNA processing    Any process involved in the conversion of a primary mRNA transcript into one or more mature mRNA(s) prior to translation into polypeptide.
cellular component
    GO:0005634    nucleus    A membrane-bounded organelle of eukaryotic cells in which chromosomes are housed and replicated. In most cells, the nucleus contains all of the cell's chromosomes except the organellar chromosomes, and is the site of RNA synthesis and processing. In some species, or in specialized cell types, RNA metabolism or DNA replication may be absent.
    GO:0005681    spliceosomal complex    Any of a series of ribonucleoprotein complexes that contain snRNA(s) and small nuclear ribonucleoproteins (snRNPs), and are formed sequentially during the spliceosomal splicing of one or more substrate RNAs, and which also contain the RNA substrate(s) from the initial target RNAs of splicing, the splicing intermediate RNA(s), to the final RNA products. During cis-splicing, the initial target RNA is a single, contiguous RNA transcript, whether mRNA, snoRNA, etc., and the released products are a spliced RNA and an excised intron, generally as a lariat structure. During trans-splicing, there are two initial substrate RNAs, the spliced leader RNA and a pre-mRNA.

 Visualization

(-) Interactive Views

NMR Structure
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
(no "Ligands, Modified Residues, Ions" information available for 1x4o)

  Sites
(no "Sites" information available for 1x4o)

  Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 1x4o)


(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
[ NMR Structure - model 1 PNG format | NMR Structure - all models PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  1x4o
    Family and Domain Information: ProDom | SYSTERS
    General Structural Information: GlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in Membranes: OPM
    Protein Surface: SURFACE
    Secondary Structure: DSSP (structure derived) | HSSP (homology derived)
    Structural Genomics: GeneCensus
    Structural Neighbours: CE | VAST
    Structure Classification: CATH | Dali | SCOP
    Validation and Original Data: BMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  SUGP1_MOUSE | Q8CH02
    Comparative Protein Structure Models: ModBase
    Genomic Information: Ensembl
    Protein-protein Interaction: DIP
    Sequence, Family and Domain Information: InterPro | Pfam | SMART | UniProtKB/SwissProt

Access by Enzyme Classificator   (EC Number)
  (no 'Enzyme Classificator' available)
    General Enzyme Information: BRENDA | EC-PDB | Enzyme | IntEnz
    Pathway: KEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease Information: OMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related Information: GenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain Information: XDom
    Interatomic Contacts of Structural Units: CSU
    Ligand-protein Contacts: LPC
    Protein Cavities: castP
    Sequence and Secondary Structure: PDBCartoon
    Structure Alignment: STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence Browser: STING

Access by UniProt ID/Accession number
  SUGP1_MOUSE | Q8CH02
    Protein Disorder Prediction: DisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)

 Related Entries

(-) Entries Sharing at Least One Protein Chain (UniProt ID)

UniProtKB/Swiss-Prot
        SUGP1_MOUSE | Q8CH02: 1ug0

(-) Related Entries Specified in the PDB File

(no "Related Entries Specified in the PDB File" available for 1X4O)
