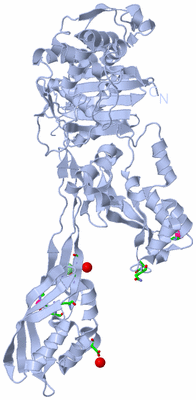

Image Biol. Unit 1 - sites
Biol. Unit 1 - sites  (Jmol Viewer)
Image Biological Unit 2
Biological Unit 2  (Jmol Viewer)

(-) Description

Title :  STRUCTURE OF PENICILLIN BINDING PROTEIN 2A FROM METHICILLIN RESISTANT STAPHYLOCOCCUS AUREUS STRAIN 27R AT 1.80 A RESOLUTION.

Authors :  D. Lim, N. C. J. Strynadka
Date :  17 Dec 04  (Deposition) - 28 Dec 04  (Release) - 24 Feb 09  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  1.80
Chains :  Asym. Unit :  A,B
Biol. Unit 1:  A  (1x)
Biol. Unit 2:  B  (1x)
Keywords :  Penicillin Binding Protein, Beta-Lactam, D, D- Transpeptidase, D-Carboxypeptidase, Biosynthetic Protein (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  D. Lim, N. C. J. Strynadka
Structural Basis For The Beta Lactam Resistance Of Pbp2A From Methicillin-Resistant Staphylococcus Aureus.
Nat. Struct. Biol. V. 9 870 2002
PubMed-ID: 12389036
(for further references see the PDB file header)

(-) Compounds

Molecule 1 - PENICILLIN-BINDING PROTEIN MECA, LOW-AFFINITY
    Chains: A, B
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Strain: BL21 LAMDA DE3
    Expression System Taxid: 562
    Expression System Vector Type: PET41A DERIVATIVE
    Fragment: RESIDUES 23-668
    Gene: MECA
    Mutation: YES
    Organism Scientific: STAPHYLOCOCCUS AUREUS
    Organism Taxid: 1280
    Synonym: SAUPBP2A

 Structural Features

(-) Chains, Units

  12
Asymmetric Unit : AB
Biological Unit 1 (1x): A
Biological Unit 2 (1x):  B

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (2, 11)

Asymmetric Unit (2, 11)
No.NameCountTypeFull Name
1CD7Ligand/IonCADMIUM ION
2CL4Ligand/IonCHLORIDE ION
Biological Unit 1 (0, 0)
No.NameCountTypeFull Name
1CD-1Ligand/IonCADMIUM ION
2CL-1Ligand/IonCHLORIDE ION
Biological Unit 2 (0, 0)
No.NameCountTypeFull Name
1CD-1Ligand/IonCADMIUM ION
2CL-1Ligand/IonCHLORIDE ION

(-) Sites  (11, 11)

Asymmetric Unit (11, 11)
No.NameEvidenceResiduesDescription
01AC1SOFTWAREHIS A:143 , GLU A:145 , CL A:1009 , HOH A:1133 , GLU B:145BINDING SITE FOR RESIDUE CD B 1001
02AC2SOFTWAREGLU A:145 , HOH A:1134 , HIS B:143 , GLU B:145 , CL B:1008BINDING SITE FOR RESIDUE CD B 1002
03AC3SOFTWAREASP A:209 , GLY B:135 , HIS B:311 , CL B:1010BINDING SITE FOR RESIDUE CD B 1003
04AC4SOFTWAREHIS A:232 , GLU B:378BINDING SITE FOR RESIDUE CD A 1004
05AC5SOFTWAREGLY A:135 , HIS A:311 , HOH A:1132 , ASP B:209 , CL B:1011BINDING SITE FOR RESIDUE CD A 1005
06AC6SOFTWAREGLU A:59 , HOH A:1210 , HIS B:232BINDING SITE FOR RESIDUE CD B 1006
07AC7SOFTWAREASN B:569 , ASP B:573 , HOH B:1171 , HOH B:1172 , HOH B:1173BINDING SITE FOR RESIDUE CD B 1007
08AC8SOFTWAREGLU A:145 , GLU B:145 , THR B:300 , CD B:1002BINDING SITE FOR RESIDUE CL B 1008
09AC9SOFTWAREGLU A:145 , THR A:300 , CD B:1001BINDING SITE FOR RESIDUE CL A 1009
10BC1SOFTWAREGLN A:207 , GLY B:135 , GLN B:137 , GLN B:140 , HIS B:311 , CD B:1003BINDING SITE FOR RESIDUE CL B 1010
11BC2SOFTWAREGLN A:137 , GLN A:140 , HIS A:311 , CD A:1005 , GLN B:207BINDING SITE FOR RESIDUE CL B 1011

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 1VQQ)

(-) Cis Peptide Bonds  (2, 2)

Asymmetric Unit
No.Residues
1Thr A:363 -Pro A:364
2Thr B:363 -Pro B:364

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 1VQQ)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 1VQQ)

(-) Exons   (0, 0)

(no "Exon" information available for 1VQQ)

(-) Sequences/Alignments

Asymmetric Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:635
 aligned with Q2PF50_STAAU | Q2PF50 from UniProtKB/TrEMBL  Length:668

    Alignment length:642
                                    36        46        56        66        76        86        96       106       116       126       136       146       156       166       176       186       196       206       216       226       236       246       256       266       276       286       296       306       316       326       336       346       356       366       376       386       396       406       416       426       436       446       456       466       476       486       496       506       516       526       536       546       556       566       576       586       596       606       616       626       636       646       656       666
         Q2PF50_STAAU    27 DKEINNTIDAIEDKNFKQVYKDSSYISKSDNGEVEMTERPIKIYNSLGVKDINIQDRKIKKVSKNKKRVDAQYKIKTNYGNIDRNVQFNFVKEDGMWKLDWDHSVIIPGMQKDQSIHIEKLKSERGKILDRNNVELANTGTAYEIGIVPKNVSKKDYKAIAKELSISEDYIKQQMDQNWVQDDTFVPLKTVKKMDEYLSDFAKKFHLTTNETESRNYPLEKATSHLLGYVGPINSEELKQKEYKGYKDDAVIGKKGLEKLYDKKLQHEDGYRVTIVDDNSNTIAHTLIEKKKKDGKDIQLTIDAKVQKSIYNNMKNDYGSGTAIHPQTGELLALVSTPSYDVYPFMYGMSNEEYNKLTEDKKEPLLNKFQITTSPGSTQKILTAMIGLNNKTLDDKTSYKIDGKGWQKDKSWGGYNVTRYEVVNGNIDLKQAIESSDNIFFARVALELGSKKFEKGMKKLGVGEDIPSDYPFYNAQISNKNLDNEILLADSGYGQGEILINPVQILSIYSALENNGNINAPHLLKDTKNKVWKKNIISKENINLLTDGMQQVVNKTHKEDIYRSYANLIGKSGTAELKMKQGETGRQIGWFISYDKDNPNMMMAINVKDVQDKGMASYNAKISGKVYDELYENGNKKYDIDE 668
               SCOP domains d1vqqa1 A:27-138 Penicillin binding protein 2a (PBP2A), N-terminal domain                                       d1vqqa2 A:139-327 Penicillin binding protein 2a (PBP2A), middle domain                                                                                                                       d1vqqa3 A:328-668 Penicillin binding protein 2a (PBP2A), C-terminal domain                                                                                                                                                                                                                                                                            SCOP domains
               CATH domains 1vqqA01 A:27-135 NTF2-like; domain 1                                                                         1vqqA02 A:136-167,A:238-326     1vqqA03 A:168-237 Penicillin-binding protein 2a; domain 3             1vqqA02 A:136-167,A:238-326 Penicillin-binding protein 2a (Domain 2 )                    1vqqA04 A:327-665 DD-peptidase/beta-lactamase superfamily                                                                                                                                                                                                                                                                                          --- CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Pfam domains
         Sec.struct. author hhhhhhhhhhhhh.hhhhhhhh.hhhhhhhhhhhhhhhhhhhhhhhhh...eeeeeeeeeeee..eeeeeeeeeeee..eeeeeeeeeeeee....eee..hhhhh.......eeeeeeee......ee.....eeeeeeeeeeeeehhhhh...hhhhhhhhhh.hhhhhhhhhh.........eeeeee...hhhhhhhhhhh..eeeeeeeee..hhhhhhhhhh.eee...hhhhhhhhh......eee.hhhhhhhhhhhh...eeeeeeee.-...eeeeeeee.......ee...hhhhhhhhhhhhh...eeeeee......eeeeeee....hhhhhhh.hhhhhhhhhh...............hhhhhhhhhhhhhhhh.......eeee...ee..hhhhh...ee......eeeehhhhhhh.hhhhhhhhhhhhhhhhhhhhhhhh.......................hhhhhhhhhh.......hhhhhhhhhhhhhh...ee...........eee....hhhhhhhhhhhhhhhhhh............eeeeeeeee..------..eeeeeeeee......eeeeeee......hhhhhhhhhhhhhhhhhhhhh....... Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Transcript
                 1vqq A  27 DKEINNTIDAIEDKNFKQVYKDSSYISKSDNGEVEMTERPIKIYNSLGVKDINIQDRKIKKVSKNKKRVDAQYKIKTNYGNIDRNVQFNFVKEDGMWKLDWDHSVIIPGMQKDQSIHIENLKSERGKILDRNNVELANTGTAYEIGIVPKNVSKKDYKAIAKELSISEDYIKQQMDQNWVQDDTFVPLKTVKKMDEYLSDFAKKFHLTTNETESRNYPLEKATSHLLGYVGPINSEELKQKEYKGYKDDAVIGKKGLEKLYDKKLQHEDGYRVTIVDD-SNTIAHTLIEKKKKDGKDIQLTIDAKVQKSIYNNMKNDYGSGTAIHPQTGELLALVSTPSYDVYPFMYGMSNEEYNKLTEDKKEPLLNKFQITTSPGSTQKILTAMIGLNNKTLDDKTSYKIDGKGWQKDKSWGGYNVTRYEVVNGNIDLKQAIESSDNIFFARVALELGSKKFEKGMKKLGVGEDIPSDYPFYNAQISNKNLDNEILLADSGYGQGEILINPVQILSIYSALENNGNINAPHLLKDTKNKVWKKNIISKENINLLTDGMQQVVNKTHKEDIYRSYANLIGKSGTAELK------GRQIGWFISYDKDNPNMMMAINVKDVQDKGMASYNAKISGKVYDELYENGNKKYDIDE 668
                                    36        46        56        66        76        86        96       106       116       126       136       146       156       166       176       186       196       206       216       226       236       246       256       266       276       286       296       306       316       326       336       346       356       366       376       386       396       406       416       426       436       446       456       466       476       486       496       506       516       526       536       546       556       566       576       586       596       | -    |  616       626       636       646       656       666
                                                                                                                                                                                                                                                                                                               304 |                                                                                                                                                                                                                                                                                                       604    611
                                                                                                                                                                                                                                                                                                                 306


Chain B from PDB  Type:PROTEIN  Length:625
 aligned with Q2PF50_STAAU | Q2PF50 from UniProtKB/TrEMBL  Length:668

    Alignment length:642
                                    36        46        56        66        76        86        96       106       116       126       136       146       156       166       176       186       196       206       216       226       236       246       256       266       276       286       296       306       316       326       336       346       356       366       376       386       396       406       416       426       436       446       456       466       476       486       496       506       516       526       536       546       556       566       576       586       596       606       616       626       636       646       656       666
         Q2PF50_STAAU    27 DKEINNTIDAIEDKNFKQVYKDSSYISKSDNGEVEMTERPIKIYNSLGVKDINIQDRKIKKVSKNKKRVDAQYKIKTNYGNIDRNVQFNFVKEDGMWKLDWDHSVIIPGMQKDQSIHIEKLKSERGKILDRNNVELANTGTAYEIGIVPKNVSKKDYKAIAKELSISEDYIKQQMDQNWVQDDTFVPLKTVKKMDEYLSDFAKKFHLTTNETESRNYPLEKATSHLLGYVGPINSEELKQKEYKGYKDDAVIGKKGLEKLYDKKLQHEDGYRVTIVDDNSNTIAHTLIEKKKKDGKDIQLTIDAKVQKSIYNNMKNDYGSGTAIHPQTGELLALVSTPSYDVYPFMYGMSNEEYNKLTEDKKEPLLNKFQITTSPGSTQKILTAMIGLNNKTLDDKTSYKIDGKGWQKDKSWGGYNVTRYEVVNGNIDLKQAIESSDNIFFARVALELGSKKFEKGMKKLGVGEDIPSDYPFYNAQISNKNLDNEILLADSGYGQGEILINPVQILSIYSALENNGNINAPHLLKDTKNKVWKKNIISKENINLLTDGMQQVVNKTHKEDIYRSYANLIGKSGTAELKMKQGETGRQIGWFISYDKDNPNMMMAINVKDVQDKGMASYNAKISGKVYDELYENGNKKYDIDE 668
               SCOP domains d1vqqb1 B:27-138 Penicillin binding protein 2a (PBP2A), N-ter      minal domain                                 d1vqqb2 B:139-327 Penicillin binding protein 2a (PBP2A), middle domain                                                                                                                       d1vqqb3 B:328-668 Penicillin binding protein 2a (PBP2A), C-terminal domain                                                                                                                                                                                                                                                                            SCOP domains
               CATH domains 1vqqB01 B:27-135 NTF2-like; domain 1                                                                         1vqqB02 B:136-167,B:238-326     1vqqB03 B:168-237 Penicillin-binding protein 2a; domain 3             1vqqB02 B:136-167,B:238-326 Penicillin-binding protein 2a (Domain 2 )                    1vqqB04 B:327-665 DD-peptidase/beta-lactamase superfamily                                                                                                                                                                                                                                                                                          --- CATH domains
           Pfam domains (1) MecA_N-1vqqB03 B:27-140                                                                                           -----PBP_dimer-1vqqB05 B:146-313                                                                                                                                             -------------------------------Transpeptidase-1vqqB01 B:345-658                                                                                                                                                                                                                                                                                          ---------- Pfam domains (1)
           Pfam domains (2) MecA_N-1vqqB04 B:27-140                                                                                           -----PBP_dimer-1vqqB06 B:146-313                                                                                                                                             -------------------------------Transpeptidase-1vqqB02 B:345-658                                                                                                                                                                                                                                                                                          ---------- Pfam domains (2)
         Sec.struct. author hhhhhhhhhhhhh.hhhhhhhh.hhhhhhhhhhhhhhhhhhhhhhhhh...eeeeeeee..------.eeeeeeeee..eeeeeeeee.eeee..eeee..hhhhh.......eeeeeeee......ee.....eeeeeeeeeeeeehhhhhhhhhhhhhhhhhh.hhhhhhhhhh.........eeeeee...hhhhhhhhhhh..eeeeeeeee..hhhhhhhhhheeee.hhhhhhhhhhh......eeeeehhhhhhhhhhh...eeeeeeee.-...eeeeeeee.......ee...hhhhhhhhhhhhh..eeeeeee......eeeeeee....hhhhhhh.hhhhhhhhhh...............hhhhhhhhhhhhhhhh.......eeee...ee..hhhhh...ee......eeeehhhhhhh.hhhhhhhhhhhhhhhhhhhhhhhh.................----..hhhhhhhhh........hhhhhhhhhhhhhh...ee...........eee....hhhhhhhhhhhhhhhhhh.hhhhhh.....eeee..eee..------..eeeeeeeee......eeeeeee.......hhhhhhhhhhhhhhhhhhhh....... Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Transcript
                 1vqq B  27 DKEINNTIDAIEDKNFKQVYKDSSYISKSDNGEVEMTERPIKIYNSLGVKDINIQDRKIKK------RVDAQYKIKTNYGNIDRNVQFNFVKEDGMWKLDWDHSVIIPGMQKDQSIHIENLKSERGKILDRNNVELANTGTAYEIGIVPKNVSKKDYKAIAKELSISEDYIKQQMDQNWVQDDTFVPLKTVKKMDEYLSDFAKKFHLTTNETESRNYPLEKATSHLLGYVGPINSEELKQKEYKGYKDDAVIGKKGLEKLYDKKLQHEDGYRVTIVDD-SNTIAHTLIEKKKKDGKDIQLTIDAKVQKSIYNNMKNDYGSGTAIHPQTGELLALVSTPSYDVYPFMYGMSNEEYNKLTEDKKEPLLNKFQITTSPGSTQKILTAMIGLNNKTLDDKTSYKIDGKGWQKDKSWGGYNVTRYEVVNGNIDLKQAIESSDNIFFARVALELGSKKFEKGMKKLGVGEDIPSDYPFYNAQI----LDNEILLADSGYGQGEILINPVQILSIYSALENNGNINAPHLLKDTKNKVWKKNIISKENINLLTDGMQQVVNKTHKEDIYRSYANLIGKSGTAELK------GRQIGWFISYDKDNPNMMMAINVKDVQDKGMASYNAKISGKVYDELYENGNKKYDIDE 668
                                    36        46        56        66        76        86|      |96       106       116       126       136       146       156       166       176       186       196       206       216       226       236       246       256       266       276       286       296       306       316       326       336       346       356       366       376       386       396       406       416       426       436       446       456       466       476       486       496      |  - |     516       526       536       546       556       566       576       586       596       | -    |  616       626       636       646       656       666
                                                                                       87     94                                                                                                                                                                                                               304 |                                                                                                                                                                                                  503  508                                                                                             604    611
                                                                                                                                                                                                                                                                                                                 306
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (3, 6)

Asymmetric Unit
(-)
Class: Alpha and beta proteins (a+b) (23004)
(-)
Class: Multi-domain proteins (alpha and beta) (2421)

(-) CATH Domains  (4, 8)

Asymmetric Unit
(-)
Class: Alpha Beta (26913)

(-) Pfam Domains  (3, 6)

Asymmetric Unit
(-)
Clan: Beta-lactamase (210)
(-)
Clan: NTF2 (66)
(-)
Clan: no clan defined [family: PBP_dimer] (15)

(-) Gene Ontology  (4, 4)

Asymmetric Unit(hide GO term definitions)
Chain A,B   (Q2PF50_STAAU | Q2PF50)
molecular function
    GO:0008658    penicillin binding    Interacting selectively and non-covalently with penicillin, any antibiotic that contains the condensed beta-lactamthiazolidine ring system.
biological process
    GO:0046677    response to antibiotic    Any process that results in a change in state or activity of a cell or an organism (in terms of movement, secretion, enzyme production, gene expression, etc.) as a result of an antibiotic stimulus. An antibiotic is a chemical substance produced by a microorganism which has the capacity to inhibit the growth of or to kill other microorganisms.
cellular component
    GO:0016021    integral component of membrane    The component of a membrane consisting of the gene products and protein complexes having at least some part of their peptide sequence embedded in the hydrophobic region of the membrane.
    GO:0016020    membrane    A lipid bilayer along with all the proteins and protein complexes embedded in it an attached to it.

 Visualization

(-) Interactive Views

Asymmetric Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
    CD  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]
    CL  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]

  Sites
    AC1  [ RasMol ]  +environment [ RasMol ]
    AC2  [ RasMol ]  +environment [ RasMol ]
    AC3  [ RasMol ]  +environment [ RasMol ]
    AC4  [ RasMol ]  +environment [ RasMol ]
    AC5  [ RasMol ]  +environment [ RasMol ]
    AC6  [ RasMol ]  +environment [ RasMol ]
    AC7  [ RasMol ]  +environment [ RasMol ]
    AC8  [ RasMol ]  +environment [ RasMol ]
    AC9  [ RasMol ]  +environment [ RasMol ]
    BC1  [ RasMol ]  +environment [ RasMol ]
    BC2  [ RasMol ]  +environment [ RasMol ]

  Cis Peptide Bonds
    Thr A:363 - Pro A:364   [ RasMol ]
    Thr B:363 - Pro B:364   [ RasMol ]

Biological Units
  Complete Structure
    Biological Unit 1  [ Jena3D ]
    Biological Unit 2  [ Jena3D ]

(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
[ Asym. Unit PNG format | Asym. Unit - sites PNG format | Biol. Unit 1 PNG format | Biol. Unit 1 - sites PNG format | Biol. Unit 2 PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  1vqq
    Family and Domain Information: ProDom | SYSTERS
    General Structural Information: GlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in Membranes: OPM
    Protein Surface: SURFACE
    Secondary Structure: DSSP (structure derived) | HSSP (homology derived)
    Structural Genomics: GeneCensus
    Structural Neighbours: CE | VAST
    Structure Classification: CATH | Dali | SCOP
    Validation and Original Data: BMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  Q2PF50_STAAU | Q2PF50
    Comparative Protein Structure Models: ModBase
    Genomic Information: Ensembl
    Protein-protein Interaction: DIP
    Sequence, Family and Domain Information: InterPro | Pfam | SMART | UniProtKB/TrEMBL

Access by Enzyme Classificator   (EC Number)
  (no 'Enzyme Classificator' available)
    General Enzyme Information: BRENDA | EC-PDB | Enzyme | IntEnz
    Pathway: KEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease Information: OMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related Information: GenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain Information: XDom
    Interatomic Contacts of Structural Units: CSU
    Ligand-protein Contacts: LPC
    Protein Cavities: castP
    Sequence and Secondary Structure: PDBCartoon
    Structure Alignment: STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence Browser: STING

Access by UniProt ID/Accession number
  Q2PF50_STAAU | Q2PF50
    Protein Disorder Prediction: DisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)

 Related Entries

(-) Entries Sharing at Least One Protein Chain (UniProt ID)

(no "Entries Sharing at Least One Protein Chain" available for 1VQQ)

(-) Related Entries Specified in the PDB File

1mwr STRUCTURE OF SEMET PENICILLIN BINDING PROTEIN 2A FROM METHICILLIN RESISTANT STAPHYLOCOCCUS AUREUS STRAIN 27R (TRIGONAL FORM) AT 2.45 A RESOLUTION.
1mws STRUCTURE OF NITROCEFIN ACYL-PENICILLIN BINDING PROTEIN 2A FROM METHICILLIN RESISTANT STAPHYLOCOCCUS AUREUS STRAIN 27R AT 2.00 A RESOLUTION.
1mwt STRUCTURE OF PENICILLIN G ACYL-PENICILLIN BINDING PROTEIN 2A FROM METHICILLIN RESISTANT STAPHYLOCOCCUS AUREUS STRAIN 27R AT 2.45 A RESOLUTION.
1mwu STRUCTURE OF METHICILLIN ACYL-PENICILLIN BINDING PROTEIN 2A FROM METHICILLIN RESISTANT STAPHYLOCOCCUS AUREUS STRAIN 27R AT 2.60 A RESOLUTION.
