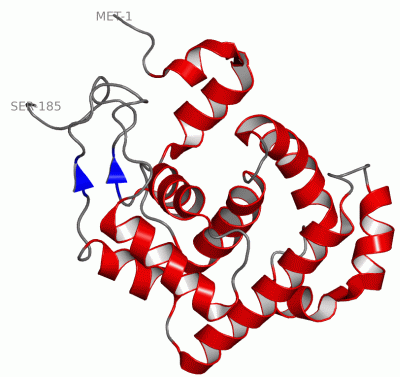

Image Theor.Model - manually
Theor.Model - manually  (Jmol Viewer)
Image Theoretical Model
Theoretical Model  (Jmol Viewer)

(-) Description

Title :  THEORETICAL MODEL STRUCTURE OF DNA-3-METHYLADENINE GLYCOSYLASE IN HAEMOPHILUS INFLUENZAE.

Authors :  J. Rajkumari, J. Deka, S. Mahanta, C. Baruah
Date :  21 Apr 04  (Deposition) - 26 Apr 04  (Release) - 26 Apr 04  (Revision)
Method :  THEORETICAL MODEL
Resolution :  NOT APPLICABLE
Chains :  Theor. Model :  A
Keywords :  Dna Repair, Hydrolase (Keyword Search: [Gene Ontology, PubMed, Web (Google))

Reference :  J. Rajkumari, J. Deka, S. Mahanta, C. Baruah
Theoretical Model Structure Of Dna-3-Methyladenine Glycosylase In Haemophilus Influenzae
To Be Published
PubMed: search
(for further references see the PDB file header)

(-) Compounds

Molecule 1 - DNA-3-METHYLADENINE GLYCOSYLASE
    ChainsA
    EC Number3.2.2.20
    Organism ScientificHAEMOPHILUS INFLUENZAE
    Synonym3-METHYLADENINE-DNA GLYCOSIDASE, TAG

 Structural Features

(-) Chains, Units


Theoretical Model

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (0, 0)

(no "Ligand,Modified Residues,Ions" information available for 1V1N)

(-) Sites  (0, 0)

(no "Site" information available for 1V1N)

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 1V1N)

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 1V1N)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 1V1N)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 1V1N)

(-) Exons   (0, 0)

(no "Exon" information available for 1V1N)

(-) Sequences/Alignments

Theoretical Model
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:185
 aligned with 3MGA_HAEIN | P44321 from UniProtKB/Swiss-Prot  Length:185

    Alignment length:185
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180
           3MGA_HAEIN     1 MTTRCPWVGEQSIYIDYHDKEWGKPEFDSQKLFEKICLEGQQAGLSWITVLKKRESYREAFHQFDPKKIAKMTALDIDACMQNSGLIRHRAKLEAIVKNAKAYLAMEKCGENFSDFIWSFVNHKPIVNDVPDLRSVPTKTEVSKALSKALKKRGFVFIGETTCYAFMQSMGLVDDHLNDCPCKTS 185
               SCOP domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ....hhhhhhhhhhhhhhhhhh.....hhhhhhhhhhhhhhh...hhhhhhhhhhhhhhhh...hhhhhhhhhhhhhhhhhhh.....hhhhhhhhhhhhhhhhhhhhhh.hhhhhhhhhh....ee............hhhhhhhhhhhhhhh....hhhhhhhhhhhhh.ee........... Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1v1n A   1 MTTRCPWVGEQSIYIDYHDKEWGKPEFDSQKLFEKICLEGQQAGLSWITVLKKRESYREAFHQFDPKKIAKMTALDIDACMQNSGLIRHRAKLEAIVKNAKAYLAMEKCGENFSDFIWSFVNHKPIVNDVPDLRSVPTKTEVSKALSKALKKRGFVFIGETTCYAFMQSMGLVDDHLNDCPCKTS 185
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180

   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (0, 0)

(no "SCOP Domain" information available for 1V1N)

(-) CATH Domains  (0, 0)

(no "CATH Domain" information available for 1V1N)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 1V1N)

(-) Gene Ontology  (7, 7)

Theoretical Model(hide GO term definitions)
Chain A   (3MGA_HAEIN | P44321)
molecular function
    GO:0008725    DNA-3-methyladenine glycosylase activity    Catalysis of the reaction: DNA containing 3-methyladenine + H2O = DNA with abasic site + 3-methyladenine. This reaction is the hydrolysis of DNA by cleavage of the N-C1' glycosidic bond between the damaged DNA 3-methyladenine and the deoxyribose sugar to remove the 3-methyladenine, leaving an abasic site.
    GO:0003824    catalytic activity    Catalysis of a biochemical reaction at physiological temperatures. In biologically catalyzed reactions, the reactants are known as substrates, and the catalysts are naturally occurring macromolecular substances known as enzymes. Enzymes possess specific binding sites for substrates, and are usually composed wholly or largely of protein, but RNA that has catalytic activity (ribozyme) is often also regarded as enzymatic.
    GO:0016787    hydrolase activity    Catalysis of the hydrolysis of various bonds, e.g. C-O, C-N, C-C, phosphoric anhydride bonds, etc. Hydrolase is the systematic name for any enzyme of EC class 3.
    GO:0046872    metal ion binding    Interacting selectively and non-covalently with any metal ion.
biological process
    GO:0006281    DNA repair    The process of restoring DNA after damage. Genomes are subject to damage by chemical and physical agents in the environment (e.g. UV and ionizing radiations, chemical mutagens, fungal and bacterial toxins, etc.) and by free radicals or alkylating agents endogenously generated in metabolism. DNA is also damaged because of errors during its replication. A variety of different DNA repair pathways have been reported that include direct reversal, base excision repair, nucleotide excision repair, photoreactivation, bypass, double-strand break repair pathway, and mismatch repair pathway.
    GO:0006284    base-excision repair    In base excision repair, an altered base is removed by a DNA glycosylase enzyme, followed by excision of the resulting sugar phosphate. The small gap left in the DNA helix is filled in by the sequential action of DNA polymerase and DNA ligase.
    GO:0006974    cellular response to DNA damage stimulus    Any process that results in a change in state or activity of a cell (in terms of movement, secretion, enzyme production, gene expression, etc.) as a result of a stimulus indicating damage to its DNA from environmental insults or errors during metabolism.

 Visualization

(-) Interactive Views

Theoretical Model
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
(no "Ligands, Modified Residues, Ions" information available for 1v1n)

  Sites
(no "Sites" information available for 1v1n)

  Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 1v1n)


(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
