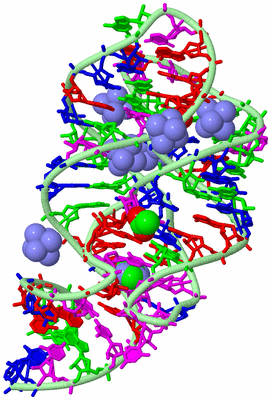

Image Asym./Biol. Unit
Asym./Biol. Unit  (Jmol Viewer)

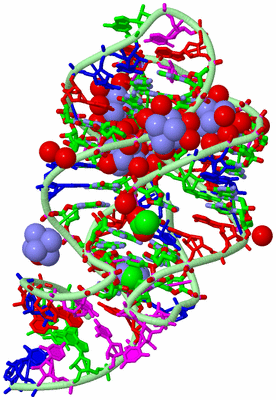

Image Asym./Biol. Unit - sites
Asym./Biol. Unit - sites  (Jmol Viewer)

(-) Description

Title :  CRYSTAL STRUCTURE OF THE XPT-PBUX GUANINE RIBOSWITCH APTAMER DOMAIN IN COMPLEX WITH HYPOXANTHINE

Authors :  C. D. Stoddard, J. J. Trausch, J. Widmann, J. Marcano, R. Knight, R. T. Ba
Date :  29 May 12  (Deposition) - 27 Jun 12  (Release) - 27 Jun 12  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  1.32
Chains :  Asym./Biol. Unit :  B
Keywords :  Three-Way Junction With Distal Tertiary Interaction, Gene Regulatory Element, Hypoxanthine, Rna (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  R. T. Batey, S. D. Gilbert, R. K. Montange
Structure Of A Natural Guanine-Responsive Riboswitch Complexed With The Metabolite Hypoxanthine.
Nature V. 432 411 2004
PubMed-ID: 15549109  |  Reference-DOI: 10.1038/NATURE03037

(-) Compounds

Molecule 1 - XPT-PBUX GUANINE RIBOSWITCH APTAMER DOMAIN
    Chains: B
    Engineered: YES
    Other Details: T7 RNA TRANSCRIPT
    Synthetic: YES

 Structural Features

(-) Chains, Units

  1
Asymmetric/Biological Unit : B

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (3, 9)

Asymmetric/Biological Unit (3, 9)
No.NameCountTypeFull Name
1ACT2Ligand/IonACETATE ION
2HPA1Ligand/IonHYPOXANTHINE
3NCO6Ligand/IonCOBALT HEXAMMINE(III)

(-) Sites  (9, 9)

Asymmetric Unit (9, 9)
No.NameEvidenceResiduesDescription
1AC1SOFTWAREA B:21 , U B:22 , U B:47 , U B:51 , A B:52 , A B:73 , C B:74 , U B:75 , HOH B:398BINDING SITE FOR RESIDUE HPA B 101
2AC2SOFTWAREG B:32 , A B:33 , G B:38 , C B:39 , A B:66 , U B:67 , HOH B:308BINDING SITE FOR RESIDUE ACT B 102
3AC3SOFTWAREA B:23 , U B:25 , C B:26 , G B:46 , HOH B:763BINDING SITE FOR RESIDUE ACT B 103
4AC4SOFTWAREG B:29 , U B:30 , A B:66 , U B:67 , HOH B:346 , HOH B:348 , HOH B:370 , HOH B:380 , HOH B:582 , HOH B:798 , HOH B:809BINDING SITE FOR RESIDUE NCO B 104
5AC5SOFTWAREU B:30 , G B:31 , G B:32 , A B:65 , A B:66 , HOH B:303 , HOH B:344 , HOH B:367 , HOH B:468 , HOH B:812BINDING SITE FOR RESIDUE NCO B 105
6AC6SOFTWAREG B:38 , G B:56 , G B:57 , C B:58 , HOH B:324 , HOH B:404 , HOH B:429 , HOH B:462 , HOH B:473 , HOH B:578 , HOH B:586 , HOH B:824BINDING SITE FOR RESIDUE NCO B 106
7AC7SOFTWAREG B:37 , G B:38 , HOH B:343 , HOH B:400 , HOH B:425 , HOH B:489 , HOH B:493 , HOH B:539 , HOH B:657 , HOH B:756BINDING SITE FOR RESIDUE NCO B 107
8AC8SOFTWAREC B:39 , G B:55 , G B:56 , G B:57 , G B:68 , U B:69 , HOH B:314 , HOH B:328 , HOH B:329 , HOH B:355 , HOH B:475 , HOH B:514BINDING SITE FOR RESIDUE NCO B 108
9AC9SOFTWAREU B:36 , G B:42 , C B:43 , G B:72 , A B:73 , HOH B:583 , HOH B:602BINDING SITE FOR RESIDUE NCO B 109

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 4FE5)

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 4FE5)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 4FE5)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 4FE5)

(-) Exons   (0, 0)

(no "Exon" information available for 4FE5)

(-) Sequences/Alignments

Asymmetric/Biological Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain B from PDB  Type:RNA  Length:67

                  4fe5 B 15 GGACAUAUAAUCGCGUGGAUAUGGCACGCAAGUUUCUACCGGGCACCGUAAAUGUCCGACUAUGUCC 81
                                    24        34        44        54        64        74
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (0, 0)

(no "SCOP Domain" information available for 4FE5)

(-) CATH Domains  (0, 0)

(no "CATH Domain" information available for 4FE5)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 4FE5)

(-) Gene Ontology  (0, 0)

Asymmetric/Biological Unit(hide GO term definitions)
    (no "Gene Ontology" information available for 4FE5)

 Visualization

(-) Interactive Views

Asymmetric/Biological Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
    ACT  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]
    HPA  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]
    NCO  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]

  Sites
    AC1  [ RasMol ]  +environment [ RasMol ]
    AC2  [ RasMol ]  +environment [ RasMol ]
    AC3  [ RasMol ]  +environment [ RasMol ]
    AC4  [ RasMol ]  +environment [ RasMol ]
    AC5  [ RasMol ]  +environment [ RasMol ]
    AC6  [ RasMol ]  +environment [ RasMol ]
    AC7  [ RasMol ]  +environment [ RasMol ]
    AC8  [ RasMol ]  +environment [ RasMol ]
    AC9  [ RasMol ]  +environment [ RasMol ]

  Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 4fe5)


(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick

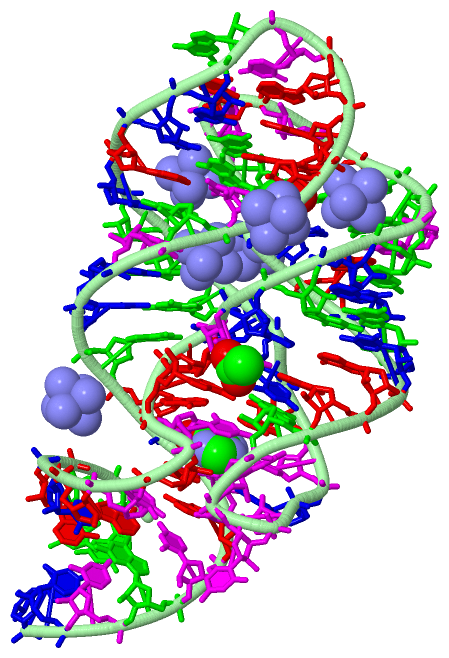

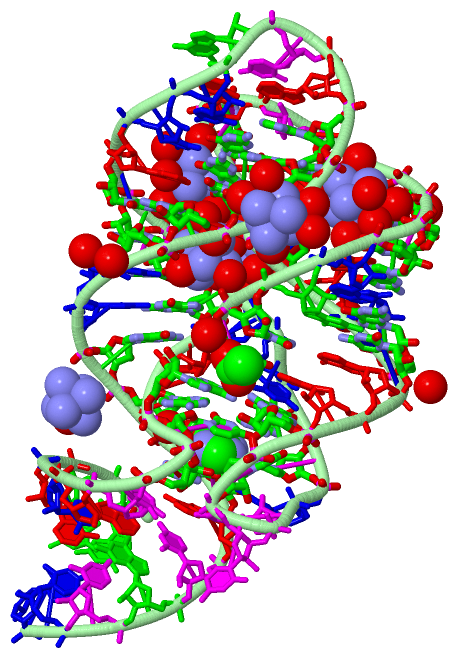

[ Asym./Biol. Unit PNG format | Asym./Biol. Unit - sites PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  4fe5
    Family and Domain Information: ProDom | SYSTERS
    General Structural Information: GlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in Membranes: OPM
    Protein Surface: SURFACE
    Secondary Structure: DSSP | HSSP
    Structural Genomics: GeneCensus
    Structural Neighbours: CE | VAST
    Structure Classification: CATH | Dali | SCOP
    Validation and Original Data: BMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  (no 'UniProt ID/Accession number' available) |
    Comparative Protein Structure Models: ModBase
    Genomic Information: Ensembl
    Protein-protein Interaction: DIP
    Sequence, Family and Domain Information: InterPro | Pfam | SMART | UniProt

Access by Enzyme Classificator   (EC Number)
  (no 'Enzyme Classificator' available)
    General Enzyme Information: BRENDA | EC-PDB | Enzyme | IntEnz
    Pathway: KEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease Information: OMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related Information: GenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain Information: XDom
    Interatomic Contacts of Structural Units: CSU
    Ligand-protein Contacts: LPC
    Protein Cavities: castP
    Sequence and Secondary Structure: PDBCartoon
    Structure Alignment: STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence Browser: STING

Access by UniProt ID/Accession number
  (no 'UniProt ID/Accession number' available) |
    Protein Disorder Prediction: DisEMBL | FoldIndex | GLOBPLOT

 Related Entries

(-) Entries Sharing at Least One Protein Chain (UniProt ID)

(no "Entries Sharing at Least One Protein Chain" available for 4FE5)

(-) Related Entries Specified in the PDB File

4fej 4fel 4fen 4feo 4fep
