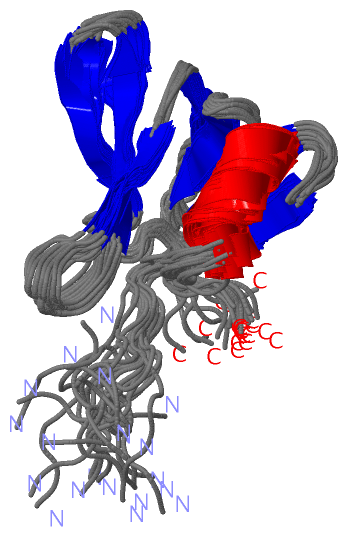

Image NMR Structure - all models
NMR Structure - all models  (Jmol Viewer)

(-) Description

Title :  SOLUTION STRUCTURE OF YAEO, A RHO-SPECIFIC INHIBITOR OF TRANSCRIPTION TERMINATION

Authors :  P. Gutierrez, K. Gehring, Montreal-Kingston Bacterial Structural Genomics Initiative (Bsgi)
Date :  23 Feb 04  (Deposition) - 12 Jul 05  (Release) - 24 Feb 09  (Revision)
Method :  SOLUTION NMR
Resolution :  NOT APPLICABLE
Chains :  NMR Structure  :  A  (20x)
Keywords :  A+B Protein, Montreal-Kingston Bacterial Structural Genomics Initiative, Bsgi, Structural Genomics, Transcription, Protein Binding (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  P. Gutierrez, G. Kozlov, L. Gabrielli, D. Elias, M. J. Osborne, I. E. Gallouzi, K. Gehring
Solution Structure Of Yaeo, A Rho-Specific Inhibitor Of Transcription Termination
J. Biol. Chem. V. 282 23348 2007
PubMed-ID: 17565995  |  Reference-DOI: 10.1074/JBC.M702010200
(for further references see the PDB file header)

(-) Compounds

Molecule 1 - ORF, HYPOTHETICAL PROTEIN
    Chains: A
    Engineered: YES
    Expression System: ESCHERICHIA COLI BL21
    Expression System Plasmid: PET15B
    Expression System Strain: BL21
    Expression System Taxid: 511693
    Expression System Vector Type: PLASMID
    Gene: YAEO
    Organism Scientific: ESCHERICHIA COLI
    Organism Taxid: 562

 Structural Features

(-) Chains, Units


NMR Structure (20x):

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (0, 0)

(no "Ligand,Modified Residues,Ions" information available for 1SG5)

(-) Sites  (0, 0)

(no "Site" information available for 1SG5)

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 1SG5)

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 1SG5)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 1SG5)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 1SG5)

(-) Exons   (0, 0)

(no "Exon" information available for 1SG5)

(-) Sequences/Alignments

NMR Structure
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:86
 aligned with ROF_ECOLI | P0AFW8 from UniProtKB/Swiss-Prot  Length:84

    Alignment length:86
                              1
                              |      8        18        28        38        48        58        68        78
             ROF_ECOLI    - --MNDTYQPINCDDYDNLELACQHHLMLTLELKDGEKLQAKASDLVSRKNVEYLVVEAAGETRELRLDKITSFSHPEIGTVVVSES 84
               SCOP domains d1sg5a1 A:1-86 Inhibitor of Rho Rof                                                    SCOP domains
               CATH domains -------------------------------------------------------------------------------------- CATH domains
               Pfam domains --------ROF-1sg5A01 A:9-83                                                         --- Pfam domains
         Sec.struct. author .............hhhhhhhhhh....eeee......eee...eee......eeeeee..eeeee......eeee...eee..... Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -------------------------------------------------------------------------------------- PROSITE
                 Transcript -------------------------------------------------------------------------------------- Transcript
                  1sg5 A  1 MSMNDTYQPINCDDYDNLELACQHHLMLTLELKDGEKLQAKASDLVSRKNVEYLVVEAAGETRELRLDKITSFSHPEIGTVVVSES 86
                                    10        20        30        40        50        60        70        80
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (1, 1)

NMR Structure
(-)
Class: All beta proteins (24004)

(-) CATH Domains  (0, 0)

(no "CATH Domain" information available for 1SG5)

(-) Pfam Domains  (1, 1)

NMR Structure
(-)
Clan: no clan defined [family: ROF] (1)

(-) Gene Ontology  (3, 3)

NMR Structure(hide GO term definitions)
Chain A   (ROF_ECOLI | P0AFW8)
molecular function
    GO:0005515    protein binding    Interacting selectively and non-covalently with any protein or protein complex (a complex of two or more proteins that may include other nonprotein molecules).
biological process
    GO:0060567    negative regulation of DNA-templated transcription, termination    Any process that decreases the rate, frequency or extent of DNA-dependent transcription termination, the process in which transcription is completed; the formation of phosphodiester bonds ceases, the RNA-DNA hybrid dissociates, and RNA polymerase releases the DNA.
    GO:0031554    regulation of DNA-templated transcription, termination    Any process that modulates the frequency, rate, extent, or location of DNA-templated transcription termination, the process in which transcription is completed; the formation of phosphodiester bonds ceases, the RNA-DNA hybrid dissociates, and RNA polymerase releases the DNA.
