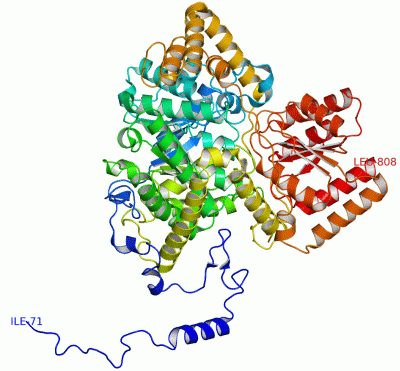

Image Theor.Model - manually
Theor.Model - manually  (Jmol Viewer)

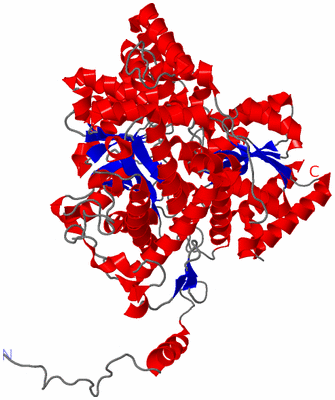

Image Theoretical Model
Theoretical Model  (Jmol Viewer)

(-) Description

Title :  CRYSTAL STRUCTURE OF METHYLMALONYL-COA MUTASE

Authors :  P. J. Magesh
Date :  16 Feb 04  (Deposition) - 24 Feb 04  (Release) - 24 Feb 04  (Revision)
Method :  THEORETICAL MODEL
Resolution :  NOT APPLICABLE
Chains :  Theor. Model :  A
Keywords :  Isomerase (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  N. Mckie, N. H. Keep, M. L. Patchett, P. F. Leadlay, P. J. Magesh
Structure Of Methylmalonyl-Coa Mutase
To Be Published
PubMed: search
(for further references see the PDB file header)

(-) Compounds

Molecule 1 - PROBABLE METHYLMALONYL-COA MUTASE LARGE SUBUNIT
    Chains: A
    EC Number: 5.4.99.2
    Organism Common: BACTERIA
    Organism Scientific: MYCOBACTERIUM TUBERCULOSIS
    Synonym: MCM

 Structural Features

(-) Chains, Units


Theoretical Model :

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (0, 0)

(no "Ligand,Modified Residues,Ions" information available for 1SE5)

(-) Sites  (0, 0)

(no "Site" information available for 1SE5)

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 1SE5)

(-) Cis Peptide Bonds  (1, 1)

Theoretical Model
No.Residues
1Pro A:147 -Pro A:148

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 1SE5)

(-) PROSITE Motifs  (2, 2)

Theoretical Model (2, 2)
 PROSITEUniProtKBPDB
No.IDACDescriptionIDLocationCountLocation
1METMALONYL_COA_MUTASEPS00544 Methylmalonyl-CoA mutase signature.MUTB_MYCBO397-422  1A:460-485
MUTB_MYCTO397-422  1A:460-485
MUTB_MYCTU397-422  1A:460-485
2B12_BINDINGPS51332 B12-binding domain profile.MUTB_MYCBO616-748  1A:679-808
MUTB_MYCTO616-748  1A:679-808
MUTB_MYCTU616-748  1A:679-808

(-) Exons   (0, 0)

(no "Exon" information available for 1SE5)

(-) Sequences/Alignments

Theoretical Model
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:738
 aligned with MUTB_MYCBO | P65488 from UniProtKB/Swiss-Prot  Length:750

    Alignment length:738
                                    17        27        37        47        57        67        77        87        97       107       117       127       137       147       157       167       177       187       197       207       217       227       237       247       257       267       277       287       297       307       317       327       337       347       357       367       377       387       397       407       417       427       437       447       457       467       477       487       497       507       517       527       537       547       557       567       577       587       597       607       617       627       637       647       657       667       677       687       697       707       717       727       737
           MUTB_MYCBO     8 IGSFAGVPLHSERAAQSPTEAAVHTHVAAAAAAHGYTPEQLVWHTPEGIDVTPVYIAADRAAAEAEGYPLHSFPGEPPFVRGPYPTMYVNQPWTIRQYAGFSTAADSNAFYRRNLAAGQKGLSVAFDLATHRGYDSDHPRVQGDVGMAGVAIDSILDMRQLFDGIDLSTVSVSMTMNGAVLPILALYVVAAEEQGVAPEQLAGTIQNDILKEFMVRNTYIYPPKPSMRIISDIFAYTSAKMPKFNSISISGYHIQEAGATADLELAYTLADGVDYIRAGLNAGLDIDSFAPRLSFFWGIGMNFFMEVAKLRAGRLLWSELVAQFAPKSAKSLSLRTHSQTSGWSLTAQDVFNNVARTCIEAMAATQGHTQSLHTNALDEALALPTDFSARIARNTQLVLQQESGTTRPIDPWGGSYYVEWLTHRLARRARAHIAEVAEHGGMAQAISDGIPKLRIEEAAARTQARIDSGQQPVVGVNKYQVPEDHEIEVLKVENSRVRAEQLAKLQRLRAGRDEPAVRAALAELTRAAAEQGRAGADGLGNNLLALAIDAARAQATVGEISEALEKVYGRHRAEIRTISGVYRDEVGKAPNIAAATELVEKFAEADGRRPRILIAKMGQDGHDRGQKVIATAFADIGFDVDVGSLFSTPEEVARQAADNDVHVIGVSSLAAGHLTLVPALRDALAQVGRPDIMIVVGGVIPPGDFDELYAAGATAIFPPGTVIADAAIDLLHRLAERL 745
               SCOP domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Pfam domains
         Sec.struct. author ...................hhhhhhhhhhhhhh.........ee.....ee....hhhhhh.....hhhhhh.............hhhhh...eeeeee...hhhhhhhhhhhhhhhh..eeee..hhhhhhh....hhhhhhhh........hhhhhhhhh........eeee....hhhhhhhhhhhhhhhhh.hhhhheeee..hhhhhhhh......hhhhhhhhhhhhhhhhhhhh..ee.eeeehhhhhhhh.hhhhhhhhhhhhhhhhhhhhhhh..hhhhhh..eeeeeee..hhhhhhhhhhhhhhhhhhhhhh....hhhhhh..eeeee..........hhhhhhhhhhhhhhhhh...eee...........hhhhhhhhhhhhhhhhhh............hhhhhhhhhhhhhhhhhhhhhhhhh.hhhhhhhhhhhhhhhhhhhhhhhhhhhh........................hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh...........hhhhhhhhhhhh..hhhhhhhhhhhhhh...........hhhhhh..hhhhhhhhhhhhhhhhhhh...eeeee.......hhhhhhhhhhhhhhh.eeee.....hhhhhhhhhhhhh..eeeeee...hhhhhhhhhhhhhhhh.....eeeeee..hhhhhhhhhhhheeeee....hhhhhhhhhhhhhhhhh Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                PROSITE (2) -----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------METMALONYL_COA_MUTASE     ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE (2)
                PROSITE (1) --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------B12_BINDING  PDB: A:679-808 UniProt: 616-748                                                                                       PROSITE (1)
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Transcript
                 1se5 A  71 IGSFAGVPLHSERAAQSPTEAAVHTHVAAAAAAHGYTPEQLVWHTPEGIDVTPVYIAADRAAAEAEGYPLHSFPGEPPFVRGPYPTMYVNQPWTIRQYAGFSTAADSNAFYRRNLAAGQKGLSVAFDLATHRGYDSDHPRVQGDVGMAGVAIDSILDMRQLFDGIDLSTVSVSMTMNGAVLPILALYVVAAEEQGVAPEQLAGTIQNDILKEFMVRNTYIYPPKPSMRIISDIFAYTSAKMPKFNSISISGYHIQEAGATADLELAYTLADGVDYIRAGLNAGLDIDSFAPRLSFFWGIGMNFFMEVAKLRAGRLLWSELVAQFAPKSAKSLSLRTHSQTSGWSLTAQDVFNNVARTCIEAMAATQGHTQSLHTNALDEALALPTDFSARIARNTQLVLQQESGTTRPIDPWGGSYYVEWLTHRLARRARAHIAEVAEHGGMAQAISDGIPKLRIEEAAARTQARIDSGQQPVVGVNKYQVPEDHEIEVLKVENSRVRAEQLAKLQRLRAGRDEPAVRAALAELTRAAAEQGRAGADGLGNNLLALAIDAARAQATVGEISEALEKVYGRHRAEIRTISGVYRDEVGKAPNIAAATELVEKFAEADGRRPRILIAKMGQDGHDRGQKVIATAFADIGFDVDVGSLFSTPEEVARQAADNDVHVIGVSSLAAGHLTLVPALRDALAQVGRPDIMIVVGGVIPPGDFDELYAAGATAIFPPGTVIADAAIDLLHRLAERL 808
                                    80        90       100       110       120       130       140       150       160       170       180       190       200       210       220       230       240       250       260       270       280       290       300       310       320       330       340       350       360       370       380       390       400       410       420       430       440       450       460       470       480       490       500       510       520       530       540       550       560       570       580       590       600       610       620       630       640       650       660       670       680       690       700       710       720       730       740       750       760       770       780       790       800


Chain A from PDB  Type:PROTEIN  Length:738
 aligned with MUTB_MYCTO | P9WJK4 from UniProtKB/Swiss-Prot  Length:750

    Alignment length:738
                                    17        27        37        47        57        67        77        87        97       107       117       127       137       147       157       167       177       187       197       207       217       227       237       247       257       267       277       287       297       307       317       327       337       347       357       367       377       387       397       407       417       427       437       447       457       467       477       487       497       507       517       527       537       547       557       567       577       587       597       607       617       627       637       647       657       667       677       687       697       707       717       727       737
           MUTB_MYCTO     8 IGSFAGVPLHSERAAQSPTEAAVHTHVAAAAAAHGYTPEQLVWHTPEGIDVTPVYIAADRAAAEAEGYPLHSFPGEPPFVRGPYPTMYVNQPWTIRQYAGFSTAADSNAFYRRNLAAGQKGLSVAFDLATHRGYDSDHPRVQGDVGMAGVAIDSILDMRQLFDGIDLSTVSVSMTMNGAVLPILALYVVAAEEQGVAPEQLAGTIQNDILKEFMVRNTYIYPPKPSMRIISDIFAYTSAKMPKFNSISISGYHIQEAGATADLELAYTLADGVDYIRAGLNAGLDIDSFAPRLSFFWGIGMNFFMEVAKLRAGRLLWSELVAQFAPKSAKSLSLRTHSQTSGWSLTAQDVFNNVARTCIEAMAATQGHTQSLHTNALDEALALPTDFSARIARNTQLVLQQESGTTRPIDPWGGSYYVEWLTHRLARRARAHIAEVAEHGGMAQAISDGIPKLRIEEAAARTQARIDSGQQPVVGVNKYQVPEDHEIEVLKVENSRVRAEQLAKLQRLRAGRDEPAVRAALAELTRAAAEQGRAGADGLGNNLLALAIDAARAQATVGEISEALEKVYGRHRAEIRTISGVYRDEVGKAPNIAAATELVEKFAEADGRRPRILIAKMGQDGHDRGQKVIATAFADIGFDVDVGSLFSTPEEVARQAADNDVHVIGVSSLAAGHLTLVPALRDALAQVGRPDIMIVVGGVIPPGDFDELYAAGATAIFPPGTVIADAAIDLLHRLAERL 745
               SCOP domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Pfam domains
         Sec.struct. author ...................hhhhhhhhhhhhhh.........ee.....ee....hhhhhh.....hhhhhh.............hhhhh...eeeeee...hhhhhhhhhhhhhhhh..eeee..hhhhhhh....hhhhhhhh........hhhhhhhhh........eeee....hhhhhhhhhhhhhhhhh.hhhhheeee..hhhhhhhh......hhhhhhhhhhhhhhhhhhhh..ee.eeeehhhhhhhh.hhhhhhhhhhhhhhhhhhhhhhh..hhhhhh..eeeeeee..hhhhhhhhhhhhhhhhhhhhhh....hhhhhh..eeeee..........hhhhhhhhhhhhhhhhh...eee...........hhhhhhhhhhhhhhhhhh............hhhhhhhhhhhhhhhhhhhhhhhhh.hhhhhhhhhhhhhhhhhhhhhhhhhhhh........................hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh...........hhhhhhhhhhhh..hhhhhhhhhhhhhh...........hhhhhh..hhhhhhhhhhhhhhhhhhh...eeeee.......hhhhhhhhhhhhhhh.eeee.....hhhhhhhhhhhhh..eeeeee...hhhhhhhhhhhhhhhh.....eeeeee..hhhhhhhhhhhheeeee....hhhhhhhhhhhhhhhhh Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                PROSITE (2) --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------B12_BINDING  PDB: A:679-808 UniProt: 616-748                                                                                       PROSITE (2)
                PROSITE (3) -----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------METMALONYL_COA_MUTASE     ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE (3)
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Transcript
                 1se5 A  71 IGSFAGVPLHSERAAQSPTEAAVHTHVAAAAAAHGYTPEQLVWHTPEGIDVTPVYIAADRAAAEAEGYPLHSFPGEPPFVRGPYPTMYVNQPWTIRQYAGFSTAADSNAFYRRNLAAGQKGLSVAFDLATHRGYDSDHPRVQGDVGMAGVAIDSILDMRQLFDGIDLSTVSVSMTMNGAVLPILALYVVAAEEQGVAPEQLAGTIQNDILKEFMVRNTYIYPPKPSMRIISDIFAYTSAKMPKFNSISISGYHIQEAGATADLELAYTLADGVDYIRAGLNAGLDIDSFAPRLSFFWGIGMNFFMEVAKLRAGRLLWSELVAQFAPKSAKSLSLRTHSQTSGWSLTAQDVFNNVARTCIEAMAATQGHTQSLHTNALDEALALPTDFSARIARNTQLVLQQESGTTRPIDPWGGSYYVEWLTHRLARRARAHIAEVAEHGGMAQAISDGIPKLRIEEAAARTQARIDSGQQPVVGVNKYQVPEDHEIEVLKVENSRVRAEQLAKLQRLRAGRDEPAVRAALAELTRAAAEQGRAGADGLGNNLLALAIDAARAQATVGEISEALEKVYGRHRAEIRTISGVYRDEVGKAPNIAAATELVEKFAEADGRRPRILIAKMGQDGHDRGQKVIATAFADIGFDVDVGSLFSTPEEVARQAADNDVHVIGVSSLAAGHLTLVPALRDALAQVGRPDIMIVVGGVIPPGDFDELYAAGATAIFPPGTVIADAAIDLLHRLAERL 808
                                    80        90       100       110       120       130       140       150       160       170       180       190       200       210       220       230       240       250       260       270       280       290       300       310       320       330       340       350       360       370       380       390       400       410       420       430       440       450       460       470       480       490       500       510       520       530       540       550       560       570       580       590       600       610       620       630       640       650       660       670       680       690       700       710       720       730       740       750       760       770       780       790       800


Chain A from PDB  Type:PROTEIN  Length:738
 aligned with MUTB_MYCTU | P9WJK5 from UniProtKB/Swiss-Prot  Length:750

    Alignment length:738
                                    17        27        37        47        57        67        77        87        97       107       117       127       137       147       157       167       177       187       197       207       217       227       237       247       257       267       277       287       297       307       317       327       337       347       357       367       377       387       397       407       417       427       437       447       457       467       477       487       497       507       517       527       537       547       557       567       577       587       597       607       617       627       637       647       657       667       677       687       697       707       717       727       737
           MUTB_MYCTU     8 IGSFAGVPLHSERAAQSPTEAAVHTHVAAAAAAHGYTPEQLVWHTPEGIDVTPVYIAADRAAAEAEGYPLHSFPGEPPFVRGPYPTMYVNQPWTIRQYAGFSTAADSNAFYRRNLAAGQKGLSVAFDLATHRGYDSDHPRVQGDVGMAGVAIDSILDMRQLFDGIDLSTVSVSMTMNGAVLPILALYVVAAEEQGVAPEQLAGTIQNDILKEFMVRNTYIYPPKPSMRIISDIFAYTSAKMPKFNSISISGYHIQEAGATADLELAYTLADGVDYIRAGLNAGLDIDSFAPRLSFFWGIGMNFFMEVAKLRAGRLLWSELVAQFAPKSAKSLSLRTHSQTSGWSLTAQDVFNNVARTCIEAMAATQGHTQSLHTNALDEALALPTDFSARIARNTQLVLQQESGTTRPIDPWGGSYYVEWLTHRLARRARAHIAEVAEHGGMAQAISDGIPKLRIEEAAARTQARIDSGQQPVVGVNKYQVPEDHEIEVLKVENSRVRAEQLAKLQRLRAGRDEPAVRAALAELTRAAAEQGRAGADGLGNNLLALAIDAARAQATVGEISEALEKVYGRHRAEIRTISGVYRDEVGKAPNIAAATELVEKFAEADGRRPRILIAKMGQDGHDRGQKVIATAFADIGFDVDVGSLFSTPEEVARQAADNDVHVIGVSSLAAGHLTLVPALRDALAQVGRPDIMIVVGGVIPPGDFDELYAAGATAIFPPGTVIADAAIDLLHRLAERL 745
               SCOP domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Pfam domains
         Sec.struct. author ...................hhhhhhhhhhhhhh.........ee.....ee....hhhhhh.....hhhhhh.............hhhhh...eeeeee...hhhhhhhhhhhhhhhh..eeee..hhhhhhh....hhhhhhhh........hhhhhhhhh........eeee....hhhhhhhhhhhhhhhhh.hhhhheeee..hhhhhhhh......hhhhhhhhhhhhhhhhhhhh..ee.eeeehhhhhhhh.hhhhhhhhhhhhhhhhhhhhhhh..hhhhhh..eeeeeee..hhhhhhhhhhhhhhhhhhhhhh....hhhhhh..eeeee..........hhhhhhhhhhhhhhhhh...eee...........hhhhhhhhhhhhhhhhhh............hhhhhhhhhhhhhhhhhhhhhhhhh.hhhhhhhhhhhhhhhhhhhhhhhhhhhh........................hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh...........hhhhhhhhhhhh..hhhhhhhhhhhhhh...........hhhhhh..hhhhhhhhhhhhhhhhhhh...eeeee.......hhhhhhhhhhhhhhh.eeee.....hhhhhhhhhhhhh..eeeeee...hhhhhhhhhhhhhhhh.....eeeeee..hhhhhhhhhhhheeeee....hhhhhhhhhhhhhhhhh Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                PROSITE (1) -----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------METMALONYL_COA_MUTASE     ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE (1)
                PROSITE (2) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ PROSITE (2)
                PROSITE (3) --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------B12_BINDING  PDB: A:679-808 UniProt: 616-748                                                                                       PROSITE (3)
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Transcript
                 1se5 A  71 IGSFAGVPLHSERAAQSPTEAAVHTHVAAAAAAHGYTPEQLVWHTPEGIDVTPVYIAADRAAAEAEGYPLHSFPGEPPFVRGPYPTMYVNQPWTIRQYAGFSTAADSNAFYRRNLAAGQKGLSVAFDLATHRGYDSDHPRVQGDVGMAGVAIDSILDMRQLFDGIDLSTVSVSMTMNGAVLPILALYVVAAEEQGVAPEQLAGTIQNDILKEFMVRNTYIYPPKPSMRIISDIFAYTSAKMPKFNSISISGYHIQEAGATADLELAYTLADGVDYIRAGLNAGLDIDSFAPRLSFFWGIGMNFFMEVAKLRAGRLLWSELVAQFAPKSAKSLSLRTHSQTSGWSLTAQDVFNNVARTCIEAMAATQGHTQSLHTNALDEALALPTDFSARIARNTQLVLQQESGTTRPIDPWGGSYYVEWLTHRLARRARAHIAEVAEHGGMAQAISDGIPKLRIEEAAARTQARIDSGQQPVVGVNKYQVPEDHEIEVLKVENSRVRAEQLAKLQRLRAGRDEPAVRAALAELTRAAAEQGRAGADGLGNNLLALAIDAARAQATVGEISEALEKVYGRHRAEIRTISGVYRDEVGKAPNIAAATELVEKFAEADGRRPRILIAKMGQDGHDRGQKVIATAFADIGFDVDVGSLFSTPEEVARQAADNDVHVIGVSSLAAGHLTLVPALRDALAQVGRPDIMIVVGGVIPPGDFDELYAAGATAIFPPGTVIADAAIDLLHRLAERL 808
                                    80        90       100       110       120       130       140       150       160       170       180       190       200       210       220       230       240       250       260       270       280       290       300       310       320       330       340       350       360       370       380       390       400       410       420       430       440       450       460       470       480       490       500       510       520       530       540       550       560       570       580       590       600       610       620       630       640       650       660       670       680       690       700       710       720       730       740       750       760       770       780       790       800
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (0, 0)

(no "SCOP Domain" information available for 1SE5)

(-) CATH Domains  (0, 0)

(no "CATH Domain" information available for 1SE5)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 1SE5)

(-) Gene Ontology  (9, 23)

Theoretical Model(hide GO term definitions)
Chain A   (MUTB_MYCBO | P65488)
molecular function
    GO:0003824    catalytic activity    Catalysis of a biochemical reaction at physiological temperatures. In biologically catalyzed reactions, the reactants are known as substrates, and the catalysts are naturally occurring macromolecular substances known as enzymes. Enzymes possess specific binding sites for substrates, and are usually composed wholly or largely of protein, but RNA that has catalytic activity (ribozyme) is often also regarded as enzymatic.
    GO:0031419    cobalamin binding    Interacting selectively and non-covalently with cobalamin (vitamin B12), a water-soluble vitamin characterized by possession of a corrin nucleus containing a cobalt atom.
    GO:0016866    intramolecular transferase activity    Catalysis of the transfer of a functional group from one position to another within a single molecule.
    GO:0016853    isomerase activity    Catalysis of the geometric or structural changes within one molecule. Isomerase is the systematic name for any enzyme of EC class 5.
    GO:0046872    metal ion binding    Interacting selectively and non-covalently with any metal ion.
    GO:0004494    methylmalonyl-CoA mutase activity    Catalysis of the reaction: (R)-methylmalonyl-CoA = succinyl-CoA.
biological process
    GO:0008152    metabolic process    The chemical reactions and pathways, including anabolism and catabolism, by which living organisms transform chemical substances. Metabolic processes typically transform small molecules, but also include macromolecular processes such as DNA repair and replication, and protein synthesis and degradation.

Chain A   (MUTB_MYCTO | P9WJK4)
molecular function
    GO:0003824    catalytic activity    Catalysis of a biochemical reaction at physiological temperatures. In biologically catalyzed reactions, the reactants are known as substrates, and the catalysts are naturally occurring macromolecular substances known as enzymes. Enzymes possess specific binding sites for substrates, and are usually composed wholly or largely of protein, but RNA that has catalytic activity (ribozyme) is often also regarded as enzymatic.
    GO:0031419    cobalamin binding    Interacting selectively and non-covalently with cobalamin (vitamin B12), a water-soluble vitamin characterized by possession of a corrin nucleus containing a cobalt atom.
    GO:0016866    intramolecular transferase activity    Catalysis of the transfer of a functional group from one position to another within a single molecule.
    GO:0016853    isomerase activity    Catalysis of the geometric or structural changes within one molecule. Isomerase is the systematic name for any enzyme of EC class 5.
    GO:0046872    metal ion binding    Interacting selectively and non-covalently with any metal ion.
    GO:0004494    methylmalonyl-CoA mutase activity    Catalysis of the reaction: (R)-methylmalonyl-CoA = succinyl-CoA.
biological process
    GO:0008152    metabolic process    The chemical reactions and pathways, including anabolism and catabolism, by which living organisms transform chemical substances. Metabolic processes typically transform small molecules, but also include macromolecular processes such as DNA repair and replication, and protein synthesis and degradation.

Chain A   (MUTB_MYCTU | P9WJK5)
molecular function
    GO:0003824    catalytic activity    Catalysis of a biochemical reaction at physiological temperatures. In biologically catalyzed reactions, the reactants are known as substrates, and the catalysts are naturally occurring macromolecular substances known as enzymes. Enzymes possess specific binding sites for substrates, and are usually composed wholly or largely of protein, but RNA that has catalytic activity (ribozyme) is often also regarded as enzymatic.
    GO:0031419    cobalamin binding    Interacting selectively and non-covalently with cobalamin (vitamin B12), a water-soluble vitamin characterized by possession of a corrin nucleus containing a cobalt atom.
    GO:0016866    intramolecular transferase activity    Catalysis of the transfer of a functional group from one position to another within a single molecule.
    GO:0016853    isomerase activity    Catalysis of the geometric or structural changes within one molecule. Isomerase is the systematic name for any enzyme of EC class 5.
    GO:0046872    metal ion binding    Interacting selectively and non-covalently with any metal ion.
    GO:0004494    methylmalonyl-CoA mutase activity    Catalysis of the reaction: (R)-methylmalonyl-CoA = succinyl-CoA.
biological process
    GO:0008152    metabolic process    The chemical reactions and pathways, including anabolism and catabolism, by which living organisms transform chemical substances. Metabolic processes typically transform small molecules, but also include macromolecular processes such as DNA repair and replication, and protein synthesis and degradation.
    GO:0019678    propionate metabolic process, methylmalonyl pathway    The chemical reactions and pathways involving propionate that occur in the methylmalonyl pathway.
cellular component
    GO:0005886    plasma membrane    The membrane surrounding a cell that separates the cell from its external environment. It consists of a phospholipid bilayer and associated proteins.

 Visualization

(-) Interactive Views

Theoretical Model
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
(no "Ligands, Modified Residues, Ions" information available for 1se5)

  Sites
(no "Sites" information available for 1se5)

  Cis Peptide Bonds
    Pro A:147 - Pro A:148   [ RasMol ]


(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
[ Theoretical Model PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)
