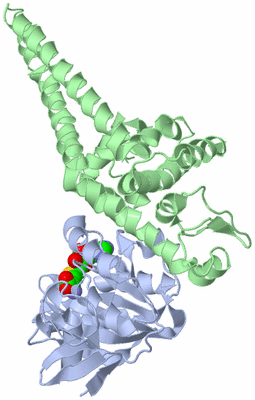

Image Asymmetric Unit
Asymmetric Unit  (Jmol Viewer)
Image Asym. Unit - sites
Asym. Unit - sites  (Jmol Viewer)
Image Biological Unit 1
Biological Unit 1  (Jmol Viewer)
Image Biol. Unit 1 - sites
Biol. Unit 1 - sites  (Jmol Viewer)

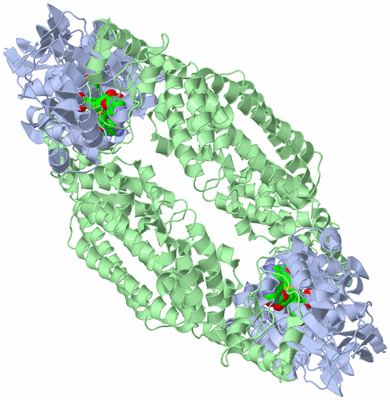

Image Biological Unit 2
Biological Unit 2  (Jmol Viewer)

(-) Description

Title :  CRYSTAL STRUCTURE OF FIBRILLARIN/NOP5P COMPLEX

Authors :  M. Aittaleb, R. Rashid, Q. Chen, J. R. Palmer, C. J. Daniels, H. Li
Date :  28 Jan 03  (Deposition) - 01 Apr 03  (Release) - 13 Jul 11  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  2.90
Chains :  Asym. Unit :  A,B
Biol. Unit 1:  A,B  (2x)
Biol. Unit 2:  A,B  (4x)
Keywords :  Ademet, Binding Motif, Rna Binding Protein (Keyword Search: [Gene Ontology, PubMed, Web (Google))

Reference :  M. Aittaleb, R. Rashid, Q. Chen, J. R. Palmer, C. J. Daniels, H. Li
Structure And Function Of Archaeal Box C/D Srnp Core Proteins.
Nat. Struct. Biol. V. 10 256 2003
PubMed-ID: 12598892  |  Reference-DOI: 10.1038/NSB905

(-) Compounds

Molecule 1 - FIBRILLARIN-LIKE PRE-RRNA PROCESSING PROTEIN
    ChainsA
    EngineeredYES
    Expression SystemESCHERICHIA COLI
    Expression System PlasmidPET13B
    Expression System StrainBLR21(DE3)
    Expression System Taxid562
    Expression System Vector TypePLASMID
    GeneFLPA
    Organism ScientificARCHAEOGLOBUS FULGIDUS
    Organism Taxid224325
    StrainDSM4304

Molecule 2 - CONSERVED HYPOTHETICAL PROTEIN
    ChainsB
    EngineeredYES
    Expression SystemESCHERICHIA COLI
    Expression System PlasmidPBR
    Expression System Taxid562
    Expression System Vector TypePLASMID
    GeneAF2088
    Organism ScientificARCHAEOGLOBUS FULGIDUS
    Organism Taxid224325
    StrainDSM4304

 Structural Features

(-) Chains, Units

  12
Asymmetric Unit AB
Biological Unit 1 (2x)AB
Biological Unit 2 (4x)AB

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (1, 1)

Asymmetric Unit (1, 1)
No.NameCountTypeFull Name
1SAM1Ligand/IonS-ADENOSYLMETHIONINE
Biological Unit 1 (1, 2)
No.NameCountTypeFull Name
1SAM2Ligand/IonS-ADENOSYLMETHIONINE
Biological Unit 2 (1, 4)
No.NameCountTypeFull Name
1SAM4Ligand/IonS-ADENOSYLMETHIONINE

(-) Sites  (1, 1)

Asymmetric Unit (1, 1)
No.NameEvidenceResiduesDescription
1AC1SOFTWARELYS A:42 , ALA A:67 , THR A:70 , THR A:71 , GLU A:88 , TYR A:89 , ASP A:113 , ALA A:114 , ASP A:133 , ILE A:134 , GLN A:136BINDING SITE FOR RESIDUE SAM A 301

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 1NT2)

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 1NT2)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 1NT2)

(-) PROSITE Motifs  (1, 1)

Asymmetric Unit (1, 1)
 PROSITEUniProtKBPDB
No.IDACDescriptionIDLocationCountLocation
1FIBRILLARINPS00566 Fibrillarin signature.FLPA_ARCFU82-95  1A:82-95
Biological Unit 1 (1, 2)
 PROSITEUniProtKBPDB
No.IDACDescriptionIDLocationCountLocation
1FIBRILLARINPS00566 Fibrillarin signature.FLPA_ARCFU82-95  2A:82-95
Biological Unit 2 (1, 4)
 PROSITEUniProtKBPDB
No.IDACDescriptionIDLocationCountLocation
1FIBRILLARINPS00566 Fibrillarin signature.FLPA_ARCFU82-95  4A:82-95

(-) Exons   (0, 0)

(no "Exon" information available for 1NT2)

(-) Sequences/Alignments

Asymmetric Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:209
 aligned with FLPA_ARCFU | O28192 from UniProtKB/Swiss-Prot  Length:210

    Alignment length:209
                                    11        21        31        41        51        61        71        81        91       101       111       121       131       141       151       161       171       181       191       201
           FLPA_ARCFU     2 KELMRNVYLLDDTLVTKSKYGSHYGEKVFDGYREWVPWRSKLAAMILKGHRLKLRGDERVLYLGAASGTTVSHLADIVDEGIIYAVEYSAKPFEKLLELVRERNNIIPLLFDASKPWKYSGIVEKVDLIYQDIAQKNQIEILKANAEFFLKEKGEVVIMVKARSIDSTAEPEEVFKSVLKEMEGDFKIVKHGSLMPYHRDHIFIHAYRF 210
               SCOP domains d1nt2a_ A: Fibrillarin homologue                                                                                                                                                                                  SCOP domains
               CATH domains -----------------------------------1nt2A02 A:37-210 Vaccinia Virus protein VP39                                                                                                                                   CATH domains
               Pfam domains Fibrillarin-1nt2A01 A:2-209                                                                                                                                                                                     - Pfam domains
         Sec.struct. author .eee..eeee..eeeee..........ee..eee.hhhhhhhhhhhhh..........eeeee....hhhhhhhhhhh...eeeee..hhhhhhhhhhhhhhh..eeee.....hhhhh......eeeeee.....hhhhhhhhhhhhheeeeeeeeeeeehhhhh...hhhhhhhhhhhhhhh..eeeeeee.......eeeeeeee. Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE --------------------------------------------------------------------------------FIBRILLARIN   ------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1nt2 A   2 KELMRNVYLLDDTLVTKSKYGSHYGEKVFDGYREWVPWRSKLAAMILKGHRLKLRGDERVLYLGAASGTTVSHLADIVDEGIIYAVEYSAKPFEKLLELVRERNNIIPLLFDASKPWKYSGIVEKVDLIYQDIAQKNQIEILKANAEFFLKEKGEVVIMVKARSIDSTAEPEEVFKSVLKEMEGDFKIVKHGSLMPYHRDHIFIHAYRF 210
                                    11        21        31        41        51        61        71        81        91       101       111       121       131       141       151       161       171       181       191       201

Chain B from PDB  Type:PROTEIN  Length:236
 aligned with O28191_ARCFU | O28191 from UniProtKB/TrEMBL  Length:261

    Alignment length:256
                                    13        23        33        43        53        63        73        83        93       103       113       123       133       143       153       163       173       183       193       203       213       223       233       243       253
         O28191_ARCFU     4 LRYNLWFGVYDGKEIKLSENFEESFLKAENPSPLPFNVSEVGAKALGKDYYRILRKTALAVSEKMVEKELRREDRYVVALVKALEEIDESINMLNEKLEDIRAVKESEITEKFEKKIRELRELRRDVEREIEEVMEKIAPNMTELVGAKVAAKLLERAGSMERLVRLPASKIQVIGAEKSLYKAFARMKKGKKAKIPKHGIIFLHPFIRTLPKAKRGKMARFLAAKLAIAAKIDYFRGEIDESLYESIRRRYEELR 259
               SCOP domains d1nt2b_ B: Nop5p                                                                                                                                                                                                                                                 SCOP domains
               CATH domains -----------------------------------------------------------------------1nt2B02 B:83-149 Helix hairpin bin                                 ---------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------Nop-1nt2B01 B:120-267                                                                                                                                Pfam domains
         Sec.struct. author ..ee....ee.........hhhhhhhhh........hhhhhhhh....hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh..hhhhhhh.....hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh.hhhhhh.....--------------------.hhhhhhhhhhh.....hhhhhhhhhhhhhhhhhhhhhh....hhhhhhhhhhhhhh. Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1nt2 B  12 LRYNLWFGVYDGKEIKLSENFEESFLKAENPSPLPFNVSEVGAKALGKDYYRILRKTALAVSEKMVEKELRREDRYVVALVKALEEIDESINMLNEKLEDIRAVKESEITEKFEKKIRELRELRRDVEREIEEVMEKIAPNMTELVGAKVAAKLLERAGSMERLVRLPASKIQVIGAE--------------------HGIIFLHPFIRTLPKAKRGKMARFLAAKLAIAAKIDYFRGEIDESLYESIRRRYEELR 267
                                    21        31        41        51        61        71        81        91       101       111       121       131       141       151       161       171       181       | -         -       211       221       231       241       251       261
                                                                                                                                                                                                           189                  210

   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (2, 2)

Asymmetric Unit

(-) CATH Domains  (2, 2)

Asymmetric Unit
(-)
Class: Alpha Beta (26913)

(-) Pfam Domains  (2, 2)

Asymmetric Unit

(-) Gene Ontology  (6, 6)

Asymmetric Unit(hide GO term definitions)
Chain A   (FLPA_ARCFU | O28192)
molecular function
    GO:0003723    RNA binding    Interacting selectively and non-covalently with an RNA molecule or a portion thereof.
    GO:0008168    methyltransferase activity    Catalysis of the transfer of a methyl group to an acceptor molecule.
    GO:0016740    transferase activity    Catalysis of the transfer of a group, e.g. a methyl group, glycosyl group, acyl group, phosphorus-containing, or other groups, from one compound (generally regarded as the donor) to another compound (generally regarded as the acceptor). Transferase is the systematic name for any enzyme of EC class 2.
biological process
    GO:0032259    methylation    The process in which a methyl group is covalently attached to a molecule.
    GO:0006364    rRNA processing    Any process involved in the conversion of a primary ribosomal RNA (rRNA) transcript into one or more mature rRNA molecules.
    GO:0008033    tRNA processing    The process in which a pre-tRNA molecule is converted to a mature tRNA, ready for addition of an aminoacyl group.

Chain B   (O28191_ARCFU | O28191)

 Visualization

(-) Interactive Views

Asymmetric Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
    SAM  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]

  Sites
    AC1  [ RasMol ]  +environment [ RasMol ]

  Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 1nt2)

Biological Units
  Complete Structure
    Biological Unit 1  [ Jena3D ]
    Biological Unit 2  [ Jena3D ]

(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  1nt2
    Family and Domain InformationProDom | SYSTERS
    General Structural InformationGlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in MembranesOPM
    Protein SurfaceSURFACE
    Secondary StructureDSSP (structure derived) | HSSP (homology derived)
    Structural GenomicsGeneCensus
    Structural NeighboursCE | VAST
    Structure ClassificationCATH | Dali | SCOP
    Validation and Original DataBMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  FLPA_ARCFU | O28192
    Comparative Protein Structure ModelsModBase
    Genomic InformationEnsembl
    Protein-protein InteractionDIP
    Sequence, Family and Domain InformationInterPro | Pfam | SMART | UniProtKB/SwissProt
  O28191_ARCFU | O28191
    Comparative Protein Structure ModelsModBase
    Genomic InformationEnsembl
    Protein-protein InteractionDIP
    Sequence, Family and Domain InformationInterPro | Pfam | SMART | UniProtKB/TrEMBL

Access by Enzyme Classificator   (EC Number)
  (no 'Enzyme Classificator' available)
    General Enzyme InformationBRENDA | EC-PDB | Enzyme | IntEnz
    PathwayKEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease InformationOMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related InformationGenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain InformationXDom
    Interatomic Contacts of Structural UnitsCSU
    Ligand-protein ContactsLPC
    Protein CavitiescastP
    Sequence and Secondary StructurePDBCartoon
    Structure AlignmentSTRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence BrowserSTING

Access by UniProt ID/Accession number
  FLPA_ARCFU | O28192
    Protein Disorder PredictionDisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)
  O28191_ARCFU | O28191
    Protein Disorder PredictionDisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)

 Related Entries

(-) Entries Sharing at Least One Protein Chain (UniProt ID)

(no "Entries Sharing at Least One Protein Chain" available for 1NT2)

(-) Related Entries Specified in the PDB File

1fbn
