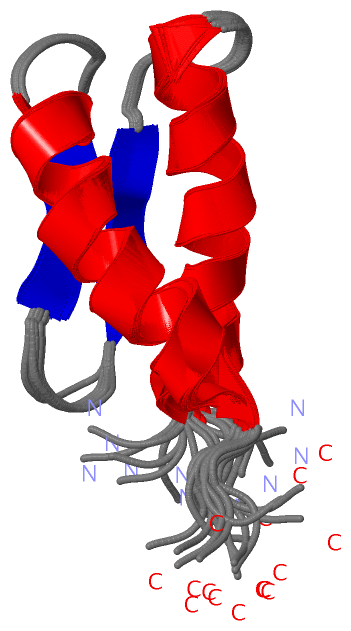

Image NMR Structure - all models
NMR Structure - all models  (Jmol Viewer)

(-) Description

Title :  SOLUTION STRUCTURE OF BACTERIOPHAGE LAMBDA GPW

Authors :  K. L. Maxwell, A. A. Yee, V. Booth, C. H. Arrowsmith, M. Gold, A. R. Davidson
Date :  22 Jan 01  (Deposition) - 25 Apr 01  (Release) - 24 Feb 09  (Revision)
Method :  SOLUTION NMR
Resolution :  NOT APPLICABLE
Chains :  NMR Structure  :  A  (15x)
Keywords :  Novel Fold; Two Helices, One Two-Stranded Beta-Sheet, Viral Protein (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  K. L. Maxwell, A. A. Yee, V. Booth, C. H. Arrowsmith, M. Gold, A. R. Davidson
The Solution Structure Of Bacteriophage Lambda Protein W, A Small Morphogenetic Protein Possessing A Novel Fold.
J. Mol. Biol. V. 308 9 2001
PubMed-ID: 11302702  |  Reference-DOI: 10.1006/JMBI.2001.4582
(for further references see the PDB file header)

(-) Compounds

Molecule 1 - HEAD-TO-TAIL JOINING PROTEIN W
    Chains: A
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Plasmid: PET21D
    Expression System Strain: BL21(LAMBDADE3)
    Expression System Taxid: 562
    Expression System Vector Type: PLASMID
    Gene: W
    Organism Scientific: ENTEROBACTERIA PHAGE LAMBDA
    Organism Taxid: 10710
    Synonym: GPW

 Structural Features

(-) Chains, Units


NMR Structure (15x):

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (0, 0)

(no "Ligand,Modified Residues,Ions" information available for 1HYW)

(-) Sites  (0, 0)

(no "Site" information available for 1HYW)

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 1HYW)

(-) Cis Peptide Bonds  (1, 1)

NMR Structure
No.Residues
1Met A:56 -Thr A:57

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 1HYW)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 1HYW)

(-) Exons   (0, 0)

(no "Exon" information available for 1HYW)

(-) Sequences/Alignments

NMR Structure
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:58
 aligned with HCP_LAMBD | P68660 from UniProtKB/Swiss-Prot  Length:68

    Alignment length:58
                                    10        20        30        40        50
             HCP_LAMBD    1 MTRQEELAAARAALHDLMTGKRVATVQKDGRRVEFTATSVSDLKKYIAELEVQTGMTQ 58
               SCOP domains d1hywa_ A: Head-to-tail joining protein W, gpW             SCOP domains
               CATH domains 1hywA00 A:1-58 Head-to-tail joining protein W, gpW         CATH domains
               Pfam domains ---------------------------------------------------------- Pfam domains
         Sec.struct. author ..hhhhhhhhhhhhhhhh.....eeee....eeee...hhhhhhhhhhhhhhhh.... Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------- SAPs(SNPs)
                    PROSITE ---------------------------------------------------------- PROSITE
                 Transcript ---------------------------------------------------------- Transcript
                  1hyw A  1 MTRQEELAAARAALHDLMTGKRVATVQKDGRRVEFTATSVSDLKKYIAELEVQTGMTQ 58
                                    10        20        30        40        50
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (1, 1)

NMR Structure
(-)
Class: Alpha and beta proteins (a+b) (23004)

(-) CATH Domains  (1, 1)

NMR Structure
(-)
Class: Alpha Beta (26913)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 1HYW)

(-) Gene Ontology  (3, 3)

NMR Structure(hide GO term definitions)
Chain A   (HCP_LAMBD | P68660)
biological process
    GO:0019058    viral life cycle    A set of processes which all viruses follow to ensure survival; includes attachment and entry of the virus particle, decoding of genome information, translation of viral mRNA by host ribosomes, genome replication, and assembly and release of viral particles containing the genome.
    GO:0019076    viral release from host cell    The dissemination of mature viral particles from the host cell, e.g. by cell lysis or the budding of virus particles from the cell membrane.
cellular component
    GO:0019012    virion    The complete fully infectious extracellular virus particle.

 Visualization

(-) Interactive Views

NMR Structure
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
(no "Ligands, Modified Residues, Ions" information available for 1hyw)

  Sites
(no "Sites" information available for 1hyw)

  Cis Peptide Bonds
    Met A:56 - Thr A:57   [ RasMol ]
