(-) Description

Title :  CRYSTAL STRUCTURE OF AN ARYLSULFATASE A MUTANT C69A

Authors :  R. Von Buelow, B. Schmidt, T. Dierks, K. Von Figura, I. Uson
Date :  24 May 00  (Deposition) - 06 Dec 00  (Release) - 24 Feb 09  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  2.35
Chains :  Asym. Unit :  P
Biol. Unit 1:  P  (2x)
Keywords :  Hydrolase, Cerebroside-3-Sulfate Hydrolysis, Lysosomal Enzyme, Formylglycine (Keyword Search: [Gene Ontology, PubMed, Web (Google))

Reference :  R. Von Bulow, B. Schmidt, T. Dierks, K. Von Figura, I. Uson
Crystal Structure Of An Enzyme-Substrate Complex Provides Insight Into The Interaction Between Human Arylsulfatase A And Its Substrates During Catalysis
J. Mol. Biol. V. 305 269 2001
PubMed-ID: 11124905  |  Reference-DOI: 10.1006/JMBI.2000.4297

(-) Compounds

Molecule 1 - ARYLSULFATASE A
    Cellular LocationLYSOSOME
    ChainsP
    EC Number3.1.6.8
    GeneARSA
    MutationYES
    OrganTESTIS
    Organism CommonHUMAN
    Organism ScientificHOMO SAPIENS
    Organism Taxid9606
    PlasmidPMPSVEH
    SynonymCEREBROSIDE-3-SULFATE-SULFATASE

 Structural Features

(-) Chains, Units

  1
Asymmetric Unit P
Biological Unit 1 (2x)P

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (3, 4)

Asymmetric Unit (3, 4)
No.NameCountTypeFull Name
1CSN1Ligand/IonN,4-DIHYDROXY-N-OXO-3-(SULFOOXY)BENZENAMINIUM
2MG1Ligand/IonMAGNESIUM ION
3NDG2Ligand/Ion2-(ACETYLAMINO)-2-DEOXY-A-D-GLUCOPYRANOSE
Biological Unit 1 (2, 6)
No.NameCountTypeFull Name
1CSN2Ligand/IonN,4-DIHYDROXY-N-OXO-3-(SULFOOXY)BENZENAMINIUM
2MG-1Ligand/IonMAGNESIUM ION
3NDG4Ligand/Ion2-(ACETYLAMINO)-2-DEOXY-A-D-GLUCOPYRANOSE

(-) Sites  (4, 4)

Asymmetric Unit (4, 4)
No.NameEvidenceResiduesDescription
1AC1SOFTWAREHIS P:142 , ARG P:143 , ASN P:184 , PHE P:204 , NDG P:602BINDING SITE FOR RESIDUE NDG P 601
2AC2SOFTWARELEU P:117 , ARG P:143 , ASP P:211 , NDG P:601BINDING SITE FOR RESIDUE NDG P 602
3AC3SOFTWAREASP P:29 , ASP P:30 , ALA P:69 , ASP P:281 , ASN P:282 , CSN P:701BINDING SITE FOR RESIDUE MG P 600
4AC4SOFTWAREASP P:29 , ASP P:30 , LEU P:68 , ALA P:69 , VAL P:91 , LYS P:123 , HIS P:125 , SER P:150 , ASP P:152 , HIS P:229 , GLU P:285 , MET P:287 , ARG P:288 , LYS P:302 , HIS P:405 , MG P:600 , HOH P:2166BINDING SITE FOR RESIDUE CSN P 701

(-) SS Bonds  (6, 6)

Asymmetric Unit
No.Residues
1P:156 -P:172
2P:161 -P:168
3P:300 -P:414
4P:488 -P:500
5P:489 -P:502
6P:493 -P:499

(-) Cis Peptide Bonds  (8, 8)

Asymmetric Unit
No.Residues
1Tyr P:88 -Pro P:89
2Pro P:163 -Pro P:164
3Gln P:190 -Pro P:191
4His P:227 -Thr P:228
5Tyr P:230 -Pro P:231
6Glu P:424 -Pro P:425
7Thr P:494 -Pro P:495
8Arg P:496 -Pro P:497

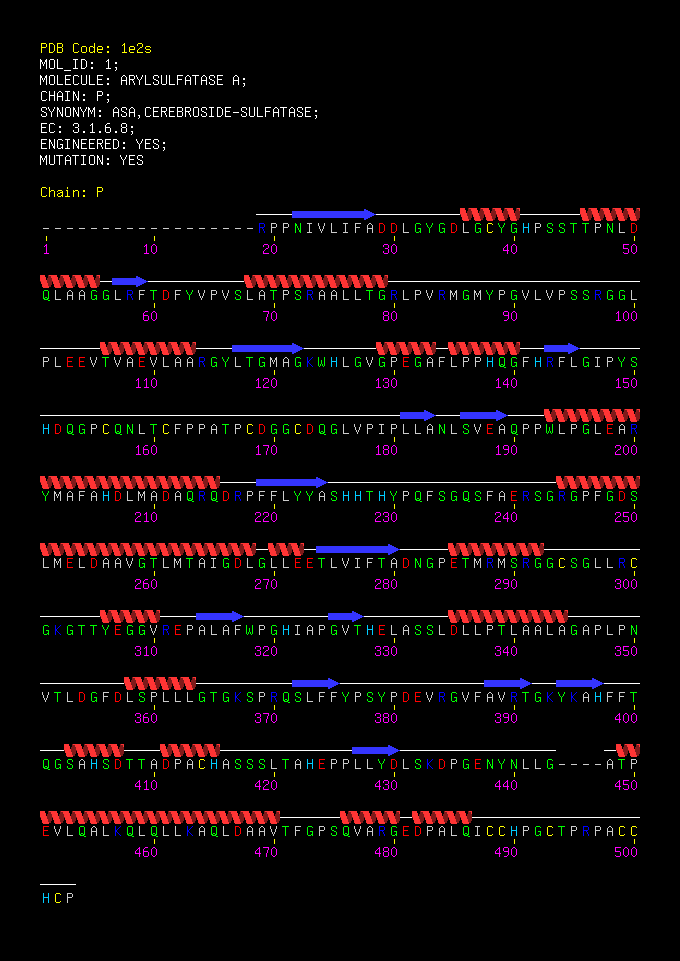

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (104, 104)

Asymmetric Unit (104, 104)
  dbSNPPDB
No.SourceVariant IDVariantUniProt IDStatusIDChainVariant
001UniProtVAR_054165D29NARSA_HUMANDisease (MLD)199476346PD29N
002UniProtVAR_054166D30HARSA_HUMANDisease (MLD)199476340PD30H
003UniProtVAR_054167G32SARSA_HUMANDisease (MLD)199476350PG32S
004UniProtVAR_067414L52PARSA_HUMANDisease (MLD)199476357PL52P
005UniProtVAR_054168L68PARSA_HUMANDisease (MLD)199476351PL68P
006UniProtVAR_007243L76PARSA_HUMANPolymorphism199476362PL76P
007UniProtVAR_007244P82LARSA_HUMANDisease (MLD)6151411PP82L
008UniProtVAR_007245R84QARSA_HUMANDisease (MLD)74315458PR84Q
009UniProtVAR_054169R84WARSA_HUMANDisease (MLD)199476352PR84W
010UniProtVAR_007246G86DARSA_HUMANDisease (MLD)74315460PG86D
011UniProtVAR_054170P94AARSA_HUMANDisease (MLD)199476353PP94A
012UniProtVAR_007247S95NARSA_HUMANDisease (MLD)199476363PS95N
013UniProtVAR_007248S96FARSA_HUMANDisease (MLD)74315456PS96F
014UniProtVAR_007249S96LARSA_HUMANDisease (MLD)199476371PS96L
015UniProtVAR_007250G99DARSA_HUMANDisease (MLD)74315455PG99D
016UniProtVAR_054171G99VARSA_HUMANDisease (MLD)74315455PG99V
017UniProtVAR_007251G119RARSA_HUMANDisease (MLD)199476364PG119R
018UniProtVAR_007252G122SARSA_HUMANDisease (MLD)74315461PG122S
019UniProtVAR_007253L135PARSA_HUMANDisease (MLD)121434215PL135P
020UniProtVAR_007254P136LARSA_HUMANDisease (MLD)74315462PP136L
021UniProtVAR_054172P136SARSA_HUMANDisease (MLD)60504011PP136S
022UniProtVAR_067415H138DARSA_HUMANDisease (MLD)199476358PH138D
023UniProtVAR_054174R143GARSA_HUMANDisease (MLD)199476373PR143G
024UniProtVAR_054175P148LARSA_HUMANDisease (MLD)199476375PP148L
025UniProtVAR_007255D152YARSA_HUMANDisease (MLD)199476365PD152Y
026UniProtVAR_054176Q153HARSA_HUMANDisease (MLD)199476377PQ153H
027UniProtVAR_007256G154DARSA_HUMANDisease (MLD)74315463PG154D
028UniProtVAR_054177P155LARSA_HUMANDisease (MLD)74315464PP155L
029UniProtVAR_007257P155RARSA_HUMANDisease (MLD)74315464PP155R
030UniProtVAR_054178C156RARSA_HUMANDisease (MLD)199476348PC156R
031UniProtVAR_007258P167RARSA_HUMANDisease (MLD)74315465PP167R
032UniProtVAR_007259D169NARSA_HUMANDisease (MLD)74315466PD169N
033UniProtVAR_007260C172YARSA_HUMANDisease (MLD)199476381PC172Y
034UniProtVAR_007261I179SARSA_HUMANDisease (MLD)74315457PI179S
035UniProtVAR_054179L181QARSA_HUMANDisease (MLD)199476378PL181Q
036UniProtVAR_054180Q190HARSA_HUMANDisease (MLD)199476372PQ190H
037UniProtVAR_054181P191TARSA_HUMANDisease (MLD)199476374PP191T
038UniProtVAR_007262W193CARSA_HUMANPolymorphism6151415PW193C
039UniProtVAR_007263Y201CARSA_HUMANDisease (MLD)199476345PY201C
040UniProtVAR_054182A212PARSA_HUMANDisease (MLD)199476341PA212P
041UniProtVAR_007264A212VARSA_HUMANDisease (MLD)74315467PA212V
042UniProtVAR_054183R217HARSA_HUMANDisease (MLD)148403406PR217H
043UniProtVAR_054184F219VARSA_HUMANDisease (MLD)199476383PF219V
044UniProtVAR_007265A224VARSA_HUMANDisease (MLD)74315468PA224V
045UniProtVAR_054185H227YARSA_HUMANDisease (MLD)199476354PH227Y
046UniProtVAR_007266P231TARSA_HUMANDisease (MLD)74315469PP231T
047UniProtVAR_007267R244CARSA_HUMANDisease (MLD)74315470PR244C
048UniProtVAR_007268R244HARSA_HUMANDisease (MLD)199476366PR244H
049UniProtVAR_007269G245RARSA_HUMANDisease (MLD)74315471PG245R
050UniProtVAR_054186F247SARSA_HUMANDisease (MLD)199476384PF247S
051UniProtVAR_007270S250YARSA_HUMANDisease (MLD)199476367PS250Y
052UniProtVAR_054187E253KARSA_HUMANDisease (MLD)74315483PE253K
053UniProtVAR_054188D255HARSA_HUMANDisease (MLD)80338819PD255H
054UniProtVAR_007271T274MARSA_HUMANDisease (MLD)74315472PT274M
055UniProtVAR_054189D281YARSA_HUMANDisease (MLD)199476386PD281Y
056UniProtVAR_054190N282SARSA_HUMANDisease (MLD)199476342PN282S
057UniProtVAR_054191T286PARSA_HUMANDisease (MLD)28940894PT286P
058UniProtVAR_007272R288CARSA_HUMANDisease (MLD)74315473PR288C
059UniProtVAR_054192R288HARSA_HUMANDisease (MLD)199476355PR288H
060UniProtVAR_054193G293DARSA_HUMANDisease (MLD)199476387PG293D
061UniProtVAR_054194G293SARSA_HUMANDisease (MLD)199476349PG293S
062UniProtVAR_054195C294YARSA_HUMANDisease (MLD)199476347PC294Y
063UniProtVAR_007273S295YARSA_HUMANDisease (MLD)74315474PS295Y
064UniProtVAR_054196L298SARSA_HUMANDisease (MLD)199476389PL298S
065UniProtVAR_008132C300FARSA_HUMANDisease (MLD)74315484PC300F
066UniProtVAR_054197K302NARSA_HUMANDisease (MLD)199476343PK302N
067UniProtVAR_067416T304MARSA_HUMANDisease (MLD)199476359PT304M
068UniProtVAR_054198Y306HARSA_HUMANDisease (MLD)199476379PY306H
069UniProtVAR_067417E307KARSA_HUMANDisease (MLD)199476360PE307K
070UniProtVAR_054199G308DARSA_HUMANDisease (MLD)199476356PG308D
071UniProtVAR_054200G308VARSA_HUMANDisease (MLD)199476356PG308V
072UniProtVAR_007274G309SARSA_HUMANDisease (MLD)74315459PG309S
073UniProtVAR_007275R311QARSA_HUMANDisease (MLD)199476382PR311Q
074UniProtVAR_054201E312DARSA_HUMANDisease (MLD)199476390PE312D
075UniProtVAR_007276A314TARSA_HUMANDisease (MLD)199476368PA314T
076UniProtVAR_054202G325SARSA_HUMANDisease (MLD)148092995PG325S
077UniProtVAR_054203T327IARSA_HUMANDisease (MLD)  ---PT327I
078UniProtVAR_007277D335VARSA_HUMANDisease (MLD)74315475PD335V
079UniProtVAR_007278N350SARSA_HUMANUnclassified2071421PN350S
080UniProtVAR_018838F356VARSA_HUMANPolymorphism6151422PF356V
081UniProtVAR_007279K367NARSA_HUMANDisease (MLD)199476369PK367N
082UniProtVAR_007280R370QARSA_HUMANDisease (MLD)74315477PR370Q
083UniProtVAR_007281R370WARSA_HUMANDisease (MLD)74315476PR370W
084UniProtVAR_054204Y376NARSA_HUMANDisease (MLD)199476344PY376N
085UniProtVAR_007282P377LARSA_HUMANDisease (MLD)74315478PP377L
086UniProtVAR_054205D381EARSA_HUMANDisease (MLD)6151425PD381E
087UniProtVAR_007283E382KARSA_HUMANDisease (MLD)74315479PE382K
088UniProtVAR_007284R384CARSA_HUMANDisease (MLD)199476370PR384C
089UniProtVAR_007285R390QARSA_HUMANDisease (MLD)199476391PR390Q
090UniProtVAR_007286R390WARSA_HUMANDisease (MLD)74315480PR390W
091UniProtVAR_007287T391SARSA_HUMANPolymorphism743616PT391S
092UniProtVAR_007288H397YARSA_HUMANDisease (MLD)199476376PH397Y
093UniProtVAR_067418S406GARSA_HUMANDisease (MLD)199476361PS406G
094UniProtVAR_054206T408IARSA_HUMANDisease (MLD)28940895PT408I
095UniProtVAR_054207T409IARSA_HUMANDisease (MLD)74315481PT409I
096UniProtVAR_008133P425TARSA_HUMANDisease (MLD)74315485PP425T
097UniProtVAR_007291P426LARSA_HUMANDisease (MLD)28940893PP426L
098UniProtVAR_054208L428PARSA_HUMANDisease (MLD)199476392PL428P
099UniProtVAR_054209Y429SARSA_HUMANDisease (MLD)199476380PY429S
100UniProtVAR_018839N440SARSA_HUMANPolymorphism6151427PN440S
101UniProtVAR_007292A464VARSA_HUMANPolymorphism  ---PA464V
102UniProtVAR_054210A469GARSA_HUMANDisease (MLD)199476385PA469G
103UniProtVAR_054211C489GARSA_HUMANDisease (MLD)199476388PC489G
104UniProtVAR_007293R496HARSA_HUMANPolymorphism6151428PR496H

  SNP/SAP Summary Statistics (UniProtKB/Swiss-Prot)
Biological Unit 1 (104, 208)
  dbSNPPDB
No.SourceVariant IDVariantUniProt IDStatusIDChainVariant
001UniProtVAR_054165D29NARSA_HUMANDisease (MLD)199476346PD29N
002UniProtVAR_054166D30HARSA_HUMANDisease (MLD)199476340PD30H
003UniProtVAR_054167G32SARSA_HUMANDisease (MLD)199476350PG32S
004UniProtVAR_067414L52PARSA_HUMANDisease (MLD)199476357PL52P
005UniProtVAR_054168L68PARSA_HUMANDisease (MLD)199476351PL68P
006UniProtVAR_007243L76PARSA_HUMANPolymorphism199476362PL76P
007UniProtVAR_007244P82LARSA_HUMANDisease (MLD)6151411PP82L
008UniProtVAR_007245R84QARSA_HUMANDisease (MLD)74315458PR84Q
009UniProtVAR_054169R84WARSA_HUMANDisease (MLD)199476352PR84W
010UniProtVAR_007246G86DARSA_HUMANDisease (MLD)74315460PG86D
011UniProtVAR_054170P94AARSA_HUMANDisease (MLD)199476353PP94A
012UniProtVAR_007247S95NARSA_HUMANDisease (MLD)199476363PS95N
013UniProtVAR_007248S96FARSA_HUMANDisease (MLD)74315456PS96F
014UniProtVAR_007249S96LARSA_HUMANDisease (MLD)199476371PS96L
015UniProtVAR_007250G99DARSA_HUMANDisease (MLD)74315455PG99D
016UniProtVAR_054171G99VARSA_HUMANDisease (MLD)74315455PG99V
017UniProtVAR_007251G119RARSA_HUMANDisease (MLD)199476364PG119R
018UniProtVAR_007252G122SARSA_HUMANDisease (MLD)74315461PG122S
019UniProtVAR_007253L135PARSA_HUMANDisease (MLD)121434215PL135P
020UniProtVAR_007254P136LARSA_HUMANDisease (MLD)74315462PP136L
021UniProtVAR_054172P136SARSA_HUMANDisease (MLD)60504011PP136S
022UniProtVAR_067415H138DARSA_HUMANDisease (MLD)199476358PH138D
023UniProtVAR_054174R143GARSA_HUMANDisease (MLD)199476373PR143G
024UniProtVAR_054175P148LARSA_HUMANDisease (MLD)199476375PP148L
025UniProtVAR_007255D152YARSA_HUMANDisease (MLD)199476365PD152Y
026UniProtVAR_054176Q153HARSA_HUMANDisease (MLD)199476377PQ153H
027UniProtVAR_007256G154DARSA_HUMANDisease (MLD)74315463PG154D
028UniProtVAR_054177P155LARSA_HUMANDisease (MLD)74315464PP155L
029UniProtVAR_007257P155RARSA_HUMANDisease (MLD)74315464PP155R
030UniProtVAR_054178C156RARSA_HUMANDisease (MLD)199476348PC156R
031UniProtVAR_007258P167RARSA_HUMANDisease (MLD)74315465PP167R
032UniProtVAR_007259D169NARSA_HUMANDisease (MLD)74315466PD169N
033UniProtVAR_007260C172YARSA_HUMANDisease (MLD)199476381PC172Y
034UniProtVAR_007261I179SARSA_HUMANDisease (MLD)74315457PI179S
035UniProtVAR_054179L181QARSA_HUMANDisease (MLD)199476378PL181Q
036UniProtVAR_054180Q190HARSA_HUMANDisease (MLD)199476372PQ190H
037UniProtVAR_054181P191TARSA_HUMANDisease (MLD)199476374PP191T
038UniProtVAR_007262W193CARSA_HUMANPolymorphism6151415PW193C
039UniProtVAR_007263Y201CARSA_HUMANDisease (MLD)199476345PY201C
040UniProtVAR_054182A212PARSA_HUMANDisease (MLD)199476341PA212P
041UniProtVAR_007264A212VARSA_HUMANDisease (MLD)74315467PA212V
042UniProtVAR_054183R217HARSA_HUMANDisease (MLD)148403406PR217H
043UniProtVAR_054184F219VARSA_HUMANDisease (MLD)199476383PF219V
044UniProtVAR_007265A224VARSA_HUMANDisease (MLD)74315468PA224V
045UniProtVAR_054185H227YARSA_HUMANDisease (MLD)199476354PH227Y
046UniProtVAR_007266P231TARSA_HUMANDisease (MLD)74315469PP231T
047UniProtVAR_007267R244CARSA_HUMANDisease (MLD)74315470PR244C
048UniProtVAR_007268R244HARSA_HUMANDisease (MLD)199476366PR244H
049UniProtVAR_007269G245RARSA_HUMANDisease (MLD)74315471PG245R
050UniProtVAR_054186F247SARSA_HUMANDisease (MLD)199476384PF247S
051UniProtVAR_007270S250YARSA_HUMANDisease (MLD)199476367PS250Y
052UniProtVAR_054187E253KARSA_HUMANDisease (MLD)74315483PE253K
053UniProtVAR_054188D255HARSA_HUMANDisease (MLD)80338819PD255H
054UniProtVAR_007271T274MARSA_HUMANDisease (MLD)74315472PT274M
055UniProtVAR_054189D281YARSA_HUMANDisease (MLD)199476386PD281Y
056UniProtVAR_054190N282SARSA_HUMANDisease (MLD)199476342PN282S
057UniProtVAR_054191T286PARSA_HUMANDisease (MLD)28940894PT286P
058UniProtVAR_007272R288CARSA_HUMANDisease (MLD)74315473PR288C
059UniProtVAR_054192R288HARSA_HUMANDisease (MLD)199476355PR288H
060UniProtVAR_054193G293DARSA_HUMANDisease (MLD)199476387PG293D
061UniProtVAR_054194G293SARSA_HUMANDisease (MLD)199476349PG293S
062UniProtVAR_054195C294YARSA_HUMANDisease (MLD)199476347PC294Y
063UniProtVAR_007273S295YARSA_HUMANDisease (MLD)74315474PS295Y
064UniProtVAR_054196L298SARSA_HUMANDisease (MLD)199476389PL298S
065UniProtVAR_008132C300FARSA_HUMANDisease (MLD)74315484PC300F
066UniProtVAR_054197K302NARSA_HUMANDisease (MLD)199476343PK302N
067UniProtVAR_067416T304MARSA_HUMANDisease (MLD)199476359PT304M
068UniProtVAR_054198Y306HARSA_HUMANDisease (MLD)199476379PY306H
069UniProtVAR_067417E307KARSA_HUMANDisease (MLD)199476360PE307K
070UniProtVAR_054199G308DARSA_HUMANDisease (MLD)199476356PG308D
071UniProtVAR_054200G308VARSA_HUMANDisease (MLD)199476356PG308V
072UniProtVAR_007274G309SARSA_HUMANDisease (MLD)74315459PG309S
073UniProtVAR_007275R311QARSA_HUMANDisease (MLD)199476382PR311Q
074UniProtVAR_054201E312DARSA_HUMANDisease (MLD)199476390PE312D
075UniProtVAR_007276A314TARSA_HUMANDisease (MLD)199476368PA314T
076UniProtVAR_054202G325SARSA_HUMANDisease (MLD)148092995PG325S
077UniProtVAR_054203T327IARSA_HUMANDisease (MLD)  ---PT327I
078UniProtVAR_007277D335VARSA_HUMANDisease (MLD)74315475PD335V
079UniProtVAR_007278N350SARSA_HUMANUnclassified2071421PN350S
080UniProtVAR_018838F356VARSA_HUMANPolymorphism6151422PF356V
081UniProtVAR_007279K367NARSA_HUMANDisease (MLD)199476369PK367N
082UniProtVAR_007280R370QARSA_HUMANDisease (MLD)74315477PR370Q
083UniProtVAR_007281R370WARSA_HUMANDisease (MLD)74315476PR370W
084UniProtVAR_054204Y376NARSA_HUMANDisease (MLD)199476344PY376N
085UniProtVAR_007282P377LARSA_HUMANDisease (MLD)74315478PP377L
086UniProtVAR_054205D381EARSA_HUMANDisease (MLD)6151425PD381E
087UniProtVAR_007283E382KARSA_HUMANDisease (MLD)74315479PE382K
088UniProtVAR_007284R384CARSA_HUMANDisease (MLD)199476370PR384C
089UniProtVAR_007285R390QARSA_HUMANDisease (MLD)199476391PR390Q
090UniProtVAR_007286R390WARSA_HUMANDisease (MLD)74315480PR390W
091UniProtVAR_007287T391SARSA_HUMANPolymorphism743616PT391S
092UniProtVAR_007288H397YARSA_HUMANDisease (MLD)199476376PH397Y
093UniProtVAR_067418S406GARSA_HUMANDisease (MLD)199476361PS406G
094UniProtVAR_054206T408IARSA_HUMANDisease (MLD)28940895PT408I
095UniProtVAR_054207T409IARSA_HUMANDisease (MLD)74315481PT409I
096UniProtVAR_008133P425TARSA_HUMANDisease (MLD)74315485PP425T
097UniProtVAR_007291P426LARSA_HUMANDisease (MLD)28940893PP426L
098UniProtVAR_054208L428PARSA_HUMANDisease (MLD)199476392PL428P
099UniProtVAR_054209Y429SARSA_HUMANDisease (MLD)199476380PY429S
100UniProtVAR_018839N440SARSA_HUMANPolymorphism6151427PN440S
101UniProtVAR_007292A464VARSA_HUMANPolymorphism  ---PA464V
102UniProtVAR_054210A469GARSA_HUMANDisease (MLD)199476385PA469G
103UniProtVAR_054211C489GARSA_HUMANDisease (MLD)199476388PC489G
104UniProtVAR_007293R496HARSA_HUMANPolymorphism6151428PR496H

  SNP/SAP Summary Statistics (UniProtKB/Swiss-Prot)

(-) PROSITE Motifs  (2, 2)

Asymmetric Unit (2, 2)
 PROSITEUniProtKBPDB
No.IDACDescriptionIDLocationCountLocation
1SULFATASE_1PS00523 Sulfatases signature 1.ARSA_HUMAN67-79  1P:67-79
2SULFATASE_2PS00149 Sulfatases signature 2.ARSA_HUMAN115-125  1P:115-125
Biological Unit 1 (2, 4)
 PROSITEUniProtKBPDB
No.IDACDescriptionIDLocationCountLocation
1SULFATASE_1PS00523 Sulfatases signature 1.ARSA_HUMAN67-79  2P:67-79
2SULFATASE_2PS00149 Sulfatases signature 2.ARSA_HUMAN115-125  2P:115-125

(-) Exons   (0, 0)

(no "Exon" information available for 1E2S)

(-) Sequences/Alignments

Asymmetric Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain P from PDB  Type:PROTEIN  Length:481
 aligned with ARSA_HUMAN | P15289 from UniProtKB/Swiss-Prot  Length:507

    Alignment length:485
                                    28        38        48        58        68        78        88        98       108       118       128       138       148       158       168       178       188       198       208       218       228       238       248       258       268       278       288       298       308       318       328       338       348       358       368       378       388       398       408       418       428       438       448       458       468       478       488       498
           ARSA_HUMAN    19 RPPNIVLIFADDLGYGDLGCYGHPSSTTPNLDQLAAGGLRFTDFYVPVSLCTPSRAALLTGRLPVRMGMYPGVLVPSSRGGLPLEEVTVAEVLAARGYLTGMAGKWHLGVGPEGAFLPPHQGFHRFLGIPYSHDQGPCQNLTCFPPATPCDGGCDQGLVPIPLLANLSVEAQPPWLPGLEARYMAFAHDLMADAQRQDRPFFLYYASHHTHYPQFSGQSFAERSGRGPFGDSLMELDAAVGTLMTAIGDLGLLEETLVIFTADNGPETMRMSRGGCSGLLRCGKGTTYEGGVREPALAFWPGHIAPGVTHELASSLDLLPTLAALAGAPLPNVTLDGFDLSPLLLGTGKSPRQSLFFYPSYPDEVRGVFAVRTGKYKAHFFTQGSAHSDTTADPACHASSSLTAHEPPLLYDLSKDPGENYNLLGGVAGATPEVLQALKQLQLLKAQLDAAVTFGPSQVARGEDPALQICCHPGCTPRPACCHCP 503
               SCOP domains d1e2sp_ P: Arylsulfatase A                                                                                                                                                                                                                                                                                                                                                                                                                                                                            SCOP domains
               CATH domains 1e2sP01 P:19-370,P:472-503 Alkaline Phosphatase, subunit A                                                                                                                                                                                                                                                                                                      1e2sP02 P:371-471  [code=3.30.1120.10, no name defined]                                              1e2sP01 P:19-370,P:472-503       CATH domains
               Pfam domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ...eeeeeee.......hhhhh.....hhhhhhhhhh.eee........hhhhhhhhhhhh..........................hhhhhhhh...eeeeee......hhhhh.hhhhhh..eee...................................eee..eeee...hhhhhhhhhhhhhhhhhhhhhhh...eeeeee...................hhhhhhhhhhhhhhhhhhhhhhhhh.hhh.eeeeeee....hhhhhhhh.............hhhhh...eeee.......eee.......hhhhhhhhhh.............hhhhhh........eeee............eeee..eeee.....hhhhh...hhhhh...........eeee.............----.hhhhhhhhhhhhhhhhhhhhhh.....hhhhh.hhhhh................. Sec.struct. author
             SAPs(SNPs) (1) ----------NH-S-------------------P---------------P-------P-----L-Q-D-------ANF--D-------------------R--S------------PL-D----G----L---YHDLR----------R-N--Y------S-Q--------HT-C-------C----------P----H-V----V--Y---T------------CR-S--Y--K-H------------------M------YS---P-C----DYY--S-F-N-M-HKDS-QD-T----------S-I-------V--------------S-----V----------N--Q-----NL---EK-C-----QS-----Y--------G-II---------------TL-PS----------S-----------------------V----G-------------------G------H------- SAPs(SNPs) (1)
             SAPs(SNPs) (2) -----------------------------------------------------------------W-----------L--V------------------------------------S------------------R--------------------------------------------------------V-------------------------------H-------------------------------------------H----S--------------V-------------------------------------------------------------W-------------------W----------------------------------------------------------------------------------------------------------------- SAPs(SNPs) (2)
                    PROSITE ------------------------------------------------SULFATASE_1  -----------------------------------SULFATASE_2------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ PROSITE
                 Transcript ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1e2s P  19 RPPNIVLIFADDLGYGDLGCYGHPSSTTPNLDQLAAGGLRFTDFYVPVSLATPSRAALLTGRLPVRMGMYPGVLVPSSRGGLPLEEVTVAEVLAARGYLTGMAGKWHLGVGPEGAFLPPHQGFHRFLGIPYSHDQGPCQNLTCFPPATPCDGGCDQGLVPIPLLANLSVEAQPPWLPGLEARYMAFAHDLMADAQRQDRPFFLYYASHHTHYPQFSGQSFAERSGRGPFGDSLMELDAAVGTLMTAIGDLGLLEETLVIFTADNGPETMRMSRGGCSGLLRCGKGTTYEGGVREPALAFWPGHIAPGVTHELASSLDLLPTLAALAGAPLPNVTLDGFDLSPLLLGTGKSPRQSLFFYPSYPDEVRGVFAVRTGKYKAHFFTQGSAHSDTTADPACHASSSLTAHEPPLLYDLSKDPGENYNLLG----ATPEVLQALKQLQLLKAQLDAAVTFGPSQVARGEDPALQICCHPGCTPRPACCHCP 503
                                    28        38        48        58        68        78        88        98       108       118       128       138       148       158       168       178       188       198       208       218       228       238       248       258       268       278       288       298       308       318       328       338       348       358       368       378       388       398       408       418       428       438    |  448       458       468       478       488       498
                                                                                                                                                                                                                                                                                                                                                                                                                                                                  443  448

   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (1, 1)

Asymmetric Unit

(-) CATH Domains  (2, 2)

Asymmetric Unit
(-)
Class: Alpha Beta (26913)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 1E2S)

(-) Gene Ontology  (15, 15)

Asymmetric Unit(hide GO term definitions)
Chain P   (ARSA_HUMAN | P15289)
molecular function
    GO:0004065    arylsulfatase activity    Catalysis of the reaction: a phenol sulfate + H2O = a phenol + sulfate.
    GO:0005509    calcium ion binding    Interacting selectively and non-covalently with calcium ions (Ca2+).
    GO:0003824    catalytic activity    Catalysis of a biochemical reaction at physiological temperatures. In biologically catalyzed reactions, the reactants are known as substrates, and the catalysts are naturally occurring macromolecular substances known as enzymes. Enzymes possess specific binding sites for substrates, and are usually composed wholly or largely of protein, but RNA that has catalytic activity (ribozyme) is often also regarded as enzymatic.
    GO:0004098    cerebroside-sulfatase activity    Catalysis of the reaction: a cerebroside 3-sulfate + H2O = a cerebroside + sulfate.
    GO:0016787    hydrolase activity    Catalysis of the hydrolysis of various bonds, e.g. C-O, C-N, C-C, phosphoric anhydride bonds, etc. Hydrolase is the systematic name for any enzyme of EC class 3.
    GO:0046872    metal ion binding    Interacting selectively and non-covalently with any metal ion.
    GO:0005515    protein binding    Interacting selectively and non-covalently with any protein or protein complex (a complex of two or more proteins that may include other nonprotein molecules).
    GO:0008484    sulfuric ester hydrolase activity    Catalysis of the reaction: RSO-R' + H2O = RSOOH + R'H. This reaction is the hydrolysis of any sulfuric ester bond, any ester formed from sulfuric acid, O=SO(OH)2.
biological process
    GO:0006687    glycosphingolipid metabolic process    The chemical reactions and pathways involving glycosphingolipids, any compound with residues of sphingoid and at least one monosaccharide.
    GO:0008152    metabolic process    The chemical reactions and pathways, including anabolism and catabolism, by which living organisms transform chemical substances. Metabolic processes typically transform small molecules, but also include macromolecular processes such as DNA repair and replication, and protein synthesis and degradation.
    GO:0043687    post-translational protein modification    The process of covalently altering one or more amino acids in a protein after the protein has been completely translated and released from the ribosome.
cellular component
    GO:0005788    endoplasmic reticulum lumen    The volume enclosed by the membranes of the endoplasmic reticulum.
    GO:0070062    extracellular exosome    A vesicle that is released into the extracellular region by fusion of the limiting endosomal membrane of a multivesicular body with the plasma membrane. Extracellular exosomes, also simply called exosomes, have a diameter of about 40-100 nm.
    GO:0043202    lysosomal lumen    The volume enclosed within the lysosomal membrane.
    GO:0005764    lysosome    A small lytic vacuole that has cell cycle-independent morphology and is found in most animal cells and that contains a variety of hydrolases, most of which have their maximal activities in the pH range 5-6. The contained enzymes display latency if properly isolated. About 40 different lysosomal hydrolases are known and lysosomes have a great variety of morphologies and functions.

 Visualization

(-) Interactive Views

Asymmetric Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
    CSN  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]
    MG  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]
    NDG  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]

  Sites
    AC1  [ RasMol ]  +environment [ RasMol ]
    AC2  [ RasMol ]  +environment [ RasMol ]
    AC3  [ RasMol ]  +environment [ RasMol ]
    AC4  [ RasMol ]  +environment [ RasMol ]

  Cis Peptide Bonds
    Arg P:496 - Pro P:497   [ RasMol ]
    Gln P:190 - Pro P:191   [ RasMol ]
    Glu P:424 - Pro P:425   [ RasMol ]
    His P:227 - Thr P:228   [ RasMol ]
    Pro P:163 - Pro P:164   [ RasMol ]
    Thr P:494 - Pro P:495   [ RasMol ]
    Tyr P:230 - Pro P:231   [ RasMol ]
    Tyr P:88 - Pro P:89   [ RasMol ]

Biological Unit
  Complete Structure
    Biological Unit 1  [ Jena3D ]

(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  1e2s
    Family and Domain InformationProDom | SYSTERS
    General Structural InformationGlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in MembranesOPM
    Protein SurfaceSURFACE
    Secondary StructureDSSP (structure derived) | HSSP (homology derived)
    Structural GenomicsGeneCensus
    Structural NeighboursCE | VAST
    Structure ClassificationCATH | Dali | SCOP
    Validation and Original DataBMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  ARSA_HUMAN | P15289
    Comparative Protein Structure ModelsModBase
    Genomic InformationEnsembl
    Protein-protein InteractionDIP
    Sequence, Family and Domain InformationInterPro | Pfam | SMART | UniProtKB/SwissProt

Access by Enzyme Classificator   (EC Number)
  3.1.6.8
    General Enzyme InformationBRENDA | EC-PDB | Enzyme | IntEnz
    PathwayKEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  250100
    Disease InformationOMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related InformationGenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain InformationXDom
    Interatomic Contacts of Structural UnitsCSU
    Ligand-protein ContactsLPC
    Protein CavitiescastP
    Sequence and Secondary StructurePDBCartoon
    Structure AlignmentSTRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence BrowserSTING

Access by UniProt ID/Accession number
  ARSA_HUMAN | P15289
    Protein Disorder PredictionDisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)

 Related Entries

(-) Entries Sharing at Least One Protein Chain (UniProt ID)

UniProtKB/Swiss-Prot
        ARSA_HUMAN | P152891auk 1e1z 1e33 1e3c 1n2k 1n2l 2aij 2aik 2hi8

(-) Related Entries Specified in the PDB File

1auk HUMAN ARYLSULFATASE A
1e33 CRYSTAL STRUCTURE OF AN ARYLSULFATASE A MUTANT P426L
1e3c CRYSTAL STRUCTURE OF AN ARYLSULFATASE A MUTANT C69S SOAKED IN SYNTHETIC SUBSTRATE
