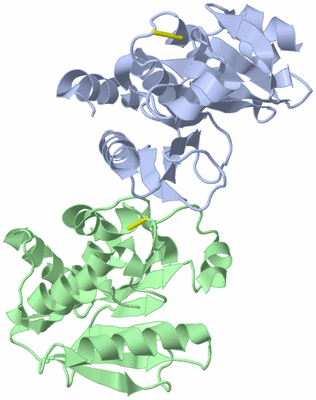

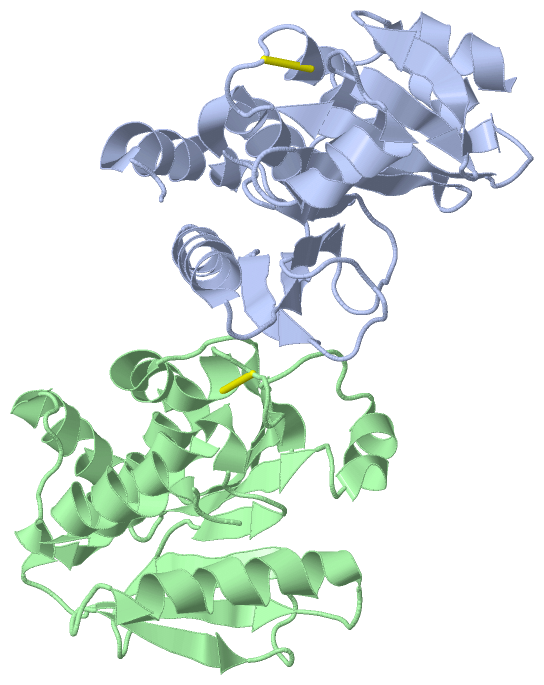

Asymmetric Unit (Jmol Viewer)

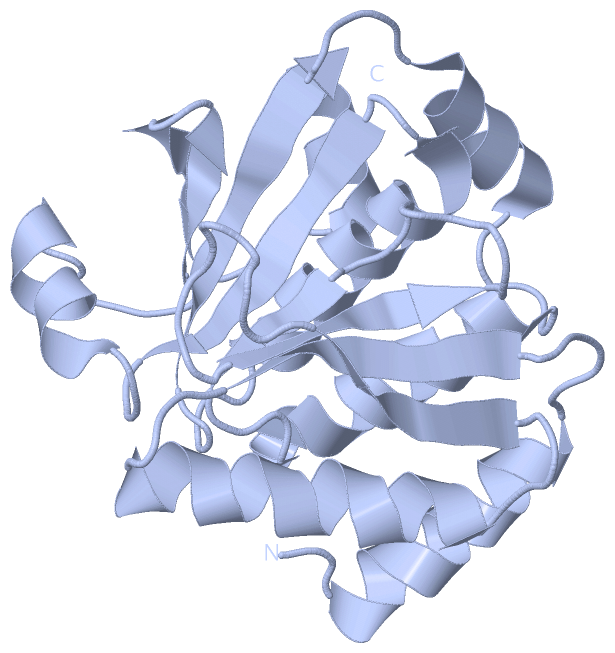

Biological Unit 1 (Jmol Viewer)

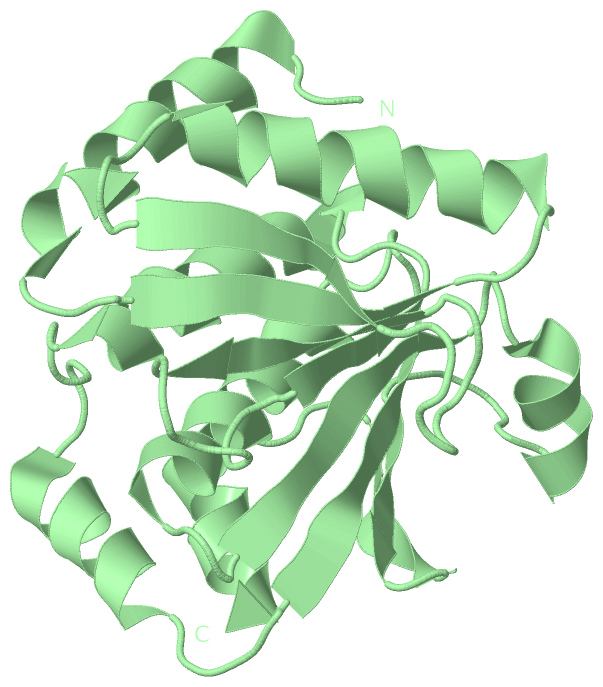

Biological Unit 2 (Jmol Viewer)

Title :   SYNCHROTRON REDUCED FORM OF THE N-TERMINAL DOMAIN OF SALMONELLA TYPHIMURIUM AHPF

Authors :   B. R. Roberts, Z. A. Wood, T. J. Jonsson, L. B. Poole, P. A. Karplus

Date :   10 Jun 05 (Deposition) - 21 Jun 05 (Release) - 24 Feb 09 (Revision)

Method :   X-RAY DIFFRACTION

Resolution :   2.40

Chains :   Asym. Unit : A,B
Biol. Unit 1: A  (1x)
Biol. Unit 2: B  (1x)

Keywords :   Thioredoxin, Disulfide, Peroxiredoxin, Thiolate, Alkyl Hydroperoxide Reductase, Synchrotron Radiation, Pka, Radiation Damage, Oxidoreductase (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :   B. R. Roberts, Z. A. Wood, T. J. Jonsson, L. B. Poole, P. A. Karplus
Oxidized And Synchrotron Cleaved Structures Of The Disulfide Redox Center In The N-Terminal Domain Of Salmonella Typhimurium Ahpf
Protein Sci. V. 14 2414 2005
PubMed-ID: 16131664 | Reference-DOI: 10.1110/PS.051459705
(for further references see the PDB file header)

Molecule 1 - ALKYL HYDROPEROXIDE REDUCTASE SUBUNIT F
	Chains	:	A, B
	EC Number	:	1.6.4.-
	Engineered	:	YES
	Expression System	:	ESCHERICHIA COLI
	Expression System Taxid	:	562
	Fragment	:	RESIDUES 1-202
	Gene	:	AHPF
	Organism Scientific	:	SALMONELLA TYPHIMURIUM
	Organism Taxid	:	602
	Synonym	:	ALKYL HYDROPEROXIDE REDUCTASE F52A PROTEIN

		1	2
Asymmetric Unit	:	A	B
Biological Unit 1 (1x)	:	A
Biological Unit 2 (1x)	:		B

Summary Information (see also Sequences/Alignments below)

(no "Ligand,Modified Residues,Ions" information available for 1ZYP)

(no "Site" information available for 1ZYP)

Asymmetric Unit

No.	Residues
1	A:129	-	A:132
2	B:129	-	B:132

Asymmetric Unit

No.	Residues
1	Lys A:62	-	Pro A:63
2	Val A:171	-	Pro A:172
3	Lys B:62	-	Pro B:63
4	Val B:171	-	Pro B:172

(no "SAP(SNP)/Variant" information available for 1ZYP)

Asymmetric Unit (1, 2)

	PROSITE			UniProtKB		PDB
No.	ID	AC	Description	ID	Location	Count	Location
1	GLUTAREDOXIN_2	PS51354	Glutaredoxin domain profile.	AHPF_SALTY	109-208	2	A:109-196 B:109-196

Biological Unit 1 (1, 1)

	PROSITE			UniProtKB		PDB
No.	ID	AC	Description	ID	Location	Count	Location
1	GLUTAREDOXIN_2	PS51354	Glutaredoxin domain profile.	AHPF_SALTY	109-208	1	A:109-196 -

Biological Unit 2 (1, 1)

	PROSITE			UniProtKB		PDB
No.	ID	AC	Description	ID	Location	Count	Location
1	GLUTAREDOXIN_2	PS51354	Glutaredoxin domain profile.	AHPF_SALTY	109-208	1	- B:109-196

(no "Exon" information available for 1ZYP)

Asymmetric Unit

Reformat:	Number of residues per line = ('0' or empty: single-line sequence representation)
	Number of residues per labelling interval =
	UniProt sequence: complete aligned part

Show mapping:	SCOP domains	CATH domains	Pfam domains	Secondary structure (by author)
	SAPs(SNPs)	PROSITE motifs	Exons
	(details for a mapped element are shown in a popup box when the mouse pointer rests over it)

Chain A from PDB  Type:PROTEIN  Length:196
 aligned with AHPF_SALTY | P19480 from UniProtKB/Swiss-Prot  Length:521

    Alignment length:196
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190
           AHPF_SALTY     1 MLDTNMKTQLRAYLEKLTKPVELIATLDDSAKSAEIKELLAEIAELSDKVTFKEDNTLPVRKPSFLITNPGSQQGPRFAGSPLGHEFTSLVLALLWTGGHPSKEAQSLLEQIRDIDGDFEFETYYSLSCHNCPDVVQALNLMAVLNPRIKHTAIDGGTFQNEITERNVMGVPAVFVNGKEFGQGRMTLTEIVAKVD 196
               SCOP domains d1zypa1 A:1-102 Alkyl hydroperoxide reductase subunit F (AhpF), N-terminal domain                     d1zypa2 A:103-196 Alkyl hydroperoxide reductase subunit F (AhpF), N-terminal domain            SCOP domains
               CATH domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ..hhhhhhhhhhhhh.....eeeeee...hhhhhhhhhhhhhhhh....eeeee.........eeeee........eee...hhhhhhhhhhhhhhhh......hhhhhhhhhh....eeeeeee.....hhhhhhhhhhhhhhhh..eeeeeee...hhhhhhhh......eeee..eeeee...hhhhhhhhh. Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------GLUTAREDOXIN_2  PDB: A:109-196 UniProt: 109-208                                          PROSITE
                 Transcript ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1zyp A   1 MLDTNMKTQLRAYLEKLTKPVELIATLDDSAKSAEIKELLAEIAELSDKVTFKEDNTLPVRKPSFLITNPGSQQGPRFAGSPLGHEFTSLVLALLWTGGHPSKEAQSLLEQIRDIDGDFEFETYYSLSCHNCPDVVQALNLMAVLNPRIKHTAIDGGTFQNEITERNVMGVPAVFVNGKEFGQGRMTLTEIVAKVD 196
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190

Chain B from PDB  Type:PROTEIN  Length:196
 aligned with AHPF_SALTY | P19480 from UniProtKB/Swiss-Prot  Length:521

    Alignment length:196
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190
           AHPF_SALTY     1 MLDTNMKTQLRAYLEKLTKPVELIATLDDSAKSAEIKELLAEIAELSDKVTFKEDNTLPVRKPSFLITNPGSQQGPRFAGSPLGHEFTSLVLALLWTGGHPSKEAQSLLEQIRDIDGDFEFETYYSLSCHNCPDVVQALNLMAVLNPRIKHTAIDGGTFQNEITERNVMGVPAVFVNGKEFGQGRMTLTEIVAKVD 196
               SCOP domains d1zypb1 B:1-102 Alkyl hydroperoxide reductase subunit F (AhpF), N-terminal domain                     d1zypb2 B:103-196 Alkyl hydroperoxide reductase subunit F (AhpF), N-terminal domain            SCOP domains
               CATH domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
           Pfam domains (1) ----------------------------------------------------------------------------------------------------------------------Thioredoxin_3-1zypB01 B:119-196                                                Pfam domains (1)
           Pfam domains (2) ----------------------------------------------------------------------------------------------------------------------Thioredoxin_3-1zypB02 B:119-196                                                Pfam domains (2)
         Sec.struct. author ..hhhhhhhhhhhhhhh...eeeeee...hhhhhhhhhhhhhhhh....eeeee.........eeeee........eee...hhhhhhhhhhhhhhhh......hhhhhhhhhh....eeeeeee.....hhhhhhhhhhhhhhh...eeeeeee...hhhhhhhh......eeee..eeeee...hhhhhhhhh. Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------GLUTAREDOXIN_2  PDB: B:109-196 UniProt: 109-208                                          PROSITE
                 Transcript ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1zyp B   1 MLDTNMKTQLRAYLEKLTKPVELIATLDDSAKSAEIKELLAEIAELSDKVTFKEDNTLPVRKPSFLITNPGSQQGPRFAGSPLGHEFTSLVLALLWTGGHPSKEAQSLLEQIRDIDGDFEFETYYSLSCHNCPDVVQALNLMAVLNPRIKHTAIDGGTFQNEITERNVMGVPAVFVNGKEFGQGRMTLTEIVAKVD 196
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190

Legend:		→ Mismatch	(orange background)
	-	→ Gap	(green background, '-', border residues have a numbering label)
		→ Modified Residue	(blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
	x	→ Chemical Group	(purple background, 'x', labelled with number + name, e.g. ACE or NH2)
	extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '\|'

Asymmetric Unit

Classes(

)

Folds(

)

Superfamilies( (-)

)

Families(

)

Protein Domains( (-)

)

Organisms( (-)

)

Class: Alpha and beta proteins (a/b) (23833)

Fold: Thioredoxin fold (994)

Superfamily: Thioredoxin-like (992)

Family: PDI-like (13)

Protein domain: Alkyl hydroperoxide reductase subunit F (AhpF), N-terminal domain (3)

Salmonella typhimurium [TaxId: 90371] (3)

1a	d1zypa1	A:1-102
1b	d1zypa2	A:103-196
1c	d1zypb1	B:1-102
1d	d1zypb2	B:103-196

(no "CATH Domain" information available for 1ZYP)

Asymmetric Unit

Clans(

)

Families(

)

Organisms( (-)

)

Clan: Thioredoxin (367)

Family: Thioredoxin_3 (4)

Salmonella typhimurium (2)

1a	Thioredoxin_3-1zypB01	B:119-196
1b	Thioredoxin_3-1zypB02	B:119-196

Asymmetric Unit(hide GO term definitions)

Chain A,B (AHPF_SALTY | P19480)

molecular function
	GO:0051287	NAD binding	Interacting selectively and non-covalently with nicotinamide adenine dinucleotide, a coenzyme involved in many redox and biosynthetic reactions; binding may be to either the oxidized form, NAD+, or the reduced form, NADH.
	GO:0008785	alkyl hydroperoxide reductase activity	Catalysis of the reaction: octane hydroperoxide + NADH + H+ = H2O + NAD+ + 1-octanol.
	GO:0009055	electron carrier activity	Any molecular entity that serves as an electron acceptor and electron donor in an electron transport chain. An electron transport chain is a process in which a series of electron carriers operate together to transfer electrons from donors to any of several different terminal electron acceptors to generate a transmembrane electrochemical gradient.
	GO:0050660	flavin adenine dinucleotide binding	Interacting selectively and non-covalently with FAD, flavin-adenine dinucleotide, the coenzyme or the prosthetic group of various flavoprotein oxidoreductase enzymes, in either the oxidized form, FAD, or the reduced form, FADH2.
	GO:0016491	oxidoreductase activity	Catalysis of an oxidation-reduction (redox) reaction, a reversible chemical reaction in which the oxidation state of an atom or atoms within a molecule is altered. One substrate acts as a hydrogen or electron donor and becomes oxidized, while the other acts as hydrogen or electron acceptor and becomes reduced.
	GO:0016651	oxidoreductase activity, acting on NAD(P)H	Catalysis of an oxidation-reduction (redox) reaction in which NADH or NADPH acts as a hydrogen or electron donor and reduces a hydrogen or electron acceptor.
	GO:0015035	protein disulfide oxidoreductase activity	Catalysis of the reaction: a protein with reduced sulfide groups = a protein with oxidized disulfide bonds.
biological process
	GO:0045454	cell redox homeostasis	Any process that maintains the redox environment of a cell or compartment within a cell.
	GO:0055114	oxidation-reduction process	A metabolic process that results in the removal or addition of one or more electrons to or from a substance, with or without the concomitant removal or addition of a proton or protons.
	GO:0000302	response to reactive oxygen species	Any process that results in a change in state or activity of a cell or an organism (in terms of movement, secretion, enzyme production, gene expression, etc.) as a result of a reactive oxygen species stimulus. Reactive oxygen species include singlet oxygen, superoxide, and oxygen free radicals.
cellular component
	GO:0005623	cell	The basic structural and functional unit of all organisms. Includes the plasma membrane and any external encapsulating structures such as the cell wall and cell envelope.

Asymmetric Unit
	Complete Structure
		Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
		WebMol \| AstexViewer[tm]@PDBe (Java Applets, require no local installation except for Java; loading may be slow)
		STRAP (Java WebStart application, automatic local installation, requires Java; full application with system access!)
		RasMol (require local installation)
		Molscript (VRML) (requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

	Ligands, Modified Residues, Ions
(no "Ligands, Modified Residues, Ions" information available for 1zyp)

	Sites
(no "Sites" information available for 1zyp)

	Cis Peptide Bonds
		Lys A:62 - Pro A:63	[ RasMol ]
		Lys B:62 - Pro B:63	[ RasMol ]
		Val A:171 - Pro A:172	[ RasMol ]
		Val B:171 - Pro B:172	[ RasMol ]

Biological Units
	Complete Structure
		Biological Unit 1	[ Jena3D ]

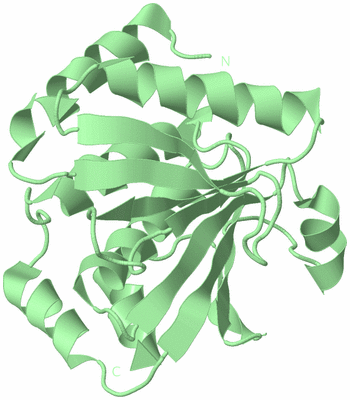

		Biological Unit 2	[ Jena3D ]

Jmol
	protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick [ Asym. Unit PNG format \| Biol. Unit 1 PNG format \| Biol. Unit 2 PNG format ](automatic orientation, automatically generated)
Molscript
	protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick [ mono PDF format \| stereo PDF format ](default orientation, automatically generated)

Access by PDB/NDB ID
	1zyp
		Family and Domain Information	:	ProDom \| SYSTERS
		General Structural Information	:	GlycoscienceDB \| MMDB \| NDB \| OCA \| PDB \| PDBe \| PDBj \| PDBsum \| PDBWiki \| PQS \| PROTEOPEDIA
		Orientation in Membranes	:	OPM
		Protein Surface	:	SURFACE
		Secondary Structure	:	DSSP (structure derived) \| HSSP (homology derived)
		Structural Genomics	:	GeneCensus
		Structural Neighbours	:	CE \| VAST
		Structure Classification	:	CATH \| Dali \| SCOP
		Validation and Original Data	:	BMRB Data View \| BMRB Restraints Grid \| EDS \| PROCHECK \| RECOORD \| WHAT_CHECK

Access by UniProt ID/Accession number
	AHPF_SALTY \| P19480
		Comparative Protein Structure Models	:	ModBase
		Genomic Information	:	Ensembl
		Protein-protein Interaction	:	DIP
		Sequence, Family and Domain Information	:	InterPro \| Pfam \| SMART \| UniProtKB/SwissProt

Access by Enzyme Classificator (EC Number)
	1.6.4.-
		General Enzyme Information	:	BRENDA \| EC-PDB \| Enzyme \| IntEnz
		Pathway	:	KEGG \| MetaCyc

Access by Disease Identifier (MIM ID)
	(no 'MIM ID' available)
		Disease Information	:	OMIM

Access by GenAge ID
	(no 'GenAge ID' available)
		Age Related Information	:	GenAge

Access by PDB/NDB ID
		Domain Information	:	XDom
		Interatomic Contacts of Structural Units	:	CSU
		Ligand-protein Contacts	:	LPC
		Protein Cavities	:	castP
		Sequence and Secondary Structure	:	PDBCartoon
		Structure Alignment	:	STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
		Structure and Sequence Browser	:	STING

Access by UniProt ID/Accession number
	AHPF_SALTY \| P19480
		Protein Disorder Prediction	:	DisEMBL \| FoldIndex \| GLOBPLOT (for more information see DisProt)

UniProtKB/Swiss-Prot
	AHPF_SALTY \| P19480	:	1hyu 1zyn

1hyu	STRUCTURE OF THE INTACT AHPF PROTEIN
1zyn	OXIDIZED FORM OF THE NTD DOMAIN OF AHPF
