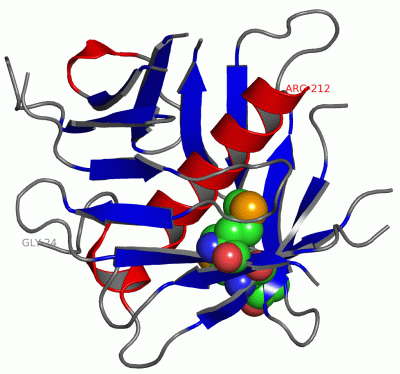

Image Asym./Biol. Unit - manually
Asym./Biol. Unit - manually  (Jmol Viewer)

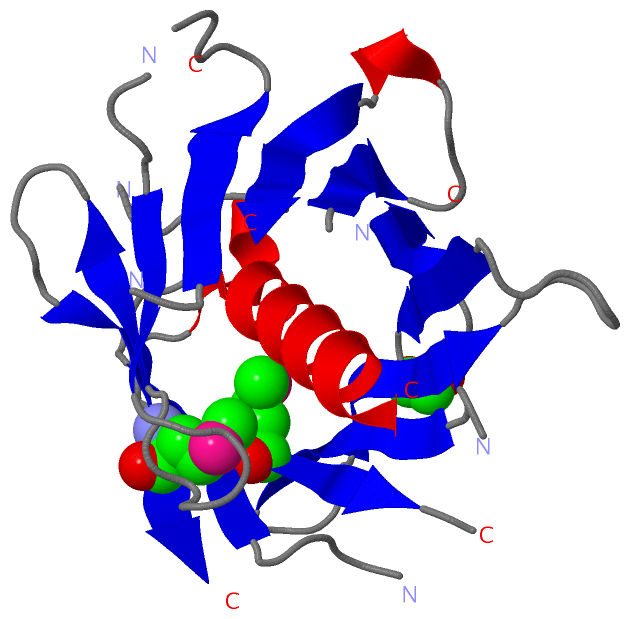

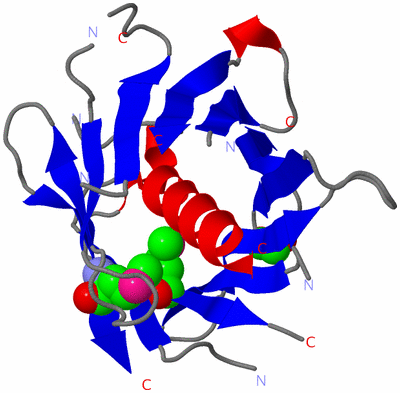

Image Asym./Biol. Unit
Asym./Biol. Unit  (Jmol Viewer)

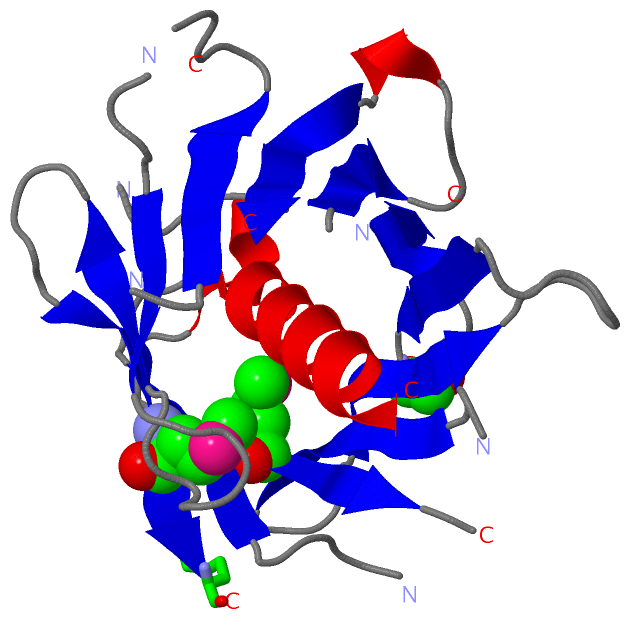

Image Asym./Biol. Unit - sites
Asym./Biol. Unit - sites  (Jmol Viewer)

(-) Description

Title :  X-RAY STRUCTURE OF PROTEIN FROM ARABIDOPSIS THALIANA AT5G01750

Authors :  G. E. Wesenberg, G. N. Phillips Jr. , E. Bitto, C. A. Bingman, S. T. M. Allard, Center For Eukaryotic Structural Genomics (Cesg)
Date :  08 Jun 05  (Deposition) - 21 Jun 05  (Release) - 24 Feb 09  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  1.70
Chains :  Asym./Biol. Unit :  A
Keywords :  At5G01750, Pfam Pf01167, Tulp, Structural Genomics, Protein Structure Initiative, Psi, Center For Eukaryotic Structural Genomics, Cesg, Unknown Function (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  Center For Eukaryotic Structural Genomics (Cesg)
X-Ray Structure Of Protein From Arabidopsis Thaliana At5G01750
To Be Published
PubMed: search
(for further references see the PDB file header)

(-) Compounds

Molecule 1 - AT5G01750 PROTEIN
    Chains: A
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Plasmid: PVP-13
    Expression System Strain: BL834(DE3) PLACI+RARE
    Expression System Taxid: 562
    Expression System Vector Type: PLASMID
    Gene: AT5G01750
    Organism Common: THALE CRESS
    Organism Scientific: ARABIDOPSIS THALIANA
    Organism Taxid: 3702

 Structural Features

(-) Chains, Units

  1
Asymmetric/Biological Unit : A

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (2, 3)

Asymmetric/Biological Unit (2, 3)
No.NameCountTypeFull Name
1EDO1Ligand/Ion1,2-ETHANEDIOL
2MSE2Mod. Amino AcidSELENOMETHIONINE

(-) Sites  (1, 1)

Asymmetric Unit (1, 1)
No.NameEvidenceResiduesDescription
1AC1SOFTWAREGLY A:83 , LYS A:174BINDING SITE FOR RESIDUE EDO A 700

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 1ZXU)

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 1ZXU)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 1ZXU)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 1ZXU)

(-) Exons   (0, 0)

(no "Exon" information available for 1ZXU)

(-) Sequences/Alignments

Asymmetric/Biological Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:162
 aligned with LOR15_ARATH | Q9LZX1 from UniProtKB/Swiss-Prot  Length:217

    Alignment length:189
                                    33        43        53        63        73        83        93       103       113       123       133       143       153       163       173       183       193       203
          LOR15_ARATH    24 GGVVVDPKYCAPYPIDMAIVRKMMSLTDGNFVITDVNGNLLFKVKEPVFGLHDKRVLLDGSGTPVVTLREKMVSMHDRWQVFRGGSTDQRDLLYTVKRSSMLQLKTKLDVFLGHNKDEKRCDFRVKGSWLERSCVVYAGESDAIVAQMHRKHTVQSVFLGKDNFSVTVYPNVDYAFIASLVVILDDVNR 212
               SCOP domains d1zxua1 A:24-212 Hypot     hetical protein At5g01750                                                                                                                                          SCOP domains
               CATH domains --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains -Tub_2-1zxuA01 A:25-20     6                                                                                                                                                           ------ Pfam domains
         Sec.struct. author .....hhhhh....eeeeee..-----...eeeee....eeeeee........eeeee.....eeeeee.------.eeeeee....hhh.eeeeee.-------..eeeee.....-....eeee........eeee.....eeeeeee.--------....eeeee....hhhhhhhhhhhhhhhhh Sec.struct. author
                 SAPs(SNPs) --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1zxu A  24 GGVVVDPKYCAPYPIDmAIVRK-----DGNFVITDVNGNLLFKVKEPVFGLHDKRVLLDGSGTPVVTLRE------DRWQVFRGGSTDQRDLLYTVKR-------TKLDVFLGHNKD-KRCDFRVKGSWLERSCVVYAGESDAIVAQmHRK--------GKDNFSVTVYPNVDYAFIASLVVILDDVNR 212
                                    33      | 43 |     |53        63        73        83        93      |103       113       | -     | 133      |143       153       163       173|      183       193       203
                                           40-MSE5    51                                        93    100                  121     129        140 |                          171-MSE     183
                                                                                                                                                142                             174
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (1, 1)

Asymmetric/Biological Unit
(-)
Class: Alpha and beta proteins (a+b) (23004)

(-) CATH Domains  (0, 0)

(no "CATH Domain" information available for 1ZXU)

(-) Pfam Domains  (1, 1)

Asymmetric/Biological Unit
(-)
Clan: Tubby_C (3)

(-) Gene Ontology  (2, 2)

Asymmetric/Biological Unit(hide GO term definitions)
Chain A   (LOR15_ARATH | Q9LZX1)
biological process
    GO:0006952    defense response    Reactions, triggered in response to the presence of a foreign body or the occurrence of an injury, which result in restriction of damage to the organism attacked or prevention/recovery from the infection caused by the attack.
cellular component
    GO:0009507    chloroplast    A chlorophyll-containing plastid with thylakoids organized into grana and frets, or stroma thylakoids, and embedded in a stroma.
