3ORH - JenaLib

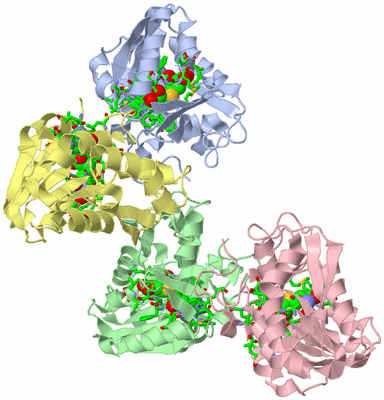

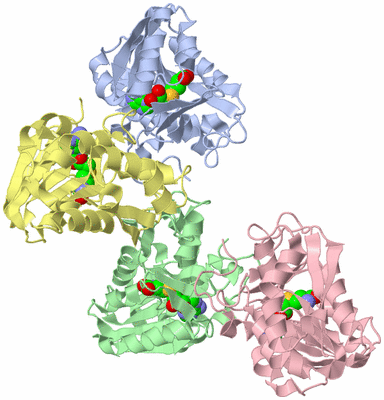

Asymmetric Unit (35, 139)

								dbSNP	PDB
No.	Source	Variant ID	Variant			UniProt ID	Status	ID	Chain	Variant
01	UniProt	VAR_071775	P	8	T	GAMT_HUMAN	Polymorphism	776498025	A/B/C	P	8	T
02	UniProt	VAR_058102	W	20	S	GAMT_HUMAN	Disease (CCDS2)	80338734	A/B/C/D	W	20	S
03	UniProt	VAR_071776	Y	27	H	GAMT_HUMAN	Polymorphism	200833152	A/B/C/D	Y	27	H
04	UniProt	VAR_075290	R	44	L	GAMT_HUMAN	Polymorphism	200339910	A/B/C/D	R	44	L
05	UniProt	VAR_071777	W	45	R	GAMT_HUMAN	Disease (CCDS2)	886054247	A/B/C/D	W	45	R
06	UniProt	VAR_058103	M	50	L	GAMT_HUMAN	Disease (CCDS2)	104894694	A/B/C/D	M	50	L
07	UniProt	VAR_058104	H	51	P	GAMT_HUMAN	Disease (CCDS2)	---	A/B/C/D	H	51	P
08	UniProt	VAR_058105	A	54	P	GAMT_HUMAN	Disease (CCDS2)	---	A/B/C/D	A	54	P
09	UniProt	VAR_071778	G	68	C	GAMT_HUMAN	Disease (CCDS2)	---	A/B/C/D	G	68	C
10	UniProt	VAR_075291	M	71	V	GAMT_HUMAN	Polymorphism	372027428	A/B/C/D	M	71	V
11	UniProt	VAR_071779	A	75	V	GAMT_HUMAN	Disease (CCDS2)	---	A/B/C/D	A	75	V
12	UniProt	VAR_075292	S	76	L	GAMT_HUMAN	Polymorphism	150338273	A/B/C/D	S	76	L
13	UniProt	VAR_071780	V	78	E	GAMT_HUMAN	Disease (CCDS2)	---	A/B/C/D	V	78	E
14	UniProt	VAR_075293	V	78	M	GAMT_HUMAN	Polymorphism	141358977	A/B/C/D	V	78	M
15	UniProt	VAR_075294	V	95	I	GAMT_HUMAN	Polymorphism	140778208	A/B/C/D	V	95	I
16	UniProt	VAR_075295	R	105	Q	GAMT_HUMAN	Polymorphism	148838075	A/B/C/D	R	105	Q
17	UniProt	VAR_075296	Q	106	P	GAMT_HUMAN	Polymorphism	145817990	A/B/C/D	Q	106	P
18	UniProt	VAR_071781	V	110	F	GAMT_HUMAN	Disease (CCDS2)	753198836	A/B/C/D	V	110	F
19	UniProt	VAR_071782	D	135	N	GAMT_HUMAN	Disease (CCDS2)	774144200	A/B/C/D	D	135	N
20	UniProt	VAR_075297	T	146	R	GAMT_HUMAN	Polymorphism	149821870	A/B/C/D	T	146	R
21	UniProt	VAR_071783	H	147	Y	GAMT_HUMAN	Disease (CCDS2)	---	A/B/C/D	H	147	Y
22	UniProt	VAR_075298	A	156	D	GAMT_HUMAN	Polymorphism	368221789	A/B/C/D	A	156	D
23	UniProt	VAR_075299	F	157	L	GAMT_HUMAN	Polymorphism	372260609	A/B/C/D	F	157	L
24	UniProt	VAR_071784	L	159	P	GAMT_HUMAN	Disease (CCDS2)	---	A/B/C/D	L	159	P
25	UniProt	VAR_071785	G	164	D	GAMT_HUMAN	Disease (CCDS2)	760101382	A/B/C/D	G	164	D
26	UniProt	VAR_071786	L	166	P	GAMT_HUMAN	Disease (CCDS2)	---	A/B/C/D	L	166	P
27	UniProt	VAR_075300	T	167	I	GAMT_HUMAN	Polymorphism	374762419	A/B/C/D	T	167	I
28	UniProt	VAR_071787	C	169	R	GAMT_HUMAN	Disease (CCDS2)	---	A/B/C/D	C	169	R
29	UniProt	VAR_058106	C	169	Y	GAMT_HUMAN	Disease (CCDS2)	121909272	A/B/C/D	C	169	Y
30	UniProt	VAR_075301	A	196	T	GAMT_HUMAN	Polymorphism	---	A/B/C/D	A	196	T
31	UniProt	VAR_075302	A	196	V	GAMT_HUMAN	Polymorphism	565109128	A/B/C/D	A	196	V
32	UniProt	VAR_058107	L	197	P	GAMT_HUMAN	Disease (CCDS2)	---	A/B/C/D	L	197	P
33	UniProt	VAR_071788	R	208	P	GAMT_HUMAN	Disease (CCDS2)	767887772	A/B/C/D	R	208	P
34	UniProt	VAR_025723	T	209	M	GAMT_HUMAN	Polymorphism	17851582	A/B/C/D	T	209	M
35	UniProt	VAR_075303	A	224	T	GAMT_HUMAN	Polymorphism	141471799	A/B/C/D	A	224	T

SNP/SAP Summary Statistics (UniProtKB/Swiss-Prot)

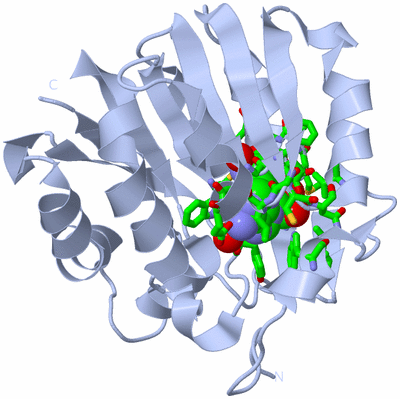

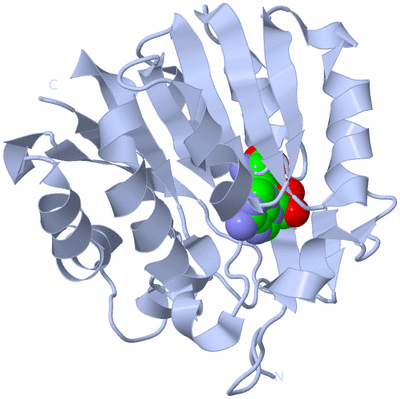

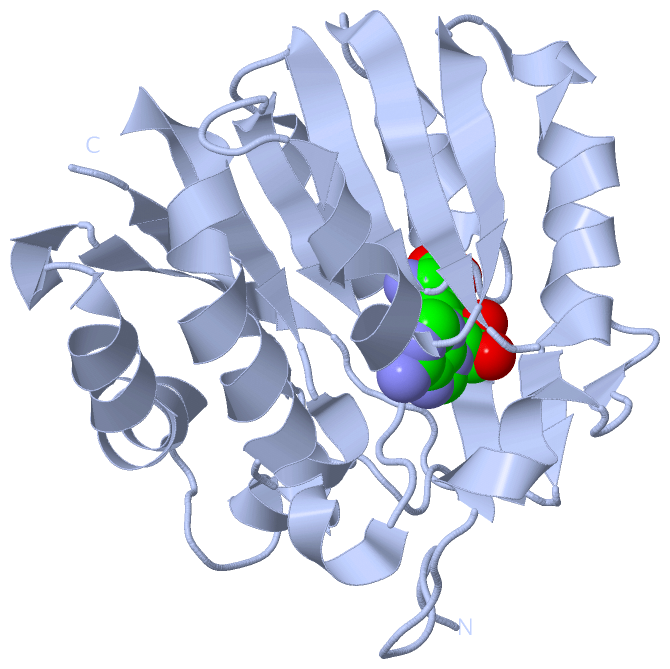

Biological Unit 1 (35, 35)

								dbSNP	PDB
No.	Source	Variant ID	Variant			UniProt ID	Status	ID	Chain	Variant
01	UniProt	VAR_071775	P	8	T	GAMT_HUMAN	Polymorphism	776498025	A	P	8	T
02	UniProt	VAR_058102	W	20	S	GAMT_HUMAN	Disease (CCDS2)	80338734	A	W	20	S
03	UniProt	VAR_071776	Y	27	H	GAMT_HUMAN	Polymorphism	200833152	A	Y	27	H
04	UniProt	VAR_075290	R	44	L	GAMT_HUMAN	Polymorphism	200339910	A	R	44	L
05	UniProt	VAR_071777	W	45	R	GAMT_HUMAN	Disease (CCDS2)	886054247	A	W	45	R
06	UniProt	VAR_058103	M	50	L	GAMT_HUMAN	Disease (CCDS2)	104894694	A	M	50	L
07	UniProt	VAR_058104	H	51	P	GAMT_HUMAN	Disease (CCDS2)	---	A	H	51	P
08	UniProt	VAR_058105	A	54	P	GAMT_HUMAN	Disease (CCDS2)	---	A	A	54	P
09	UniProt	VAR_071778	G	68	C	GAMT_HUMAN	Disease (CCDS2)	---	A	G	68	C
10	UniProt	VAR_075291	M	71	V	GAMT_HUMAN	Polymorphism	372027428	A	M	71	V
11	UniProt	VAR_071779	A	75	V	GAMT_HUMAN	Disease (CCDS2)	---	A	A	75	V
12	UniProt	VAR_075292	S	76	L	GAMT_HUMAN	Polymorphism	150338273	A	S	76	L
13	UniProt	VAR_071780	V	78	E	GAMT_HUMAN	Disease (CCDS2)	---	A	V	78	E
14	UniProt	VAR_075293	V	78	M	GAMT_HUMAN	Polymorphism	141358977	A	V	78	M
15	UniProt	VAR_075294	V	95	I	GAMT_HUMAN	Polymorphism	140778208	A	V	95	I
16	UniProt	VAR_075295	R	105	Q	GAMT_HUMAN	Polymorphism	148838075	A	R	105	Q
17	UniProt	VAR_075296	Q	106	P	GAMT_HUMAN	Polymorphism	145817990	A	Q	106	P
18	UniProt	VAR_071781	V	110	F	GAMT_HUMAN	Disease (CCDS2)	753198836	A	V	110	F
19	UniProt	VAR_071782	D	135	N	GAMT_HUMAN	Disease (CCDS2)	774144200	A	D	135	N
20	UniProt	VAR_075297	T	146	R	GAMT_HUMAN	Polymorphism	149821870	A	T	146	R
21	UniProt	VAR_071783	H	147	Y	GAMT_HUMAN	Disease (CCDS2)	---	A	H	147	Y
22	UniProt	VAR_075298	A	156	D	GAMT_HUMAN	Polymorphism	368221789	A	A	156	D
23	UniProt	VAR_075299	F	157	L	GAMT_HUMAN	Polymorphism	372260609	A	F	157	L
24	UniProt	VAR_071784	L	159	P	GAMT_HUMAN	Disease (CCDS2)	---	A	L	159	P
25	UniProt	VAR_071785	G	164	D	GAMT_HUMAN	Disease (CCDS2)	760101382	A	G	164	D
26	UniProt	VAR_071786	L	166	P	GAMT_HUMAN	Disease (CCDS2)	---	A	L	166	P
27	UniProt	VAR_075300	T	167	I	GAMT_HUMAN	Polymorphism	374762419	A	T	167	I
28	UniProt	VAR_071787	C	169	R	GAMT_HUMAN	Disease (CCDS2)	---	A	C	169	R
29	UniProt	VAR_058106	C	169	Y	GAMT_HUMAN	Disease (CCDS2)	121909272	A	C	169	Y
30	UniProt	VAR_075301	A	196	T	GAMT_HUMAN	Polymorphism	---	A	A	196	T
31	UniProt	VAR_075302	A	196	V	GAMT_HUMAN	Polymorphism	565109128	A	A	196	V
32	UniProt	VAR_058107	L	197	P	GAMT_HUMAN	Disease (CCDS2)	---	A	L	197	P
33	UniProt	VAR_071788	R	208	P	GAMT_HUMAN	Disease (CCDS2)	767887772	A	R	208	P
34	UniProt	VAR_025723	T	209	M	GAMT_HUMAN	Polymorphism	17851582	A	T	209	M
35	UniProt	VAR_075303	A	224	T	GAMT_HUMAN	Polymorphism	141471799	A	A	224	T

SNP/SAP Summary Statistics (UniProtKB/Swiss-Prot)

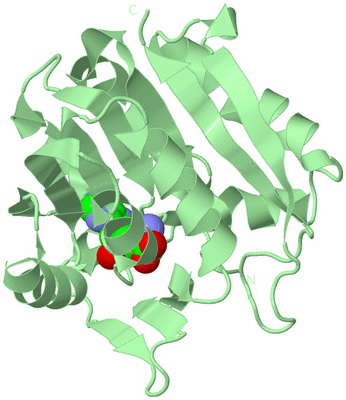

Biological Unit 2 (35, 35)

								dbSNP	PDB
No.	Source	Variant ID	Variant			UniProt ID	Status	ID	Chain	Variant
01	UniProt	VAR_071775	P	8	T	GAMT_HUMAN	Polymorphism	776498025	B	P	8	T
02	UniProt	VAR_058102	W	20	S	GAMT_HUMAN	Disease (CCDS2)	80338734	B	W	20	S
03	UniProt	VAR_071776	Y	27	H	GAMT_HUMAN	Polymorphism	200833152	B	Y	27	H
04	UniProt	VAR_075290	R	44	L	GAMT_HUMAN	Polymorphism	200339910	B	R	44	L
05	UniProt	VAR_071777	W	45	R	GAMT_HUMAN	Disease (CCDS2)	886054247	B	W	45	R
06	UniProt	VAR_058103	M	50	L	GAMT_HUMAN	Disease (CCDS2)	104894694	B	M	50	L
07	UniProt	VAR_058104	H	51	P	GAMT_HUMAN	Disease (CCDS2)	---	B	H	51	P
08	UniProt	VAR_058105	A	54	P	GAMT_HUMAN	Disease (CCDS2)	---	B	A	54	P
09	UniProt	VAR_071778	G	68	C	GAMT_HUMAN	Disease (CCDS2)	---	B	G	68	C
10	UniProt	VAR_075291	M	71	V	GAMT_HUMAN	Polymorphism	372027428	B	M	71	V
11	UniProt	VAR_071779	A	75	V	GAMT_HUMAN	Disease (CCDS2)	---	B	A	75	V
12	UniProt	VAR_075292	S	76	L	GAMT_HUMAN	Polymorphism	150338273	B	S	76	L
13	UniProt	VAR_071780	V	78	E	GAMT_HUMAN	Disease (CCDS2)	---	B	V	78	E
14	UniProt	VAR_075293	V	78	M	GAMT_HUMAN	Polymorphism	141358977	B	V	78	M
15	UniProt	VAR_075294	V	95	I	GAMT_HUMAN	Polymorphism	140778208	B	V	95	I
16	UniProt	VAR_075295	R	105	Q	GAMT_HUMAN	Polymorphism	148838075	B	R	105	Q
17	UniProt	VAR_075296	Q	106	P	GAMT_HUMAN	Polymorphism	145817990	B	Q	106	P
18	UniProt	VAR_071781	V	110	F	GAMT_HUMAN	Disease (CCDS2)	753198836	B	V	110	F
19	UniProt	VAR_071782	D	135	N	GAMT_HUMAN	Disease (CCDS2)	774144200	B	D	135	N
20	UniProt	VAR_075297	T	146	R	GAMT_HUMAN	Polymorphism	149821870	B	T	146	R
21	UniProt	VAR_071783	H	147	Y	GAMT_HUMAN	Disease (CCDS2)	---	B	H	147	Y
22	UniProt	VAR_075298	A	156	D	GAMT_HUMAN	Polymorphism	368221789	B	A	156	D
23	UniProt	VAR_075299	F	157	L	GAMT_HUMAN	Polymorphism	372260609	B	F	157	L
24	UniProt	VAR_071784	L	159	P	GAMT_HUMAN	Disease (CCDS2)	---	B	L	159	P
25	UniProt	VAR_071785	G	164	D	GAMT_HUMAN	Disease (CCDS2)	760101382	B	G	164	D
26	UniProt	VAR_071786	L	166	P	GAMT_HUMAN	Disease (CCDS2)	---	B	L	166	P
27	UniProt	VAR_075300	T	167	I	GAMT_HUMAN	Polymorphism	374762419	B	T	167	I
28	UniProt	VAR_071787	C	169	R	GAMT_HUMAN	Disease (CCDS2)	---	B	C	169	R
29	UniProt	VAR_058106	C	169	Y	GAMT_HUMAN	Disease (CCDS2)	121909272	B	C	169	Y
30	UniProt	VAR_075301	A	196	T	GAMT_HUMAN	Polymorphism	---	B	A	196	T
31	UniProt	VAR_075302	A	196	V	GAMT_HUMAN	Polymorphism	565109128	B	A	196	V
32	UniProt	VAR_058107	L	197	P	GAMT_HUMAN	Disease (CCDS2)	---	B	L	197	P
33	UniProt	VAR_071788	R	208	P	GAMT_HUMAN	Disease (CCDS2)	767887772	B	R	208	P
34	UniProt	VAR_025723	T	209	M	GAMT_HUMAN	Polymorphism	17851582	B	T	209	M
35	UniProt	VAR_075303	A	224	T	GAMT_HUMAN	Polymorphism	141471799	B	A	224	T

SNP/SAP Summary Statistics (UniProtKB/Swiss-Prot)

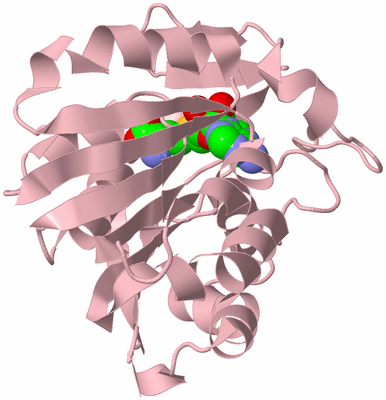

Biological Unit 3 (35, 35)

								dbSNP	PDB
No.	Source	Variant ID	Variant			UniProt ID	Status	ID	Chain	Variant
01	UniProt	VAR_071775	P	8	T	GAMT_HUMAN	Polymorphism	776498025	C	P	8	T
02	UniProt	VAR_058102	W	20	S	GAMT_HUMAN	Disease (CCDS2)	80338734	C	W	20	S
03	UniProt	VAR_071776	Y	27	H	GAMT_HUMAN	Polymorphism	200833152	C	Y	27	H
04	UniProt	VAR_075290	R	44	L	GAMT_HUMAN	Polymorphism	200339910	C	R	44	L
05	UniProt	VAR_071777	W	45	R	GAMT_HUMAN	Disease (CCDS2)	886054247	C	W	45	R
06	UniProt	VAR_058103	M	50	L	GAMT_HUMAN	Disease (CCDS2)	104894694	C	M	50	L
07	UniProt	VAR_058104	H	51	P	GAMT_HUMAN	Disease (CCDS2)	---	C	H	51	P
08	UniProt	VAR_058105	A	54	P	GAMT_HUMAN	Disease (CCDS2)	---	C	A	54	P
09	UniProt	VAR_071778	G	68	C	GAMT_HUMAN	Disease (CCDS2)	---	C	G	68	C
10	UniProt	VAR_075291	M	71	V	GAMT_HUMAN	Polymorphism	372027428	C	M	71	V
11	UniProt	VAR_071779	A	75	V	GAMT_HUMAN	Disease (CCDS2)	---	C	A	75	V
12	UniProt	VAR_075292	S	76	L	GAMT_HUMAN	Polymorphism	150338273	C	S	76	L
13	UniProt	VAR_071780	V	78	E	GAMT_HUMAN	Disease (CCDS2)	---	C	V	78	E
14	UniProt	VAR_075293	V	78	M	GAMT_HUMAN	Polymorphism	141358977	C	V	78	M
15	UniProt	VAR_075294	V	95	I	GAMT_HUMAN	Polymorphism	140778208	C	V	95	I
16	UniProt	VAR_075295	R	105	Q	GAMT_HUMAN	Polymorphism	148838075	C	R	105	Q
17	UniProt	VAR_075296	Q	106	P	GAMT_HUMAN	Polymorphism	145817990	C	Q	106	P
18	UniProt	VAR_071781	V	110	F	GAMT_HUMAN	Disease (CCDS2)	753198836	C	V	110	F
19	UniProt	VAR_071782	D	135	N	GAMT_HUMAN	Disease (CCDS2)	774144200	C	D	135	N
20	UniProt	VAR_075297	T	146	R	GAMT_HUMAN	Polymorphism	149821870	C	T	146	R
21	UniProt	VAR_071783	H	147	Y	GAMT_HUMAN	Disease (CCDS2)	---	C	H	147	Y
22	UniProt	VAR_075298	A	156	D	GAMT_HUMAN	Polymorphism	368221789	C	A	156	D
23	UniProt	VAR_075299	F	157	L	GAMT_HUMAN	Polymorphism	372260609	C	F	157	L
24	UniProt	VAR_071784	L	159	P	GAMT_HUMAN	Disease (CCDS2)	---	C	L	159	P
25	UniProt	VAR_071785	G	164	D	GAMT_HUMAN	Disease (CCDS2)	760101382	C	G	164	D
26	UniProt	VAR_071786	L	166	P	GAMT_HUMAN	Disease (CCDS2)	---	C	L	166	P
27	UniProt	VAR_075300	T	167	I	GAMT_HUMAN	Polymorphism	374762419	C	T	167	I
28	UniProt	VAR_071787	C	169	R	GAMT_HUMAN	Disease (CCDS2)	---	C	C	169	R
29	UniProt	VAR_058106	C	169	Y	GAMT_HUMAN	Disease (CCDS2)	121909272	C	C	169	Y
30	UniProt	VAR_075301	A	196	T	GAMT_HUMAN	Polymorphism	---	C	A	196	T
31	UniProt	VAR_075302	A	196	V	GAMT_HUMAN	Polymorphism	565109128	C	A	196	V
32	UniProt	VAR_058107	L	197	P	GAMT_HUMAN	Disease (CCDS2)	---	C	L	197	P
33	UniProt	VAR_071788	R	208	P	GAMT_HUMAN	Disease (CCDS2)	767887772	C	R	208	P
34	UniProt	VAR_025723	T	209	M	GAMT_HUMAN	Polymorphism	17851582	C	T	209	M
35	UniProt	VAR_075303	A	224	T	GAMT_HUMAN	Polymorphism	141471799	C	A	224	T

SNP/SAP Summary Statistics (UniProtKB/Swiss-Prot)

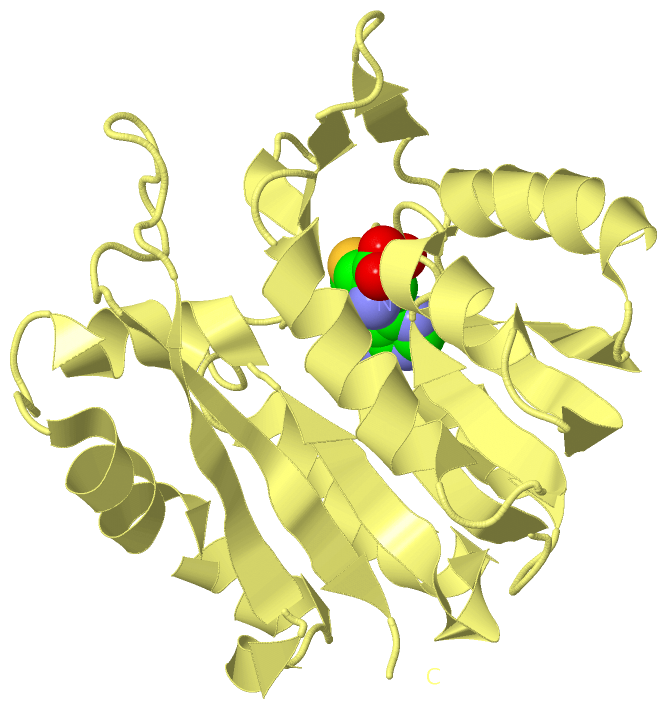

Biological Unit 4 (34, 34)

								dbSNP	PDB
No.	Source	Variant ID	Variant			UniProt ID	Status	ID	Chain	Variant
02	UniProt	VAR_058102	W	20	S	GAMT_HUMAN	Disease (CCDS2)	80338734	D	W	20	S
03	UniProt	VAR_071776	Y	27	H	GAMT_HUMAN	Polymorphism	200833152	D	Y	27	H
04	UniProt	VAR_075290	R	44	L	GAMT_HUMAN	Polymorphism	200339910	D	R	44	L
05	UniProt	VAR_071777	W	45	R	GAMT_HUMAN	Disease (CCDS2)	886054247	D	W	45	R
06	UniProt	VAR_058103	M	50	L	GAMT_HUMAN	Disease (CCDS2)	104894694	D	M	50	L
07	UniProt	VAR_058104	H	51	P	GAMT_HUMAN	Disease (CCDS2)	---	D	H	51	P
08	UniProt	VAR_058105	A	54	P	GAMT_HUMAN	Disease (CCDS2)	---	D	A	54	P
09	UniProt	VAR_071778	G	68	C	GAMT_HUMAN	Disease (CCDS2)	---	D	G	68	C
10	UniProt	VAR_075291	M	71	V	GAMT_HUMAN	Polymorphism	372027428	D	M	71	V
11	UniProt	VAR_071779	A	75	V	GAMT_HUMAN	Disease (CCDS2)	---	D	A	75	V
12	UniProt	VAR_075292	S	76	L	GAMT_HUMAN	Polymorphism	150338273	D	S	76	L
13	UniProt	VAR_071780	V	78	E	GAMT_HUMAN	Disease (CCDS2)	---	D	V	78	E
14	UniProt	VAR_075293	V	78	M	GAMT_HUMAN	Polymorphism	141358977	D	V	78	M
15	UniProt	VAR_075294	V	95	I	GAMT_HUMAN	Polymorphism	140778208	D	V	95	I
16	UniProt	VAR_075295	R	105	Q	GAMT_HUMAN	Polymorphism	148838075	D	R	105	Q
17	UniProt	VAR_075296	Q	106	P	GAMT_HUMAN	Polymorphism	145817990	D	Q	106	P
18	UniProt	VAR_071781	V	110	F	GAMT_HUMAN	Disease (CCDS2)	753198836	D	V	110	F
19	UniProt	VAR_071782	D	135	N	GAMT_HUMAN	Disease (CCDS2)	774144200	D	D	135	N
20	UniProt	VAR_075297	T	146	R	GAMT_HUMAN	Polymorphism	149821870	D	T	146	R
21	UniProt	VAR_071783	H	147	Y	GAMT_HUMAN	Disease (CCDS2)	---	D	H	147	Y
22	UniProt	VAR_075298	A	156	D	GAMT_HUMAN	Polymorphism	368221789	D	A	156	D
23	UniProt	VAR_075299	F	157	L	GAMT_HUMAN	Polymorphism	372260609	D	F	157	L
24	UniProt	VAR_071784	L	159	P	GAMT_HUMAN	Disease (CCDS2)	---	D	L	159	P
25	UniProt	VAR_071785	G	164	D	GAMT_HUMAN	Disease (CCDS2)	760101382	D	G	164	D
26	UniProt	VAR_071786	L	166	P	GAMT_HUMAN	Disease (CCDS2)	---	D	L	166	P
27	UniProt	VAR_075300	T	167	I	GAMT_HUMAN	Polymorphism	374762419	D	T	167	I
28	UniProt	VAR_071787	C	169	R	GAMT_HUMAN	Disease (CCDS2)	---	D	C	169	R
29	UniProt	VAR_058106	C	169	Y	GAMT_HUMAN	Disease (CCDS2)	121909272	D	C	169	Y
30	UniProt	VAR_075301	A	196	T	GAMT_HUMAN	Polymorphism	---	D	A	196	T
31	UniProt	VAR_075302	A	196	V	GAMT_HUMAN	Polymorphism	565109128	D	A	196	V
32	UniProt	VAR_058107	L	197	P	GAMT_HUMAN	Disease (CCDS2)	---	D	L	197	P
33	UniProt	VAR_071788	R	208	P	GAMT_HUMAN	Disease (CCDS2)	767887772	D	R	208	P
34	UniProt	VAR_025723	T	209	M	GAMT_HUMAN	Polymorphism	17851582	D	T	209	M
35	UniProt	VAR_075303	A	224	T	GAMT_HUMAN	Polymorphism	141471799	D	A	224	T

SNP/SAP Summary Statistics (UniProtKB/Swiss-Prot)

PROSITE Motifs (1, 3)

Exons (6, 24)

Sequences/Alignments

Asymmetric Unit

Reformat:	Number of residues per line = ('0' or empty: single-line sequence representation)
	Number of residues per labelling interval =
	UniProt sequence: complete aligned part

Show mapping:	SCOP domains	CATH domains	Pfam domains	Secondary structure (by author)
	SAPs(SNPs)	PROSITE motifs	Exons
	(details for a mapped element are shown in a popup box when the mouse pointer rests over it)

Chain A from PDB  Type:PROTEIN  Length:230
 aligned with GAMT_HUMAN | Q14353 from UniProtKB/Swiss-Prot  Length:236

    Alignment length:230
                                    16        26        36        46        56        66        76        86        96       106       116       126       136       146       156       166       176       186       196       206       216       226       236
           GAMT_HUMAN     7 TPIFAPGENCSPAWGAAPAAYDAADTHLRILGKPVMERWETPYMHALAAAASSKGGRVLEVGFGMAIAASKVQEAPIDEHWIIECNDGVFQRLRDWAPRQTHKVIPLKGLWEDVAPTLPDGHFDGILYDTYPLSEETWHTHQFNFIKNHAFRLLKPGGVLTYCNLTSWGELMKSKYSDITIMFEETQVPALLEAGFRRENIRTEVMALVPPADCRYYAFPQMITPLVTKG 236
               SCOP domains d3orha_ A: Guanidinoacetate methyltransferase                                                                                                                                                                                          SCOP domains
               CATH domains -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .........hhhhhh...eee.....eeee..eeeee..hhhhhhhhhhhhh...eeeeee....hhhhhhhh...eeeeeeee.hhhhhhhhhhhhhhh..eeeeee.hhhhhhhhh....eeeeee.....hhhhh.hhhhhhhhhhhhhheeeeeeeee.hhhhhhhhh.....hhhhhhhhhhhhhhhhhh.hhh.eeeeeee.............eeeeeeee.. Sec.struct. author
             SAPs(SNPs) (1) -T-----------S------H----------------LR----LP--P-------------C--V---VL-E----------------I---------QP---F------------------------N----------RY--------DL-P----D-PI-R--------------------------TP----------PM--------------T------------ SAPs(SNPs) (1)
             SAPs(SNPs) (2) -----------------------------------------------------------------------M------------------------------------------------------------------------------------------Y--------------------------V---------------------------------------- SAPs(SNPs) (2)
                    PROSITE ------SAM_RMT2  PDB: A:13-236 UniProt: 13-236                                                                                                                                                                                          PROSITE
           Transcript 1 (1) Exon 1.1a  PDB: A:7-61 UniProt: 1-61 [INCOMPLETE]      ------------------------------------------------Exon 1.3              ----------------------Exon 1.5a  PDB: A:154-190            Exon 1.6b  PDB: A:191-236 UniProt: 191-236     Transcript 1 (1)
           Transcript 1 (2) ------------------------------------------------------Exon 1.2b  PDB: A:61-109 UniProt: 61-109         ---------------------Exon 1.4a              ----------------------------------------------------------------------------------- Transcript 1 (2)
                 3orh A   7 TPIFAPGENCSPAWGAAPAAYDAADTHLRILGKPVMERWETPYMHALAAAASSKGGRVLEVGFGMAIAASKVQEAPIDEHWIIECNDGVFQRLRDWAPRQTHKVIPLKGLWEDVAPTLPDGHFDGILYDTYPLSEETWHTHQFNFIKNHAFRLLKPGGVLTYCNLTSWGELMKSKYSDITIMFEETQVPALLEAGFRRENIRTEVMALVPPADCRYYAFPQMITPLVTKG 236
                                    16        26        36        46        56        66        76        86        96       106       116       126       136       146       156       166       176       186       196       206       216       226       236

Chain B from PDB  Type:PROTEIN  Length:229
 aligned with GAMT_HUMAN | Q14353 from UniProtKB/Swiss-Prot  Length:236

    Alignment length:229
                                    17        27        37        47        57        67        77        87        97       107       117       127       137       147       157       167       177       187       197       207       217       227
           GAMT_HUMAN     8 PIFAPGENCSPAWGAAPAAYDAADTHLRILGKPVMERWETPYMHALAAAASSKGGRVLEVGFGMAIAASKVQEAPIDEHWIIECNDGVFQRLRDWAPRQTHKVIPLKGLWEDVAPTLPDGHFDGILYDTYPLSEETWHTHQFNFIKNHAFRLLKPGGVLTYCNLTSWGELMKSKYSDITIMFEETQVPALLEAGFRRENIRTEVMALVPPADCRYYAFPQMITPLVTKG 236
               SCOP domains d3orhb_ B: Guanidinoacetate methyltransferase                                                                                                                                                                                         SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ........hhhhh....eee.....eeee..eeeee..hhhhhhhhhhhhh...eeeeee....hhhhhhhh...eeeeeeee.hhhhhhhhhhhhhhh..eeeeee.hhhhhhhhh....eeeeee.....hhhhh.hhhhhhhhhhhhhheeeeeeeee.hhhhhhhhh.....hhhhhhhhhhhhhhhhh..hhh.eeeeeee.............eeeeeeee.. Sec.struct. author
             SAPs(SNPs) (1) T-----------S------H----------------LR----LP--P-------------C--V---VL-E----------------I---------QP---F------------------------N----------RY--------DL-P----D-PI-R--------------------------TP----------PM--------------T------------ SAPs(SNPs) (1)
             SAPs(SNPs) (2) ----------------------------------------------------------------------M------------------------------------------------------------------------------------------Y--------------------------V---------------------------------------- SAPs(SNPs) (2)
                    PROSITE -----SAM_RMT2  PDB: B:13-236 UniProt: 13-236                                                                                                                                                                                          PROSITE
           Transcript 1 (1) Exon 1.1a  PDB: B:8-61 UniProt: 1-61 [INCOMPLETE]     ------------------------------------------------Exon 1.3              ----------------------Exon 1.5a  PDB: B:154-190            Exon 1.6b  PDB: B:191-236 UniProt: 191-236     Transcript 1 (1)
           Transcript 1 (2) -----------------------------------------------------Exon 1.2b  PDB: B:61-109 UniProt: 61-109         ---------------------Exon 1.4a              ----------------------------------------------------------------------------------- Transcript 1 (2)
                 3orh B   8 PIFAPGENCSPAWGAAPAAYDAADTHLRILGKPVMERWETPYMHALAAAASSKGGRVLEVGFGMAIAASKVQEAPIDEHWIIECNDGVFQRLRDWAPRQTHKVIPLKGLWEDVAPTLPDGHFDGILYDTYPLSEETWHTHQFNFIKNHAFRLLKPGGVLTYCNLTSWGELMKSKYSDITIMFEETQVPALLEAGFRRENIRTEVMALVPPADCRYYAFPQMITPLVTKG 236
                                    17        27        37        47        57        67        77        87        97       107       117       127       137       147       157       167       177       187       197       207       217       227

Chain C from PDB  Type:PROTEIN  Length:230
 aligned with GAMT_HUMAN | Q14353 from UniProtKB/Swiss-Prot  Length:236

    Alignment length:230
                                    16        26        36        46        56        66        76        86        96       106       116       126       136       146       156       166       176       186       196       206       216       226       236
           GAMT_HUMAN     7 TPIFAPGENCSPAWGAAPAAYDAADTHLRILGKPVMERWETPYMHALAAAASSKGGRVLEVGFGMAIAASKVQEAPIDEHWIIECNDGVFQRLRDWAPRQTHKVIPLKGLWEDVAPTLPDGHFDGILYDTYPLSEETWHTHQFNFIKNHAFRLLKPGGVLTYCNLTSWGELMKSKYSDITIMFEETQVPALLEAGFRRENIRTEVMALVPPADCRYYAFPQMITPLVTKG 236
               SCOP domains d3orhc_ C: Guanidinoacetate methyltransferase                                                                                                                                                                                          SCOP domains
               CATH domains -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .........hhhhhh...eee.....eeee..eeeee..hhhhhhhhhhhhh...eeeeee....hhhhhhhh...eeeeeeee.hhhhhhhhhhhhhhh..eeeeee.hhhhhhhhh....eeeeee...........hhhhhhhhhhhhhheeeeeeeee.hhhhhhhhh.....hhhhhhhhhhhhhhhhh..hhh.eeeeeee.............eeeeeeee.. Sec.struct. author
             SAPs(SNPs) (1) -T-----------S------H----------------LR----LP--P-------------C--V---VL-E----------------I---------QP---F------------------------N----------RY--------DL-P----D-PI-R--------------------------TP----------PM--------------T------------ SAPs(SNPs) (1)
             SAPs(SNPs) (2) -----------------------------------------------------------------------M------------------------------------------------------------------------------------------Y--------------------------V---------------------------------------- SAPs(SNPs) (2)
                    PROSITE ------SAM_RMT2  PDB: C:13-236 UniProt: 13-236                                                                                                                                                                                          PROSITE
           Transcript 1 (1) Exon 1.1a  PDB: C:7-61 UniProt: 1-61 [INCOMPLETE]      ------------------------------------------------Exon 1.3              ----------------------Exon 1.5a  PDB: C:154-190            Exon 1.6b  PDB: C:191-236 UniProt: 191-236     Transcript 1 (1)
           Transcript 1 (2) ------------------------------------------------------Exon 1.2b  PDB: C:61-109 UniProt: 61-109         ---------------------Exon 1.4a              ----------------------------------------------------------------------------------- Transcript 1 (2)
                 3orh C   7 TPIFAPGENCSPAWGAAPAAYDAADTHLRILGKPVMERWETPYMHALAAAASSKGGRVLEVGFGMAIAASKVQEAPIDEHWIIECNDGVFQRLRDWAPRQTHKVIPLKGLWEDVAPTLPDGHFDGILYDTYPLSEETWHTHQFNFIKNHAFRLLKPGGVLTYCNLTSWGELMKSKYSDITIMFEETQVPALLEAGFRRENIRTEVMALVPPADCRYYAFPQMITPLVTKG 236
                                    16        26        36        46        56        66        76        86        96       106       116       126       136       146       156       166       176       186       196       206       216       226       236

Chain D from PDB  Type:PROTEIN  Length:219
 aligned with GAMT_HUMAN | Q14353 from UniProtKB/Swiss-Prot  Length:236

    Alignment length:219
                                    27        37        47        57        67        77        87        97       107       117       127       137       147       157       167       177       187       197       207       217       227
           GAMT_HUMAN    18 PAWGAAPAAYDAADTHLRILGKPVMERWETPYMHALAAAASSKGGRVLEVGFGMAIAASKVQEAPIDEHWIIECNDGVFQRLRDWAPRQTHKVIPLKGLWEDVAPTLPDGHFDGILYDTYPLSEETWHTHQFNFIKNHAFRLLKPGGVLTYCNLTSWGELMKSKYSDITIMFEETQVPALLEAGFRRENIRTEVMALVPPADCRYYAFPQMITPLVTKG 236
               SCOP domains d3orhd_ D: Guanidinoacetate methyltransferase                                                                                                                                                                               SCOP domains
               CATH domains --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .......eee.....eeee..eeeee..hhhhhhhhhhhhh...eeeeee....hhhhhhhh...eeeeeeee.hhhhhhhhhhhhhhh..eeeeee.hhhhhhhhh....eeeeee...........hhhhhhhhhhhhhheeeeeeeee.hhhhhhhhh.....hhhhhhhhhhhhhhhhh..hhh.eeeeeee.............eeeeeeee.. Sec.struct. author
             SAPs(SNPs) (1) --S------H----------------LR----LP--P-------------C--V---VL-E----------------I---------QP---F------------------------N----------RY--------DL-P----D-PI-R--------------------------TP----------PM--------------T------------ SAPs(SNPs) (1)
             SAPs(SNPs) (2) ------------------------------------------------------------M------------------------------------------------------------------------------------------Y--------------------------V---------------------------------------- SAPs(SNPs) (2)
                    PROSITE SAM_RMT2  PDB: - UniProt: 13-236                                                                                                                                                                                            PROSITE
           Transcript 1 (1) Exon 1.1a  PDB: D:18-61 UniProt: 1-61       ------------------------------------------------Exon 1.3              ----------------------Exon 1.5a  PDB: D:154-190            Exon 1.6b  PDB: D:191-236 UniProt: 191-236     Transcript 1 (1)
           Transcript 1 (2) -------------------------------------------Exon 1.2b  PDB: D:61-109 UniProt: 61-109         ---------------------Exon 1.4a              ----------------------------------------------------------------------------------- Transcript 1 (2)
                 3orh D  18 PAWGAAPAAYDAADTHLRILGKPVMERWETPYMHALAAAASSKGGRVLEVGFGMAIAASKVQEAPIDEHWIIECNDGVFQRLRDWAPRQTHKVIPLKGLWEDVAPTLPDGHFDGILYDTYPLSEETWHTHQFNFIKNHAFRLLKPGGVLTYCNLTSWGELMKSKYSDITIMFEETQVPALLEAGFRRENIRTEVMALVPPADCRYYAFPQMITPLVTKG 236
                                    27        37        47        57        67        77        87        97       107       117       127       137       147       157       167       177       187       197       207       217       227

Legend:		→ Mismatch	(orange background)
	-	→ Gap	(green background, '-', border residues have a numbering label)
		→ Modified Residue	(blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
	x	→ Chemical Group	(purple background, 'x', labelled with number + name, e.g. ACE or NH2)
	extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '\|'

Classification and Annotation

SCOP Domains (1, 4)

CATH Domains (0, 0 ; only for superseded entry 1ZX0: 1,4)

Pfam Domains (0, 0)

Gene Ontology (19, 19)

Asymmetric Unit(hide GO term definitions)

Chain A,B,C,D (GAMT_HUMAN | Q14353)

molecular function
	GO:0008757	S-adenosylmethionine-dependent methyltransferase activity	Catalysis of the transfer of a methyl group from S-adenosyl-L-methionine to a substrate.
	GO:0030731	guanidinoacetate N-methyltransferase activity	Catalysis of the reaction: S-adenosyl-L-methionine + guanidinoacetate = S-adenosyl-L-homocysteine + creatine + H(+).
	GO:0008168	methyltransferase activity	Catalysis of the transfer of a methyl group to an acceptor molecule.
	GO:0042803	protein homodimerization activity	Interacting selectively and non-covalently with an identical protein to form a homodimer.
	GO:0016740	transferase activity	Catalysis of the transfer of a group, e.g. a methyl group, glycosyl group, acyl group, phosphorus-containing, or other groups, from one compound (generally regarded as the donor) to another compound (generally regarded as the acceptor). Transferase is the systematic name for any enzyme of EC class 2.
biological process
	GO:0046498	S-adenosylhomocysteine metabolic process	The chemical reactions and pathways involving S-adenosylhomocysteine; the L-enantiomer is formed from S-adenosylmethionine and is a strong inhibitor of S-adenosylmethionine-mediated methylation reactions. It can be cleaved to form adenosine and homocysteine.
	GO:0046500	S-adenosylmethionine metabolic process	The chemical reactions and pathways involving S-adenosylmethionine, S-(5'-adenosyl)-L-methionine, an important intermediate in one-carbon metabolism.
	GO:0009887	animal organ morphogenesis	Morphogenesis of an animal organ. An organ is defined as a tissue or set of tissues that work together to perform a specific function or functions. Morphogenesis is the process in which anatomical structures are generated and organized. Organs are commonly observed as visibly distinct structures, but may also exist as loosely associated clusters of cells that work together to perform a specific function or functions.
	GO:0006601	creatine biosynthetic process	The chemical reactions and pathways resulting in the formation of creatine, N-[amino(imino)methyl]-N-methylglycine. Creatine is formed by a process beginning with amidino group transfer from L-arginine to glycine to form guanidinoacetate, followed by methyl group transfer from S-adenosyl-L-methionine to guanidinoacetate; it is then is phosphorylated to form a pool that stores high energy phosphate for the replenishment of ATP during periods of high, or fluctuating energy demand. In animals, most creatine is transported to and used in muscle.
	GO:0006600	creatine metabolic process	The chemical reactions and pathways involving creatine (N-(aminoiminomethyl)-N-methylglycine), a compound synthesized from the amino acids arginine, glycine, and methionine that occurs in muscle.
	GO:1990402	embryonic liver development	The process occurring during the embryonic phase whose specific outcome is the progression of the liver over time, from its formation to the mature structure.
	GO:0032259	methylation	The process in which a methyl group is covalently attached to a molecule.
	GO:0006936	muscle contraction	A process in which force is generated within muscle tissue, resulting in a change in muscle geometry. Force generation involves a chemo-mechanical energy conversion step that is carried out by the actin/myosin complex activity, which generates force through ATP hydrolysis.
	GO:0040014	regulation of multicellular organism growth	Any process that modulates the frequency, rate or extent of growth of the body of an organism so that it reaches its usual body size.
	GO:0007283	spermatogenesis	The process of formation of spermatozoa, including spermatocytogenesis and spermiogenesis.
cellular component
	GO:0005737	cytoplasm	All of the contents of a cell excluding the plasma membrane and nucleus, but including other subcellular structures.
	GO:0005829	cytosol	The part of the cytoplasm that does not contain organelles but which does contain other particulate matter, such as protein complexes.
	GO:0070062	extracellular exosome	A vesicle that is released into the extracellular region by fusion of the limiting endosomal membrane of a multivesicular body with the plasma membrane. Extracellular exosomes, also simply called exosomes, have a diameter of about 40-100 nm.
	GO:0005634	nucleus	A membrane-bounded organelle of eukaryotic cells in which chromosomes are housed and replicated. In most cells, the nucleus contains all of the cell's chromosomes except the organellar chromosomes, and is the site of RNA synthesis and processing. In some species, or in specialized cell types, RNA metabolism or DNA replication may be absent.

Description

Compounds

Structural Features

Chains, Units

Ligands, Modified Residues, Ions (1, 4)

Sites (4, 4)

SS Bonds (0, 0)

Cis Peptide Bonds (0, 0)

Sequence-Structure Mapping

SAPs(SNPs)/Variants (35, 139)

PROSITE Motifs (1, 3)

Exons (6, 24)

Sequences/Alignments

Classification and Annotation

SCOP Domains (1, 4)

CATH Domains (0, 0 ; only for superseded entry 1ZX0: 1,4)

Pfam Domains (0, 0)

Gene Ontology (19, 19)

Visualization

Interactive Views

Still Images

Databases and Analysis Tools

Databases

Analysis Tools

Related Entries

Entries Sharing at Least One Protein Chain (UniProt ID)

Related Entries Specified in the PDB File
