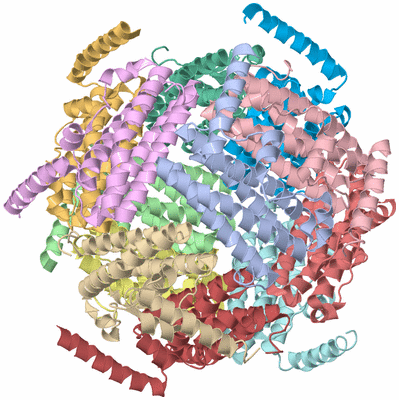

Image Asym./Biol. Unit

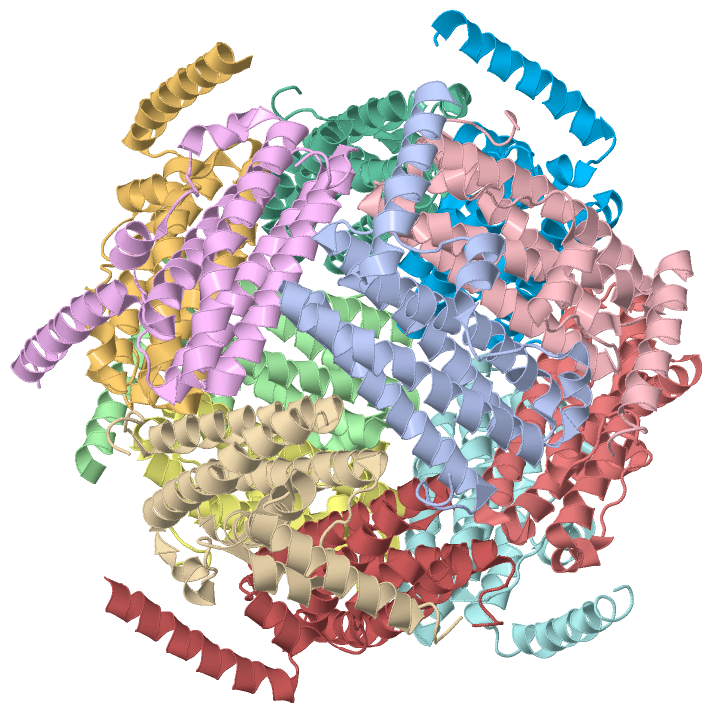

Asym./Biol. Unit  (Jmol Viewer)

(-) Description

Title :  THE CRYSTAL STRUCTURE OF THE LACTOCOCCUS LACTIS MG1363 DPSB PROTEIN

Authors :  T. J. Stillman, M. Upadhyay, V. A. Norte, S. E. Sedelnikova, M. Carradus, S. Tzokov, P. A. Bullough, C. A. Shearman, M. J. Gasson, C. H. Williams, P. J. Artymiuk, J. Green
Date :  23 May 05  (Deposition) - 30 Aug 05  (Release) - 24 Feb 09  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  2.70
Chains :  Asym./Biol. Unit :  A,B,C,D,E,F,G,H,I,J,K,L
Keywords :  Oxidative Stress, Dps, Dna Binding, Lactic Acid Bacteria, Dna Binding Protein (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  T. J. Stillman, M. Upadhyay, V. A. Norte, S. E. Sedelnikova, M. Carradus, S. Tzokov, P. A. Bullough, C. A. Shearman, M. J. Gasson, C. H. Williams, P. J. Artymiuk, J. Green
The Crystal Structures Of Lactococcus Lactis Mg1363 Dps Proteins Reveal The Presence Of An N-Terminal Helix That Is Required For Dna Binding.
Mol. Microbiol. V. 57 1101 2005
PubMed-ID: 16091047  |  Reference-DOI: 10.1111/J.1365-2958.2005.04757.X
(for further references see the PDB file header)

(-) Compounds

Molecule 1 - LACTOCOCCUS LACTIS MG1363 DPSA
    Chains: A, B, C, D, E, F, G, H, I, J, K, L
    Engineered: YES
    Expression System: ESCHERICHIA COLI BL21(DE3)
    Expression System Plasmid: PET28A
    Expression System Strain: BL21DE3
    Expression System Taxid: 469008
    Expression System Vector Type: PLASMID
    Gene: FLPB
    Organism Scientific: LACTOCOCCUS LACTIS
    Organism Taxid: 1358

 Structural Features

(-) Chains, Units

  123456789101112
Asymmetric/Biological Unit : ABCDEFGHIJKL

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (0, 0)

(no "Ligand,Modified Residues,Ions" information available for 1ZS3)

(-) Sites  (0, 0)

(no "Site" information available for 1ZS3)

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 1ZS3)

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 1ZS3)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 1ZS3)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 1ZS3)

(-) Exons   (0, 0)

(no "Exon" information available for 1ZS3)

(-) Sequences/Alignments

Asymmetric/Biological Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:171

               SCOP domains d1zs3a1 A:3-173 Dodecameric ferritin homolog                                                                                                                                SCOP domains
               CATH domains --------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains --------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .hhhhhhhhhhhhhhhhhhhhh.hhhhhhhhhhhhhhhhhhhhhhhhhhh.hhhhhhhhhhhhhhhhhhhhhhhhhhhhh......hhhhhhhhh.....hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh.hhhhhhhhhhhhhhhhhhhhhhhhhh....... Sec.struct. author
                 SAPs(SNPs) --------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE --------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript --------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1zs3 A   3 TKLMIDEKYAKELDKAEIDHHKPTAGAMLGHVLSNLFIENIRLTQAGIYAKSPVKCEYLREIAQREVEYFFKISDLLLDENEIVPSTTEEFLKYHKFITEDPKAKYWTDEDLLESFIVDFQAQNMFITRAIKLANKEEKFALAAGVVELYGYNLQVIRNLAGDLGKSVADF 173
                                    12        22        32        42        52        62        72        82        92       102       112       122       132       142       152       162       172


Chain B from PDB  Type:PROTEIN  Length:171

               SCOP domains d1zs3b_ B: Dodecameric ferritin homolog                                                                                                                                     SCOP domains
               CATH domains --------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains --------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author hhhhhhhhhhhhhhhhhhhhhh.hhhhhhhhhhhhhhhhhhhhhhhhhhh.hhhhhhhhhhhhhhhhhhhhhhhhhhhhh......hhhhhhhhh.....hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh.hhhhhhhhhhhhhhhhhhhhhhhhhh....... Sec.struct. author
                 SAPs(SNPs) --------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE --------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript --------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1zs3 B   3 TKLMIDEKYAKELDKAEIDHHKPTAGAMLGHVLSNLFIENIRLTQAGIYAKSPVKCEYLREIAQREVEYFFKISDLLLDENEIVPSTTEEFLKYHKFITEDPKAKYWTDEDLLESFIVDFQAQNMFITRAIKLANKEEKFALAAGVVELYGYNLQVIRNLAGDLGKSVADF 173
                                    12        22        32        42        52        62        72        82        92       102       112       122       132       142       152       162       172


Chain C from PDB  Type:PROTEIN  Length:171

               SCOP domains d1zs3c_ C: Dodecameric ferritin homolog                                                                                                                                     SCOP domains
               CATH domains --------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains --------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ....hhhhhhhhhhhhhhhhhh.hhhhhhhhhhhhhhhhhhhhhhhhhhh.hhhhhhhhhhhhhhhhhhhhhhhhhhhhh......hhhhhhhhh.....hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh.hhhhhhhhhhhhhhhhhhhhhhhhhh....... Sec.struct. author
                 SAPs(SNPs) --------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE --------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript --------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1zs3 C   3 TKLMIDEKYAKELDKAEIDHHKPTAGAMLGHVLSNLFIENIRLTQAGIYAKSPVKCEYLREIAQREVEYFFKISDLLLDENEIVPSTTEEFLKYHKFITEDPKAKYWTDEDLLESFIVDFQAQNMFITRAIKLANKEEKFALAAGVVELYGYNLQVIRNLAGDLGKSVADF 173
                                    12        22        32        42        52        62        72        82        92       102       112       122       132       142       152       162       172


Chain D from PDB  Type:PROTEIN  Length:171

               SCOP domains d1zs3d_ D: Dodecameric ferritin homolog                                                                                                                                     SCOP domains
               CATH domains --------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains --------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ..hhhhhhhhhhhhhhhhhhh..hhhhhhhhhhhhhhhhhhhhhhhhhhh.hhhhhhhhhhhhhhhhhhhhhhhhhhhhh......hhhhhhhhh.....hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh.hhhhhhhhhhhhhhhhhhhhhhhhhh....... Sec.struct. author
                 SAPs(SNPs) --------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE --------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript --------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1zs3 D   3 TKLMIDEKYAKELDKAEIDHHKPTAGAMLGHVLSNLFIENIRLTQAGIYAKSPVKCEYLREIAQREVEYFFKISDLLLDENEIVPSTTEEFLKYHKFITEDPKAKYWTDEDLLESFIVDFQAQNMFITRAIKLANKEEKFALAAGVVELYGYNLQVIRNLAGDLGKSVADF 173
                                    12        22        32        42        52        62        72        82        92       102       112       122       132       142       152       162       172


Chain E from PDB  Type:PROTEIN  Length:171

               SCOP domains d1zs3e_ E: Dodecameric ferritin homolog                                                                                                                                     SCOP domains
               CATH domains --------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains --------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .hhhhhhhhhhhhhhhhhhhhh.hhhhhhhhhhhhhhhhhhhhhhhhhhh.hhhhhhhhhhhhhhhhhhhhhhhhhhhhh......hhhhhhhhh.....hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh.hhhhhhhhhhhhhhhhhhhhhhhhhh....... Sec.struct. author
                 SAPs(SNPs) --------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE --------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript --------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1zs3 E   3 TKLMIDEKYAKELDKAEIDHHKPTAGAMLGHVLSNLFIENIRLTQAGIYAKSPVKCEYLREIAQREVEYFFKISDLLLDENEIVPSTTEEFLKYHKFITEDPKAKYWTDEDLLESFIVDFQAQNMFITRAIKLANKEEKFALAAGVVELYGYNLQVIRNLAGDLGKSVADF 173
                                    12        22        32        42        52        62        72        82        92       102       112       122       132       142       152       162       172


Chain F from PDB  Type:PROTEIN  Length:171

               SCOP domains d1zs3f_ F: Dodecameric ferritin homolog                                                                                                                                     SCOP domains
               CATH domains --------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains --------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ......hhhhhhhhhhhhhh...hhhhhhhhhhhhhhhhhhhhhhhhhhh.hhhhhhhhhhhhhhhhhhhhhhhhhhhhh......hhhhhhhhh.....hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh.hhhhhhhhhhhhhhhhhhhhhhhhhh..hhhhh Sec.struct. author
                 SAPs(SNPs) --------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE --------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript --------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1zs3 F   3 TKLMIDEKYAKELDKAEIDHHKPTAGAMLGHVLSNLFIENIRLTQAGIYAKSPVKCEYLREIAQREVEYFFKISDLLLDENEIVPSTTEEFLKYHKFITEDPKAKYWTDEDLLESFIVDFQAQNMFITRAIKLANKEEKFALAAGVVELYGYNLQVIRNLAGDLGKSVADF 173
                                    12        22        32        42        52        62        72        82        92       102       112       122       132       142       152       162       172


Chain G from PDB  Type:PROTEIN  Length:171

               SCOP domains d1zs3g_ G: Dodecameric ferritin homolog                                                                                                                                     SCOP domains
               CATH domains --------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains --------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author hhhhhhhhhhhhhhhhhhhhhh.hhhhhhhhhhhhhhhhhhhhhhhhhhh.hhhhhhhhhhhhhhhhhhhhhhhhhhhhh......hhhhhhhhh.....hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh.hhhhhhhhhhhhhhhhhhhhhhhhhh....... Sec.struct. author
                 SAPs(SNPs) --------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE --------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript --------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1zs3 G   3 TKLMIDEKYAKELDKAEIDHHKPTAGAMLGHVLSNLFIENIRLTQAGIYAKSPVKCEYLREIAQREVEYFFKISDLLLDENEIVPSTTEEFLKYHKFITEDPKAKYWTDEDLLESFIVDFQAQNMFITRAIKLANKEEKFALAAGVVELYGYNLQVIRNLAGDLGKSVADF 173
                                    12        22        32        42        52        62        72        82        92       102       112       122       132       142       152       162       172


Chain H from PDB  Type:PROTEIN  Length:171

               SCOP domains d1zs3h_ H: Dodecameric ferritin homolog                                                                                                                                     SCOP domains
               CATH domains --------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains --------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author hhhhhhhhhhhhhhhhhhhhhh.hhhhhhhhhhhhhhhhhhhhhhhhhhh.hhhhhhhhhhhhhhhhhhhhhhhhhhhhh......hhhhhhhhh.....hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh.hhhhhhhhhhhhhhhhhhhhhhhhhh....... Sec.struct. author
                 SAPs(SNPs) --------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE --------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript --------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1zs3 H   3 TKLMIDEKYAKELDKAEIDHHKPTAGAMLGHVLSNLFIENIRLTQAGIYAKSPVKCEYLREIAQREVEYFFKISDLLLDENEIVPSTTEEFLKYHKFITEDPKAKYWTDEDLLESFIVDFQAQNMFITRAIKLANKEEKFALAAGVVELYGYNLQVIRNLAGDLGKSVADF 173
                                    12        22        32        42        52        62        72        82        92       102       112       122       132       142       152       162       172


Chain I from PDB  Type:PROTEIN  Length:171

               SCOP domains d1zs3i_ I: Dodecameric ferritin homolog                                                                                                                                     SCOP domains
               CATH domains --------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains --------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ....hhhhhhhhhhhhhhhhhh.hhhhhhhhhhhhhhhhhhhhhhhhhhh.hhhhhhhhhhhhhhhhhhhhhhhhhhhhh......hhhhhhhhh.....hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh.hhhhhhhhhhhhhhhhhhhhhhhhhh....... Sec.struct. author
                 SAPs(SNPs) --------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE --------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript --------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1zs3 I   3 TKLMIDEKYAKELDKAEIDHHKPTAGAMLGHVLSNLFIENIRLTQAGIYAKSPVKCEYLREIAQREVEYFFKISDLLLDENEIVPSTTEEFLKYHKFITEDPKAKYWTDEDLLESFIVDFQAQNMFITRAIKLANKEEKFALAAGVVELYGYNLQVIRNLAGDLGKSVADF 173
                                    12        22        32        42        52        62        72        82        92       102       112       122       132       142       152       162       172


Chain J from PDB  Type:PROTEIN  Length:171

               SCOP domains d1zs3j_ J: Dodecameric ferritin homolog                                                                                                                                     SCOP domains
               CATH domains --------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains --------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .hhhhhhhhhhhhhhhhhhhh..hhhhhhhhhhhhhhhhhhhhhhhhhhh.hhhhhhhhhhhhhhhhhhhhhhhhhhhhh......hhhhhhhhh.....hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh.hhhhhhhhhhhhhhhhhhhhhhhhhh....... Sec.struct. author
                 SAPs(SNPs) --------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE --------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript --------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1zs3 J   3 TKLMIDEKYAKELDKAEIDHHKPTAGAMLGHVLSNLFIENIRLTQAGIYAKSPVKCEYLREIAQREVEYFFKISDLLLDENEIVPSTTEEFLKYHKFITEDPKAKYWTDEDLLESFIVDFQAQNMFITRAIKLANKEEKFALAAGVVELYGYNLQVIRNLAGDLGKSVADF 173
                                    12        22        32        42        52        62        72        82        92       102       112       122       132       142       152       162       172


Chain K from PDB  Type:PROTEIN  Length:171

               SCOP domains d1zs3k_ K: Dodecameric ferritin homolog                                                                                                                                     SCOP domains
               CATH domains --------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains --------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author hhhhhhhhhhhhhhhhhhhhhh.hhhhhhhhhhhhhhhhhhhhhhhhhhh.hhhhhhhhhhhhhhhhhhhhhhhhhhhhh......hhhhhhhhh.....hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh.hhhhhhhhhhhhhhhhhhhhhhhhhh....... Sec.struct. author
                 SAPs(SNPs) --------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE --------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript --------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1zs3 K   3 TKLMIDEKYAKELDKAEIDHHKPTAGAMLGHVLSNLFIENIRLTQAGIYAKSPVKCEYLREIAQREVEYFFKISDLLLDENEIVPSTTEEFLKYHKFITEDPKAKYWTDEDLLESFIVDFQAQNMFITRAIKLANKEEKFALAAGVVELYGYNLQVIRNLAGDLGKSVADF 173
                                    12        22        32        42        52        62        72        82        92       102       112       122       132       142       152       162       172


Chain L from PDB  Type:PROTEIN  Length:171

               SCOP domains d1zs3l_ L: Dodecameric ferritin homolog                                                                                                                                     SCOP domains
               CATH domains --------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains --------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ....hhhhhhhhhhhhhhhh...hhhhhhhhhhhhhhhhhhhhhhhhhhh.hhhhhhhhhhhhhhhhhhhhhhhhhhhhh......hhhhhhhhh.....hhhhhh.hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh....... Sec.struct. author
                 SAPs(SNPs) --------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE --------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript --------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1zs3 L   3 TKLMIDEKYAKELDKAEIDHHKPTAGAMLGHVLSNLFIENIRLTQAGIYAKSPVKCEYLREIAQREVEYFFKISDLLLDENEIVPSTTEEFLKYHKFITEDPKAKYWTDEDLLESFIVDFQAQNMFITRAIKLANKEEKFALAAGVVELYGYNLQVIRNLAGDLGKSVADF 173
                                    12        22        32        42        52        62        72        82        92       102       112       122       132       142       152       162       172
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (1, 12)

Asymmetric/Biological Unit
(-)
Class: All alpha proteins (14657)

(-) CATH Domains  (0, 0)

(no "CATH Domain" information available for 1ZS3)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 1ZS3)

(-) Gene Ontology  (0, 0)

Asymmetric/Biological Unit(hide GO term definitions)
    (no "Gene Ontology" information available for 1ZS3)

 Visualization

(-) Interactive Views

Asymmetric/Biological Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
(no "Ligands, Modified Residues, Ions" information available for 1zs3)

  Sites
(no "Sites" information available for 1zs3)

  Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 1zs3)


(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
[ Asym./Biol. Unit PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  1zs3
    Family and Domain Information: ProDom | SYSTERS
    General Structural Information: GlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in Membranes: OPM
    Protein Surface: SURFACE
    Secondary Structure: DSSP (structure derived) | HSSP (homology derived)
    Structural Genomics: GeneCensus
    Structural Neighbours: CE | VAST
    Structure Classification: CATH | Dali | SCOP
    Validation and Original Data: BMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  (no 'UniProt ID/Accession number' available) |
    Comparative Protein Structure Models: ModBase
    Genomic Information: Ensembl
    Protein-protein Interaction: DIP
    Sequence, Family and Domain Information: InterPro | Pfam | SMART | UniProt

Access by Enzyme Classificator   (EC Number)
  (no 'Enzyme Classificator' available)
    General Enzyme Information: BRENDA | EC-PDB | Enzyme | IntEnz
    Pathway: KEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease Information: OMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related Information: GenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain Information: XDom
    Interatomic Contacts of Structural Units: CSU
    Ligand-protein Contacts: LPC
    Protein Cavities: castP
    Sequence and Secondary Structure: PDBCartoon
    Structure Alignment: STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence Browser: STING

Access by UniProt ID/Accession number
  (no 'UniProt ID/Accession number' available) |
    Protein Disorder Prediction: DisEMBL | FoldIndex | GLOBPLOT

 Related Entries

(-) Entries Sharing at Least One Protein Chain (UniProt ID)

(no "Entries Sharing at Least One Protein Chain" available for 1ZS3)

(-) Related Entries Specified in the PDB File

1zuj THE LACTOCOCCUS LACTIS MG1363 DPSB PROTEIN
