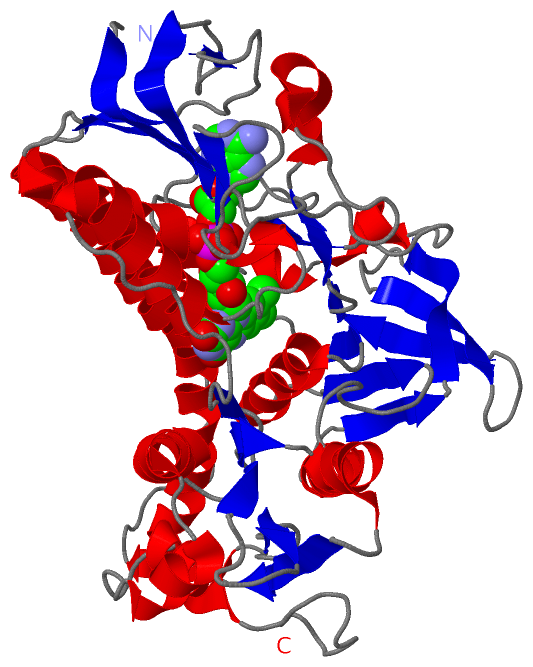

Image Asymmetric Unit
Asymmetric Unit  (Jmol Viewer)

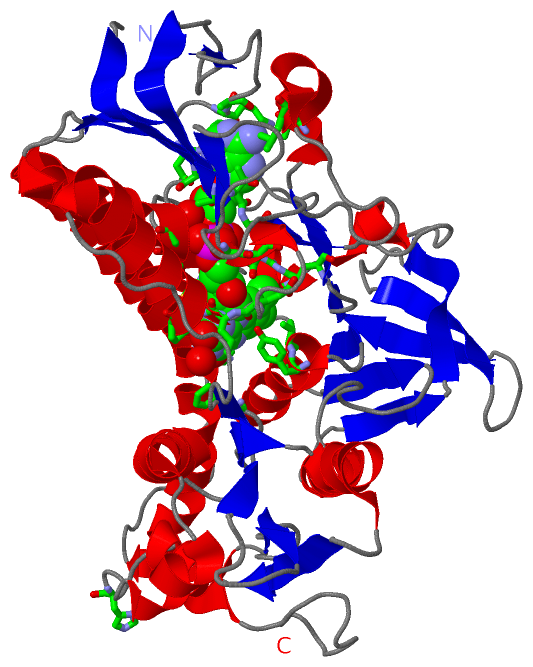

Image Asym. Unit - sites
Asym. Unit - sites  (Jmol Viewer)

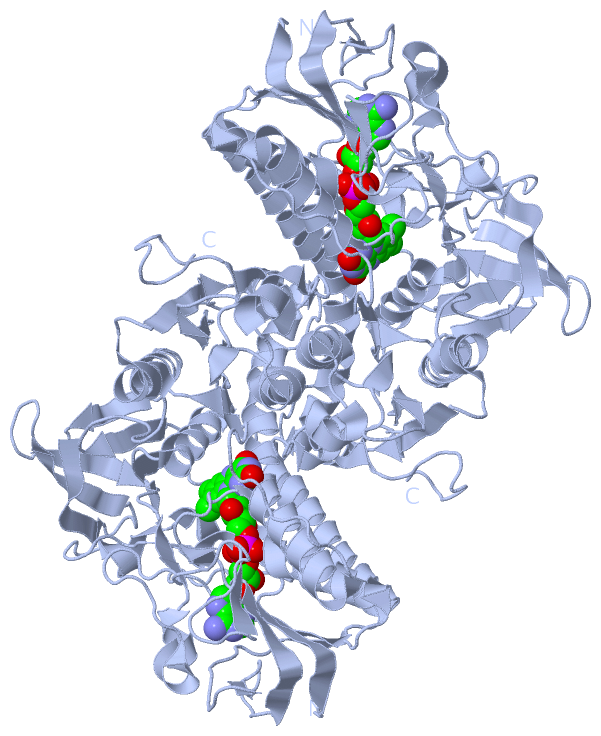

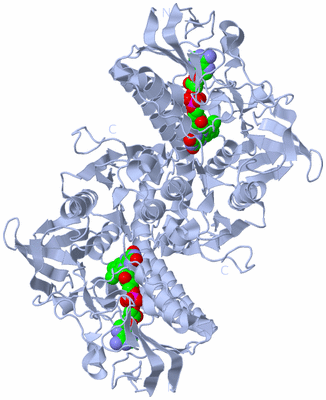

Image Biological Unit 1
Biological Unit 1  (Jmol Viewer)

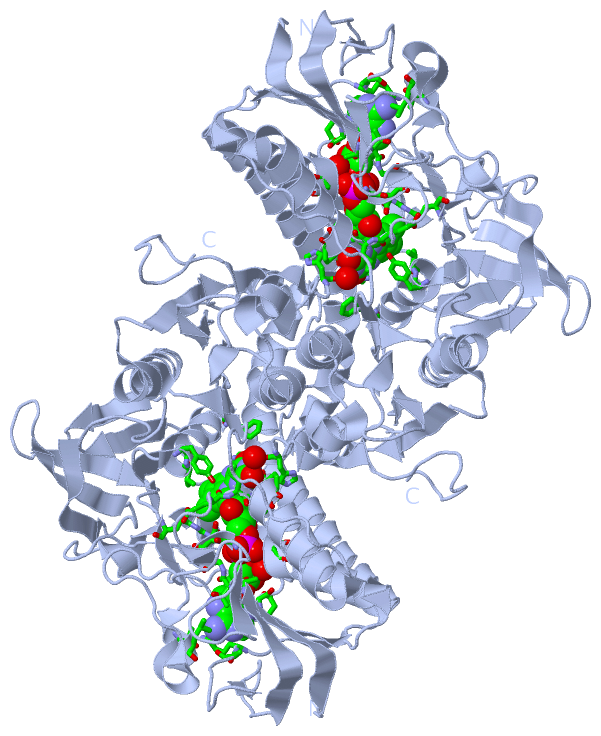

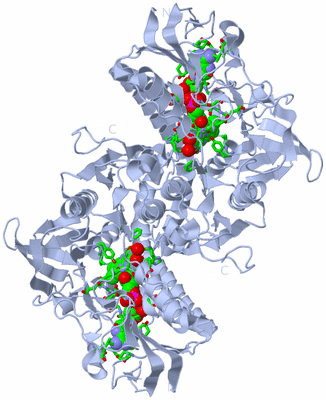

Image Biol. Unit 1 - sites
Biol. Unit 1 - sites  (Jmol Viewer)

(-) Description

Title :  CRYSTAL STRUCTURE OF MOUSE THIOREDOXIN REDUCTASE TYPE 2

Authors :  E. I. Biterova, A. A. Turanov, V. N. Gladyshev, J. J. Barycki
Date :  03 May 05  (Deposition) - 01 Nov 05  (Release) - 13 Jul 11  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  2.60
Chains :  Asym. Unit :  A
Biol. Unit 1:  A  (2x)
Keywords :  Selenocysteine, Thioredoxin, Reductase, Flavoprotein, Oxidoreductase (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  E. I. Biterova, A. A. Turanov, V. N. Gladyshev, J. J. Barycki
Crystal Structures Of Oxidized And Reduced Mitochondrial Thioredoxin Reductase Provide Molecular Details Of The Reaction Mechanism.
Proc. Natl. Acad. Sci. Usa V. 102 15018 2005
PubMed-ID: 16217027  |  Reference-DOI: 10.1073/PNAS.0504218102
(for further references see the PDB file header)

(-) Compounds

Molecule 1 - THIOREDOXIN REDUCTASE 2, MITOCHONDRIAL
    Chains: A
    EC Number: 1.8.1.9
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Plasmid: PET28
    Expression System Strain: ROSETTA2
    Expression System Taxid: 562
    Expression System Vector Type: PLASMID
    Gene: TXNRD2, TRXR2
    Organism Common: HOUSE MOUSE
    Organism Scientific: MUS MUSCULUS
    Organism Taxid: 10090
    Synonym: TR3

 Structural Features

(-) Chains, Units

  1
Asymmetric Unit : A
Biological Unit 1 (2x): A

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (1, 1)

Asymmetric Unit (1, 1)
No.NameCountTypeFull Name
1FAD1Ligand/IonFLAVIN-ADENINE DINUCLEOTIDE
Biological Unit 1 (1, 2)
No.NameCountTypeFull Name
1FAD2Ligand/IonFLAVIN-ADENINE DINUCLEOTIDE

(-) Sites  (1, 1)

Asymmetric Unit (1, 1)
No.NameEvidenceResiduesDescription
1AC1SOFTWAREGLY A:46 , SER A:49 , GLY A:50 , ASP A:69 , TYR A:70 , GLY A:84 , THR A:85 , CYS A:86 , CYS A:91 , LYS A:94 , LYS A:158 , ALA A:159 , ALA A:187 , THR A:188 , GLY A:189 , SER A:208 , TYR A:228 , VAL A:229 , ARG A:318 , THR A:324 , LEU A:325 , GLY A:358 , ASP A:359 , GLU A:366 , LEU A:367 , THR A:368 , PRO A:369 , PHE A:400 , HIS A:497 , HOH A:605 , HOH A:617 , HOH A:622BINDING SITE FOR RESIDUE FAD A 600

(-) SS Bonds  (2, 2)

Asymmetric Unit
No.Residues
1A:86 -A:91
2A:483 -A:483

(-) Cis Peptide Bonds  (2, 2)

Asymmetric Unit
No.Residues
1Pro A:456 -Pro A:457
2His A:497 -Pro A:498

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 1ZKQ)

(-) PROSITE Motifs  (1, 1)

Asymmetric Unit (1, 1)
 PROSITEUniProtKBPDB
No.IDACDescriptionIDLocationCountLocation
1PYRIDINE_REDOX_1PS00076 Pyridine nucleotide-disulphide oxidoreductases class-I active site.TRXR2_MOUSE83-93  1A:83-93
Biological Unit 1 (1, 2)
 PROSITEUniProtKBPDB
No.IDACDescriptionIDLocationCountLocation
1PYRIDINE_REDOX_1PS00076 Pyridine nucleotide-disulphide oxidoreductases class-I active site.TRXR2_MOUSE83-93  2A:83-93

(-) Exons   (0, 0)

(no "Exon" information available for 1ZKQ)

(-) Sequences/Alignments

Asymmetric Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:482
 aligned with TRXR2_MOUSE | Q9JLT4 from UniProtKB/Swiss-Prot  Length:524

    Alignment length:482
                                    46        56        66        76        86        96       106       116       126       136       146       156       166       176       186       196       206       216       226       236       246       256       266       276       286       296       306       316       326       336       346       356       366       376       386       396       406       416       426       436       446       456       466       476       486       496       506       516
          TRXR2_MOUSE    37 QQSFDLLVIGGGSGGLACAKEAAQLGKKVAVADYVEPSPRGTKWGLGGTCVNVGCIPKKLMHQAALLGGMIRDAHHYGWEVAQPVQHNWKTMAEAVQNHVKSLNWGHRVQLQDRKVKYFNIKASFVDEHTVRGVDKGGKATLLSAEHIVIATGGRPRYPTQVKGALEYGITSDDIFWLKESPGKTLVVGASYVALECAGFLTGIGLDTTVMMRSIPLRGFDQQMSSLVTEHMESHGTQFLKGCVPSHIKKLPTNQLQVTWEDHASGKEDTGTFDTVLWAIGRVPETRTLNLEKAGISTNPKNQKIIVDAQEATSVPHIYAIGDVAEGRPELTPTAIKAGKLLAQRLFGKSSTLMDYSNVPTTVFTPLEYGCVGLSEEEAVALHGQEHVEVYHAYYKPLEFTVADRDASQCYIKMVCMREPPQLVLGLHFLGPNAGEVTQGFALGIKCGASYAQVMQTVGIHPTCSEEVVKLHISKRSGLEPT 518
               SCOP domains -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains 1zkqA01 A:37-192,A:317-393  [code=3.50.50.60, no name defined]                                                                                              1zkqA02 A:193-316  [code=3.50.50.60, no name defined]                                                                       1zkqA01 A:37-192,A:317-393  [code=3.50.50.60, no name defined]               1zkqA03 A:394-518  [code=3.30.390.30, no name defined]                                                                        CATH domains
           Pfam domains (1) ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------Pyr_redox-1zkqA01 A:220-302                                                        --------------------------------------------------------------------------------------------Pyr_redox_dim-1zkqA03 A:395-508                                                                                   ---------- Pfam domains (1)
           Pfam domains (2) ----Pyr_redox_2-1zkqA02 A:41-365                                                                                                                                                                                                                                                                                                         --------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains (2)
         Sec.struct. author ..eeeeeee..hhhhhhhhhhhhhh...eeee..............hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh..........hhhhhhhhhhhhhhhhhhhhhhhhhhh..eee..........eee.........eeeeeeeee...eee.......hhhhhh.hhhhhh........eeee..hhhhhhhhhhhhhh...eeeee........hhhhhhhhhhhhhh...eeee.eeeeeeee.....eeeeeee......eeeee.eeee...eee.hhhhhhhhhh......................eee.hhhh.....hhhhhhhhhhhhhhhhhh............eee.....eeeee.hhhhhhhhhh...eeeeeee..hhhhhhhh......eeeeeee......eeeeeee..hhhhhhhhhhhhhhh..hhhhhhh.......hhhhhhhh........... Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ----------------------------------------------PYRIDINE_RE----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1zkq A  37 QQSFDLLVIGGGSGGLACAKEAAQLGKKVAVADYVEPSPRGTKWGLGGTCVNVGCIPKKLMHQAALLGGMIRDAHHYGWEVAQPVQHNWKTMAEAVQNHVKSLNWGHRVQLQDRKVKYFNIKASFVDEHTVRGVDKGGKATLLSAEHIVIATGGRPRYPTQVKGALEYGITSDDIFWLKESPGKTLVVGASYVALECAGFLTGIGLDTTVMMRSIPLRGFDQQMSSLVTEHMESHGTQFLKGCVPSHIKKLPTNQLQVTWEDHASGKEDTGTFDTVLWAIGRVPETRTLNLEKAGISTNPKNQKIIVDAQEATSVPHIYAIGDVAEGRPELTPTAIKAGKLLAQRLFGKSSTLMDYSNVPTTVFTPLEYGCVGLSEEEAVALHGQEHVEVYHAYYKPLEFTVADRDASQCYIKMVCMREPPQLVLGLHFLGPNAGEVTQGFALGIKCGASYAQVMQTVGIHPTCSEEVVKLHISKRSGLEPT 518
                                    46        56        66        76        86        96       106       116       126       136       146       156       166       176       186       196       206       216       226       236       246       256       266       276       286       296       306       316       326       336       346       356       366       376       386       396       406       416       426       436       446       456       466       476       486       496       506       516
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (0, 0)

(no "SCOP Domain" information available for 1ZKQ)

(-) CATH Domains  (2, 3)

Asymmetric Unit
(-)
Class: Alpha Beta (26913)

(-) Pfam Domains  (3, 3)

Asymmetric Unit
(-)
Clan: NADP_Rossmann (1239)
(-)
Clan: no clan defined [family: Pyr_redox_dim] (44)

(-) Gene Ontology  (12, 12)

Asymmetric Unit(hide GO term definitions)
Chain A   (TRXR2_MOUSE | Q9JLT4)
molecular function
    GO:0050660    flavin adenine dinucleotide binding    Interacting selectively and non-covalently with FAD, flavin-adenine dinucleotide, the coenzyme or the prosthetic group of various flavoprotein oxidoreductase enzymes, in either the oxidized form, FAD, or the reduced form, FADH2.
    GO:0016491    oxidoreductase activity    Catalysis of an oxidation-reduction (redox) reaction, a reversible chemical reaction in which the oxidation state of an atom or atoms within a molecule is altered. One substrate acts as a hydrogen or electron donor and becomes oxidized, while the other acts as hydrogen or electron acceptor and becomes reduced.
    GO:0016668    oxidoreductase activity, acting on a sulfur group of donors, NAD(P) as acceptor    Catalysis of an oxidation-reduction (redox) reaction in which a sulfur-containing group acts as a hydrogen or electron donor and reduces NAD or NADP.
    GO:0005515    protein binding    Interacting selectively and non-covalently with any protein or protein complex (a complex of two or more proteins that may include other nonprotein molecules).
    GO:0004791    thioredoxin-disulfide reductase activity    Catalysis of the reaction: NADP(+) + thioredoxin = H(+) + NADPH + thioredoxin disulfide.
biological process
    GO:0045454    cell redox homeostasis    Any process that maintains the redox environment of a cell or compartment within a cell.
    GO:0098869    cellular oxidant detoxification    Any process carried out at the cellular level that reduces or removes the toxicity superoxide radicals or hydrogen peroxide.
    GO:0007507    heart development    The process whose specific outcome is the progression of the heart over time, from its formation to the mature structure. The heart is a hollow, muscular organ, which, by contracting rhythmically, keeps up the circulation of the blood.
    GO:0030097    hemopoiesis    The process whose specific outcome is the progression of the myeloid and lymphoid derived organ/tissue systems of the blood and other parts of the body over time, from formation to the mature structure. The site of hemopoiesis is variable during development, but occurs primarily in bone marrow or kidney in many adult vertebrates.
    GO:0055114    oxidation-reduction process    A metabolic process that results in the removal or addition of one or more electrons to or from a substance, with or without the concomitant removal or addition of a proton or protons.
    GO:0000305    response to oxygen radical    Any process that results in a change in state or activity of a cell or an organism (in terms of movement, secretion, enzyme production, gene expression, etc.) as a result of an oxygen radical stimulus. An oxygen radical is any oxygen species that carries a free electron; examples include hydroxyl radicals and the superoxide anion.
cellular component
    GO:0005739    mitochondrion    A semiautonomous, self replicating organelle that occurs in varying numbers, shapes, and sizes in the cytoplasm of virtually all eukaryotic cells. It is notably the site of tissue respiration.

 Visualization

(-) Interactive Views

Asymmetric Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
    FAD  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]

  Sites
    AC1  [ RasMol ]  +environment [ RasMol ]

  Cis Peptide Bonds
    His A:497 - Pro A:498   [ RasMol ]
    Pro A:456 - Pro A:457   [ RasMol ]

Biological Unit
  Complete Structure
    Biological Unit 1  [ Jena3D ]

(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
[ Asym. Unit PNG format | Asym. Unit - sites PNG format | Biol. Unit 1 PNG format | Biol. Unit 1 - sites PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  1zkq
    Family and Domain Information: ProDom | SYSTERS
    General Structural Information: GlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in Membranes: OPM
    Protein Surface: SURFACE
    Secondary Structure: DSSP (structure derived) | HSSP (homology derived)
    Structural Genomics: GeneCensus
    Structural Neighbours: CE | VAST
    Structure Classification: CATH | Dali | SCOP
    Validation and Original Data: BMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  TRXR2_MOUSE | Q9JLT4
    Comparative Protein Structure Models: ModBase
    Genomic Information: Ensembl
    Protein-protein Interaction: DIP
    Sequence, Family and Domain Information: InterPro | Pfam | SMART | UniProtKB/SwissProt

Access by Enzyme Classificator   (EC Number)
  1.8.1.9
    General Enzyme Information: BRENDA | EC-PDB | Enzyme | IntEnz
    Pathway: KEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease Information: OMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related Information: GenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain Information: XDom
    Interatomic Contacts of Structural Units: CSU
    Ligand-protein Contacts: LPC
    Protein Cavities: castP
    Sequence and Secondary Structure: PDBCartoon
    Structure Alignment: STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence Browser: STING

Access by UniProt ID/Accession number
  TRXR2_MOUSE | Q9JLT4
    Protein Disorder Prediction: DisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)

 Related Entries

(-) Entries Sharing at Least One Protein Chain (UniProt ID)

UniProtKB/Swiss-Prot
        TRXR2_MOUSE | Q9JLT4: 1zdl 3dgz

(-) Related Entries Specified in the PDB File

1h6v MAMMALIAN THIOREDOXIN REDUCTASE (RAT TYPE I)
1zdl MOUSE MITOCHONDRAIL THIOREDOXIN REDUCTASE 2
3grs REFINED STRUCTURE OF GLUTATHIONE REDUCTASE 1.54 A RESOLUTION
