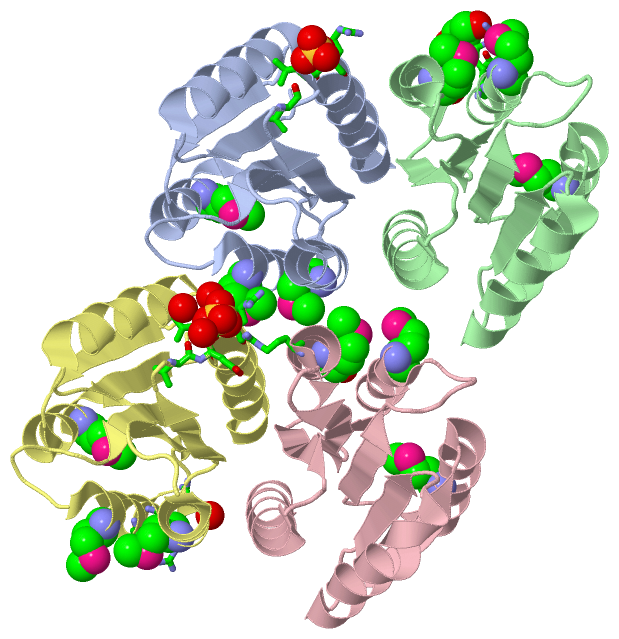

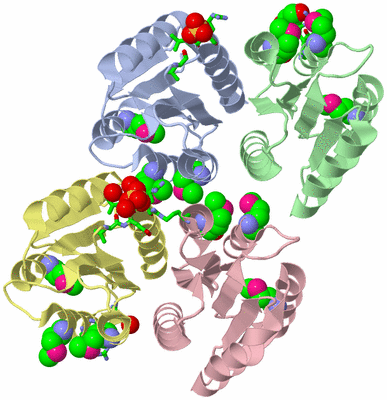

Asym. Unit - sites (Jmol Viewer)

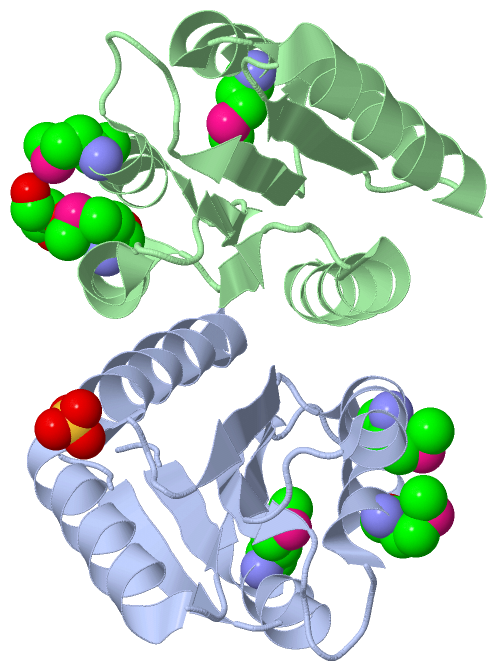

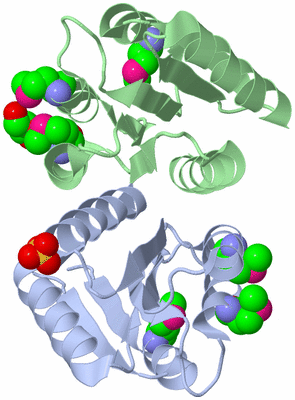

Biological Unit 1 (Jmol Viewer)

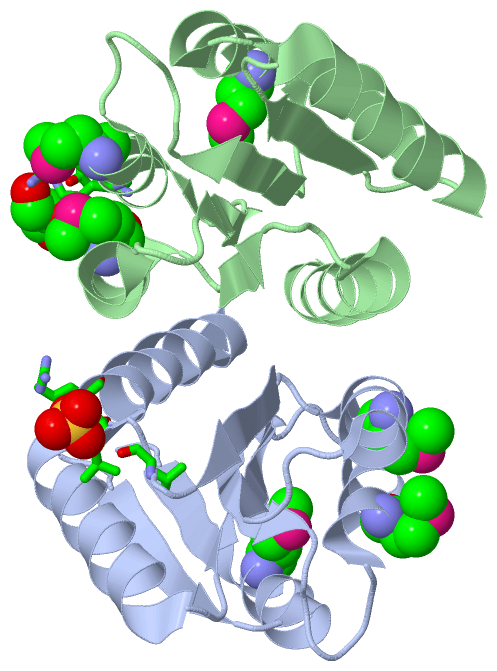

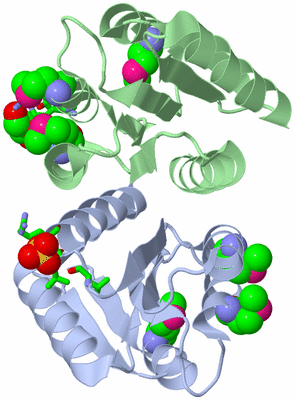

Biol. Unit 1 - sites (Jmol Viewer)

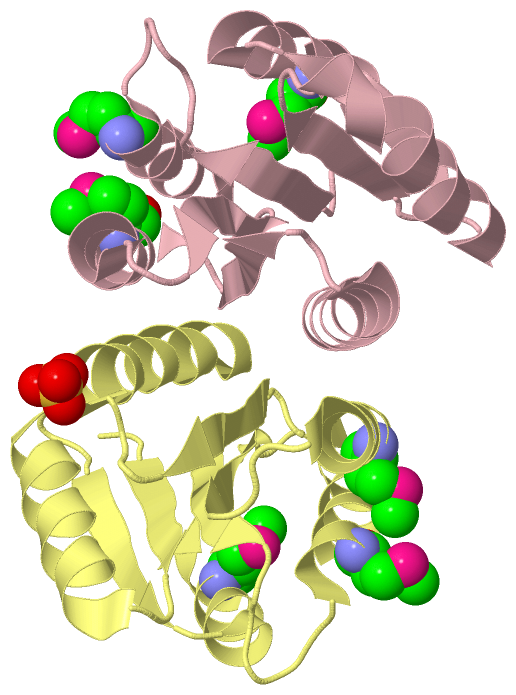

Biological Unit 2 (Jmol Viewer)

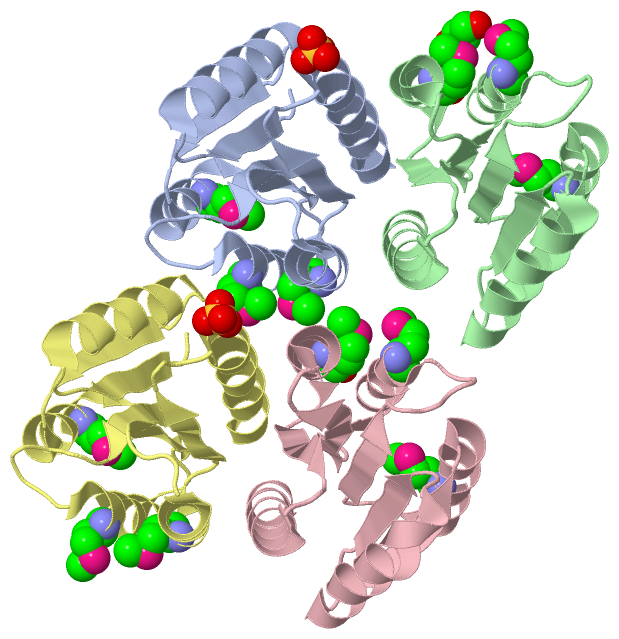

Biological Unit 3 (Jmol Viewer)

Title :   CRYSTAL STRUCTURE OF THE RECEIVER DOMAIN OF TMAO RESPIRATORY SYSTEM RESPONSE REGULATOR TORR

Authors :   A. Toro-Roman, T. Wu, A. M. Stock

Date :   22 Apr 05 (Deposition) - 13 Dec 05 (Release) - 13 Jul 11 (Revision)

Method :   X-RAY DIFFRACTION

Resolution :   1.80

Chains :   Asym. Unit : A,B,C,D
Biol. Unit 1: A,B  (1x)

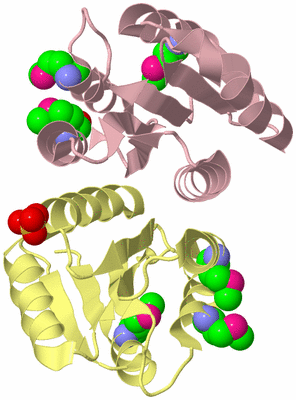

Biol. Unit 2: C,D  (1x)
Biol. Unit 3: A,B,C,D  (1x)

Keywords :   Two-Component System, Gene Regulation, Transcription Factor, Tmao Respiratory System, Doubly Wound Five-Stranded Beta-Alpha Fold, Transcription (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :   A. Toro-Roman, T. Wu, A. M. Stock
A Common Dimerization Interface In Bacterial Response Regulators Kdpe And Torr.
Protein Sci. V. 14 3077 2005
PubMed-ID: 16322582 | Reference-DOI: 10.1110/PS.051722805

Molecule 1 - TORCAD OPERON TRANSCRIPTIONAL REGULATORY PROTEIN TORR
	Chains	:	A, B, C, D
	Engineered	:	YES
	Expression System	:	ESCHERICHIA COLI
	Expression System Plasmid	:	PEF26 (PJES307 DERIVATIVE)
	Expression System Strain	:	B834(DE3)PLYSS
	Expression System Taxid	:	562
	Expression System Vector Type	:	PLASMID
	Fragment	:	N-TERMINAL RECEIVER DOMAIN (RESIDUES 1-122)
	Gene	:	TORR
	Mutation	:	YES
	Organism Scientific	:	ESCHERICHIA COLI
	Organism Taxid	:	562

		1	2	3	4
Asymmetric Unit	:	A	B	C	D
Biological Unit 1 (1x)	:	A	B
Biological Unit 2 (1x)	:			C	D
Biological Unit 3 (1x)	:	A	B	C	D

Summary Information (see also Sequences/Alignments below)

Asymmetric Unit (3, 15)

No.	Name	Count	Type	Full Name
1	GOL	1	Ligand/Ion	GLYCEROL
2	MSE	12	Mod. Amino Acid	SELENOMETHIONINE
3	SO4	2	Ligand/Ion	SULFATE ION

Biological Unit 1 (3, 8)

No.	Name	Count	Type	Full Name
1	GOL	1	Ligand/Ion	GLYCEROL
2	MSE	6	Mod. Amino Acid	SELENOMETHIONINE
3	SO4	1	Ligand/Ion	SULFATE ION

Biological Unit 2 (2, 7)

No.	Name	Count	Type	Full Name
1	GOL	-1	Ligand/Ion	GLYCEROL
2	MSE	6	Mod. Amino Acid	SELENOMETHIONINE
3	SO4	1	Ligand/Ion	SULFATE ION

Biological Unit 3 (3, 15)

No.	Name	Count	Type	Full Name
1	GOL	1	Ligand/Ion	GLYCEROL
2	MSE	12	Mod. Amino Acid	SELENOMETHIONINE
3	SO4	2	Ligand/Ion	SULFATE ION

Asymmetric Unit (3, 3)

No.	Name	Evidence	Residues	Description
1	AC1	SOFTWARE	ARG C:85 , LEU D:104 , GLU D:105 , LEU D:106 , ARG D:107 , HOH D:407 , HOH D:450 , HOH D:451	BINDING SITE FOR RESIDUE SO4 D 401
2	AC2	SOFTWARE	LEU A:104 , LEU A:106 , ARG A:107	BINDING SITE FOR RESIDUE SO4 A 402
3	AC3	SOFTWARE	ARG B:66 , GLU B:70 , ARG D:66 , ARG D:69 , HOH D:430	BINDING SITE FOR RESIDUE GOL B 301

(no "SS Bond" information available for 1ZGZ)

Asymmetric Unit

No.	Residues
1	Lys A:102	-	Pro A:103
2	Lys B:102	-	Pro B:103
3	Lys C:102	-	Pro C:103
4	Lys D:102	-	Pro D:103

(no "SAP(SNP)/Variant" information available for 1ZGZ)

Asymmetric Unit (1, 4)

	PROSITE			UniProtKB		PDB
No.	ID	AC	Description	ID	Location	Count	Location
1	RESPONSE_REGULATORY	PS50110	Response regulatory domain profile.	TORR_ECOLI	4-117	4	A:4-117 B:4-117 C:4-117 D:4-117

Biological Unit 1 (1, 2)

	PROSITE			UniProtKB		PDB
No.	ID	AC	Description	ID	Location	Count	Location
1	RESPONSE_REGULATORY	PS50110	Response regulatory domain profile.	TORR_ECOLI	4-117	2	A:4-117 B:4-117 - -

Biological Unit 2 (1, 2)

	PROSITE			UniProtKB		PDB
No.	ID	AC	Description	ID	Location	Count	Location
1	RESPONSE_REGULATORY	PS50110	Response regulatory domain profile.	TORR_ECOLI	4-117	2	- - C:4-117 D:4-117

Biological Unit 3 (1, 4)

	PROSITE			UniProtKB		PDB
No.	ID	AC	Description	ID	Location	Count	Location
1	RESPONSE_REGULATORY	PS50110	Response regulatory domain profile.	TORR_ECOLI	4-117	4	A:4-117 B:4-117 C:4-117 D:4-117

(no "Exon" information available for 1ZGZ)

Asymmetric Unit

Reformat:	Number of residues per line = ('0' or empty: single-line sequence representation)
	Number of residues per labelling interval =
	UniProt sequence: complete aligned part

Show mapping:	SCOP domains	CATH domains	Pfam domains	Secondary structure (by author)
	SAPs(SNPs)	PROSITE motifs	Exons
	(details for a mapped element are shown in a popup box when the mouse pointer rests over it)

Chain A from PDB  Type:PROTEIN  Length:121
 aligned with TORR_ECOLI | P38684 from UniProtKB/Swiss-Prot  Length:230

    Alignment length:121
                                    11        21        31        41        51        61        71        81        91       101       111       121
           TORR_ECOLI     2 PHHIVIVEDEPVTQARLQSYFTQEGYTVSVTASGAGLREIMQNQSVDLILLDINLPDENGLMLTRALRERSTVGIILVTGRSDRIDRIVGLEMGADDYVTKPLELRELVVRVKNLLWRIDL 122
               SCOP domains d1zgza1 A:2-121 TorCAD operon transcriptional regulator TorD, N-terminal domain                                         - SCOP domains
               CATH domains 1zgzA00 A:2-122  [code=3.40.50.2300, no name defined]                                                                     CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ..eeeee..hhhhhhhhhhhhhhh..eeeee.hhhhhhhhhhhh...eeeee......hhhhhhhhhhh....eeeeee...hhhhhhhhhhhh..eeee...hhhhhhhhhhhhhhhhh. Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE --RESPONSE_REGULATORY  PDB: A:4-117 UniProt: 4-117                                                                  ----- PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------- Transcript
                 1zgz A   2 PHHIVIVEDEPVTQARLQSYFTQEGYTVSVTASGAGLREImQNQSVDLILLDINLPDENGLmLTRALRERSTVGIILVTGRSDRIDRIVGLEmGADDYVTKPLELRELVVRVKNLLWRIDQ 122
                                    11        21        31        41|       51        61 |      71        81        91  |    101       111       121
                                                                   42-MSE               63-MSE                         94-MSE

Chain B from PDB  Type:PROTEIN  Length:120
 aligned with TORR_ECOLI | P38684 from UniProtKB/Swiss-Prot  Length:230

    Alignment length:120
                                    11        21        31        41        51        61        71        81        91       101       111       121
           TORR_ECOLI     2 PHHIVIVEDEPVTQARLQSYFTQEGYTVSVTASGAGLREIMQNQSVDLILLDINLPDENGLMLTRALRERSTVGIILVTGRSDRIDRIVGLEMGADDYVTKPLELRELVVRVKNLLWRID 121
               SCOP domains d1zgzb_ B: automated matches                                                                                             SCOP domains
               CATH domains 1zgzB00 B:2-121  [code=3.40.50.2300, no name defined]                                                                    CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------ Pfam domains
         Sec.struct. author ..eeeee..hhhhhhhhhhhhhhh..eeeee.hhhhhhhhhhhh...eeeee......hhhhhhhhhhhhh..eeeeee...hhhhhhhhhhhh..eeee...hhhhhhhhhhhhhhhhh Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE --RESPONSE_REGULATORY  PDB: B:4-117 UniProt: 4-117                                                                  ---- PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------ Transcript
                 1zgz B   2 PHHIVIVEDEPVTQARLQSYFTQEGYTVSVTASGAGLREImQNQSVDLILLDINLPDENGLmLTRALRERSTVGIILVTGRSDRIDRIVGLEmGADDYVTKPLELRELVVRVKNLLWRID 121
                                    11        21        31        41|       51        61 |      71        81        91  |    101       111       121
                                                                   42-MSE               63-MSE                         94-MSE

Chain C from PDB  Type:PROTEIN  Length:120
 aligned with TORR_ECOLI | P38684 from UniProtKB/Swiss-Prot  Length:230

    Alignment length:120
                                    11        21        31        41        51        61        71        81        91       101       111       121
           TORR_ECOLI     2 PHHIVIVEDEPVTQARLQSYFTQEGYTVSVTASGAGLREIMQNQSVDLILLDINLPDENGLMLTRALRERSTVGIILVTGRSDRIDRIVGLEMGADDYVTKPLELRELVVRVKNLLWRID 121
               SCOP domains d1zgzc_ C: automated matches                                                                                             SCOP domains
               CATH domains 1zgzC00 C:2-121  [code=3.40.50.2300, no name defined]                                                                    CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------ Pfam domains
         Sec.struct. author ..eeeee..hhhhhhhhhhhhhhh..eeeee.hhhhhhhhhhhh...eeeee......hhhhhhhhhhhhh..eeeeeee..hhhhhhhhhhhh..eeeee..hhhhhhhhhhhhhhhhh Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE --RESPONSE_REGULATORY  PDB: C:4-117 UniProt: 4-117                                                                  ---- PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------ Transcript
                 1zgz C   2 PHHIVIVEDEPVTQARLQSYFTQEGYTVSVTASGAGLREImQNQSVDLILLDINLPDENGLmLTRALRERSTVGIILVTGRSDRIDRIVGLEmGADDYVTKPLELRELVVRVKNLLWRID 121
                                    11        21        31        41|       51        61 |      71        81        91  |    101       111       121
                                                                   42-MSE               63-MSE                         94-MSE

Chain D from PDB  Type:PROTEIN  Length:120
 aligned with TORR_ECOLI | P38684 from UniProtKB/Swiss-Prot  Length:230

    Alignment length:120
                                    11        21        31        41        51        61        71        81        91       101       111       121
           TORR_ECOLI     2 PHHIVIVEDEPVTQARLQSYFTQEGYTVSVTASGAGLREIMQNQSVDLILLDINLPDENGLMLTRALRERSTVGIILVTGRSDRIDRIVGLEMGADDYVTKPLELRELVVRVKNLLWRID 121
               SCOP domains d1zgzd_ D: automated matches                                                                                             SCOP domains
               CATH domains 1zgzD00 D:2-121  [code=3.40.50.2300, no name defined]                                                                    CATH domains
           Pfam domains (1) ---Response_reg-1zgzD01 D:5-114                                                                                  ------- Pfam domains (1)
           Pfam domains (2) ---Response_reg-1zgzD02 D:5-114                                                                                  ------- Pfam domains (2)
           Pfam domains (3) ---Response_reg-1zgzD03 D:5-114                                                                                  ------- Pfam domains (3)
           Pfam domains (4) ---Response_reg-1zgzD04 D:5-114                                                                                  ------- Pfam domains (4)
         Sec.struct. author ..eeeee..hhhhhhhhhhhhhh...eeeee.hhhhhhhhhhhh...eeeee......hhhhhhhhhhhhh..eeeeee...hhhhhhhhhhhh..eeee...hhhhhhhhhhhhhhhhh Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE --RESPONSE_REGULATORY  PDB: D:4-117 UniProt: 4-117                                                                  ---- PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------ Transcript
                 1zgz D   2 PHHIVIVEDEPVTQARLQSYFTQEGYTVSVTASGAGLREImQNQSVDLILLDINLPDENGLmLTRALRERSTVGIILVTGRSDRIDRIVGLEmGADDYVTKPLELRELVVRVKNLLWRID 121
                                    11        21        31        41|       51        61 |      71        81        91  |    101       111       121
                                                                   42-MSE               63-MSE                         94-MSE

Legend:		→ Mismatch	(orange background)
	-	→ Gap	(green background, '-', border residues have a numbering label)
		→ Modified Residue	(blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
	x	→ Chemical Group	(purple background, 'x', labelled with number + name, e.g. ACE or NH2)
	extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '\|'

Asymmetric Unit

Classes(

)

Folds(

)

Superfamilies( (-)

)

Families(

)

Protein Domains( (-)

)

Organisms( (-)

)

Class: Alpha and beta proteins (a/b) (23833)

Fold: Flavodoxin-like (1057)

Superfamily: CheY-like (258)

Family: automated matches (82)

Protein domain: automated matches (82)

Escherichia coli [TaxId: 562] (6)

1a	d1zgzb_	B:
1b	d1zgzc_	C:
1c	d1zgzd_	D:

Family: CheY-related (166)

Protein domain: TorCAD operon transcriptional regulator TorD, N-terminal domain (1)

Escherichia coli [TaxId: 562] (1)

d1zgza1

A:2-121

Asymmetric Unit

Classes(

)

Architectures( (-)

)

Topologies( (-)

)

Homologous Superfamilies( (-)

)

Organisms( (-)

)

Class: Alpha Beta (26913)

Architecture: 3-Layer(aba) Sandwich (12045)

Topology: Rossmann fold (7312)

Homologous Superfamily: [code=3.40.50.2300, no name defined] (308)

Escherichia coli. Organism_taxid: 562. (30)

1a	1zgzA00	A:2-122
1b	1zgzB00	B:2-121
1c	1zgzC00	C:2-121
1d	1zgzD00	D:2-121

Asymmetric Unit

Clans(

)

Families(

)

Organisms( (-)

)

Clan: CheY (97)

Family: Response_reg (94)

Escherichia coli (strain K12) (13)

1a	Response_reg-1zgzD01	D:5-114
1b	Response_reg-1zgzD02	D:5-114
1c	Response_reg-1zgzD03	D:5-114
1d	Response_reg-1zgzD04	D:5-114

Asymmetric Unit(hide GO term definitions)

Chain A,B,C,D (TORR_ECOLI | P38684)

molecular function
	GO:0003677	DNA binding	Any molecular function by which a gene product interacts selectively and non-covalently with DNA (deoxyribonucleic acid).
	GO:0000156	phosphorelay response regulator activity	Responds to a phosphorelay sensor to initiate a change in cell state or activity. The activity of the response regulator is regulated by transfer of a phosphate from a histidine residue in the sensor, to an aspartate residue in the response regulator. Many but not all response regulators act as transcriptional regulators to elicit a response.
biological process
	GO:0000160	phosphorelay signal transduction system	A conserved series of molecular signals found in prokaryotes and eukaryotes; involves autophosphorylation of a histidine kinase and the transfer of the phosphate group to an aspartate that then acts as a phospho-donor to response regulator proteins.
	GO:0006355	regulation of transcription, DNA-templated	Any process that modulates the frequency, rate or extent of cellular DNA-templated transcription.
	GO:0006351	transcription, DNA-templated	The cellular synthesis of RNA on a template of DNA.
cellular component
	GO:0005737	cytoplasm	All of the contents of a cell excluding the plasma membrane and nucleus, but including other subcellular structures.

Asymmetric Unit
	Complete Structure
		Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
		WebMol \| AstexViewer[tm]@PDBe (Java Applets, require no local installation except for Java; loading may be slow)
		STRAP (Java WebStart application, automatic local installation, requires Java; full application with system access!)
		RasMol (require local installation)
		Molscript (VRML) (requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

	Ligands, Modified Residues, Ions
		GOL	[ RasMol \| Jena3D ]	+environment [ RasMol \| Jena3D ]
		MSE	[ RasMol \| Jena3D ]	+environment [ RasMol \| Jena3D ]
		SO4	[ RasMol \| Jena3D ]	+environment [ RasMol \| Jena3D ]

	Sites
		AC1	[ RasMol ]	+environment [ RasMol ]
		AC2	[ RasMol ]	+environment [ RasMol ]
		AC3	[ RasMol ]	+environment [ RasMol ]

	Cis Peptide Bonds
		Lys A:102 - Pro A:103	[ RasMol ]
		Lys B:102 - Pro B:103	[ RasMol ]
		Lys C:102 - Pro C:103	[ RasMol ]
		Lys D:102 - Pro D:103	[ RasMol ]

Biological Units
	Complete Structure
		Biological Unit 1	[ Jena3D ]
		Biological Unit 2	[ Jena3D ]
		Biological Unit 3	[ Jena3D ]

Jmol
	protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick [ Asym. Unit PNG format \| Asym. Unit - sites PNG format \| Biol. Unit 1 PNG format \| Biol. Unit 1 - sites PNG format \| Biol. Unit 2 PNG format \| Biol. Unit 3 PNG format ](automatic orientation, automatically generated)
Molscript
	protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick [ mono PDF format \| stereo PDF format ](default orientation, automatically generated)

Access by PDB/NDB ID
	1zgz
		Family and Domain Information	:	ProDom \| SYSTERS
		General Structural Information	:	GlycoscienceDB \| MMDB \| NDB \| OCA \| PDB \| PDBe \| PDBj \| PDBsum \| PDBWiki \| PQS \| PROTEOPEDIA
		Orientation in Membranes	:	OPM
		Protein Surface	:	SURFACE
		Secondary Structure	:	DSSP (structure derived) \| HSSP (homology derived)
		Structural Genomics	:	GeneCensus
		Structural Neighbours	:	CE \| VAST
		Structure Classification	:	CATH \| Dali \| SCOP
		Validation and Original Data	:	BMRB Data View \| BMRB Restraints Grid \| EDS \| PROCHECK \| RECOORD \| WHAT_CHECK

Access by UniProt ID/Accession number
	TORR_ECOLI \| P38684
		Comparative Protein Structure Models	:	ModBase
		Genomic Information	:	Ensembl
		Protein-protein Interaction	:	DIP
		Sequence, Family and Domain Information	:	InterPro \| Pfam \| SMART \| UniProtKB/SwissProt

Access by Enzyme Classificator (EC Number)
	(no 'Enzyme Classificator' available)
		General Enzyme Information	:	BRENDA \| EC-PDB \| Enzyme \| IntEnz
		Pathway	:	KEGG \| MetaCyc

Access by Disease Identifier (MIM ID)
	(no 'MIM ID' available)
		Disease Information	:	OMIM

Access by GenAge ID
	(no 'GenAge ID' available)
		Age Related Information	:	GenAge

Access by PDB/NDB ID
		Domain Information	:	XDom
		Interatomic Contacts of Structural Units	:	CSU
		Ligand-protein Contacts	:	LPC
		Protein Cavities	:	castP
		Sequence and Secondary Structure	:	PDBCartoon
		Structure Alignment	:	STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
		Structure and Sequence Browser	:	STING

Access by UniProt ID/Accession number
	TORR_ECOLI \| P38684
		Protein Disorder Prediction	:	DisEMBL \| FoldIndex \| GLOBPLOT (for more information see DisProt)

(no "Entries Sharing at Least One Protein Chain" available for 1ZGZ)

(no "Related Entries Specified in the PDB File" available for 1ZGZ)

Description

Compounds

Structural Features

Chains, Units

Ligands, Modified Residues, Ions (3, 15)

Sites (3, 3)

SS Bonds (0, 0)

Cis Peptide Bonds (4, 4)

Sequence-Structure Mapping

SAPs(SNPs)/Variants (0, 0)

PROSITE Motifs (1, 4)

Exons (0, 0)

Sequences/Alignments

Classification and Annotation

SCOP Domains (2, 4)

CATH Domains (1, 4)

Pfam Domains (1, 4)

Gene Ontology (6, 6)

Visualization

Interactive Views

Still Images

Databases and Analysis Tools

Databases

Analysis Tools

Related Entries

Entries Sharing at Least One Protein Chain (UniProt ID)

Related Entries Specified in the PDB File
