(-)NMR Structure - model 1
(-)NMR Structure - all models
collapse expand < >

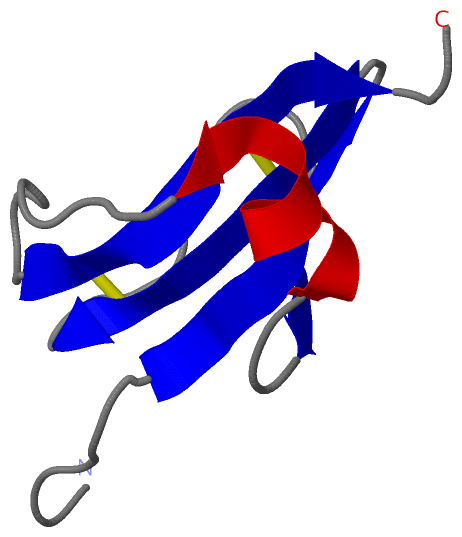

Image NMR Structure - model 1
NMR Structure - model 1  (Jmol Viewer)

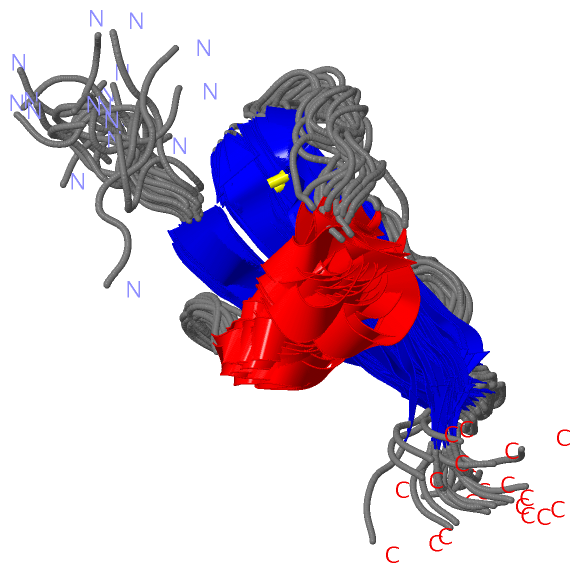

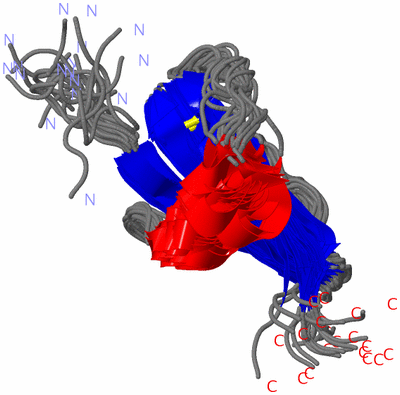

Image NMR Structure - all models
NMR Structure - all models  (Jmol Viewer)

(-) Description

Title :  SOLUTION STRUCTURE OF THE LEECH CARBOXYPEPTIDASE INHIBITOR

Authors :  J. L. Arolas, L. D'Silva, G. M. Popowicz, F. X. Aviles, T. A. Holak, S. Ventura
Date :  20 Apr 05  (Deposition) - 13 Sep 05  (Release) - 24 Feb 09  (Revision)
Method :  SOLUTION NMR
Resolution :  NOT APPLICABLE
Chains :  NMR Structure  :  A  (20x)
Keywords :  Carboxypeptidase Inhibitor, Five-Stranded Antiparallel Beta- Sheet, One Short Alpha-Helix, Hydrolase Inhibitor (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  J. L. Arolas, L. D'Silva, G. M. Popowicz, F. X. Aviles, T. A. Holak, S. Ventura
Nmr Structural Characterization And Computational Predictions Of The Major Intermediate In Oxidative Folding Of Leech Carboxypeptidase Inhibitor
Structure V. 13 1193 2005
PubMed-ID: 16084391  |  Reference-DOI: 10.1016/J.STR.2005.05.008
(for further references see the PDB file header)

(-) Compounds

Molecule 1 - METALLOCARBOXYPEPTIDASE INHIBITOR
    Chains: A
    Engineered: YES
    Expression System: ESCHERICHIA COLI BL21
    Expression System Plasmid: PBAT4
    Expression System Strain: BL21
    Expression System Taxid: 511693
    Expression System Vector Type: PLASMID
    Organism Common: MEDICINAL LEECH
    Organism Scientific: HIRUDO MEDICINALIS
    Organism Taxid: 6421
    Synonym: LEECH CARBOXYPEPTIDASE INHIBITOR, LCI, INHIBITOR OF A/B METALLOCARBOXYPEPTIDASES

 Structural Features

(-) Chains, Units


NMR Structure (20x):

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (0, 0)

(no "Ligand,Modified Residues,Ions" information available for 1ZFI)

(-) Sites  (0, 0)

(no "Site" information available for 1ZFI)

(-) SS Bonds  (4, 4)

NMR Structure
No.Residues
1A:11 -A:34
2A:18 -A:62
3A:19 -A:43
4A:22 -A:58

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 1ZFI)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 1ZFI)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 1ZFI)

(-) Exons   (0, 0)

(no "Exon" information available for 1ZFI)

(-) Sequences/Alignments

NMR Structure
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:67
 aligned with MCPI_HIRME | P81511 from UniProtKB/Swiss-Prot  Length:81

    Alignment length:67
                                    24        34        44        54        64        74
            MCPI_HIRME   15 SSHTPDESFLCYQPDQVCCFICRGAAPLPSEGECNPHPTAPWCREGAVEWVPYSTGQCRTTCIPYVE 81
               SCOP domains d1zfia_ A: Carboxypeptidase inhibitor                               SCOP domains
               CATH domains 1zfiA00 A:1-67  [code=3.30.1040.10, no name defined]                CATH domains
               Pfam domains ------------------------------------------------------------------- Pfam domains
         Sec.struct. author ......eeeeeee..eeeeeeee.........eeee...hhhhhhhh.........eeeeeeee... Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------- PROSITE
                 Transcript ------------------------------------------------------------------- Transcript
                  1zfi A  1 GSHTPDESFLCYQPDQVCCFICRGAAPLPSEGECNPHPTAPWCREGAVEWVPYSTGQCRTTCIPYVE 67
                                    10        20        30        40        50        60
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (1, 1)

NMR Structure
(-)
Class: Small proteins (3458)

(-) CATH Domains  (1, 1)

NMR Structure
(-)
Class: Alpha Beta (26913)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 1ZFI)

(-) Gene Ontology  (5, 5)

NMR Structure(hide GO term definitions)
Chain A   (MCPI_HIRME | P81511)
molecular function
    GO:0004857    enzyme inhibitor activity    Binds to and stops, prevents or reduces the activity of an enzyme.
    GO:0008191    metalloendopeptidase inhibitor activity    Stops, prevents or reduces the activity of metalloendopeptidases, enzymes that catalyze the hydrolysis of nonterminal peptide bonds in a polypeptide chain and contain a chelated metal ion at their active sites which is essential to their catalytic activity.
    GO:0030414    peptidase inhibitor activity    Stops, prevents or reduces the activity of a peptidase, any enzyme that catalyzes the hydrolysis peptide bonds.
biological process
    GO:0010951    negative regulation of endopeptidase activity    Any process that decreases the frequency, rate or extent of endopeptidase activity, the endohydrolysis of peptide bonds within proteins.
    GO:0010466    negative regulation of peptidase activity    Any process that stops or reduces the rate of peptidase activity, the hydrolysis of peptide bonds within proteins.

 Visualization

(-) Interactive Views

NMR Structure
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
(no "Ligands, Modified Residues, Ions" information available for 1zfi)

  Sites
(no "Sites" information available for 1zfi)

  Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 1zfi)


(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
[ NMR Structure - model 1 PNG format | NMR Structure - all models PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  1zfi
    Family and Domain Information: ProDom | SYSTERS
    General Structural Information: GlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in Membranes: OPM
    Protein Surface: SURFACE
    Secondary Structure: DSSP (structure derived) | HSSP (homology derived)
    Structural Genomics: GeneCensus
    Structural Neighbours: CE | VAST
    Structure Classification: CATH | Dali | SCOP
    Validation and Original Data: BMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  MCPI_HIRME | P81511
    Comparative Protein Structure Models: ModBase
    Genomic Information: Ensembl
    Protein-protein Interaction: DIP
    Sequence, Family and Domain Information: InterPro | Pfam | SMART | UniProtKB/SwissProt

Access by Enzyme Classificator   (EC Number)
  (no 'Enzyme Classificator' available)
    General Enzyme Information: BRENDA | EC-PDB | Enzyme | IntEnz
    Pathway: KEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease Information: OMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related Information: GenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain Information: XDom
    Interatomic Contacts of Structural Units: CSU
    Ligand-protein Contacts: LPC
    Protein Cavities: castP
    Sequence and Secondary Structure: PDBCartoon
    Structure Alignment: STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence Browser: STING

Access by UniProt ID/Accession number
  MCPI_HIRME | P81511
    Protein Disorder Prediction: DisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)

 Related Entries

(-) Entries Sharing at Least One Protein Chain (UniProt ID)

UniProtKB/Swiss-Prot
        MCPI_HIRME | P81511: 1dtd 1dtv 1zfl 2abz

(-) Related Entries Specified in the PDB File

1dtd CRYSTAL STRUCTURE OF THE LEECH CARBOXYPEPTIDASE INHIBITOR IN COMPLEX WITH HUMAN CARBOXYPEPTIDASE A2
1dtv SOLUTION STRUCTURE OF THE LEECH CARBOXYPEPTIDASE INHIBITOR DETERMINED AT PH 6.5
1zfl SOLUTION STRUCTURE OF III-A, THE MAJOR INTERMEDIATE IN THE OXIDATIVE FOLDING OF LEECH CARBOXYPEPTIDASE INHIBITOR
