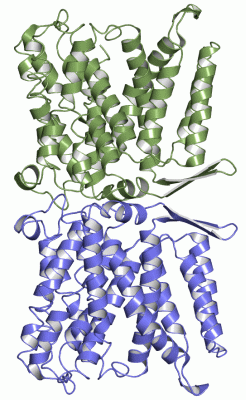

Image Asym.Unit - manually
Asym.Unit - manually  (Jmol Viewer)

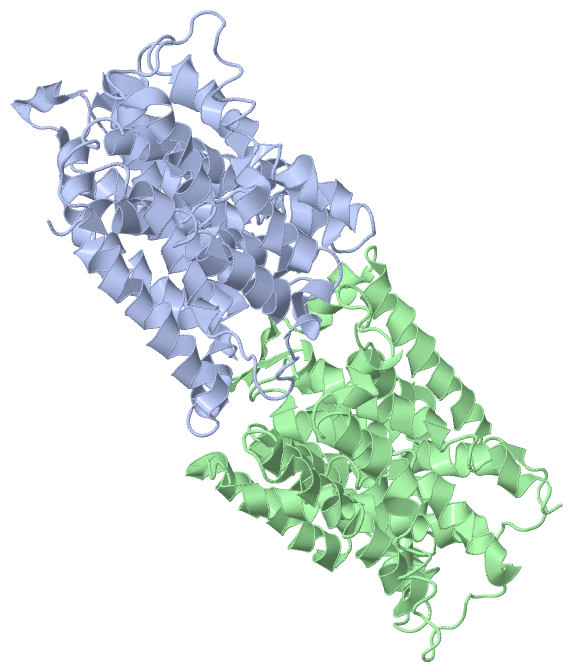

Image Asymmetric Unit
Asymmetric Unit  (Jmol Viewer)

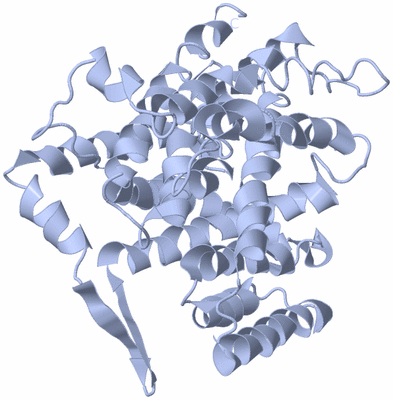

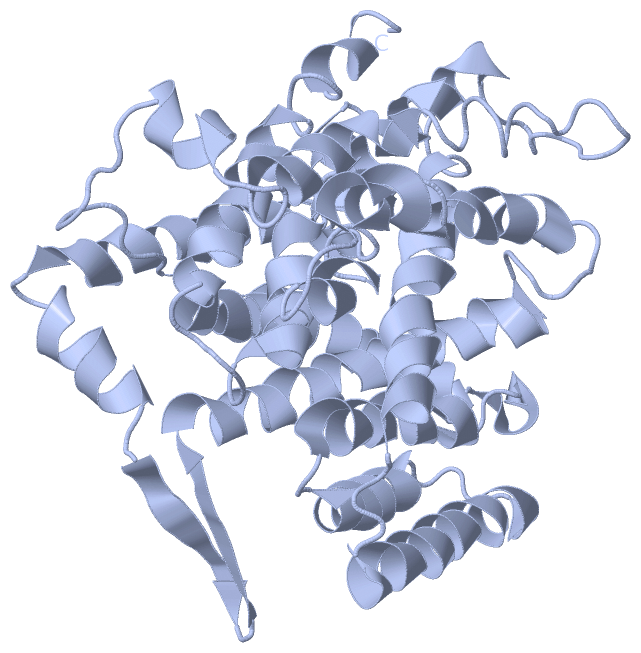

Image Biological Unit 1
Biological Unit 1  (Jmol Viewer)

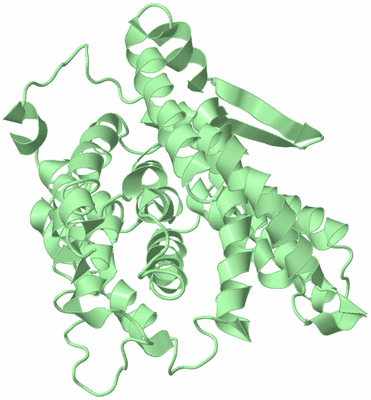

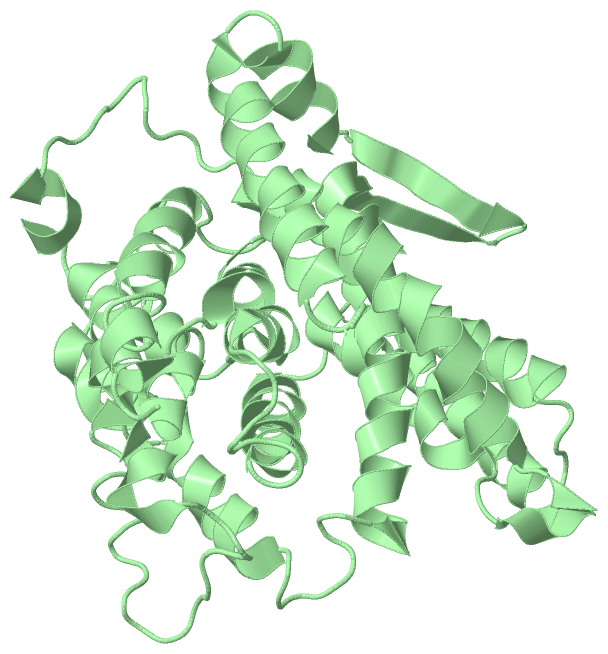

Image Biological Unit 2
Biological Unit 2  (Jmol Viewer)

(-) Description

Title :  CRYSTAL STRUCTURE OF THE NA+/H+ ANTIPORTER NHAA

Authors :  C. Hunte, E. Screpanti, M. Venturi, A. Rimon, E. Padan, H. Michel
Date :  11 Apr 05  (Deposition) - 05 Jul 05  (Release) - 24 Feb 09  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  3.45
Chains :  Asym. Unit :  A,B
Biol. Unit 1:  A  (1x)
Biol. Unit 2:  B  (1x)
Keywords :  Antiporter, Membrane Protein (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  C. Hunte, E. Screpanti, M. Venturi, A. Rimon, E. Padan, H. Michel
Structure Of A Na+/H+ Antiporter And Insights Into Mechanism Of Action And Regulation By Ph.
Nature V. 435 1197 2005
PubMed-ID: 15988517  |  Reference-DOI: 10.1038/NATURE03692
(for further references see the PDB file header)

(-) Compounds

Molecule 1 - NA(+)/H(+) ANTIPORTER 1
    Chains: A, B
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Plasmid: PAXH
    Expression System Strain: RK20
    Expression System Taxid: 562
    Expression System Vector Type: PLASMID
    Gene: NHAA
    Organism Scientific: ESCHERICHIA COLI
    Organism Taxid: 562
    Synonym: SODIUM/PROTON ANTIPORTER 1

 Structural Features

(-) Chains, Units

  12
Asymmetric Unit : AB
Biological Unit 1 (1x): A
Biological Unit 2 (1x):  B

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (0, 0)

(no "Ligand,Modified Residues,Ions" information available for 1ZCD)

(-) Sites  (0, 0)

(no "Site" information available for 1ZCD)

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 1ZCD)

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 1ZCD)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 1ZCD)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 1ZCD)

(-) Exons   (0, 0)

(no "Exon" information available for 1ZCD)

(-) Sequences/Alignments

Asymmetric Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:376
 aligned with NHAA_ECOLI | P13738 from UniProtKB/Swiss-Prot  Length:388

    Alignment length:376
                                    18        28        38        48        58        68        78        88        98       108       118       128       138       148       158       168       178       188       198       208       218       228       238       248       258       268       278       288       298       308       318       328       338       348       358       368       378
           NHAA_ECOLI     9 SSDASGGIILIIAAILAMIMANSGATSGWYHDFLETPVQLRVGSLEINKNMLLWINDALMAVFFLLVGLEVKRELMQGSLASLRQAAFPVIAAIGGMIVPALLYLAFNYADPITREGWAIPAATDIAFALGVLALLGSRVPLALKIFLMALAIIDDLGAIIIIALFYTNDLSMASLGVAAVAIAVLAVLNLCGARRTGVYILVGVVLWTAVLKSGVHATLAGVIVGFFIPLKEKHGRSPAKRLEHVLHPWVAYLILPLFAFANAGVSLQGVTLDGLTSILPLGIIAGLLIGKPLGISLFCWLALRLKLAHLPEGTTYQQIMVVGILCGIGFTMSIFIASLAFGSVDPELINWAKLGILVGSISSAVIGYSWLRVRL 384
               SCOP domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains 1zcdA00 A:9-384 Na+/H+ antiporter like domain                                                                                                                                                                                                                                                                                                                                            CATH domains
               Pfam domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ...hhhhhhhhhhhhhhhhhhhh..hhhhhhhhh..eeeeee..eeeeeehhhhhhhhhhhhhhhhhhhhhhhhhhh........hhhhhhhhhhhh..hhhhhhhhh....hhhhhh......hhhhhhhhhhh........hhhhhhhhhhhhhhhhhhhhhhhh....hhhhhhhhhhhhhhhhhhhhh....hhhhhhhhhhhhhhh..hhhhhhhhhhhhhhhh..hhhhh.hhhhhhhhhhhhhhhhhhhhhhhhhhh..........hhhhhh....hhhhhhhhhhhh...................hhhhhhhhhhhh..hhhhhhhhhhhhh......hhhhhhhhhhhhhhh.....hhhhh... Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1zcd A   9 SSDASGGIILIIAAILAMIMANSGATSGWYHDFLETPVQLRVGSLEINKNMLLWINDALMAVFFLLVGLEVKRELMQGSLASLRQAAFPVIAAIGGMIVPALLYLAFNYADPITREGWAIPAATDIAFALGVLALLGSRVPLALKIFLMALAIIDDLGAIIIIALFYTNDLSMASLGVAAVAIAVLAVLNLCGARRTGVYILVGVVLWTAVLKSGVHATLAGVIVGFFIPLKEKHGRSPAKRLEHVLHPWVAYLILPLFAFANAGVSLQGVTLDGLTSILPLGIIAGLLIGKPLGISLFCWLALRLKLAHLPEGTTYQQIMVVGILCGIGFTMSIFIASLAFGSVDPELINWAKLGILVGSISSAVIGYSWLRVRL 384
                                    18        28        38        48        58        68        78        88        98       108       118       128       138       148       158       168       178       188       198       208       218       228       238       248       258       268       278       288       298       308       318       328       338       348       358       368       378


Chain B from PDB  Type:PROTEIN  Length:376
 aligned with NHAA_ECOLI | P13738 from UniProtKB/Swiss-Prot  Length:388

    Alignment length:376
                                    18        28        38        48        58        68        78        88        98       108       118       128       138       148       158       168       178       188       198       208       218       228       238       248       258       268       278       288       298       308       318       328       338       348       358       368       378
           NHAA_ECOLI     9 SSDASGGIILIIAAILAMIMANSGATSGWYHDFLETPVQLRVGSLEINKNMLLWINDALMAVFFLLVGLEVKRELMQGSLASLRQAAFPVIAAIGGMIVPALLYLAFNYADPITREGWAIPAATDIAFALGVLALLGSRVPLALKIFLMALAIIDDLGAIIIIALFYTNDLSMASLGVAAVAIAVLAVLNLCGARRTGVYILVGVVLWTAVLKSGVHATLAGVIVGFFIPLKEKHGRSPAKRLEHVLHPWVAYLILPLFAFANAGVSLQGVTLDGLTSILPLGIIAGLLIGKPLGISLFCWLALRLKLAHLPEGTTYQQIMVVGILCGIGFTMSIFIASLAFGSVDPELINWAKLGILVGSISSAVIGYSWLRVRL 384
               SCOP domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains 1zcdB00 B:9-384 Na+/H+ antiporter like domain                                                                                                                                                                                                                                                                                                                                            CATH domains
           Pfam domains (1) Na_H_antiport_1-1zcdB01 B:9-380                                                                                                                                                                                                                                                                                                                                                     ---- Pfam domains (1)
           Pfam domains (2) Na_H_antiport_1-1zcdB02 B:9-380                                                                                                                                                                                                                                                                                                                                                     ---- Pfam domains (2)
         Sec.struct. author ...hhhhhhhhhhhhhhhhhhhh..hhhhhhhhh..eeeeee..eeeeeehhhhhhhhhhhhhhhhhhhhhhhhhhh........hhhhhhhhhhhh..hhhhhhhhh....hhhhhh......hhhhhhhhhhh........hhhhhhhhhhhhhhhhhhhhhhhh....hhhhhhhhhhhhhhhhhhhhh....hhhhhhhhhhhhhhh..hhhhhhhhhhhhhhhh..hhhhh.hhhhhhhhhhhhhhhhhhhhhhhhhhh..........hhhhhh....hhhhhhhhhhhh...................hhhhhhhhhhhh..hhhhhhhhhhhhh......hhhhhhhhhhhhhhh.....hhhhh... Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1zcd B   9 SSDASGGIILIIAAILAMIMANSGATSGWYHDFLETPVQLRVGSLEINKNMLLWINDALMAVFFLLVGLEVKRELMQGSLASLRQAAFPVIAAIGGMIVPALLYLAFNYADPITREGWAIPAATDIAFALGVLALLGSRVPLALKIFLMALAIIDDLGAIIIIALFYTNDLSMASLGVAAVAIAVLAVLNLCGARRTGVYILVGVVLWTAVLKSGVHATLAGVIVGFFIPLKEKHGRSPAKRLEHVLHPWVAYLILPLFAFANAGVSLQGVTLDGLTSILPLGIIAGLLIGKPLGISLFCWLALRLKLAHLPEGTTYQQIMVVGILCGIGFTMSIFIASLAFGSVDPELINWAKLGILVGSISSAVIGYSWLRVRL 384
                                    18        28        38        48        58        68        78        88        98       108       118       128       138       148       158       168       178       188       198       208       218       228       238       248       258       268       278       288       298       308       318       328       338       348       358       368       378
   Legend:   → Mismatch (orange background)
