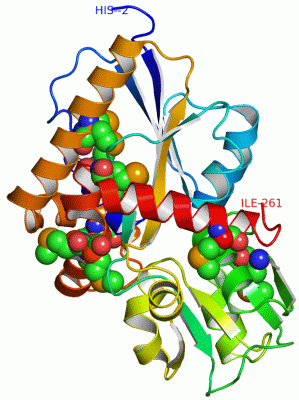

Image Asym./Biol. Unit - manually
Asym./Biol. Unit - manually  (Jmol Viewer)
Image Asym./Biol. Unit
Asym./Biol. Unit  (Jmol Viewer)

(-) Description

Title :  X-RAY CRYSTAL STRUCTURE OF PROTEIN AF1704 FROM ARCHAEOGLOBUS FULGIDUS. NORTHEAST STRUCTURAL GENOMICS CONSORTIUM TARGET GR62A.

Authors :  F. Forouhar, M. Abashidze, K. Conover, T. B. Acton, G. T. Montelione, J. L. Tong, Northeast Structural Genomics Consortium (Nesg)
Date :  08 Apr 05  (Deposition) - 19 Apr 05  (Release) - 13 Jul 11  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  2.30
Chains :  Asym./Biol. Unit :  A
Keywords :  Alpha-Beta Protein, Structural Genomics, Psi, Protein Structure Initiative, Northeast Structural Genomics Consortium, Nesg, Unknown Function (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :

PubMed: search

(-) Compounds

Molecule 1 - HYPOTHETICAL PROTEIN AF1704
    Chains: A
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Plasmid: BL21
    Expression System Strain: BL21(DE3)+MAGIC
    Expression System Taxid: 562
    Expression System Vector Type: PET15
    Organism Scientific: ARCHAEOGLOBUS FULGIDUS
    Organism Taxid: 224325
    Strain: DSM 4304

 Structural Features

(-) Chains, Units

  1
Asymmetric/Biological Unit : A

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (1, 9)

Asymmetric/Biological Unit (1, 9)
No.NameCountTypeFull Name
1MSE9Mod. Amino AcidSELENOMETHIONINE

(-) Sites  (0, 0)

(no "Site" information available for 1ZBM)

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 1ZBM)

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 1ZBM)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 1ZBM)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 1ZBM)

(-) Exons   (0, 0)

(no "Exon" information available for 1ZBM)

(-) Sequences/Alignments

Asymmetric/Biological Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:264
 aligned with O28569_ARCFU | O28569 from UniProtKB/TrEMBL  Length:271

    Alignment length:264
                               1
                               |     7        17        27        37        47        57        67        77        87        97       107       117       127       137       147       157       167       177       187       197       207       217       227       237       247       257
         O28569_ARCFU     - ---MKIRVAHTPDADDAFMFYAMTHGKVDTWLEIEHVIEDIETLNRKAFNAEYEVTAISAHAYALLDDKYRILSAGASVGDGYGPVVVAKSEISLDGKRIAVPGRYTTANLLLKLAVEDFEPVEMPFDRIIQAVLDEEVDAGLLIHEGQITYADYGLKCVLDLWDWWSEQVKLPLPLGLNAIRRDLSVEVQEEFLRAMRESIAFAIENPDEAIEYAMKYSRGLDRERAKRFAMMYVNDYTYNMPESVDAALKKLYEMAEAKGLI 261
               SCOP domains ----d1zbma1 A:2-261 Hypothetical protein AF1704                                                                                                                                                                                                                          SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ CATH domains
               Pfam domains -----VitK2_biosynth-1zbmA01 A:3-257                                                                                                                                                                                                                                 ---- Pfam domains
         Sec.struct. author ....eeeeee..hhhhhhhhhhhhh.......eeeeee.hhhhhhhhhhhh...eeeeehhhhh.....eee.....eee.....eeee.........eeee....hhhhhhhhhhh...eeee.hhhhhhhhhhh....eeee.hhhhhhhhhhh.eeeeehhhhhhh.....eeeeeeeee...hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh...hhhhhhhhhhhhhhhhhhh.hhhhhhhhhhhhhhhhh.... Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Transcript
                 1zbm A  -2 HHSHKIRVAHTPDADDAFmFYAmTHGKVDTWLEIEHVIEDIETLNRKAFNAEYEVTAISAHAYALLDDKYRILSAGASVGDGYGPVVVAKSEISLDGKRIAVPGRYTTANLLLKLAVEDFEPVEmPFDRIIQAVLDEEVDAGLLIHEGQITYADYGLKCVLDLWDWWSEQVKLPLPLGLNAIRRDLSVEVQEEFLRAmRESIAFAIENPDEAIEYAmKYSRGLDRERAKRFAmmYVNDYTYNmPESVDAALKKLYEmAEAKGLI 261
                                     7        17  |     27        37        47        57        67        77        87        97       107       117    |  127       137       147       157       167       177       187       197       207      |217       227  ||   237  |    247      |257
                                             16-MSE                                                                                                   122-MSE                                                                  195-MSE            214-MSE         230-MSE   240-MSE       254-MSE
                                                 20-MSE                                                                                                                                                                                                            231-MSE
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (1, 1)

Asymmetric/Biological Unit
(-)
Class: Alpha and beta proteins (a/b) (23833)

(-) CATH Domains  (0, 0)

(no "CATH Domain" information available for 1ZBM)

(-) Pfam Domains  (1, 1)

Asymmetric/Biological Unit
(-)
Clan: PBP (391)

(-) Gene Ontology  (3, 3)

Asymmetric/Biological Unit(hide GO term definitions)
Chain A   (O28569_ARCFU | O28569)
molecular function
    GO:0016830    carbon-carbon lyase activity    Catalysis of the cleavage of C-C bonds by other means than by hydrolysis or oxidation, or conversely adding a group to a double bond.
    GO:0016829    lyase activity    Catalysis of the cleavage of C-C, C-O, C-N and other bonds by other means than by hydrolysis or oxidation, or conversely adding a group to a double bond. They differ from other enzymes in that two substrates are involved in one reaction direction, but only one in the other direction. When acting on the single substrate, a molecule is eliminated and this generates either a new double bond or a new ring.
biological process
    GO:0009234    menaquinone biosynthetic process    The chemical reactions and pathways resulting in the formation of any of the menaquinones. Structurally, menaquinones consist of a methylated naphthoquinone ring structure and side chains composed of a variable number of unsaturated isoprenoid residues. Menaquinones that have vitamin K activity and are known as vitamin K2.

 Visualization

(-) Interactive Views

Asymmetric/Biological Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
    MSE  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]

  Sites
(no "Sites" information available for 1zbm)

  Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 1zbm)


(-) Still Images

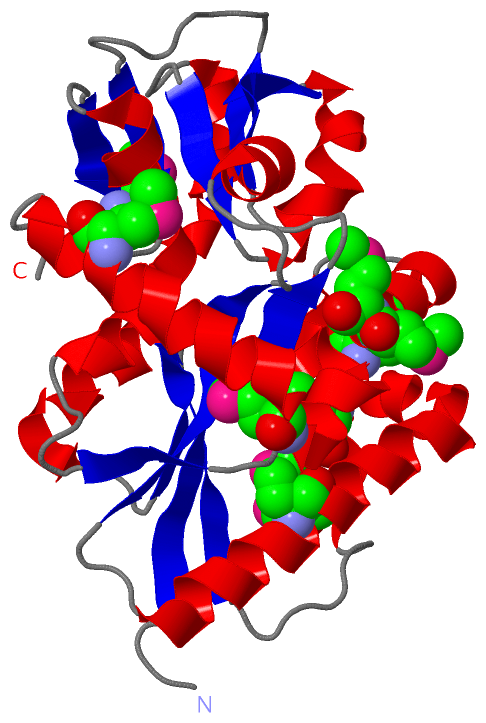

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
[ Asym./Biol. Unit PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  1zbm
    Family and Domain Information: ProDom | SYSTERS
    General Structural Information: GlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in Membranes: OPM
    Protein Surface: SURFACE
    Secondary Structure: DSSP (structure derived) | HSSP (homology derived)
    Structural Genomics: GeneCensus
    Structural Neighbours: CE | VAST
    Structure Classification: CATH | Dali | SCOP
    Validation and Original Data: BMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  O28569_ARCFU | O28569
    Comparative Protein Structure Models: ModBase
    Genomic Information: Ensembl
    Protein-protein Interaction: DIP
    Sequence, Family and Domain Information: InterPro | Pfam | SMART | UniProtKB/TrEMBL

Access by Enzyme Classificator   (EC Number)
  (no 'Enzyme Classificator' available)
    General Enzyme Information: BRENDA | EC-PDB | Enzyme | IntEnz
    Pathway: KEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease Information: OMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related Information: GenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain Information: XDom
    Interatomic Contacts of Structural Units: CSU
    Ligand-protein Contacts: LPC
    Protein Cavities: castP
    Sequence and Secondary Structure: PDBCartoon
    Structure Alignment: STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence Browser: STING

Access by UniProt ID/Accession number
  O28569_ARCFU | O28569
    Protein Disorder Prediction: DisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)
