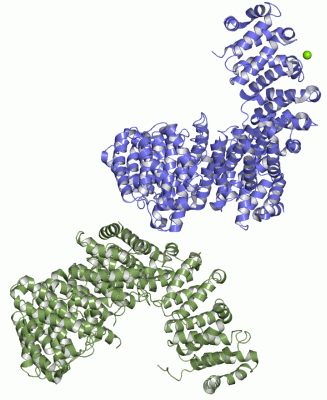

Image Asym.Unit - manually
Asym.Unit - manually  (Jmol Viewer)

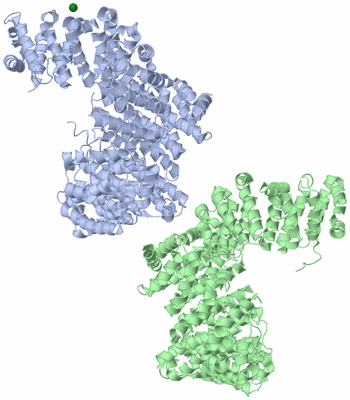

Image Asymmetric Unit
Asymmetric Unit  (Jmol Viewer)

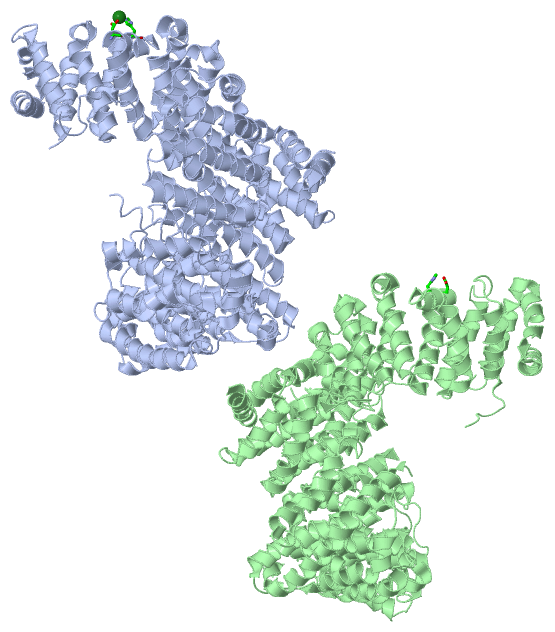

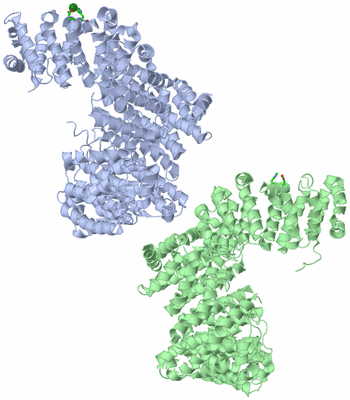

Image Asym. Unit - sites
Asym. Unit - sites  (Jmol Viewer)

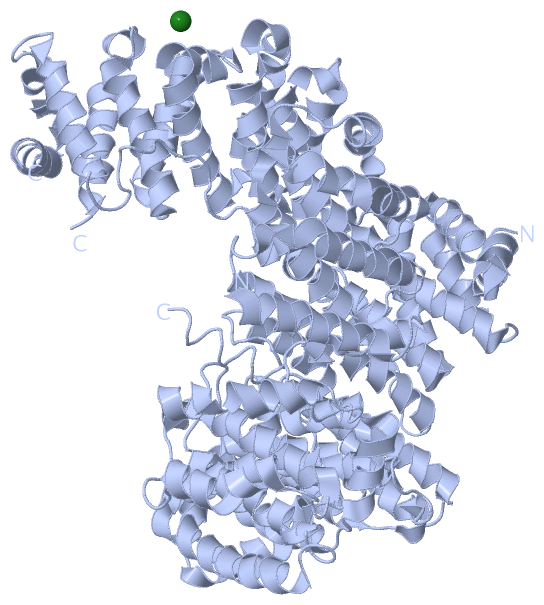

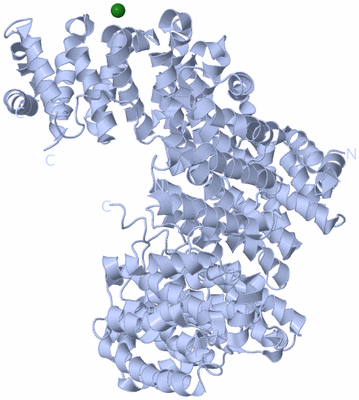

Image Biological Unit 1
Biological Unit 1  (Jmol Viewer)

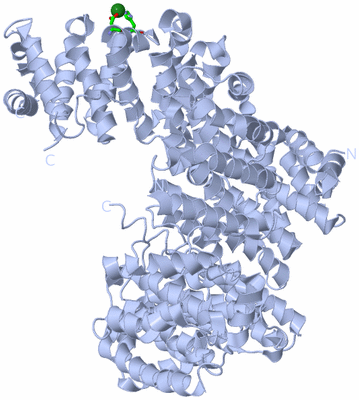

Image Biol. Unit 1 - sites
Biol. Unit 1 - sites  (Jmol Viewer)

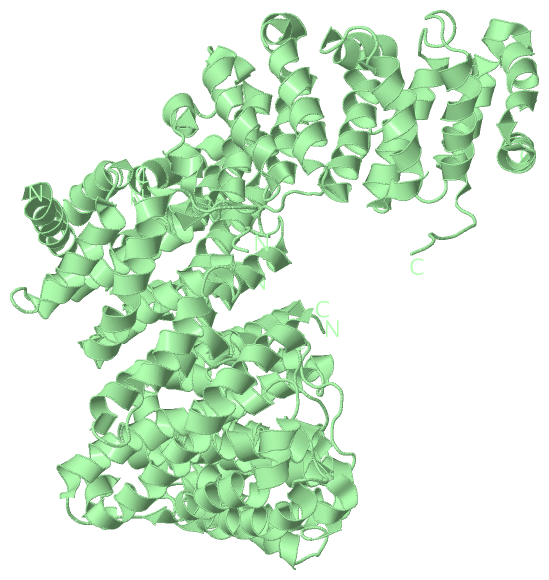

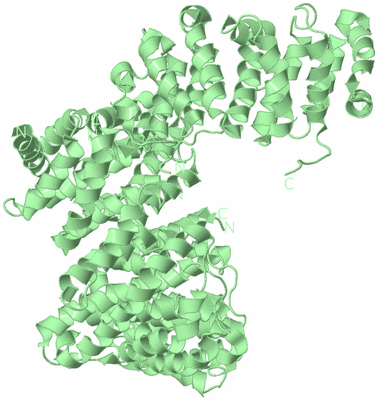

Image Biological Unit 2
Biological Unit 2  (Jmol Viewer)

(-) Description

Title :  THE EXPORTIN CSE1 IN ITS CARGO-FREE, CYTOPLASMIC STATE

Authors :  A. Cook, E. Fernandez, D. Lindner, J. Ebert, G. Schlenstedt, E. Conti
Date :  12 Mar 05  (Deposition) - 10 May 05  (Release) - 24 Feb 09  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  3.10
Chains :  Asym. Unit :  A,B
Biol. Unit 1:  A  (1x)
Biol. Unit 2:  B  (1x)
Keywords :  Cse1, Exportin, Nuclear Transport, Heat Repeat, Protein Transport (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  A. Cook, E. Fernandez, D. Lindner, J. Ebert, G. Schlenstedt, E. Conti
The Structure Of The Nuclear Export Receptor Cse1 In Its Cytosolic State Reveals A Closed Conformation Incompatible With Cargo Binding
Mol. Cell V. 18 355 2005
PubMed-ID: 15866177  |  Reference-DOI: 10.1016/J.MOLCEL.2005.03.021
(for further references see the PDB file header)

(-) Compounds

Molecule 1 - IMPORTIN ALPHA RE-EXPORTER
    Chains: A, B
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Plasmid: PQE-60
    Expression System Strain: DL-41
    Expression System Taxid: 562
    Expression System Vector Type: PLASMID
    Gene: CSE1
    Organism Common: BAKER'S YEAST
    Organism Scientific: SACCHAROMYCES CEREVISIAE
    Organism Taxid: 4932
    Synonym: CHROMOSOME SEGREGATION PROTEIN CSE1

 Structural Features

(-) Chains, Units

  12
Asymmetric Unit : AB
Biological Unit 1 (1x): A
Biological Unit 2 (1x):  B

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (1, 1)

Asymmetric Unit (1, 1)
No.NameCountTypeFull Name
1MG1Ligand/IonMAGNESIUM ION
Biological Unit 1 (0, 0)
No.NameCountTypeFull Name
1MG-1Ligand/IonMAGNESIUM ION
Biological Unit 2 (0, 0)
No.NameCountTypeFull Name
1MG-1Ligand/IonMAGNESIUM ION

(-) Sites  (1, 1)

Asymmetric Unit (1, 1)
No.NameEvidenceResiduesDescription
1AC1SOFTWAREASP A:796 , HIS A:800 , ASP B:796 , HIS B:800BINDING SITE FOR RESIDUE MG A 969

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 1Z3H)

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 1Z3H)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 1Z3H)

(-) PROSITE Motifs  (1, 2)

Asymmetric Unit (1, 2)
 PROSITEUniProtKBPDB
No.IDACDescriptionIDLocationCountLocation
1IMPORTIN_B_NTPS50166 Importin-beta N-terminal domain profile.CSE1_YEAST23-96
 		  2A:23-96
B:23-96
Biological Unit 1 (1, 1)
 PROSITEUniProtKBPDB
No.IDACDescriptionIDLocationCountLocation
1IMPORTIN_B_NTPS50166 Importin-beta N-terminal domain profile.CSE1_YEAST23-96
 		  1A:23-96
-
Biological Unit 2 (1, 1)
 PROSITEUniProtKBPDB
No.IDACDescriptionIDLocationCountLocation
1IMPORTIN_B_NTPS50166 Importin-beta N-terminal domain profile.CSE1_YEAST23-96
 		  1-
B:23-96

(-) Exons   (1, 2)

Asymmetric Unit (1, 2)
 ENSEMBLUniProtKBPDB
No.Transcript IDExonExon IDGenome LocationLengthIDLocationLengthCountLocationLength
1.1YGL238W1YGL238W.1VII:49552-524342883CSE1_YEAST1-9609602A:2-959 (gaps)
B:2-959 (gaps)		958
958

(-) Sequences/Alignments

Asymmetric Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:925
 aligned with CSE1_YEAST | P33307 from UniProtKB/Swiss-Prot  Length:960

    Alignment length:958
                                    11        21        31        41        51        61        71        81        91       101       111       121       131       141       151       161       171       181       191       201       211       221       231       241       251       261       271       281       291       301       311       321       331       341       351       361       371       381       391       401       411       421       431       441       451       461       471       481       491       501       511       521       531       541       551       561       571       581       591       601       611       621       631       641       651       661       671       681       691       701       711       721       731       741       751       761       771       781       791       801       811       821       831       841       851       861       871       881       891       901       911       921       931       941       951
           CSE1_YEAST     2 SDLETVAKFLAESVIASTAKTSERNLRQLETQDGFGLTLLHVIASTNLPLSTRLAGALFFKNFIKRKWVDENGNHLLPANNVELIKKEIVPLMISLPNNLQVQIGEAISSIADSDFPDRWPTLLSDLASRLSNDDMVTNKGVLTVAHSIFKRWRPLFRSDELFLEIKLVLDVFTAPFLNLLKTVDEQITANENNKASLNILFDVLLVLIKLYYDFNCQDIPEFFEDNIQVGMGIFHKYLSYSNPLLEDPDETEHASVLIKVKSSIQELVQLYTTRYEDVFGPMINEFIQITWNLLTSISNQPKYDILVSKSLSFLTAVTRIPKYFEIFNNESAMNNITEQIILPNVTLREEDVELFEDDPIEYIRRDLEGSDTDTRRRACTDFLKELKEKNEVLVTNIFLAHMKGFVDQYMSDPSKNWKFKDLYIYLFTALAINGNITNAGVSSTNNLLNVVDFFTKEIAPDLTSNNIPHIILRVDAIKYIYTFRNQLTKAQLIELMPILATFLQTDEYVVYTYAAITIEKILTIRESNTSPAFIFHKEDISNSTEILLKNLIALILKHGSSPEKLAENEFLMRSIFRVLQTSEDSIQPLFPQLLAQFIEIVTIMAKNPSNPRFTHYTFESIGAILNYTQRQNLPLLVDSMMPTFLTVFSEDIQEFIPYVFQIIAFVVEQSATIPESIKPLAQPLLAPNVWELKGNIPAVTRLLKSFIKTDSSIFPDLVPVLGIFQRLIASKAYEVHGFDLLEHIMLLIDMNRLRPYIKQIAVLLLQRLQNSKTERYVKKLTVFFGLISNKLGSDFLIHFIDEVQDGLFQQIWGNFIITTLPTIGNLLDRKIALIGVLNMVINGQFFQSKYPTLISSTMNSIIETASSQSIANLKNDYVDLDNLEEISTFGSHFSKLVSISEKPFDPLPEIDVNNGVRLYVAEALNKYNAISGNTFLNTILPQLTQENQVKLNQLLVG 959
               SCOP domains d1z3ha1 A:2-959 Exportin Cse1p                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                 SCOP domains
               CATH domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh..hhhhhhhhhhhh...hhhhhhhhhhhhhhhhhhhh.........hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh....hhhhhhhhh.....hhhhhhhhhhhhhhhhh.........hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh..hhhhhhhhhhhhhhhhhhhhhhhh...hhhhhhhhhhhhhhhhhhhhh.hhhhh........hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh....hhhhhhhhhhhhhhhhhhhhhhhhhh...hhhhhhhhhhhhhhhhhh.hhhhhhhhhhhhhhhhhhhh......hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh....hhhhhhhhhhhhhhhh................hhhhhhhhhhhhhhhh....hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh........................-------------hhhhhhhhhhhhhhhhh...hhhhhh.hhhhhhhhhhhhh.....hhhhhhhhhhhhhhhhhhhhh...hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh....hhhhhhhhhhhhhhhh......hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh..hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh..hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh...hhhhhhhhhhhhhhhhhh.hhhhhhhhhhhhhhhhhh..hhhhhhhhhhhhhhhhhhhhhhh..--------------------.hhhhhhhhhh..............hhhhhhhhhhhhhhh....hhhhhhhhhhhhhhhhhhhhhhhh Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ---------------------IMPORTIN_B_NT  PDB: A:23-96 UniProt: 23-96                                ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
               Transcript 1 Exon 1.1  PDB: A:2-959 (gaps) UniProt: 1-960 [INCOMPLETE]                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                      Transcript 1
                 1z3h A   2 SDLETVAKFLAESVIASTAKTSERNLRQLETQDGFGLTLLHVIASTNLPLSTRLAGALFFKNFIKRKWVDENGNHLLPANNVELIKKEIVPLMISLPNNLQVQIGEAISSIADSDFPDRWPTLLSDLASRLSNDDMVTNKGVLTVAHSIFKRWRPLFRSDELFLEIKLVLDVFTAPFLNLLKTVDEQITANENNKASLNILFDVLLVLIKLYYDFNCQDIPEFFEDNIQVGMGIFHKYLSYSNPLLEDPDETEHASVLIKVKSSIQELVQLYTTRYEDVFGPMINEFIQITWNLLTSISNQPKYDILVSKSLSFLTAVTRIPKYFEIFNNESAMNNITEQIILPNVTLREEDVELFEDDPIEYIRRDLEGSDTDTRRRACTDFLKELKEKNEVLVTNIFLAHMKGFVDQYMSDPSKNWKFKDLYIYLFTALAINGNITNAGVSSTNNLLNVVDFFTKEIAPDLTSNNIPHIILRVDAIKYIYTFRNQLTKAQLIELMPILATFLQTDEYVVYTYAAITIEKILTIRES-------------SNSTEILLKNLIALILKHGSSPEKLAENEFLMRSIFRVLQTSEDSIQPLFPQLLAQFIEIVTIMAKNPSNPRFTHYTFESIGAILNYTQRQNLPLLVDSMMPTFLTVFSEDIQEFIPYVFQIIAFVVEQSATIPESIKPLAQPLLAPNVWELKGNIPAVTRLLKSFIKTDSSIFPDLVPVLGIFQRLIASKAYEVHGFDLLEHIMLLIDMNRLRPYIKQIAVLLLQRLQNSKTERYVKKLTVFFGLISNKLGSDFLIHFIDEVQDGLFQQIWGNFIITTLPTIGNLLDRKIALIGVLNMVINGQFFQSKYPTLISSTMNSIIETASSQS--------------------GSHFSKLVSISEKPFDPLPEIDVNNGVRLYVAEALNKYNAISGNTFLNTILPQLTQENQVKLNQLLVG 959
                                    11        21        31        41        51        61        71        81        91       101       111       121       131       141       151       161       171       181       191       201       211       221       231       241       251       261       271       281       291       301       311       321       331       341       351       361       371       381       391       401       411       421       431       441       451       461       471       481       491       501       511       521       | -         - |     551       561       571       581       591       601       611       621       631       641       651       661       671       681       691       701       711       721       731       741       751       761       771       781       791       801       811       821       831       841       851       861       871         -         -|      901       911       921       931       941       951
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                         529           543                                                                                                                                                                                                                                                                                                                                     871                  892


Chain B from PDB  Type:PROTEIN  Length:914
 aligned with CSE1_YEAST | P33307 from UniProtKB/Swiss-Prot  Length:960

    Alignment length:958
                                    11        21        31        41        51        61        71        81        91       101       111       121       131       141       151       161       171       181       191       201       211       221       231       241       251       261       271       281       291       301       311       321       331       341       351       361       371       381       391       401       411       421       431       441       451       461       471       481       491       501       511       521       531       541       551       561       571       581       591       601       611       621       631       641       651       661       671       681       691       701       711       721       731       741       751       761       771       781       791       801       811       821       831       841       851       861       871       881       891       901       911       921       931       941       951
           CSE1_YEAST     2 SDLETVAKFLAESVIASTAKTSERNLRQLETQDGFGLTLLHVIASTNLPLSTRLAGALFFKNFIKRKWVDENGNHLLPANNVELIKKEIVPLMISLPNNLQVQIGEAISSIADSDFPDRWPTLLSDLASRLSNDDMVTNKGVLTVAHSIFKRWRPLFRSDELFLEIKLVLDVFTAPFLNLLKTVDEQITANENNKASLNILFDVLLVLIKLYYDFNCQDIPEFFEDNIQVGMGIFHKYLSYSNPLLEDPDETEHASVLIKVKSSIQELVQLYTTRYEDVFGPMINEFIQITWNLLTSISNQPKYDILVSKSLSFLTAVTRIPKYFEIFNNESAMNNITEQIILPNVTLREEDVELFEDDPIEYIRRDLEGSDTDTRRRACTDFLKELKEKNEVLVTNIFLAHMKGFVDQYMSDPSKNWKFKDLYIYLFTALAINGNITNAGVSSTNNLLNVVDFFTKEIAPDLTSNNIPHIILRVDAIKYIYTFRNQLTKAQLIELMPILATFLQTDEYVVYTYAAITIEKILTIRESNTSPAFIFHKEDISNSTEILLKNLIALILKHGSSPEKLAENEFLMRSIFRVLQTSEDSIQPLFPQLLAQFIEIVTIMAKNPSNPRFTHYTFESIGAILNYTQRQNLPLLVDSMMPTFLTVFSEDIQEFIPYVFQIIAFVVEQSATIPESIKPLAQPLLAPNVWELKGNIPAVTRLLKSFIKTDSSIFPDLVPVLGIFQRLIASKAYEVHGFDLLEHIMLLIDMNRLRPYIKQIAVLLLQRLQNSKTERYVKKLTVFFGLISNKLGSDFLIHFIDEVQDGLFQQIWGNFIITTLPTIGNLLDRKIALIGVLNMVINGQFFQSKYPTLISSTMNSIIETASSQSIANLKNDYVDLDNLEEISTFGSHFSKLVSISEKPFDPLPEIDVNNGVRLYVAEALNKYNAISGNTFLNTILPQLTQENQVKLNQLLVG 959
               SCOP domains d1z3hb_ B: Exportin Cse1p                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                      SCOP domains
               CATH domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
           Pfam domains (1) ---------------------IBN_N-1z3hB05 B:23-96                                                     -----------------------------------------------------Cse1-1z3   hB03 B:150-520                                                                                                                                                                                                                                                                                                                                                          CAS_CS                  E1-1z3hB01 B:521  -956                                                                                                                                                                                                                                                                                                                                                                                                      --- Pfam domains (1)
           Pfam domains (2) ---------------------IBN_N-1z3hB06 B:23-96                                                     -----------------------------------------------------Cse1-1z3   hB04 B:150-520                                                                                                                                                                                                                                                                                                                                                          CAS_CS                  E1-1z3hB02 B:521  -956                                                                                                                                                                                                                                                                                                                                                                                                      --- Pfam domains (2)
         Sec.struct. author hhhhhhhhhhhhhhh..hhhhhhhhhhhhhh..hhhhhhhhhhhh...hhhhhhhhhhhhhhhhhhhh.........hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh.....hhhhhhhhhh....hhhhhhhhhhhhhhhhhhhh..---.hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh..hhhhhhhhhhhhhhhhhhhhhhh....hhhhhhhhhhhhhhhhhhhhh.hhhhh........hhhhhhhhhhhhhhhhhhhh....hhhhhhhhhhhhhhhhh....hhhhhhhhhhhhhhhhhhhhhhhhhh.....hhhhhhhhhhhhhhhh.hhhhhhhhhhhhhhhhhhhh......hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh...hhhhhhhhhhhhhhhhh................hhhhhhhhh.hhhhh.....hhhhhhhhhhhhhhhh...hhhhhhhhhhhhhhhh...hhhhhhhhhhhhhhhhh.------------------hhhhhhhhhhhhhhh.--...hhhhhhhhhhhhhhhhhhh...hhhhhhhhhhhhhhhhhhhhh...hhhhhhhhhhhhhhhhhhh....hhhhhhhhhhhhhhhh--....hhhhhhhhhhhhhhh.......hhhhhhhhh..hhhhh..hhhhhhhhhhhhhhhhhhhh.hhhhhhhhhhhhhhh..hhhhhhhhhhhhhhh.hhhhhh.hhhhhhhhhhhhhhhh.hhhhhhhhhhhhhhhhhhhhhhhhhhhhhh....hhhhhhhhhhhhhhhhh.hhhhhhhhhhhhhhhhh.........hhhhhhhhhhhhhhhh.......-------------------.......................hhhhhhhhhhhhhhhhh.hhhhhhhhhhhhhhhhhhhhhhhh Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ---------------------IMPORTIN_B_NT  PDB: B:23-96 UniProt: 23-96                                ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
               Transcript 1 Exon 1.1  PDB: B:2-959 (gaps) UniProt: 1-960 [INCOMPLETE]                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                      Transcript 1
                 1z3h B   2 SDLETVAKFLAESVIASTAKTSERNLRQLETQDGFGLTLLHVIASTNLPLSTRLAGALFFKNFIKRKWVDENGNHLLPANNVELIKKEIVPLMISLPNNLQVQIGEAISSIADSDFPDRWPTLLSDLASRLSNDDMVTNKGVLTVAHSIFKRWRPL---DELFLEIKLVLDVFTAPFLNLLKTVDEQITANENNKASLNILFDVLLVLIKLYYDFNCQDIPEFFEDNIQVGMGIFHKYLSYSNPLLEDPDETEHASVLIKVKSSIQELVQLYTTRYEDVFGPMINEFIQITWNLLTSISNQPKYDILVSKSLSFLTAVTRIPKYFEIFNNESAMNNITEQIILPNVTLREEDVELFEDDPIEYIRRDLEGSDTDTRRRACTDFLKELKEKNEVLVTNIFLAHMKGFVDQYMSDPSKNWKFKDLYIYLFTALAINGNITNAGVSSTNNLLNVVDFFTKEIAPDLTSNNIPHIILRVDAIKYIYTFRNQLTKAQLIELMPILATFLQTDEYVVYTYAAITIEKILTI------------------STEILLKNLIALILKH--SPEKLAENEFLMRSIFRVLQTSEDSIQPLFPQLLAQFIEIVTIMAKNPSNPRFTHYTFESIGAILNYTQRQNLPLLVDSMMPTFLTVF--DIQEFIPYVFQIIAFVVEQSATIPESIKPLAQPLLAPNVWELKGNIPAVTRLLKSFIKTDSSIFPDLVPVLGIFQRLIASKAYEVHGFDLLEHIMLLIDMNRLRPYIKQIAVLLLQRLQNSKTERYVKKLTVFFGLISNKLGSDFLIHFIDEVQDGLFQQIWGNFIITTLPTIGNLLDRKIALIGVLNMVINGQFFQSKYPTLISSTMNSIIETASSQSIANL-------------------FSKLVSISEKPFDPLPEIDVNNGVRLYVAEALNKYNAISGNTFLNTILPQLTQENQVKLNQLLVG 959
                                    11        21        31        41        51        61        71        81        91       101       111       121       131       141       151     | 161       171       181       191       201       211       221       231       241       251       261       271       281       291       301       311       321       331       341       351       361       371       381       391       401       411       421       431       441       451       461       471       481       491       501       511       521    |    -         -   |   551        |- |     571       581       591       601       611       621       631       641        |- |     661       671       681       691       701       711       721       731       741       751       761       771       781       791       801       811       821       831       841       851       861       871   |     -         -   |   901       911       921       931       941       951
                                                                                                                                                                                     157 161                                                                                                                                                                                                                                                                                                                                                                          526                545            560  |                                                                                    650  |                                                                                                                                                                                                                           875                 895
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                           563                                                                                       653
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (1, 2)

Asymmetric Unit
(-)
Class: All alpha proteins (14657)

(-) CATH Domains  (0, 0)

(no "CATH Domain" information available for 1Z3H)

(-) Pfam Domains  (3, 6)

Asymmetric Unit
(-)
Clan: TPR (230)

(-) Gene Ontology  (14, 14)

Asymmetric Unit(hide GO term definitions)
Chain A,B   (CSE1_YEAST | P33307)
molecular function
    GO:0008536    Ran GTPase binding    Interacting selectively and non-covalently with Ran, a conserved Ras-like GTP-binding protein, implicated in nucleocytoplasmic transport, cell cycle progression, spindle assembly, nuclear organization and nuclear envelope (NE) assembly.
    GO:0005049    nuclear export signal receptor activity    Combining with a nuclear export signal (NES) to mediate transport of the NES-containing protein through the nuclear pore to the cytoplasm.
    GO:0005515    protein binding    Interacting selectively and non-covalently with any protein or protein complex (a complex of two or more proteins that may include other nonprotein molecules).
biological process
    GO:0007049    cell cycle    The progression of biochemical and morphological phases and events that occur in a cell during successive cell replication or nuclear replication events. Canonically, the cell cycle comprises the replication and segregation of genetic material followed by the division of the cell, but in endocycles or syncytial cells nuclear replication or nuclear division may not be followed by cell division.
    GO:0051301    cell division    The process resulting in division and partitioning of components of a cell to form more cells; may or may not be accompanied by the physical separation of a cell into distinct, individually membrane-bounded daughter cells.
    GO:0006886    intracellular protein transport    The directed movement of proteins in a cell, including the movement of proteins between specific compartments or structures within a cell, such as organelles of a eukaryotic cell.
    GO:0006611    protein export from nucleus    The directed movement of a protein from the nucleus into the cytoplasm.
    GO:0006606    protein import into nucleus    The directed movement of a protein from the cytoplasm to the nucleus.
    GO:0015031    protein transport    The directed movement of proteins into, out of or within a cell, or between cells, by means of some agent such as a transporter or pore.
    GO:0006810    transport    The directed movement of substances (such as macromolecules, small molecules, ions) or cellular components (such as complexes and organelles) into, out of or within a cell, or between cells, or within a multicellular organism by means of some agent such as a transporter, pore or motor protein.
cellular component
    GO:0005737    cytoplasm    All of the contents of a cell excluding the plasma membrane and nucleus, but including other subcellular structures.
    GO:0005829    cytosol    The part of the cytoplasm that does not contain organelles but which does contain other particulate matter, such as protein complexes.
    GO:0005635    nuclear envelope    The double lipid bilayer enclosing the nucleus and separating its contents from the rest of the cytoplasm; includes the intermembrane space, a gap of width 20-40 nm (also called the perinuclear space).
    GO:0005634    nucleus    A membrane-bounded organelle of eukaryotic cells in which chromosomes are housed and replicated. In most cells, the nucleus contains all of the cell's chromosomes except the organellar chromosomes, and is the site of RNA synthesis and processing. In some species, or in specialized cell types, RNA metabolism or DNA replication may be absent.

 Visualization

(-) Interactive Views

Asymmetric Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
    MG  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]

  Sites
    AC1  [ RasMol ]  +environment [ RasMol ]

  Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 1z3h)

Biological Units
  Complete Structure
    Biological Unit 1  [ Jena3D ]
    Biological Unit 2  [ Jena3D ]

(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
[ Asym. Unit PNG format | Asym. Unit - sites PNG format | Biol. Unit 1 PNG format | Biol. Unit 1 - sites PNG format | Biol. Unit 2 PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  1z3h
    Family and Domain Information: ProDom | SYSTERS
    General Structural Information: GlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in Membranes: OPM
    Protein Surface: SURFACE
    Secondary Structure: DSSP (structure derived) | HSSP (homology derived)
    Structural Genomics: GeneCensus
    Structural Neighbours: CE | VAST
    Structure Classification: CATH | Dali | SCOP
    Validation and Original Data: BMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  CSE1_YEAST | P33307
    Comparative Protein Structure Models: ModBase
    Genomic Information: Ensembl
    Protein-protein Interaction: DIP
    Sequence, Family and Domain Information: InterPro | Pfam | SMART | UniProtKB/SwissProt

Access by Enzyme Classificator   (EC Number)
  (no 'Enzyme Classificator' available)
    General Enzyme Information: BRENDA | EC-PDB | Enzyme | IntEnz
    Pathway: KEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease Information: OMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related Information: GenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain Information: XDom
    Interatomic Contacts of Structural Units: CSU
    Ligand-protein Contacts: LPC
    Protein Cavities: castP
    Sequence and Secondary Structure: PDBCartoon
    Structure Alignment: STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence Browser: STING

Access by UniProt ID/Accession number
  CSE1_YEAST | P33307
    Protein Disorder Prediction: DisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)

 Related Entries

(-) Entries Sharing at Least One Protein Chain (UniProt ID)

UniProtKB/Swiss-Prot
        CSE1_YEAST | P33307: 1wa5

(-) Related Entries Specified in the PDB File

1wa5 CSE1 IN ITS CARGO-BOUND, NUCLEAR STATE
