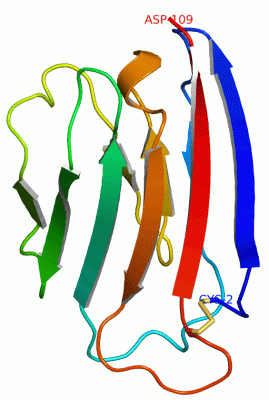

Image NMR Structure - manually
NMR Structure - manually  (Jmol Viewer)

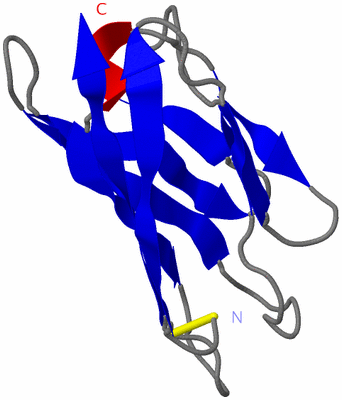

Image NMR Structure - model 1
NMR Structure - model 1  (Jmol Viewer)

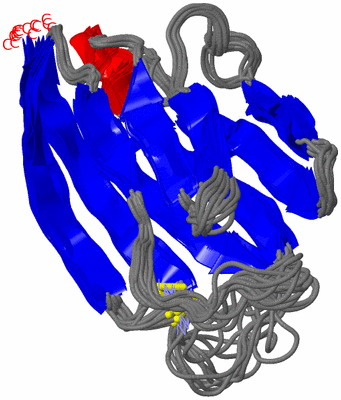

Image NMR Structure - all models
NMR Structure - all models  (Jmol Viewer)

(-) Description

Title :  NMR STRUCTURE OF THE D1 DOMAIN OF THE NATURAL KILLER CELL RECEPTOR, 2B4

Authors :  J. B. Ames, V. Vyas, J. D. Lusin, R. Mariuzza
Date :  08 Mar 05  (Deposition) - 03 May 05  (Release) - 24 Feb 09  (Revision)
Method :  SOLUTION NMR
Resolution :  NOT APPLICABLE
Chains :  NMR Structure  :  A  (14x)
Keywords :  Immunoglobulin Motif, Beta Sandwich, V-Domain, Natural Killer Cell Receptor, Immune System (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  J. B. Ames, V. Vyas, J. D. Lusin, R. Mariuzza
Nmr Structure Of The Natural Killer Cell Receptor 2B4: Implications For Ligand Recognition
Biochemistry V. 44 6416 2005
PubMed-ID: 15850375  |  Reference-DOI: 10.1021/BI050139S
(for further references see the PDB file header)

(-) Compounds

Molecule 1 - NATURAL KILLER CELL RECEPTOR 2B4
    Chains: A
    Engineered: YES
    Expression System: ESCHERICHIA COLI BL21(DE3)
    Expression System Strain: BL21(DE3)
    Expression System Taxid: 469008
    Fragment: D1 DOMAIN
    Gene: CD244, 2B4, NMRK
    Organism Common: HOUSE MOUSE
    Organism Scientific: MUS MUSCULUS
    Organism Taxid: 10090
    Synonym: NKR2B4, NK CELL TYPE I RECEPTOR PROTEIN 2B4, CD244 ANTIGEN, NON MHC RESTRICTED KILLING ASSOCIATED

 Structural Features

(-) Chains, Units


NMR Structure (14x):

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (0, 0)

(no "Ligand,Modified Residues,Ions" information available for 1Z2K)

(-) Sites  (0, 0)

(no "Site" information available for 1Z2K)

(-) SS Bonds  (1, 1)

NMR Structure
No.Residues
1A:2 -A:99

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 1Z2K)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 1Z2K)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 1Z2K)

(-) Exons   (0, 0)

(no "Exon" information available for 1Z2K)

(-) Sequences/Alignments

NMR Structure
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:108
 aligned with CD244_MOUSE | Q07763 from UniProtKB/Swiss-Prot  Length:397

    Alignment length:108
                                    31        41        51        61        71        81        91       101       111       121
          CD244_MOUSE    22 CPDSSEEVVGVSGKPVQLRPSNIQTKDVSVQWKKTEQGSHRKIEILNWYNDGPSWSNVSFSDIYGFDYGDFALSIKSAKLQDSGHYLLEITNTGGKVCNKNFQLLILD 129
               SCOP domains ------------------------------------------------------------------------------------------------------------ SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------------------ CATH domains
               Pfam domains Receptor_2B4-1z2kA01 A:2-109                                                                                 Pfam domains
         Sec.struct. author ...eeeeeeee....eee..........eeeeeeee.....eeeeeeee...eeee........eee....eeee...hhhh.eeeeeee........eeeeeeeee. Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------ PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------ Transcript
                 1z2k A   2 CPDSSEEVVGVSGKPVQLRPSNIQTKDVSVQWKKTEQGSHRKIEILNWYNDGPSWSNVSFSDIYGFDYGDFALSIKSAKLQDSGHYLLEITNTGGKVCNKNFQLLILD 109
                                    11        21        31        41        51        61        71        81        91       101
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (0, 0)

(no "SCOP Domain" information available for 1Z2K)

(-) CATH Domains  (0, 0)

(no "CATH Domain" information available for 1Z2K)

(-) Pfam Domains  (1, 1)

NMR Structure
(-)
Clan: Ig (577)

(-) Gene Ontology  (18, 18)

NMR Structure(hide GO term definitions)
Chain A   (CD244_MOUSE | Q07763)
molecular function
    GO:0042288    MHC class I protein binding    Interacting selectively and non-covalently with major histocompatibility complex class I molecules; a set of molecules displayed on cell surfaces that are responsible for lymphocyte recognition and antigen presentation.
    GO:0005515    protein binding    Interacting selectively and non-covalently with any protein or protein complex (a complex of two or more proteins that may include other nonprotein molecules).
    GO:0004872    receptor activity    Combining with an extracellular or intracellular messenger to initiate a change in cell activity.
biological process
    GO:0002250    adaptive immune response    An immune response mediated by cells expressing specific receptors for antigen produced through a somatic diversification process, and allowing for an enhanced secondary response to subsequent exposures to the same antigen (immunological memory).
    GO:0002376    immune system process    Any process involved in the development or functioning of the immune system, an organismal system for calibrated responses to potential internal or invasive threats.
    GO:0045087    innate immune response    Innate immune responses are defense responses mediated by germline encoded components that directly recognize components of potential pathogens.
    GO:0001773    myeloid dendritic cell activation    The change in morphology and behavior of a dendritic cell resulting from exposure to a cytokine, chemokine, cellular ligand, or soluble factor.
    GO:0002323    natural killer cell activation involved in immune response    The change in morphology and behavior of a natural killer cell resulting from exposure a cytokine, chemokine, cellular ligand, or soluble factor, leading to the initiation or perpetuation of an immune response.
    GO:2000566    positive regulation of CD8-positive, alpha-beta T cell proliferation    Any process that activates or increases the frequency, rate or extent of CD8-positive, alpha-beta T cell proliferation.
    GO:0071663    positive regulation of granzyme B production    Any process that activates or increases the frequency, rate, or extent of production of granzyme B.
    GO:0060732    positive regulation of inositol phosphate biosynthetic process    Any process that increases the rate, frequency or extent of inositol phosphate biosynthesis. Inositol phosphate biosynthetic processes are the chemical reactions and pathways resulting in the formation of an inositol phosphate, 1,2,3,4,5,6-cyclohexanehexol, with one or more phosphate groups attached.
    GO:1902715    positive regulation of interferon-gamma secretion    Any process that activates or increases the frequency, rate or extent of interferon-gamma secretion.
    GO:2000484    positive regulation of interleukin-8 secretion    Any process that activates or increases the frequency, rate or extent of interleukin-8 secretion.
    GO:0032819    positive regulation of natural killer cell proliferation    Any process that activates or increases the frequency, rate or extent of natural killer cell proliferation.
cellular component
    GO:0009897    external side of plasma membrane    The leaflet of the plasma membrane that faces away from the cytoplasm and any proteins embedded or anchored in it or attached to its surface.
    GO:0016021    integral component of membrane    The component of a membrane consisting of the gene products and protein complexes having at least some part of their peptide sequence embedded in the hydrophobic region of the membrane.
    GO:0016020    membrane    A lipid bilayer along with all the proteins and protein complexes embedded in it an attached to it.
    GO:0005886    plasma membrane    The membrane surrounding a cell that separates the cell from its external environment. It consists of a phospholipid bilayer and associated proteins.

 Visualization

(-) Interactive Views

NMR Structure
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
(no "Ligands, Modified Residues, Ions" information available for 1z2k)

  Sites
(no "Sites" information available for 1z2k)

  Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 1z2k)


(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick

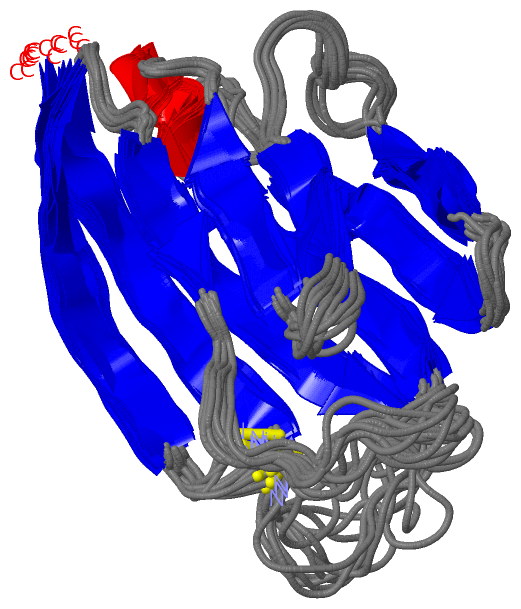

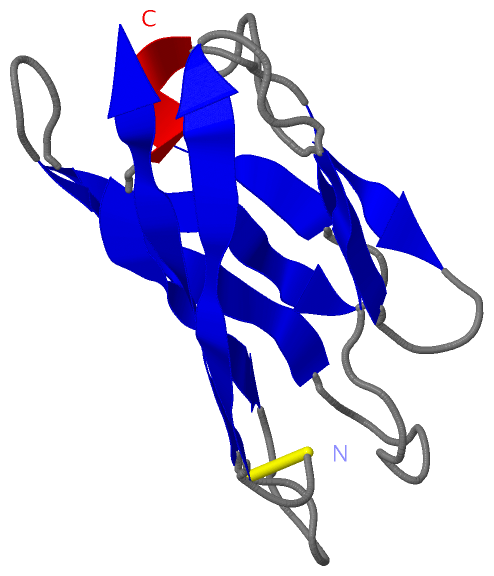

[ NMR Structure - model 1 PNG format | NMR Structure - all models PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  1z2k
    Family and Domain Information: ProDom | SYSTERS
    General Structural Information: GlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in Membranes: OPM
    Protein Surface: SURFACE
    Secondary Structure: DSSP (structure derived) | HSSP (homology derived)
    Structural Genomics: GeneCensus
    Structural Neighbours: CE | VAST
    Structure Classification: CATH | Dali | SCOP
    Validation and Original Data: BMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  CD244_MOUSE | Q07763
    Comparative Protein Structure Models: ModBase
    Genomic Information: Ensembl
    Protein-protein Interaction: DIP
    Sequence, Family and Domain Information: InterPro | Pfam | SMART | UniProtKB/SwissProt

Access by Enzyme Classificator   (EC Number)
  (no 'Enzyme Classificator' available)
    General Enzyme Information: BRENDA | EC-PDB | Enzyme | IntEnz
    Pathway: KEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease Information: OMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related Information: GenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain Information: XDom
    Interatomic Contacts of Structural Units: CSU
    Ligand-protein Contacts: LPC
    Protein Cavities: castP
    Sequence and Secondary Structure: PDBCartoon
    Structure Alignment: STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence Browser: STING

Access by UniProt ID/Accession number
  CD244_MOUSE | Q07763
    Protein Disorder Prediction: DisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)
