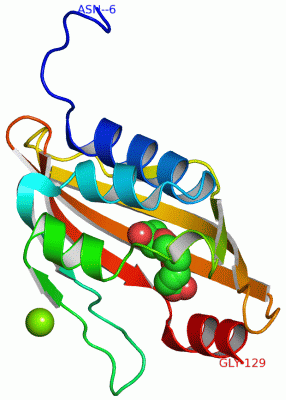

Image Asym./Biol. Unit - manually
Asym./Biol. Unit - manually  (Jmol Viewer)

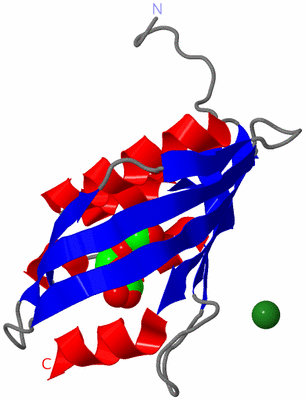

Image Asym./Biol. Unit
Asym./Biol. Unit  (Jmol Viewer)

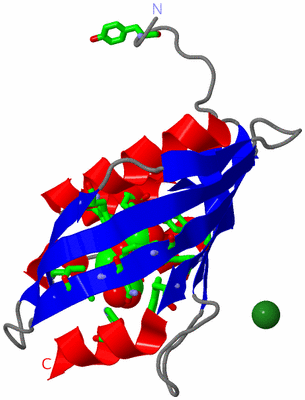

Image Asym./Biol. Unit - sites
Asym./Biol. Unit - sites  (Jmol Viewer)

(-) Description

Title :  CRYSTAL STRUCTURE OF PUTATIVE ISOMERASE PA3332 FROM PSEUDOMONAS AERUGINOSA

Authors :  Y. Kim, A. Joachimiak, X. Xu, A. Savchenko, A. Edwards, Midwest Center For Structural Genomics (Mcsg)
Date :  06 Mar 05  (Deposition) - 19 Apr 05  (Release) - 24 Feb 09  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  1.49
Chains :  Asym./Biol. Unit :  A
Keywords :  Beta Barrel, Conserved Hypothetical Protein, Structural Genomics, Psi, Protein Structure Initiative, Midwest Center For Structural Genomics, Mcsg, Unknown Function (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  Y. Kim, A. Joachimiak, X. Xu, A. Savchenko, A. Edwards
Crystal Structure Of The Conserved Hypothetical Protein Pa3332 From Pseudomonas Aeruginosa
To Be Published
PubMed: search
(for further references see the PDB file header)

(-) Compounds

Molecule 1 - HYPOTHETICAL PROTEIN PA3332
    Chains: A
    Engineered: YES
    Expression System: ESCHERICHIA COLI BL21(DE3)
    Expression System Strain: BL21DE3
    Expression System Taxid: 469008
    Expression System Vector Type: PLASMID
    Gene: PA3332
    Organism Scientific: PSEUDOMONAS AERUGINOSA PAO1
    Organism Taxid: 208964
    Strain: PA01

 Structural Features

(-) Chains, Units

  1
Asymmetric/Biological Unit : A

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (2, 2)

Asymmetric/Biological Unit (2, 2)
No.NameCountTypeFull Name
1MG1Ligand/IonMAGNESIUM ION
2PGE1Ligand/IonTRIETHYLENE GLYCOL

(-) Sites  (2, 2)

Asymmetric Unit (2, 2)
No.NameEvidenceResiduesDescription
1AC1SOFTWAREHOH A:357 , HOH A:371 , HOH A:489 , HOH A:498 , HOH A:502 , HOH A:507BINDING SITE FOR RESIDUE MG A 302
2AC2SOFTWARETYR A:-4 , LEU A:14 , TRP A:22 , LEU A:62 , PHE A:66 , LEU A:97 , GLN A:99 , TYR A:101 , TYR A:115 , ASP A:117 , TRP A:119 , HIS A:124BINDING SITE FOR RESIDUE PGE A 301

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 1Z1S)

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 1Z1S)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 1Z1S)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 1Z1S)

(-) Exons   (0, 0)

(no "Exon" information available for 1Z1S)

(-) Sequences/Alignments

Asymmetric/Biological Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:136
 aligned with Y3332_PSEAE | Q9HYR3 from UniProtKB/Swiss-Prot  Length:141

    Alignment length:136
                                   1
                                   | 3        13        23        33        43        53        63        73        83        93       103       113       123
          Y3332_PSEAE     - -------MNAKEILVHSLRLLENGDARGWCDLFHPEGVLEFPYAPPGWKTRFEGRETIWAHMRLFPEHLTVRFTDVQFYETADPDLAIGEFHGDGVATVSGGKLAQDYISVLRTRDGQILLYRDFWNPLRHLEALG 129
               SCOP domains -------d1z1sa1 A:1-129 Uncharacterized protein PA3332                                                                                    SCOP domains
               CATH domains 1z1sA00 A:-6-129  [code=3.10.450.50, no name defined]                                                                                    CATH domains
               Pfam domains --------------SnoaL_2-1z1sA01 A:8-115                                                                                     -------------- Pfam domains
         Sec.struct. author ........hhhhhhhhhhhhhhh.hhhhhhhheeeeeeee..........eeehhhhhhhh..hhhh.eeeee...eee......eeeeeeeeeeee.....eeeeeeeeeeeee..eeeeeeeeehhhhhhhhhh Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ---------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ---------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1z1s A  -6 NLYFQGHMNAKEILVHSLRLLENGDARGWCDLFHPEGVLEFPYAPPGWKTRFEGRETIWAHMRLFPEHLTVRFTDVQFYETADPDLAIGEFHGDGVATVSGGKLAQDYISVLRTRDGQILLYRDFWNPLRHLEALG 129
                                     3        13        23        33        43        53        63        73        83        93       103       113       123
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (1, 1)

Asymmetric/Biological Unit
(-)
Class: Alpha and beta proteins (a+b) (23004)

(-) CATH Domains  (1, 1)

Asymmetric/Biological Unit
(-)
Class: Alpha Beta (26913)

(-) Pfam Domains  (1, 1)

Asymmetric/Biological Unit
(-)
Clan: NTF2 (66)

(-) Gene Ontology  (1, 1)

Asymmetric/Biological Unit(hide GO term definitions)
Chain A   (Y3332_PSEAE | Q9HYR3)
biological process
    GO:0017000    antibiotic biosynthetic process    The chemical reactions and pathways resulting in the formation of an antibiotic, a substance produced by or derived from certain fungi, bacteria, and other organisms, that can destroy or inhibit the growth of other microorganisms.

 Visualization

(-) Interactive Views

Asymmetric/Biological Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
    MG  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]
    PGE  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]

  Sites
    AC1  [ RasMol ]  +environment [ RasMol ]
    AC2  [ RasMol ]  +environment [ RasMol ]

  Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 1z1s)


(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick

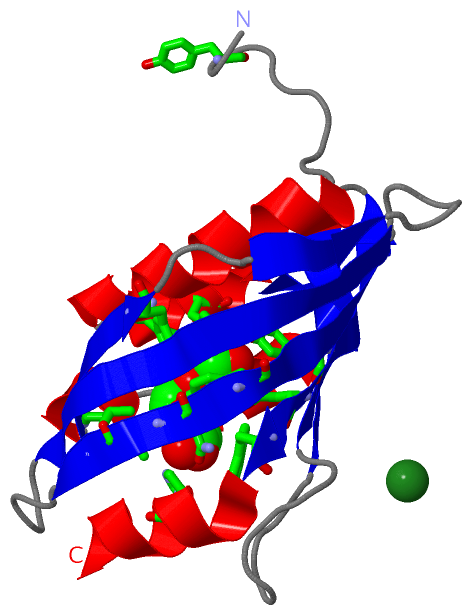

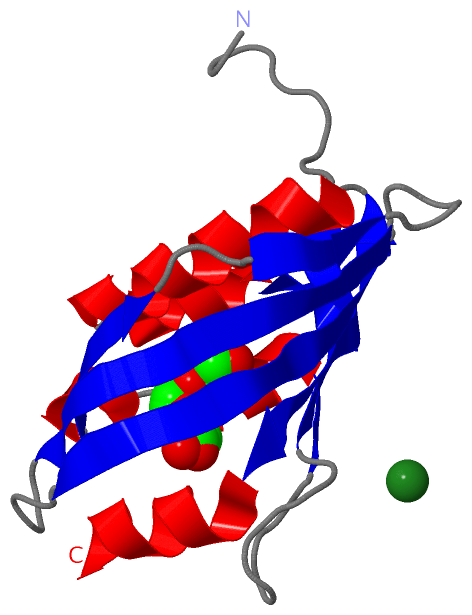

[ Asym./Biol. Unit PNG format | Asym./Biol. Unit - sites PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  1z1s
    Family and Domain Information: ProDom | SYSTERS
    General Structural Information: GlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in Membranes: OPM
    Protein Surface: SURFACE
    Secondary Structure: DSSP (structure derived) | HSSP (homology derived)
    Structural Genomics: GeneCensus
    Structural Neighbours: CE | VAST
    Structure Classification: CATH | Dali | SCOP
    Validation and Original Data: BMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  Y3332_PSEAE | Q9HYR3
    Comparative Protein Structure Models: ModBase
    Genomic Information: Ensembl
    Protein-protein Interaction: DIP
    Sequence, Family and Domain Information: InterPro | Pfam | SMART | UniProtKB/SwissProt

Access by Enzyme Classificator   (EC Number)
  (no 'Enzyme Classificator' available)
    General Enzyme Information: BRENDA | EC-PDB | Enzyme | IntEnz
    Pathway: KEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease Information: OMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related Information: GenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain Information: XDom
    Interatomic Contacts of Structural Units: CSU
    Ligand-protein Contacts: LPC
    Protein Cavities: castP
    Sequence and Secondary Structure: PDBCartoon
    Structure Alignment: STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence Browser: STING

Access by UniProt ID/Accession number
  Y3332_PSEAE | Q9HYR3
    Protein Disorder Prediction: DisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)

 Related Entries

(-) Entries Sharing at Least One Protein Chain (UniProt ID)

UniProtKB/Swiss-Prot
        Y3332_PSEAE | Q9HYR3: 4j8t 4j9a

(-) Related Entries Specified in the PDB File

(no "Related Entries Specified in the PDB File" available for 1Z1S)
