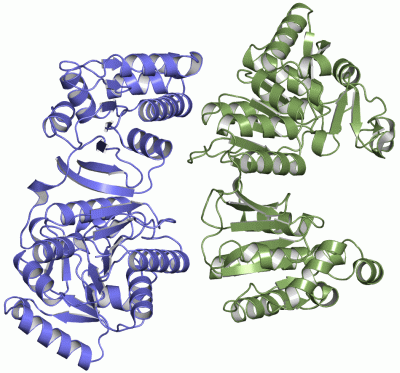

Image Asym.Unit - manually
Asym.Unit - manually  (Jmol Viewer)
Image Asymmetric Unit
Asymmetric Unit  (Jmol Viewer)

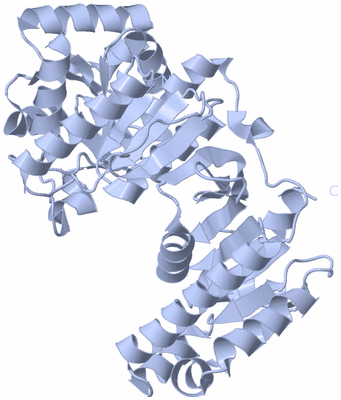

Image Biological Unit 1
Biological Unit 1  (Jmol Viewer)

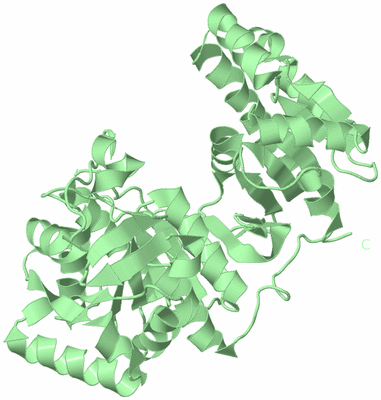

Image Biological Unit 2
Biological Unit 2  (Jmol Viewer)

(-) Description

Title :  CRYSTAL STRUCTURE OF HAEMOPHILUS INFLUENZAE PROTEIN HI1011, PFAM DUF1537

Authors :  Y. Patskovsky, S. C. Almo, S. K. Burley, New York Sgx Research Center For Structural Genomics (Nysgxrc)
Date :  28 Feb 05  (Deposition) - 15 Mar 05  (Release) - 24 Feb 09  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  2.10
Chains :  Asym. Unit :  A,B
Biol. Unit 1:  A  (1x)
Biol. Unit 2:  B  (1x)
Keywords :  Putative Trna Synthase, Structural Genomics, Psi, Protein Structure Initiative, New York Sgx Research Center For Structural Genomics, Nysgxrc, Unknown Function (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  Y. Patskovsky, S. C. Almo
Crystal Structure Of The Haemophilus Influenzae Hypothetical Protein Hi1011
To Be Published
PubMed: search
(for further references see the PDB file header)

(-) Compounds

Molecule 1 - HYPOTHETICAL PROTEIN HI1011
    Chains: A, B
    Engineered: YES
    Expression System: ESCHERICHIA COLI BL21
    Expression System Plasmid: PET
    Expression System Strain: BL21
    Expression System Taxid: 511693
    Expression System Vector Type: PLASMID
    Gene: HI1011
    Organism Scientific: HAEMOPHILUS INFLUENZAE
    Organism Taxid: 727

 Structural Features

(-) Chains, Units

  12
Asymmetric Unit : AB
Biological Unit 1 (1x): A
Biological Unit 2 (1x):  B

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (0, 0)

(no "Ligand,Modified Residues,Ions" information available for 1YZY)

(-) Sites  (0, 0)

(no "Site" information available for 1YZY)

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 1YZY)

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 1YZY)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 1YZY)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 1YZY)

(-) Exons   (0, 0)

(no "Exon" information available for 1YZY)

(-) Sequences/Alignments

Asymmetric Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:412
 aligned with OTNK_HAEIN | P44093 from UniProtKB/Swiss-Prot  Length:413

    Alignment length:412
                                    11        21        31        41        51        61        71        81        91       101       111       121       131       141       151       161       171       181       191       201       211       221       231       241       251       261       271       281       291       301       311       321       331       341       351       361       371       381       391       401       411
           OTNK_HAEIN     2 LGVIADDFTGASDIASFLVENGLSTVQMNGVPTQSLNSKVDAIVISLKSRSNPVNEAIEQSLRAYQWLKENGCTQFYFKYCSTFDSTAKGNIGPVTDALLDELNEDFTVITPALPVNGRTIFNGYLFVGDVLLSESGMKNHPITPMVDANLMRLMDAQAKGKTGLVAYADVIKGASRVQECFAELKAQGYRYAVVDAVDNSQLEVLAEAVADFKLVTGGSGLGAYMAARLSGGKKGTNAFTPTKGKTVVLSGSCSVMTNKQVEKYREKAPHFQLDVEQAIHNENYIEQLYQWVIANLDSEFAPMVYATVPPDALKAIQHQFGVDQASHAIENTFAKLAAKLKQYGVTNFITAGGETSSIVVQELGFTGFHIGKQIAPGVPWLKAVEEDIFLALKSGNFGKEDFFEYAQGMFL 413
               SCOP domains d1yzya1 A:1-412 Hypothetical protein HI1011                                                                                                                                                                                                                                                                                                                                                                                  SCOP domains
               CATH domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .eeee.hhhhhhhhhhhhhh....eeeee............eeeee......hhhhhhhhhhhhhhhhhhh....eeee...........hhhhhhhhhhhhhh...eee...hhhh.eeee..eeee..ee.hhhhhhhh........hhhhhhhhhh...eeeehhhhhh.hhhhhhhhhhhhhhh...eeee....hhhhhhhhhhh....eeeehhhhhhhhhhhhhh..hhhhh.......eeeee...hhhhhhhhhhhh....eee.hhhhhhhh.hhhhhhhhhhhh........eee...hhhhhhhhhh..hhhhhhhhhhhhhhhhhhhhhhhh..eeeeehhhhhhhhhhhhh..eeeeeeeee..eeeeee.....eeeee.......hhhhhhhhh.. Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1yzy A   1 LGVIADDFTGASDIASFLVENGLSTVQMNGVPTQSLNSKVDAIVISLKSRSNPVNEAIEQSLRAYQWLKENGCTQFYFKYCSTFDSTAKGNIGPVTDALLDELNEDFTVITPALPVNGRTIFNGYLFVGDVLLSESGMKNHPITPMVDANLMRLMDAQAKGKTGLVAYADVIKGASRVQECFAELKAQGYRYAVVDAVDNSQLEVLAEAVADFKLVTGGSGLGAYMAARLSGGKKGTNAFTPTKGKTVVLSGSCSVMTNKQVEKYREKAPHFQLDVEQAIHNENYIEQLYQWVIANLDSEFAPMVYATVPPDALKAIQHQFGVDQASHAIENTFAKLAAKLKQYGVTNFITAGGETSSIVVQELGFTGFHIGKQIAPGVPWLKAVEEDIFLALKSGNFGKEDFFEYAQGMFL 412
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210       220       230       240       250       260       270       280       290       300       310       320       330       340       350       360       370       380       390       400       410


Chain B from PDB  Type:PROTEIN  Length:412
 aligned with OTNK_HAEIN | P44093 from UniProtKB/Swiss-Prot  Length:413

    Alignment length:412
                                    11        21        31        41        51        61        71        81        91       101       111       121       131       141       151       161       171       181       191       201       211       221       231       241       251       261       271       281       291       301       311       321       331       341       351       361       371       381       391       401       411
           OTNK_HAEIN     2 LGVIADDFTGASDIASFLVENGLSTVQMNGVPTQSLNSKVDAIVISLKSRSNPVNEAIEQSLRAYQWLKENGCTQFYFKYCSTFDSTAKGNIGPVTDALLDELNEDFTVITPALPVNGRTIFNGYLFVGDVLLSESGMKNHPITPMVDANLMRLMDAQAKGKTGLVAYADVIKGASRVQECFAELKAQGYRYAVVDAVDNSQLEVLAEAVADFKLVTGGSGLGAYMAARLSGGKKGTNAFTPTKGKTVVLSGSCSVMTNKQVEKYREKAPHFQLDVEQAIHNENYIEQLYQWVIANLDSEFAPMVYATVPPDALKAIQHQFGVDQASHAIENTFAKLAAKLKQYGVTNFITAGGETSSIVVQELGFTGFHIGKQIAPGVPWLKAVEEDIFLALKSGNFGKEDFFEYAQGMFL 413
               SCOP domains d1yzyb_ B: Hypothetical protein HI1011                                                                                                                                                                                                                                                                                                                                                                                       SCOP domains
               CATH domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .eeee.hhhhhhhhhhhhhhh...eeeee............eeeee......hhhhhhhhhhhhhhhhhhh....eeee...........hhhhhhhhhhhhhh.........hhhh.eeee..eeee..ee.hhhhhhhh........hhhhhhhhhh..eeeeehhhhhh.hhhhhhhhhhhhhhh.eeeeee....hhhhhhhhhhh....eeee.hhhhhhhhhhhhh.............eeeeee...hhhhhhhhhhhhh...eee.hhhhhhhh.hhhhhhhhhhhhh.......eee...hhhhhhhhhhhhh.hhhhhhhhhhhhhhhhhhhhhheeeeeeehhhhhhhhhhhhh..eeeeeeeee..eeeeee.....eeeee.......hhhhhhhh... Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1yzy B   1 LGVIADDFTGASDIASFLVENGLSTVQMNGVPTQSLNSKVDAIVISLKSRSNPVNEAIEQSLRAYQWLKENGCTQFYFKYCSTFDSTAKGNIGPVTDALLDELNEDFTVITPALPVNGRTIFNGYLFVGDVLLSESGMKNHPITPMVDANLMRLMDAQAKGKTGLVAYADVIKGASRVQECFAELKAQGYRYAVVDAVDNSQLEVLAEAVADFKLVTGGSGLGAYMAARLSGGKKGTNAFTPTKGKTVVLSGSCSVMTNKQVEKYREKAPHFQLDVEQAIHNENYIEQLYQWVIANLDSEFAPMVYATVPPDALKAIQHQFGVDQASHAIENTFAKLAAKLKQYGVTNFITAGGETSSIVVQELGFTGFHIGKQIAPGVPWLKAVEEDIFLALKSGNFGKEDFFEYAQGMFL 412
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210       220       230       240       250       260       270       280       290       300       310       320       330       340       350       360       370       380       390       400       410
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (1, 2)

Asymmetric Unit
(-)
Class: Alpha and beta proteins (a/b) (23833)

(-) CATH Domains  (0, 0)

(no "CATH Domain" information available for 1YZY)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 1YZY)

(-) Gene Ontology  (0, 0)

Asymmetric Unit(hide GO term definitions)
    (no "Gene Ontology" information available for 1YZY)

 Visualization

(-) Interactive Views

Asymmetric Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
(no "Ligands, Modified Residues, Ions" information available for 1yzy)

  Sites
(no "Sites" information available for 1yzy)

  Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 1yzy)

Biological Units
  Complete Structure
    Biological Unit 1  [ Jena3D ]
    Biological Unit 2  [ Jena3D ]

(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick

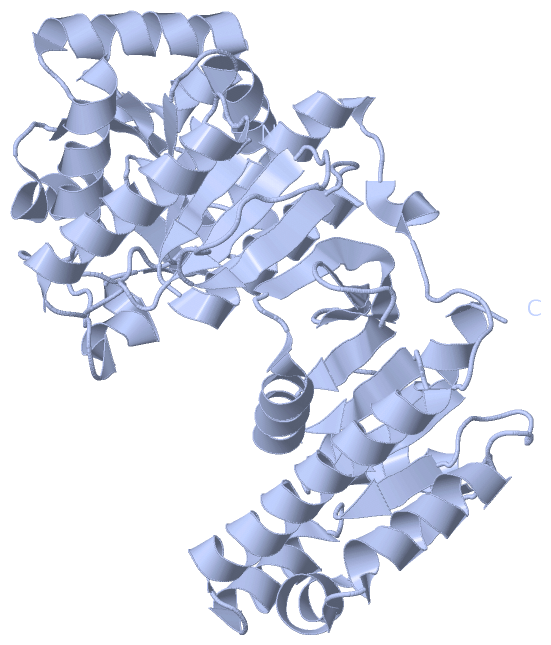

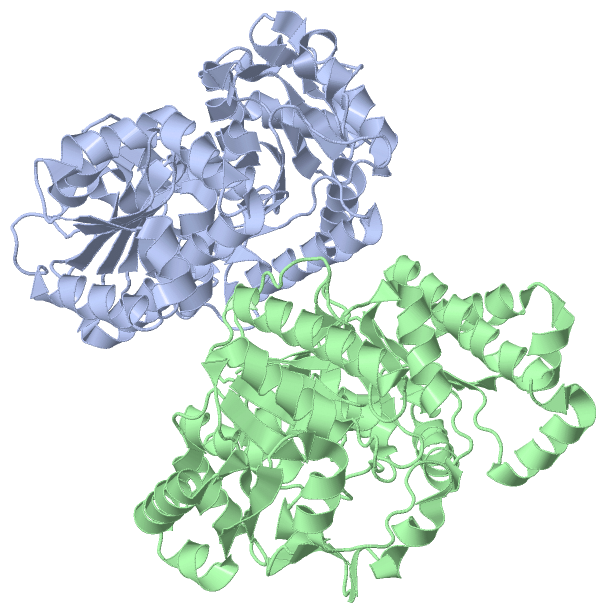

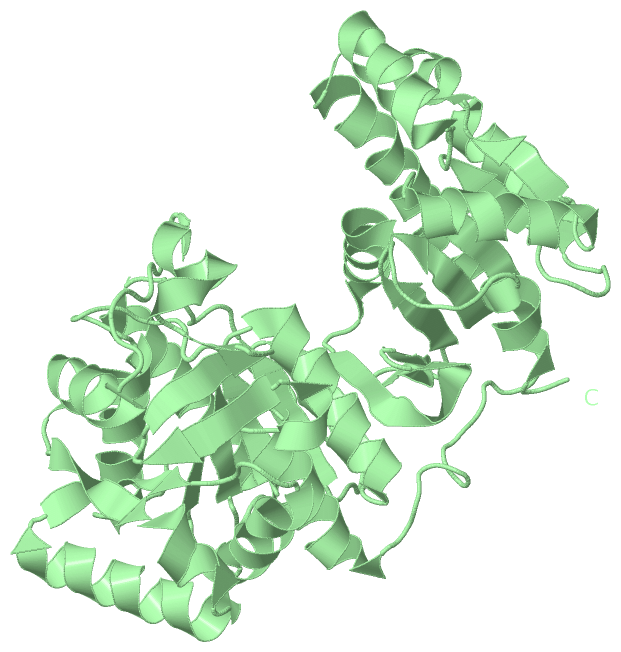

[ Asym. Unit PNG format | Biol. Unit 1 PNG format | Biol. Unit 2 PNG format ](automatic orientation, automatically generated)
