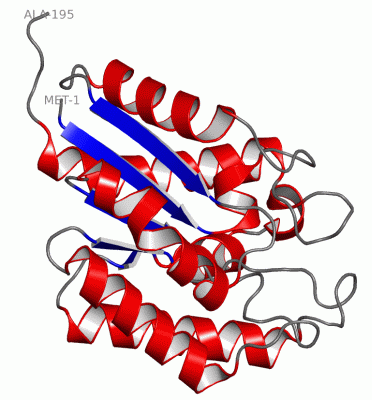

Image Asym./Biol. Unit - manually
Asym./Biol. Unit - manually  (Jmol Viewer)

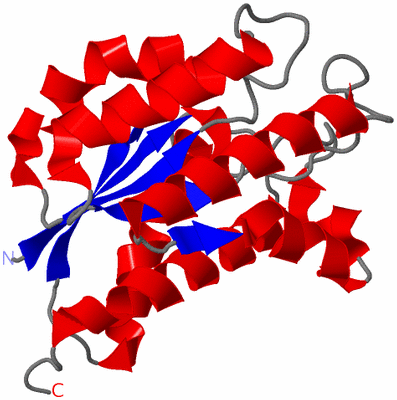

Image Asym./Biol. Unit
Asym./Biol. Unit  (Jmol Viewer)

(-) Description

Title :  CRYSTAL STRUCTURE OF THE LIPASE/ACYLHYDROLASE FROM ENTEROCOCCUS FAECALIS

Authors :  R. Zhang, C. Hatzos, S. Clancy, F. Collart, A. Joachimiak, Midwest Cen Structural Genomics (Mcsg)
Date :  28 Feb 05  (Deposition) - 12 Apr 05  (Release) - 13 Jul 11  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  1.90
Chains :  Asym./Biol. Unit :  A
Keywords :  Enterococcus Faecalis, Lipase/Acylhydrolase, Structural Genomics, Psi, Protein Structure Initiative, Midwest Center For Structural Genomics, Mcsg, Hydrolase (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  R. Zhang, C. Hatzos, S. Clancy, F. Collart, A. Joachimiak
Crystal Structure Of The Lipase/Acylhydrolase From Enterococcus Faecalis
To Be Published
PubMed: search

(-) Compounds

Molecule 1 - LIPASE/ACYLHYDROLASE
    Chains: A
    Engineered: YES
    Expression System: ESCHERICHIA COLI BL21(DE3)
    Expression System Plasmid: PET15B
    Expression System Strain: BL21(DE3)
    Expression System Taxid: 469008
    Expression System Vector Type: PLASMID
    Organism Scientific: ENTEROCOCCUS FAECALIS
    Organism Taxid: 226185
    Strain: V583

 Structural Features

(-) Chains, Units

  1
Asymmetric/Biological Unit : A

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (0, 0)

(no "Ligand,Modified Residues,Ions" information available for 1YZF)

(-) Sites  (0, 0)

(no "Site" information available for 1YZF)

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 1YZF)

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 1YZF)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 1YZF)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 1YZF)

(-) Exons   (0, 0)

(no "Exon" information available for 1YZF)

(-) Sequences/Alignments

Asymmetric/Biological Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:195
 aligned with Q839J6_ENTFA | Q839J6 from UniProtKB/TrEMBL  Length:195

    Alignment length:195
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190
         Q839J6_ENTFA     1 MRKIVLFGDSITAGYLDEAVSPVLVDLVKRDIAAMGLEEVAVINAGMPGDTTEDGLKRLNKEVLIEKPDEVVIFFGANDASLDRNITVATFRENLETMIHEIGSEKVILITPPYADSGRRPERPQTRIKELVKVAQEVGAAHNLPVIDLYKAMTVYPGTDEFLQADGLHFSQVGYELLGALIVREIKGRLKPKQA 195
               SCOP domains d1yzfa1 A:1-195 Lipase/acylhydrolase                                                                                                                                                                SCOP domains
               CATH domains 1yzfA00 A:1-195  [code=3.40.50.1110, no name defined]                                                                                                                                               CATH domains
               Pfam domains ----Lipase_GDSL_2-1yzfA01 A:5-178                                                                                                                                                 ----------------- Pfam domains
         Sec.struct. author .eeeeeeehhhhhh.......hhhhhhhhhhhhhh....eeeeeee....hhhhhhhhhhhhhhhhh..eeeee............hhhhhhhhhhhhhhhhh...eeee.............hhhhhhhhhhhhhhhhhhh...eehhhhhhhhh.hhhhhh.......hhhhhhhhhhhhhhhhhhhh..... Sec.struct. author
                 SAPs(SNPs) --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1yzf A   1 MRKIVLFGDSITAGYLDEAVSPVLVDLVKRDIAAMGLEEVAVINAGMPGDTTEDGLKRLNKEVLIEKPDEVVIFFGANDASLDRNITVATFRENLETMIHEIGSEKVILITPPYADSGRRPERPQTRIKELVKVAQEVGAAHNLPVIDLYKAMTVYPGTDEFLQADGLHFSQVGYELLGALIVREIKGRLKPKQA 195
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (1, 1)

Asymmetric/Biological Unit
(-)
Class: Alpha and beta proteins (a/b) (23833)

(-) CATH Domains  (1, 1)

Asymmetric/Biological Unit
(-)
Class: Alpha Beta (26913)

(-) Pfam Domains  (1, 1)

Asymmetric/Biological Unit
(-)
Clan: SGNH_hydrolase (17)

(-) Gene Ontology  (1, 1)

Asymmetric/Biological Unit(hide GO term definitions)
Chain A   (Q839J6_ENTFA | Q839J6)
molecular function
    GO:0016787    hydrolase activity    Catalysis of the hydrolysis of various bonds, e.g. C-O, C-N, C-C, phosphoric anhydride bonds, etc. Hydrolase is the systematic name for any enzyme of EC class 3.

 Visualization

(-) Interactive Views

Asymmetric/Biological Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
(no "Ligands, Modified Residues, Ions" information available for 1yzf)

  Sites
(no "Sites" information available for 1yzf)

  Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 1yzf)


(-) Still Images

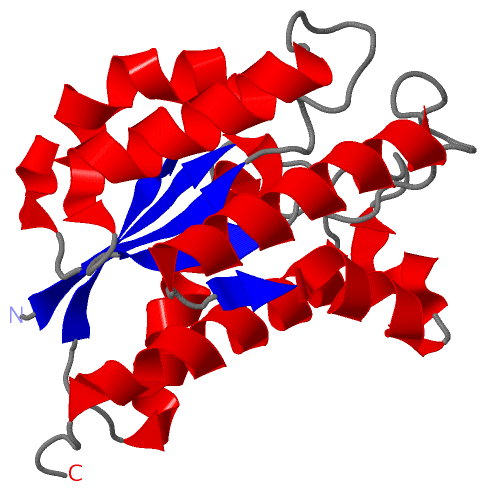

Jmol
