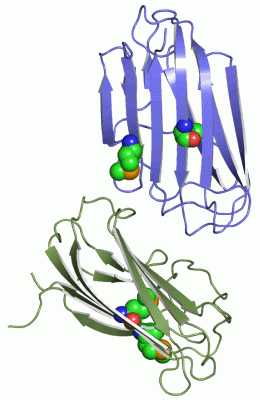

Image Asymmetric Unit
Asymmetric Unit  (Jmol Viewer)

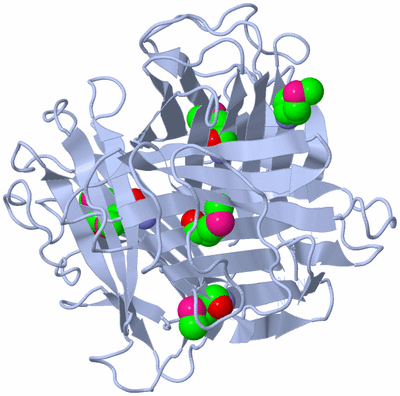

Image Biological Unit 1
Biological Unit 1  (Jmol Viewer)
Image Biological Unit 2
Biological Unit 2  (Jmol Viewer)

(-) Description

Title :  PRD1 VERTEX PROTEIN P5

Authors :  M. C. Merckel, J. T. Huiskonen, A. Goldman, D. H. Bamford, R. Tuma
Date :  01 Feb 05  (Deposition) - 26 Apr 05  (Release) - 13 Jul 11  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  2.00
Chains :  Asym. Unit :  A,B
Biol. Unit 1:  A  (3x)
Biol. Unit 2:  B  (3x)
Keywords :  Beta-Spiral, Beta-Jelly-Roll, Viral Protein (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  M. C. Merckel, J. T. Huiskonen, D. H. Bamford, A. Goldman, R. Tuma
The Structure Of The Bacteriophage Prd1 Spike Sheds Light O The Evolution Of Viral Capsid Architecture.
Mol. Cell V. 18 161 2005
PubMed-ID: 15837420  |  Reference-DOI: 10.1016/J.MOLCEL.2005.03.019

(-) Compounds

Molecule 1 - MINOR CAPSID PROTEIN
    Chains: A, B
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Taxid: 562
    Fragment: RESIDUES 197-340
    Organism Scientific: ENTEROBACTERIA PHAGE PRD1
    Organism Taxid: 10658
    Synonym: PRD1 VERTEX PROTEIN P5, PROTEIN P5

 Structural Features

(-) Chains, Units

  12
Asymmetric Unit : AB
Biological Unit 1 (3x): A
Biological Unit 2 (3x):  B

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (1, 4)

Asymmetric Unit (1, 4)
No.NameCountTypeFull Name
1MSE4Mod. Amino AcidSELENOMETHIONINE
Biological Unit 1 (1, 6)
No.NameCountTypeFull Name
1MSE6Mod. Amino AcidSELENOMETHIONINE
Biological Unit 2 (1, 6)
No.NameCountTypeFull Name
1MSE6Mod. Amino AcidSELENOMETHIONINE

(-) Sites  (0, 0)

(no "Site" information available for 1YQ5)

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 1YQ5)

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 1YQ5)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 1YQ5)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 1YQ5)

(-) Exons   (0, 0)

(no "Exon" information available for 1YQ5)

(-) Sequences/Alignments

Asymmetric Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:144
 aligned with P5_BPPRD | P22536 from UniProtKB/Swiss-Prot  Length:340

    Alignment length:144
                                   206       216       226       236       246       256       266       276       286       296       306       316       326       336
             P5_BPPRD   197 GGVTDALSLMYSTSTGGPASIAANALTDFDLSGALTVNSVGTGLTKSAAGIQLAAGKSGLYQITMTVKNNTVTTGNYLLRVKYGSSDFVVACPASSLTAGGTISLLIYCNVLGVPSLDVLKFSLCNDGAALSNYIINITAAKIN 340
               SCOP domains ------------------------------------------------------------------------------------------------------------------------------------------------ SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------------------------------------------------------ CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------ Pfam domains
         Sec.struct. author ....eeeeeee.......................eeeeee...eee....eee.....eeeeeeeeee.......eeeeeeee..eeeeeeee......eeeeeeeeee.........eeeeeeee........eeeeeeee.. Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------------ PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------ Transcript
                 1yq5 A 197 GGVTDALSLmYSTSTGGPASIAANALTDFDLSGALTVNSVGTGLTKSAAGIQLAAGKSGLYQITmTVKNNTVTTGNYLLRVKYGSSDFVVACPASSLTAGGTISLLIYCNVLGVVSLDVLKFSLCNDGAALSNYIINITAAKIN 340
                                   206       216       226       236       246       256    |  266       276       286       296       306       316       326       336
                                   206-MSE                                                261-MSE


Chain B from PDB  Type:PROTEIN  Length:144
 aligned with P5_BPPRD | P22536 from UniProtKB/Swiss-Prot  Length:340

    Alignment length:144
                                   206       216       226       236       246       256       266       276       286       296       306       316       326       336
             P5_BPPRD   197 GGVTDALSLMYSTSTGGPASIAANALTDFDLSGALTVNSVGTGLTKSAAGIQLAAGKSGLYQITMTVKNNTVTTGNYLLRVKYGSSDFVVACPASSLTAGGTISLLIYCNVLGVPSLDVLKFSLCNDGAALSNYIINITAAKIN 340
               SCOP domains ------------------------------------------------------------------------------------------------------------------------------------------------ SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------------------------------------------------------ CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------ Pfam domains
         Sec.struct. author ....eeeeeee.......................eeeeee...eee....eee.....eeeeeeeeee.......eeeeeeee..eeeeeeee......eeeeeeeeee.........eeeeeeee........eeeeeeee.. Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------------ PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------ Transcript
                 1yq5 B 197 GGVTDALSLmYSTSTGGPASIAANALTDFDLSGALTVNSVGTGLTKSAAGIQLAAGKSGLYQITmTVKNNTVTTGNYLLRVKYGSSDFVVACPASSLTAGGTISLLIYCNVLGVVSLDVLKFSLCNDGAALSNYIINITAAKIN 340
                                   206       216       226       236       246       256    |  266       276       286       296       306       316       326       336
                                   206-MSE                                                261-MSE
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (0, 0)

(no "SCOP Domain" information available for 1YQ5)

(-) CATH Domains  (0, 0)

(no "CATH Domain" information available for 1YQ5)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 1YQ5)

(-) Gene Ontology  (3, 3)

Asymmetric Unit(hide GO term definitions)
Chain A,B   (P5_BPPRD | P22536)
cellular component
    GO:0098029    icosahedral viral capsid, spike    A short structure attached to an icosahedral virion capsid, and used for attachment to the host cell.
    GO:0019028    viral capsid    The protein coat that surrounds the infective nucleic acid in some virus particles. It comprises numerous regularly arranged subunits, or capsomeres.
    GO:0019012    virion    The complete fully infectious extracellular virus particle.

 Visualization

(-) Interactive Views

Asymmetric Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
    MSE  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]

  Sites
(no "Sites" information available for 1yq5)

  Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 1yq5)

Biological Units
  Complete Structure
    Biological Unit 1  [ Jena3D ]
    Biological Unit 2  [ Jena3D ]

(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
[ Asym. Unit PNG format | Biol. Unit 1 PNG format | Biol. Unit 2 PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  1yq5
    Family and Domain Information: ProDom | SYSTERS
    General Structural Information: GlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in Membranes: OPM
    Protein Surface: SURFACE
    Secondary Structure: DSSP (structure derived) | HSSP (homology derived)
    Structural Genomics: GeneCensus
    Structural Neighbours: CE | VAST
    Structure Classification: CATH | Dali | SCOP
    Validation and Original Data: BMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  P5_BPPRD | P22536
    Comparative Protein Structure Models: ModBase
    Genomic Information: Ensembl
    Protein-protein Interaction: DIP
    Sequence, Family and Domain Information: InterPro | Pfam | SMART | UniProtKB/SwissProt

Access by Enzyme Classificator   (EC Number)
  (no 'Enzyme Classificator' available)
    General Enzyme Information: BRENDA | EC-PDB | Enzyme | IntEnz
    Pathway: KEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease Information: OMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related Information: GenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain Information: XDom
    Interatomic Contacts of Structural Units: CSU
    Ligand-protein Contacts: LPC
    Protein Cavities: castP
    Sequence and Secondary Structure: PDBCartoon
    Structure Alignment: STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence Browser: STING

Access by UniProt ID/Accession number
  P5_BPPRD | P22536
    Protein Disorder Prediction: DisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)

 Related Entries

(-) Entries Sharing at Least One Protein Chain (UniProt ID)

UniProtKB/Swiss-Prot
        P5_BPPRD | P22536: 1yq6 1yq8

(-) Related Entries Specified in the PDB File

1yq6 THE SAME PROTEIN, ANOTHER SPACE GROUP
1yq8 THE SAME PROTEIN, ANOTHER DOMAIN
