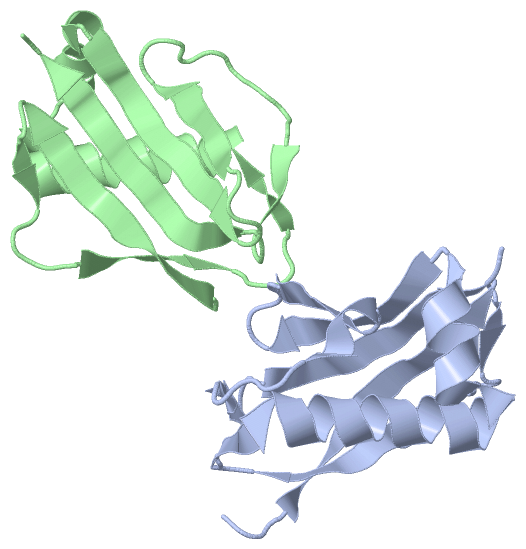

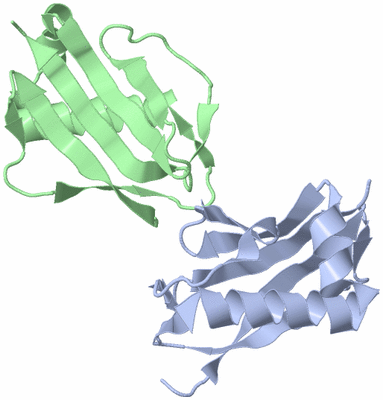

Image Asymmetric Unit
Asymmetric Unit  (Jmol Viewer)

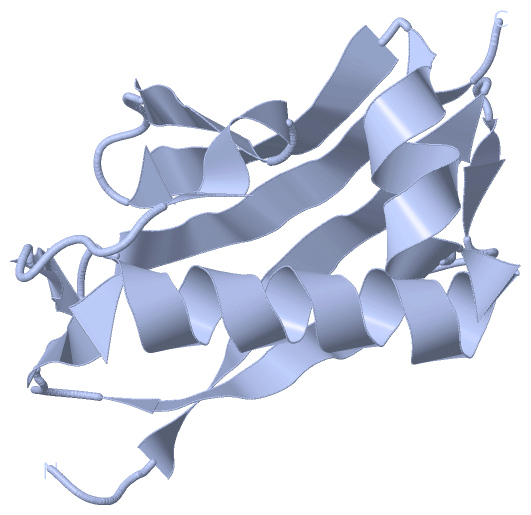

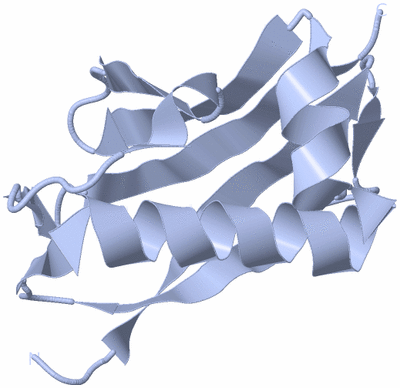

Image Biological Unit 1
Biological Unit 1  (Jmol Viewer)

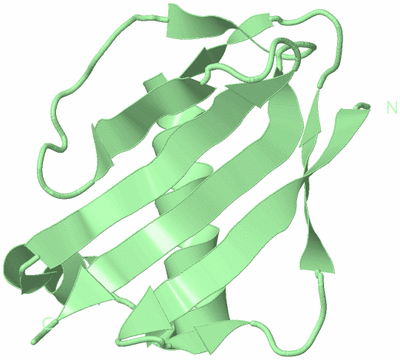

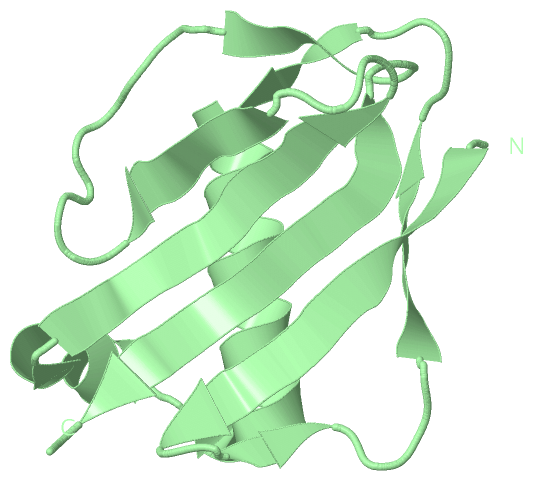

Image Biological Unit 2
Biological Unit 2  (Jmol Viewer)

(-) Description

Title :  CRYSTAL STRUCTURES OF EAP DOMAINS FROM STAPHYLOCOCCUS AUREUS REVEAL AN UNEXPECTED HOMOLOGY TO BACTERIAL SUPERANTIGENS

Authors :  B. V. Geisbrecht, B. Y. Hamaoka, B. Perman, A. Zemla, D. J. Leahy
Date :  23 Jan 05  (Deposition) - 01 Mar 05  (Release) - 24 Feb 09  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  2.20
Chains :  Asym. Unit :  A,B
Biol. Unit 1:  A  (1x)
Biol. Unit 2:  B  (1x)
Keywords :  Virulence Factor, Toxin, Extracellular Adherence Protein, Staphylococcus Aureus, Unknown Function (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  B. V. Geisbrecht, B. Y. Hamaoka, B. Perman, A. Zemla, D. J. Leahy
The Crystal Structures Of Eap Domains From Staphylococcus Aureus Reveal An Unexpected Homology To Bacterial Superantigens.
J. Biol. Chem. V. 280 17243 2005
PubMed-ID: 15691839  |  Reference-DOI: 10.1074/JBC.M412311200
(for further references see the PDB file header)

(-) Compounds

Molecule 1 - EAPH2
    Chains: A, B
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Plasmid: PET28 DERIVATIVE
    Expression System Strain: B834(DE3)
    Expression System Taxid: 562
    Expression System Vector Type: PLASMID
    Fragment: RESIDUES 42-144
    Organism Scientific: STAPHYLOCOCCUS AUREUS
    Organism Taxid: 1280
    Strain: MU50

 Structural Features

(-) Chains, Units

  12
Asymmetric Unit : AB
Biological Unit 1 (1x): A
Biological Unit 2 (1x):  B

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (0, 0)

(no "Ligand,Modified Residues,Ions" information available for 1YN5)

(-) Sites  (0, 0)

(no "Site" information available for 1YN5)

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 1YN5)

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 1YN5)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 1YN5)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 1YN5)

(-) Exons   (0, 0)

(no "Exon" information available for 1YN5)

(-) Sequences/Alignments

Asymmetric Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:103
 aligned with A0A0H3JUK5_S | A0A0H3JUK5 from UniProtKB/TrEMBL  Length:144

    Alignment length:103
                                    51        61        71        81        91       101       111       121       131       141
         A0A0H3JUK5_S    42 AKEMQNVPYTIAVDGIMAFNQSYLNLPKDSQLSYLDLGNKVKALLYDERGVTPEKIRNAKSAVYTITWKDGSKKEVDLKKDSYTANLFDSNSIKQIDINVKTK 144
               SCOP domains ------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ...eeeeeeeeee..ee....eeeeee...eeehhhhhhhhhhhhhhhhh.hhhhhhhh.eeeeeeee....eeeee.hhh.....eee...eeeeeeeee.. Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------- Transcript
                 1yn5 A  42 AKEMQNVPYTIAVDGIMAFNQSYLNLPKDSQLSYLDLGNKVKALLYDERGVTPEKIRNAKSAVYTITWKDGSKKEVDLKKDSYTANLFDSNSIKQIDINVKTK 144
                                    51        61        71        81        91       101       111       121       131       141


Chain B from PDB  Type:PROTEIN  Length:100
 aligned with A0A0H3JUK5_S | A0A0H3JUK5 from UniProtKB/TrEMBL  Length:144

    Alignment length:100
                                    54        64        74        84        94       104       114       124       134       144
         A0A0H3JUK5_S    45 MQNVPYTIAVDGIMAFNQSYLNLPKDSQLSYLDLGNKVKALLYDERGVTPEKIRNAKSAVYTITWKDGSKKEVDLKKDSYTANLFDSNSIKQIDINVKTK 144
               SCOP domains ---------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains ---------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ---------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .eeeeeeeee..ee....eeeee....eeehhhhhhhhhhhhhhhhh.hhhhhhhh.eeeeeeee....eeeee.........eee...eeeeeeeee.. Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ---------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ---------------------------------------------------------------------------------------------------- Transcript
                 1yn5 B  45 MQNVPYTIAVDGIMAFNQSYLNLPKDSQLSYLDLGNKVKALLYDERGVTPEKIRNAKSAVYTITWKDGSKKEVDLKKDSYTANLFDSNSIKQIDINVKTK 144
                                    54        64        74        84        94       104       114       124       134       144
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (0, 0)

(no "SCOP Domain" information available for 1YN5)

(-) CATH Domains  (0, 0)

(no "CATH Domain" information available for 1YN5)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 1YN5)

(-) Gene Ontology  (0, 0)

Asymmetric Unit(hide GO term definitions)
    (no "Gene Ontology" information available for 1YN5)

 Visualization

(-) Interactive Views

Asymmetric Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
(no "Ligands, Modified Residues, Ions" information available for 1yn5)

  Sites
(no "Sites" information available for 1yn5)

  Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 1yn5)

Biological Units
  Complete Structure
    Biological Unit 1  [ Jena3D ]
    Biological Unit 2  [ Jena3D ]

(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
[ Asym. Unit PNG format | Biol. Unit 1 PNG format | Biol. Unit 2 PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)
