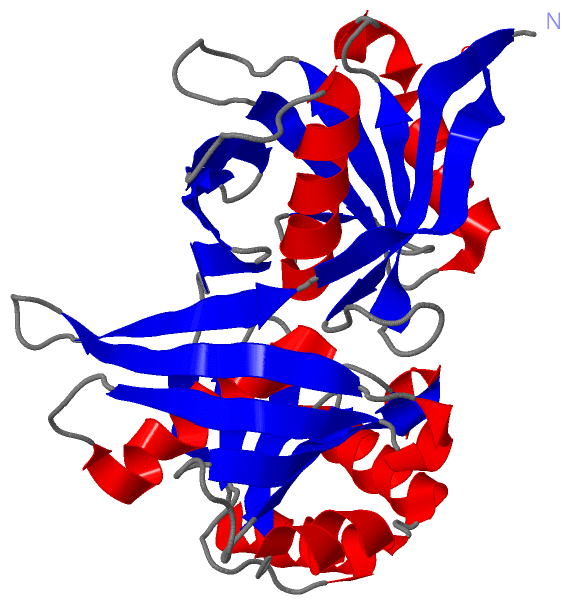

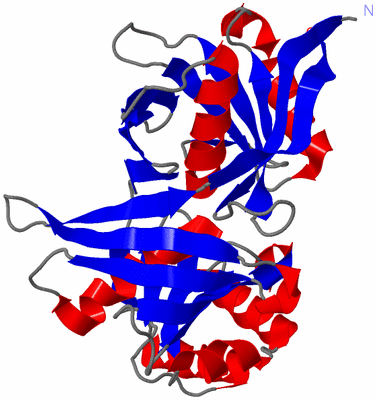

Image Asymmetric Unit
Asymmetric Unit  (Jmol Viewer)

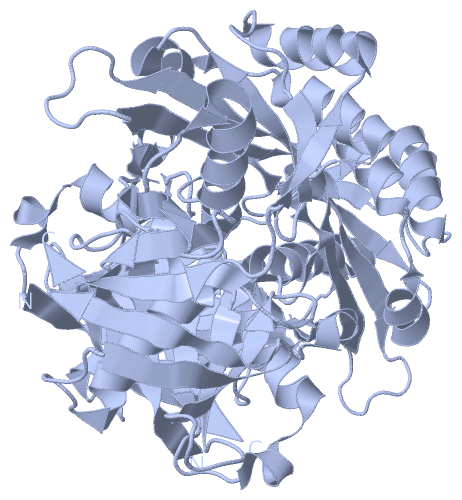

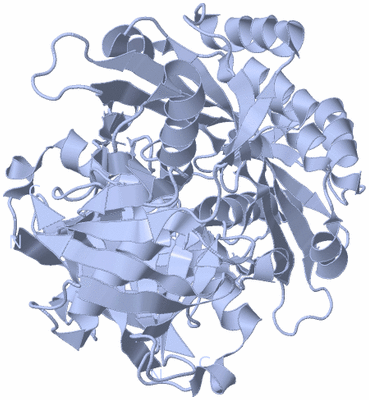

Image Biological Unit 1
Biological Unit 1  (Jmol Viewer)

(-) Description

Title :  CRYSTAL STRUCTURE OF YHI9, THE YEAST MEMBER OF THE PHENAZINE BIOSYNTHESIS PHZF ENZYME SUPERFAMILY.

Authors :  D. Liger, S. Quevillon-Cheruel, I. Sorel, M. Bremang, K. Blondeau, I. Aboulfath, J. Janin, H. Van Tilbeurgh, N. Leulliot, Paris-Sud Yeast Structural Genomics (Ysg)
Date :  20 Jan 05  (Deposition) - 02 Aug 05  (Release) - 24 Feb 09  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  2.05
Chains :  Asym. Unit :  A
Biol. Unit 1:  A  (2x)
Keywords :  Phzf Enzyme Superfamily, Double Hot-Dog, Structural Genomics, Paris-Sud Yeast Structural Genomics, Ysg, Oxidoreductase (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  D. Liger, S. Quevillon-Cheruel, I. Sorel, M. Bremang, K. Blondeau, I. Aboulfath, J. Janin, H. Van Tilbeurgh, N. Leulliot
Crystal Structure Of Yhi9, The Yeast Member Of The Phenazine Biosynthesis Phzf Enzyme Superfamily
Proteins V. 60 778 2005
PubMed-ID: 16021630  |  Reference-DOI: 10.1002/PROT.20548
(for further references see the PDB file header)

(-) Compounds

Molecule 1 - HYPOTHETICAL 32.6 KDA PROTEIN IN DAP2-SLT2 INTERGENIC REGION
    Chains: A
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Plasmid: PET9
    Expression System Taxid: 562
    Expression System Vector Type: PLASMID
    Organism Common: BAKER'S YEAST
    Organism Scientific: SACCHAROMYCES CEREVISIAE
    Organism Taxid: 4932
    Synonym: YHI9

 Structural Features

(-) Chains, Units

  1
Asymmetric Unit : A
Biological Unit 1 (2x): A

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (0, 0)

(no "Ligand,Modified Residues,Ions" information available for 1YM5)

(-) Sites  (0, 0)

(no "Site" information available for 1YM5)

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 1YM5)

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 1YM5)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 1YM5)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 1YM5)

(-) Exons   (1, 1)

Asymmetric Unit (1, 1)
 ENSEMBLUniProtKBPDB
No.Transcript IDExonExon IDGenome LocationLengthIDLocationLengthCountLocationLength
1.1YHR029C1YHR029C.1VIII:168554-167670885YHI9_YEAST1-2942941A:2-294293

(-) Sequences/Alignments

Asymmetric Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:294
 aligned with YHI9_YEAST | P38765 from UniProtKB/Swiss-Prot  Length:294

    Alignment length:294
                                                                                                                                                                                                                                                                                                                              294
                                    11        21        31        41        51        61        71        81        91       101       111       121       131       141       151       161       171       181       191       201       211       221       231       241       251       261       271       281       291  |
           YHI9_YEAST     2 TLMVPFKQVDVFTEKPFMGNPVAVINFLEIDENEVSQEELQAIANWTNLSETTFLFKPSDKKYDYKLRIFTPRSELPFAGHPTIGSCKAFLEFTKNTTATSLVQECKIGAVPITINEGLISFKAPMADYESISSEMIADYEKAIGLKFIKPPALLHTGPEWIVALVEDAETCFNANPNFAMLAHQTKQNDHVGIILAGPKKEAAIKNSYEMRAFAPVINVYEDPVCGSGSVALARYLQEVYKFEKTTDITISEGGRLKRNGLMLASIKKEADNSTSYYIAGHATTVIDGKIKV-   -
               SCOP domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ SCOP domains
               CATH domains 1ym5A01 A:2-125,A:284-295 Diaminopimelate Epimerase; Chain A, domain 1                                                      --------------------------------------------------------------------------------------------------------------------------------------------------------------1ym5A01      CATH domains
               Pfam domains --------PhzC-PhzF-1ym5A01 A:10-290                                                                                                                                                                                                                                                               ----- Pfam domains
         Sec.struct. author .eeeeeeeeee........eeeeeee....hhhhhhhhhhhhhhhhhh...eeeee........eeeeee....ee..hhhhhhhhhhhhhhhh......eeeeee..eeeeeeee..eeeee....eeee.hhhhhhhhhhhhh.......eeee...eeeeee..hhhhhhhh..hhhhhhhhhhhhh..eeeeeee........eeeeeeeehhhheeee..hhhhhhhhhhhhhhhhh....eeeeeee.hhhh..eeeeeeeee.....eeeeeee.eeeeeeeeeee. Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ PROSITE
               Transcript 1 Exon 1.1  PDB: A:2-294 UniProt: 1-294 [INCOMPLETE]                                                                                                                                                                                                                                                   - Transcript 1
                 1ym5 A   2 TLMVPFKQVDVFTEKPFMGNPVAVINFLEIDENEVSQEELQAIANWTNLSETTFLFKPSDKKYDYKLRIFTPRSELPFAGHPTIGSCKAFLEFTKNTTATSLVQECKIGAVPITINEGLISFKAPMADYESISSEMIADYEKAIGLKFIKPPALLHTGPEWIVALVEDAETCFNANPNFAMLAHQTKQNDHVGIILAGPKKEAAIKNSYEMRAFAPVINVYEDPVCGSGSVALARYLQEVYKFEKTTDITISEGGRLKRNGLMLASIKKEADNSTSYYIAGHATTVIDGKIKVH 295
                                    11        21        31        41        51        61        71        81        91       101       111       121       131       141       151       161       171       181       191       201       211       221       231       241       251       261       271       281       291
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (0, 0)

(no "SCOP Domain" information available for 1YM5)

(-) CATH Domains  (1, 1)

Asymmetric Unit
(-)
Class: Alpha Beta (26913)

(-) Pfam Domains  (1, 1)

Asymmetric Unit
(-)
Clan: DAP_epimerase (14)

(-) Gene Ontology  (6, 6)

Asymmetric Unit(hide GO term definitions)
Chain A   (YHI9_YEAST | P38765)
molecular function
    GO:0003824    catalytic activity    Catalysis of a biochemical reaction at physiological temperatures. In biologically catalyzed reactions, the reactants are known as substrates, and the catalysts are naturally occurring macromolecular substances known as enzymes. Enzymes possess specific binding sites for substrates, and are usually composed wholly or largely of protein, but RNA that has catalytic activity (ribozyme) is often also regarded as enzymatic.
    GO:0016853    isomerase activity    Catalysis of the geometric or structural changes within one molecule. Isomerase is the systematic name for any enzyme of EC class 5.
    GO:0003674    molecular_function    Elemental activities, such as catalysis or binding, describing the actions of a gene product at the molecular level. A given gene product may exhibit one or more molecular functions.
biological process
    GO:0009058    biosynthetic process    The chemical reactions and pathways resulting in the formation of substances; typically the energy-requiring part of metabolism in which simpler substances are transformed into more complex ones.
    GO:0030968    endoplasmic reticulum unfolded protein response    The series of molecular signals generated as a consequence of the presence of unfolded proteins in the endoplasmic reticulum (ER) or other ER-related stress; results in changes in the regulation of transcription and translation.
cellular component
    GO:0005575    cellular_component    The part of a cell, extracellular environment or virus in which a gene product is located. A gene product may be located in one or more parts of a cell and its location may be as specific as a particular macromolecular complex, that is, a stable, persistent association of macromolecules that function together.

 Visualization

(-) Interactive Views

Asymmetric Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
(no "Ligands, Modified Residues, Ions" information available for 1ym5)

  Sites
(no "Sites" information available for 1ym5)

  Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 1ym5)

Biological Unit
  Complete Structure
    Biological Unit 1  [ Jena3D ]

(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
[ Asym. Unit PNG format | Biol. Unit 1 PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  1ym5
    Family and Domain Information: ProDom | SYSTERS
    General Structural Information: GlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in Membranes: OPM
    Protein Surface: SURFACE
    Secondary Structure: DSSP (structure derived) | HSSP (homology derived)
    Structural Genomics: GeneCensus
    Structural Neighbours: CE | VAST
    Structure Classification: CATH | Dali | SCOP
    Validation and Original Data: BMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  YHI9_YEAST | P38765
    Comparative Protein Structure Models: ModBase
    Genomic Information: Ensembl
    Protein-protein Interaction: DIP
    Sequence, Family and Domain Information: InterPro | Pfam | SMART | UniProtKB/SwissProt

Access by Enzyme Classificator   (EC Number)
  (no 'Enzyme Classificator' available)
    General Enzyme Information: BRENDA | EC-PDB | Enzyme | IntEnz
    Pathway: KEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease Information: OMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related Information: GenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain Information: XDom
    Interatomic Contacts of Structural Units: CSU
    Ligand-protein Contacts: LPC
    Protein Cavities: castP
    Sequence and Secondary Structure: PDBCartoon
    Structure Alignment: STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence Browser: STING

Access by UniProt ID/Accession number
  YHI9_YEAST | P38765
    Protein Disorder Prediction: DisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)

 Related Entries

(-) Entries Sharing at Least One Protein Chain (UniProt ID)

(no "Entries Sharing at Least One Protein Chain" available for 1YM5)

(-) Related Entries Specified in the PDB File

(no "Related Entries Specified in the PDB File" available for 1YM5)
