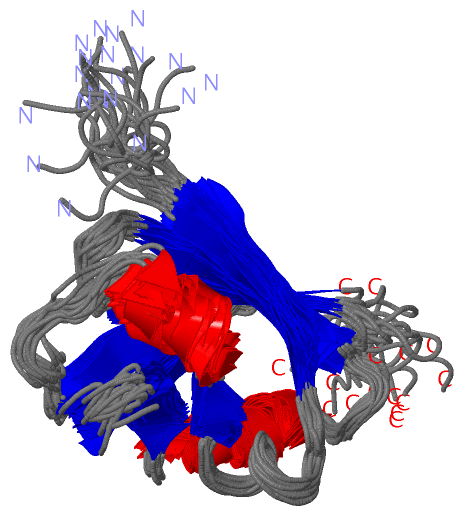

Image NMR Structure - all models
NMR Structure - all models  (Jmol Viewer)

(-) Description

Title :  STRUCTURE OF THE HYPOTHETICAL ARABIDOPSIS THALIANA PROTEIN AT1G16640.1

Authors :  F. C. Peterson, J. K. Waltner, B. L. Lytle, B. F. Volkman, Center For Eukaryotic Structural Genomics (Cesg)
Date :  28 Dec 04  (Deposition) - 18 Jan 05  (Release) - 24 Feb 09  (Revision)
Method :  SOLUTION NMR
Resolution :  NOT APPLICABLE
Chains :  NMR Structure  :  A  (20x)
Keywords :  Cesg, Protein Structure Initiative, Structural Genomics, Psi, Center For Eukaryotic Structural Genomics, Unknown Function (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  J. K. Waltner, F. C. Peterson, B. L. Lytle, B. F. Volkman
Structure Of The B3 Domain From Arabidopsis Thaliana Protein At1G16640
Protein Sci. V. 14 2478 2005
PubMed-ID: 16081658  |  Reference-DOI: 10.1110/PS.051606305
(for further references see the PDB file header)

(-) Compounds

Molecule 1 - AT1G16640
    Chains: A
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Plasmid: PQE30
    Expression System Strain: SG13009[PREP4]
    Expression System Taxid: 562
    Expression System Vector Type: PLASMID
    Fragment: SEQUENCE DATABASE RESIDUES 1-102
    Organism Common: THALE CRESS
    Organism Scientific: ARABIDOPSIS THALIANA
    Organism Taxid: 3702

 Structural Features

(-) Chains, Units


NMR Structure (20x):

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (0, 0)

(no "Ligand,Modified Residues,Ions" information available for 1YEL)

(-) Sites  (0, 0)

(no "Site" information available for 1YEL)

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 1YEL)

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 1YEL)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 1YEL)

(-) PROSITE Motifs  (1, 1)

NMR Structure (1, 1)
 PROSITEUniProtKBPDB
No.IDACDescriptionIDLocationCountLocation
1B3PS50863 B3 DNA-binding domain profile.Y1664_ARATH7-100  1A:7-100

(-) Exons   (0, 0)

(no "Exon" information available for 1YEL)

(-) Sequences/Alignments

NMR Structure
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:102
 aligned with Y1664_ARATH | Q9FX77 from UniProtKB/Swiss-Prot  Length:134

    Alignment length:102
                                    10        20        30        40        50        60        70        80        90       100
          Y1664_ARATH     1 MADTGEVQFMKPFISEKSSKSLEIPLGFNEYFPAPFPITVDLLDYSGRSWTVRMKKRGEKVFLTVGWENFVKDNNLEDGKYLQFIYDRDRTFYVIIYGHNMC 102
               SCOP domains d1yela1 A:1-102 At1g16640                                                                              SCOP domains
               CATH domains 1yelA00 A:1-102 At1g16640 B3 domain                                                                    CATH domains
               Pfam domains --------B3-1yelA01 A:9-100                                                                          -- Pfam domains
         Sec.struct. author ......eeeeee.........ee.hhhhhh........eeeee.....eeeeeeeee..eeee..hhhhhhhhhh.....eeeeee....eeeeee...... Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE ------B3  PDB: A:7-100 UniProt: 7-100                                                               -- PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------ Transcript
                 1yel A   1 MADTGEVQFMKPFISEKSSKSLEIPLGFNEYFPAPFPITVDLLDYSGRSWTVRMKKRGEKVFLTVGWENFVKDNNLEDGKYLQFIYDRDRTFYVIIYGHNMC 102
                                    10        20        30        40        50        60        70        80        90       100
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (1, 1)

NMR Structure
(-)
Class: All beta proteins (24004)

(-) CATH Domains  (1, 1)

NMR Structure
(-)
Class: Mainly Beta (13760)

(-) Pfam Domains  (1, 1)

NMR Structure
(-)
Clan: DNA_b-psBarrel (3)

(-) Gene Ontology  (4, 4)

NMR Structure(hide GO term definitions)
Chain A   (Y1664_ARATH | Q9FX77)
molecular function
    GO:0003677    DNA binding    Any molecular function by which a gene product interacts selectively and non-covalently with DNA (deoxyribonucleic acid).
biological process
    GO:0006355    regulation of transcription, DNA-templated    Any process that modulates the frequency, rate or extent of cellular DNA-templated transcription.
    GO:0006351    transcription, DNA-templated    The cellular synthesis of RNA on a template of DNA.
cellular component
    GO:0005634    nucleus    A membrane-bounded organelle of eukaryotic cells in which chromosomes are housed and replicated. In most cells, the nucleus contains all of the cell's chromosomes except the organellar chromosomes, and is the site of RNA synthesis and processing. In some species, or in specialized cell types, RNA metabolism or DNA replication may be absent.

 Visualization

(-) Interactive Views

NMR Structure
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
(no "Ligands, Modified Residues, Ions" information available for 1yel)

  Sites
(no "Sites" information available for 1yel)

  Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 1yel)


(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
[ NMR Structure - model 1 PNG format | NMR Structure - all models PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  1yel
    Family and Domain Information: ProDom | SYSTERS
    General Structural Information: GlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in Membranes: OPM
    Protein Surface: SURFACE
    Secondary Structure: DSSP (structure derived) | HSSP (homology derived)
    Structural Genomics: GeneCensus
    Structural Neighbours: CE | VAST
    Structure Classification: CATH | Dali | SCOP
    Validation and Original Data: BMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  Y1664_ARATH | Q9FX77
    Comparative Protein Structure Models: ModBase
    Genomic Information: Ensembl
    Protein-protein Interaction: DIP
    Sequence, Family and Domain Information: InterPro | Pfam | SMART | UniProtKB/SwissProt

Access by Enzyme Classificator   (EC Number)
  (no 'Enzyme Classificator' available)
    General Enzyme Information: BRENDA | EC-PDB | Enzyme | IntEnz
    Pathway: KEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease Information: OMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related Information: GenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain Information: XDom
    Interatomic Contacts of Structural Units: CSU
    Ligand-protein Contacts: LPC
    Protein Cavities: castP
    Sequence and Secondary Structure: PDBCartoon
    Structure Alignment: STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence Browser: STING

Access by UniProt ID/Accession number
  Y1664_ARATH | Q9FX77
    Protein Disorder Prediction: DisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)
