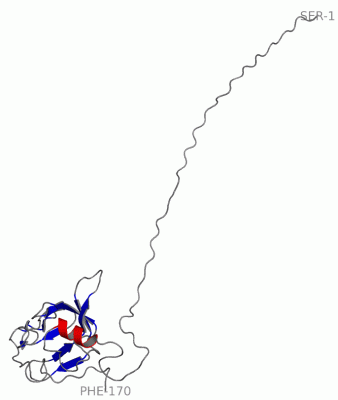

Image NMR Structure - manually
NMR Structure - manually  (Jmol Viewer)

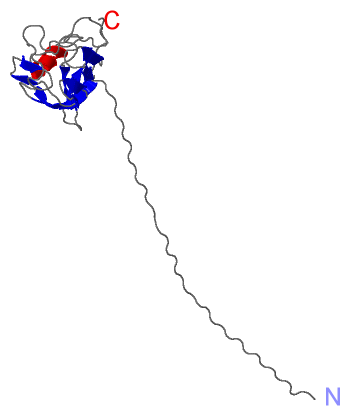

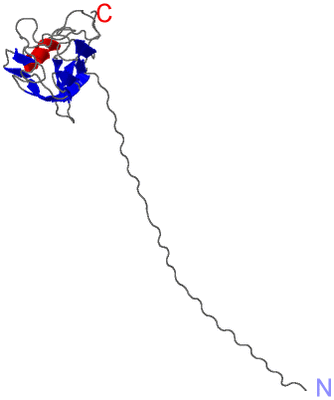

Image NMR Structure - model 1
NMR Structure - model 1  (Jmol Viewer)

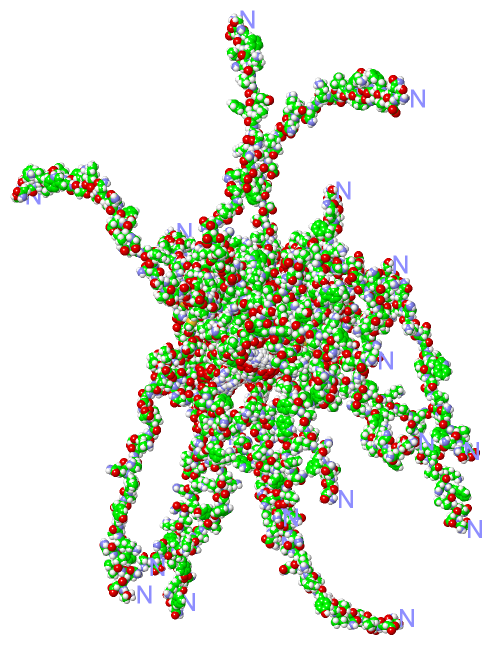

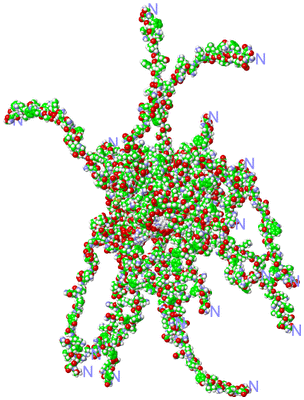

Image NMR Structure - all models
NMR Structure - all models  (Jmol Viewer)

(-) Description

Title :  SOLUTION NMR STRUCTURE OF AT5G01610, AN ARABIDOPSIS THALIANA PROTEIN CONTAINING DUF538 DOMAIN

Authors :  Q. Zhao, C. C. Cornilescu, M. S. Lee, J. L. Markley, Center For Eukaryo Structural Genomics (Cesg)
Date :  26 Dec 04  (Deposition) - 15 Feb 05  (Release) - 06 Apr 16  (Revision)
Method :  SOLUTION NMR
Resolution :  NOT APPLICABLE
Chains :  NMR Structure  :  A  (20x)
NMR Structure *:  A  (1x)
Keywords :  Arabidopsis, Duf538, Structural Genomics, Protein Structure Initiative, Center For Eukaryotic Structural Genomics, Cesg, Unknown Function (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  Q. Zhao, C. Cornilescu, M. S. Lee, J. L. Markley
Solution Nmr Structure Of At5G01610, An Arabidopsis Thalian Protein Containing Duf538 Domain
To Be Published
PubMed: search

(-) Compounds

Molecule 1 - AT5G01610
    Chains: A
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Taxid: 562
    Fragment: AT5G01610
    Mutation: YES
    Organism Common: THALE CRESS
    Organism Scientific: ARABIDOPSIS THALIANA
    Organism Taxid: 3702

 Structural Features

(-) Chains, Units

  1
NMR Structure (20x): A
NMR Structure * (1x): A

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (0, 0)

(no "Ligand,Modified Residues,Ions" information available for 1YDU)

(-) Sites  (0, 0)

(no "Site" information available for 1YDU)

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 1YDU)

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 1YDU)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 1YDU)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 1YDU)

(-) Exons   (0, 0)

(no "Exon" information available for 1YDU)

(-) Sequences/Alignments

NMR Structure
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:170
 aligned with Y5161_ARATH | Q9M015 from UniProtKB/Swiss-Prot  Length:170

    Alignment length:170
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170
          Y5161_ARATH     1 MDQIFNKVGSYWLGQKANKQFDSVGNDLNSVSTSIEGGTKWLVNKIKGKMQKPLPELLKEYDLPIGIFPGDATNYEFDEETKKLTVLIPSICEVGYKDSSVLKFTTTVTGHLEKGKLTDVEGIKTKVMIWVKVTSISTDASKVYFTAGMKKSRSRDAYEVQRNGLRVDKF 170
               SCOP domains -d1ydua1 A:2-170 Hypothetical protein At5g01610                                                                                                                            SCOP domains
               CATH domains -------------------------------1yduA01 A:32-170 at5g01610, DUF538 DOMAIN                                                                                                   CATH domains
               Pfam domains -------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .....................................................hhhhhhhhh...........eeee......eeee....eeee.....eeee..eeeeee....eeeee..eee...ee.....ee....ee.......................... Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript -------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1ydu A   1 SDQIFNKVGSYWLGQKANKQFDSVGNDLNSVSTSIEGGTKWLVNKIKGKMQKPLPELLKEYDLPIGIFPGDATNYEFDEETKKLTVLIPSICEVGYKDSSVLKFTTTVTGHLEKGKLTDVEGIKTKVMIWVKVTSISTDASKVYFTAGMKKSRSRDAYGVQRNGLRVDKF 170
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (1, 1)

NMR Structure
(-)
Class: All beta proteins (24004)

(-) CATH Domains  (1, 1)

NMR Structure
(-)
Class: Mainly Beta (13760)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 1YDU)

(-) Gene Ontology  (1, 1)

NMR Structure(hide GO term definitions)
Chain A   (Y5161_ARATH | Q9M015)
biological process
    GO:0008150    biological_process    Any process specifically pertinent to the functioning of integrated living units: cells, tissues, organs, and organisms. A process is a collection of molecular events with a defined beginning and end.

 Visualization

(-) Interactive Views

NMR Structure
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
(no "Ligands, Modified Residues, Ions" information available for 1ydu)

  Sites
(no "Sites" information available for 1ydu)

  Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 1ydu)


(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
[ NMR Structure - model 1 PNG format | NMR Structure - all models PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)
