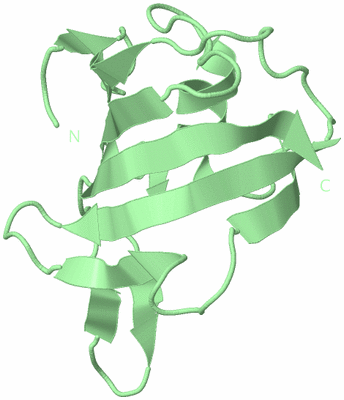

Biological Unit 2 (Jmol Viewer)

Biological Unit 3 (Jmol Viewer)

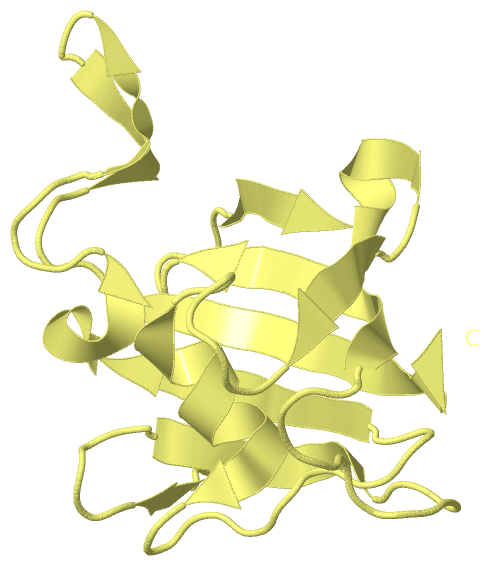

Biological Unit 4 (Jmol Viewer)

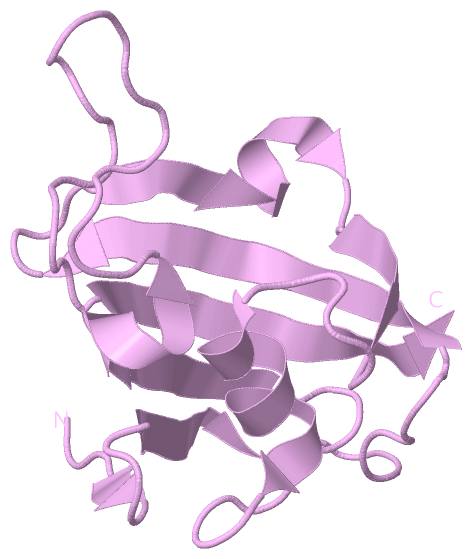

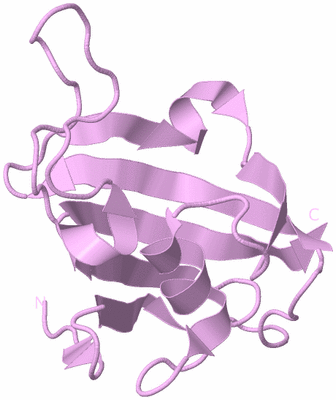

Biological Unit 5 (Jmol Viewer)

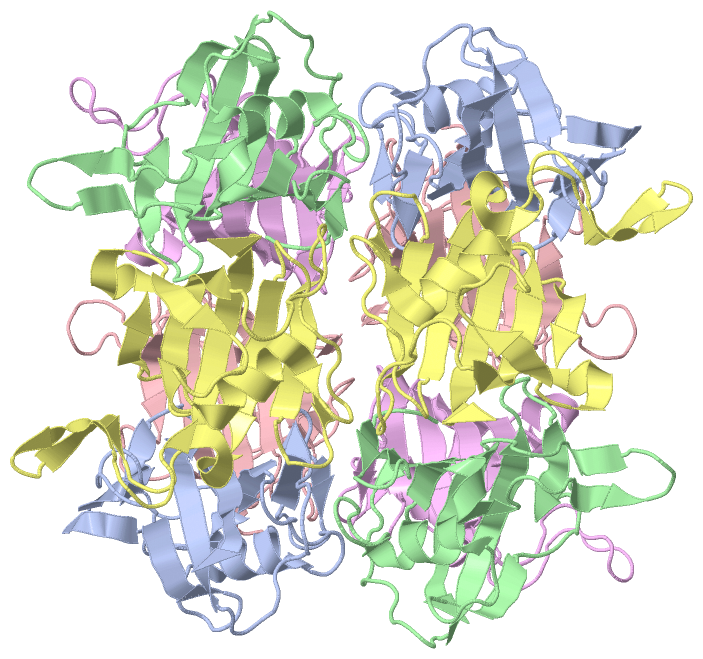

Biological Unit 6 (Jmol Viewer)

Title :   CRYSTAL STRUCTURE OF REDUCED ATFKBP13

Authors :   G. Gayathri, K. Swaminathan

Date :   15 Nov 04 (Deposition) - 01 Nov 05 (Release) - 13 Jul 11 (Revision)

Method :   X-RAY DIFFRACTION

Resolution :   1.89

Chains :   Asym. Unit : A,B,C,D,E
Biol. Unit 1: A  (1x)
Biol. Unit 2: B  (1x)
Biol. Unit 3: C  (1x)
Biol. Unit 4: D  (1x)
Biol. Unit 5: E  (1x)
Biol. Unit 6: A (2x),B (2x),C (2x),D (2x),E (2x)

Keywords :   Reduced Atfkbp13, Fk-506 Binding Protein, Isomerase (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :   G. Gopalan, K. Swaminthan, S. Luan, K. P. Battaile
Crystal Structure Of Reduced Atfkbp13
To Be Published
PubMed: search
(for further references see the PDB file header)

Molecule 1 - FKBP-TYPE PEPTIDYL-PROLYL CIS-TRANS ISOMERASE 3
	Chains	:	A, B, C, D, E
	EC Number	:	5.2.1.8
	Engineered	:	YES
	Expression System	:	ESCHERICHIA COLI
	Expression System Plasmid	:	PGEX-KG
	Expression System Strain	:	BL21(DE3)LYS-S
	Expression System Taxid	:	562
	Expression System Vector Type	:	PLASMID
	Gene	:	ATFKBP13
	Organism Common	:	THALE CRESS
	Organism Scientific	:	ARABIDOPSIS THALIANA
	Organism Taxid	:	3702
	Synonym	:	ATFKBP13, PPIASE, ROTAMASE, FK506 BINDING PROTEIN 1

		1	2	3	4	5
Asymmetric Unit	:	A	B	C	D	E
Biological Unit 1 (1x)	:	A
Biological Unit 2 (1x)	:		B
Biological Unit 3 (1x)	:			C
Biological Unit 4 (1x)	:				D
Biological Unit 5 (1x)	:					E
Biological Unit 6 (2x)	:	A (2x)	B (2x)	C (2x)	D (2x)	E (2x)

Summary Information (see also Sequences/Alignments below)

(no "Ligand,Modified Residues,Ions" information available for 1Y0O)

(no "Site" information available for 1Y0O)

Asymmetric Unit

No.	Residues
1	A:106	-	A:111
2	B:306	-	B:311
3	C:506	-	C:511
4	D:706	-	D:711
5	E:906	-	E:911

(no "Cis Peptide Bond" information available for 1Y0O)

(no "SAP(SNP)/Variant" information available for 1Y0O)

Asymmetric Unit (1, 5)

	PROSITE			UniProtKB		PDB
No.	ID	AC	Description	ID	Location	Count	Location
1	FKBP_PPIASE	PS50059	FKBP-type peptidyl-prolyl cis-trans isomerase domain profile.	FKB13_ARATH	109-208	5	A:30-129 B:230-329 C:430-529 D:630-729 E:830-929

Biological Unit 1 (1, 1)

	PROSITE			UniProtKB		PDB
No.	ID	AC	Description	ID	Location	Count	Location
1	FKBP_PPIASE	PS50059	FKBP-type peptidyl-prolyl cis-trans isomerase domain profile.	FKB13_ARATH	109-208	1	A:30-129 - - - -

Biological Unit 2 (1, 1)

	PROSITE			UniProtKB		PDB
No.	ID	AC	Description	ID	Location	Count	Location
1	FKBP_PPIASE	PS50059	FKBP-type peptidyl-prolyl cis-trans isomerase domain profile.	FKB13_ARATH	109-208	1	- B:230-329 - - -

Biological Unit 3 (1, 1)

	PROSITE			UniProtKB		PDB
No.	ID	AC	Description	ID	Location	Count	Location
1	FKBP_PPIASE	PS50059	FKBP-type peptidyl-prolyl cis-trans isomerase domain profile.	FKB13_ARATH	109-208	1	- - C:430-529 - -

Biological Unit 4 (1, 1)

	PROSITE			UniProtKB		PDB
No.	ID	AC	Description	ID	Location	Count	Location
1	FKBP_PPIASE	PS50059	FKBP-type peptidyl-prolyl cis-trans isomerase domain profile.	FKB13_ARATH	109-208	1	- - - D:630-729 -

Biological Unit 5 (1, 1)

	PROSITE			UniProtKB		PDB
No.	ID	AC	Description	ID	Location	Count	Location
1	FKBP_PPIASE	PS50059	FKBP-type peptidyl-prolyl cis-trans isomerase domain profile.	FKB13_ARATH	109-208	1	- - - - E:830-929

Biological Unit 6 (1, 10)

	PROSITE			UniProtKB		PDB
No.	ID	AC	Description	ID	Location	Count	Location
1	FKBP_PPIASE	PS50059	FKBP-type peptidyl-prolyl cis-trans isomerase domain profile.	FKB13_ARATH	109-208	10	A:30-129 B:230-329 C:430-529 D:630-729 E:830-929

(no "Exon" information available for 1Y0O)

Asymmetric Unit

Reformat:	Number of residues per line = ('0' or empty: single-line sequence representation)
	Number of residues per labelling interval =
	UniProt sequence: complete aligned part

Show mapping:	SCOP domains	CATH domains	Pfam domains	Secondary structure (by author)
	SAPs(SNPs)	PROSITE motifs	Exons
	(details for a mapped element are shown in a popup box when the mouse pointer rests over it)

Chain A from PDB  Type:PROTEIN  Length:125
 aligned with FKB13_ARATH | Q9SCY2 from UniProtKB/Swiss-Prot  Length:208

    Alignment length:125
                                    93       103       113       123       133       143       153       163       173       183       193       203
          FKB13_ARATH    84 CEFSVSPSGLAFCDKVVGYGPEAVKGQLIKAHYVGKLENGKVFDSSYNRGKPLTFRIGVGEVIKGWDQGILGSDGIPPMLTGGKRTLRIPPELAYGDRGAGCKGGSCLIPPASVLLFDIEYIGKA 208
               SCOP domains d1y0oa_ A: FKBP13                                                                                                             SCOP domains
               CATH domains 1y0oA00 A:5-129  [code=3.10.50.40, no name defined]                                                                           CATH domains
               Pfam domains ----------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ...ee.....eeeeee...........eeeeeeeeee....eeee.......eeee......hhhhhhhhhh...........eeeeeehhhhh.....eeee..eeee.....eeeeeeeeee. Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -------------------------FKBP_PPIASE  PDB: A:30-129 UniProt: 109-208                                                          PROSITE
                 Transcript ----------------------------------------------------------------------------------------------------------------------------- Transcript
                 1y0o A   5 CEFSVSPSGLAFCDKVVGYGPEAVKGQLIKAHYVGKLENGKVFDSSYNRGKPLTFRIGVGEVIKGWDQGILGSDGIPPMLTGGKRTLRIPPELAYGDRGAGCKGGSCLIPPASVLLFDIEYIGKA 129
                                    14        24        34        44        54        64        74        84        94       104       114       124

Chain B from PDB  Type:PROTEIN  Length:125
 aligned with FKB13_ARATH | Q9SCY2 from UniProtKB/Swiss-Prot  Length:208

    Alignment length:125
                                    93       103       113       123       133       143       153       163       173       183       193       203
          FKB13_ARATH    84 CEFSVSPSGLAFCDKVVGYGPEAVKGQLIKAHYVGKLENGKVFDSSYNRGKPLTFRIGVGEVIKGWDQGILGSDGIPPMLTGGKRTLRIPPELAYGDRGAGCKGGSCLIPPASVLLFDIEYIGKA 208
               SCOP domains d1y0ob_ B: FKBP13                                                                                                             SCOP domains
               CATH domains 1y0oB00 B:205-329  [code=3.10.50.40, no name defined]                                                                         CATH domains
               Pfam domains ----------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ...ee.....eeeeee...........eeeeeeeee.....eeee.......eeee......hhhhhhhhhh...........eeeeeehhhhh.....eee....eee.....eeeeeeeeee. Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -------------------------FKBP_PPIASE  PDB: B:230-329 UniProt: 109-208                                                         PROSITE
                 Transcript ----------------------------------------------------------------------------------------------------------------------------- Transcript
                 1y0o B 205 CEFSVSPSGLAFCDKVVGYGPEAVKGQLIKAHYVGKLENGKVFDSSYNRGKPLTFRIGVGEVIKGWDQGILGSDGIPPMLTGGKRTLRIPPELAYGDRGAGCKGGSCLIPPASVLLFDIEYIGKA 329
                                   214       224       234       244       254       264       274       284       294       304       314       324

Chain C from PDB  Type:PROTEIN  Length:125
 aligned with FKB13_ARATH | Q9SCY2 from UniProtKB/Swiss-Prot  Length:208

    Alignment length:125
                                    93       103       113       123       133       143       153       163       173       183       193       203
          FKB13_ARATH    84 CEFSVSPSGLAFCDKVVGYGPEAVKGQLIKAHYVGKLENGKVFDSSYNRGKPLTFRIGVGEVIKGWDQGILGSDGIPPMLTGGKRTLRIPPELAYGDRGAGCKGGSCLIPPASVLLFDIEYIGKA 208
               SCOP domains d1y0oc_ C: FKBP13                                                                                                             SCOP domains
               CATH domains 1y0oC00 C:405-529  [code=3.10.50.40, no name defined]                                                                         CATH domains
               Pfam domains ----------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ...ee.....eeeeee...........eeeeeeeeee....eeee.......eeee......hhhhhhhhhh...........eeeeeehhhhh....................eeeeeeeee.. Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -------------------------FKBP_PPIASE  PDB: C:430-529 UniProt: 109-208                                                         PROSITE
                 Transcript ----------------------------------------------------------------------------------------------------------------------------- Transcript
                 1y0o C 405 CEFSVSPSGLAFCDKVVGYGPEAVKGQLIKAHYVGKLENGKVFDSSYNRGKPLTFRIGVGEVIKGWDQGILGSDGIPPMLTGGKRTLRIPPELAYGDRGAGCKGGSCLIPPASVLLFDIEYIGKA 529
                                   414       424       434       444       454       464       474       484       494       504       514       524

Chain D from PDB  Type:PROTEIN  Length:125
 aligned with FKB13_ARATH | Q9SCY2 from UniProtKB/Swiss-Prot  Length:208

    Alignment length:125
                                    93       103       113       123       133       143       153       163       173       183       193       203
          FKB13_ARATH    84 CEFSVSPSGLAFCDKVVGYGPEAVKGQLIKAHYVGKLENGKVFDSSYNRGKPLTFRIGVGEVIKGWDQGILGSDGIPPMLTGGKRTLRIPPELAYGDRGAGCKGGSCLIPPASVLLFDIEYIGKA 208
               SCOP domains d1y0od_ D: FKBP13                                                                                                             SCOP domains
               CATH domains 1y0oD00 D:605-729  [code=3.10.50.40, no name defined]                                                                         CATH domains
               Pfam domains ----------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ...ee.....eeeeee...........eeeeeeeee.....eeeehhhhh..eeee......hhhhhhhhhh...........eeeeeehhhhh.....eeee..eeee.....eeeeeeeeee. Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -------------------------FKBP_PPIASE  PDB: D:630-729 UniProt: 109-208                                                         PROSITE
                 Transcript ----------------------------------------------------------------------------------------------------------------------------- Transcript
                 1y0o D 605 CEFSVSPSGLAFCDKVVGYGPEAVKGQLIKAHYVGKLENGKVFDSSYNRGKPLTFRIGVGEVIKGWDQGILGSDGIPPMLTGGKRTLRIPPELAYGDRGAGCKGGSCLIPPASVLLFDIEYIGKA 729
                                   614       624       634       644       654       664       674       684       694       704       714       724

Chain E from PDB  Type:PROTEIN  Length:125
 aligned with FKB13_ARATH | Q9SCY2 from UniProtKB/Swiss-Prot  Length:208

    Alignment length:125
                                    93       103       113       123       133       143       153       163       173       183       193       203
          FKB13_ARATH    84 CEFSVSPSGLAFCDKVVGYGPEAVKGQLIKAHYVGKLENGKVFDSSYNRGKPLTFRIGVGEVIKGWDQGILGSDGIPPMLTGGKRTLRIPPELAYGDRGAGCKGGSCLIPPASVLLFDIEYIGKA 208
               SCOP domains d1y0oe_ E: FKBP13                                                                                                             SCOP domains
               CATH domains 1y0oE00 E:805-929  [code=3.10.50.40, no name defined]                                                                         CATH domains
               Pfam domains ----------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ...ee.....eeeeee...........eeeeeeeeee....eeeehhhhh..eeee......hhhhhhhhhh...........eeeeeehhhhh....................eeeeeeeeee. Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -------------------------FKBP_PPIASE  PDB: E:830-929 UniProt: 109-208                                                         PROSITE
                 Transcript ----------------------------------------------------------------------------------------------------------------------------- Transcript
                 1y0o E 805 CEFSVSPSGLAFCDKVVGYGPEAVKGQLIKAHYVGKLENGKVFDSSYNRGKPLTFRIGVGEVIKGWDQGILGSDGIPPMLTGGKRTLRIPPELAYGDRGAGCKGGSCLIPPASVLLFDIEYIGKA 929
                                   814       824       834       844       854       864       874       884       894       904       914       924

Legend:		→ Mismatch	(orange background)
	-	→ Gap	(green background, '-', border residues have a numbering label)
		→ Modified Residue	(blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
	x	→ Chemical Group	(purple background, 'x', labelled with number + name, e.g. ACE or NH2)
	extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '\|'

Asymmetric Unit

Classes(

)

Folds(

)

Superfamilies( (-)

)

Families(

)

Protein Domains( (-)

)

Organisms( (-)

)

Class: Alpha and beta proteins (a+b) (23004)

Fold: FKBP-like (309)

Superfamily: FKBP-like (198)

Family: FKBP immunophilin/proline isomerase (153)

Protein domain: FKBP13 (2)

Thale cress (Arabidopsis thaliana) [TaxId: 3702] (2)

1a	d1y0oa_	A:
1b	d1y0ob_	B:
1c	d1y0oc_	C:
1d	d1y0od_	D:
1e	d1y0oe_	E:

Asymmetric Unit

Classes(

)

Architectures( (-)

)

Topologies( (-)

)

Homologous Superfamilies( (-)

)

Organisms( (-)

)

Class: Alpha Beta (26913)

Architecture: Roll (3276)

Topology: Chitinase A; domain 3 (225)

Homologous Superfamily: [code=3.10.50.40, no name defined] (98)

Thale cress (Arabidopsis thaliana) (3)

1a	1y0oA00	A:5-129
1b	1y0oE00	E:805-929
1c	1y0oB00	B:205-329
1d	1y0oC00	C:405-529
1e	1y0oD00	D:605-729

(no "Pfam Domain" information available for 1Y0O)

Asymmetric Unit(hide GO term definitions)

Chain A,B,C,D,E (FKB13_ARATH | Q9SCY2)

molecular function
	GO:0005528	FK506 binding	Interacting selectively and non-covalently with the 23-membered macrolide lactone FK506.
	GO:0016853	isomerase activity	Catalysis of the geometric or structural changes within one molecule. Isomerase is the systematic name for any enzyme of EC class 5.
	GO:0003755	peptidyl-prolyl cis-trans isomerase activity	Catalysis of the reaction: peptidyl-proline (omega=180) = peptidyl-proline (omega=0).
	GO:0005515	protein binding	Interacting selectively and non-covalently with any protein or protein complex (a complex of two or more proteins that may include other nonprotein molecules).
biological process
	GO:0061077	chaperone-mediated protein folding	The process of inhibiting aggregation and assisting in the covalent and noncovalent assembly of single chain polypeptides or multisubunit complexes into the correct tertiary structure that is dependent on interaction with a chaperone.
	GO:0006457	protein folding	The process of assisting in the covalent and noncovalent assembly of single chain polypeptides or multisubunit complexes into the correct tertiary structure.
	GO:0000413	protein peptidyl-prolyl isomerization	The modification of a protein by cis-trans isomerization of a proline residue.
cellular component
	GO:0009507	chloroplast	A chlorophyll-containing plastid with thylakoids organized into grana and frets, or stroma thylakoids, and embedded in a stroma.
	GO:0009543	chloroplast thylakoid lumen	The cavity enclosed within the chloroplast thylakoid membrane. An example of this component is found in Arabidopsis thaliana.
	GO:0005789	endoplasmic reticulum membrane	The lipid bilayer surrounding the endoplasmic reticulum.
	GO:0009536	plastid	Any member of a family of organelles found in the cytoplasm of plants and some protists, which are membrane-bounded and contain DNA. Plant plastids develop from a common type, the proplastid.
	GO:0009579	thylakoid	A membranous cellular structure that bears the photosynthetic pigments in plants, algae, and cyanobacteria. In cyanobacteria thylakoids are of various shapes and are attached to, or continuous with, the plasma membrane. In eukaryotes they are flattened, membrane-bounded disk-like structures located in the chloroplasts; in the chloroplasts of higher plants the thylakoids form dense stacks called grana. Isolated thylakoid preparations can carry out photosynthetic electron transport and the associated phosphorylation.
	GO:0031977	thylakoid lumen	The volume enclosed by a thylakoid membrane.

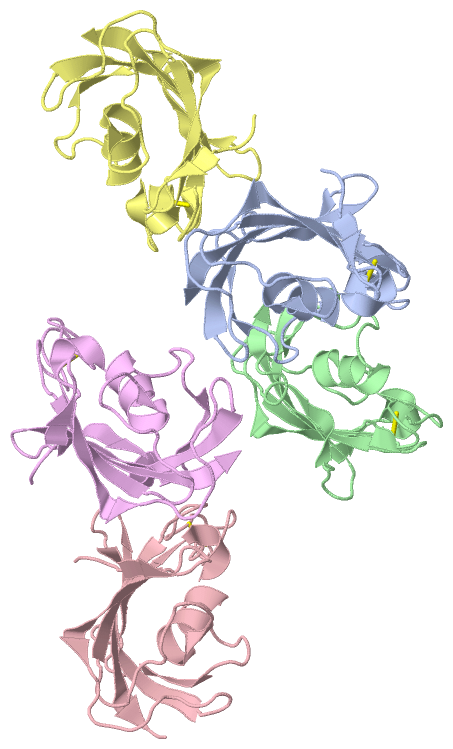

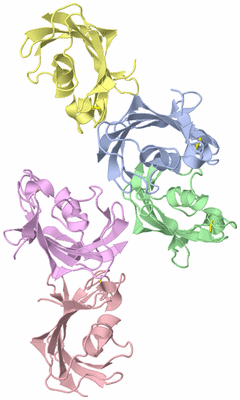

Asymmetric Unit
	Complete Structure
		Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
		WebMol \| AstexViewer[tm]@PDBe (Java Applets, require no local installation except for Java; loading may be slow)
		STRAP (Java WebStart application, automatic local installation, requires Java; full application with system access!)
		RasMol (require local installation)
		Molscript (VRML) (requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

	Ligands, Modified Residues, Ions
(no "Ligands, Modified Residues, Ions" information available for 1y0o)

	Sites
(no "Sites" information available for 1y0o)

	Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 1y0o)

Biological Units
	Complete Structure

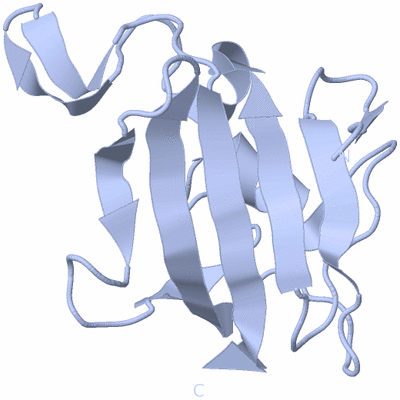

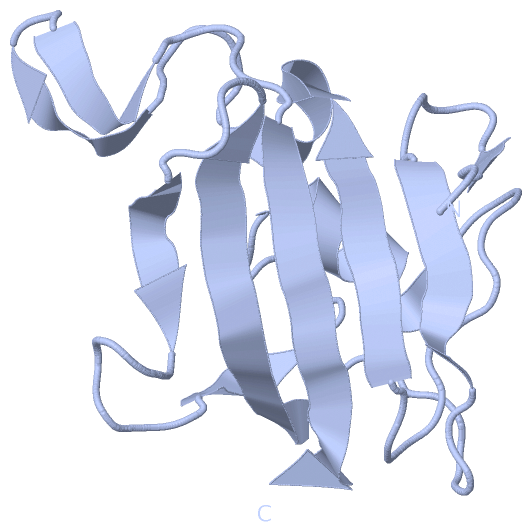

		Biological Unit 1	[ Jena3D ]

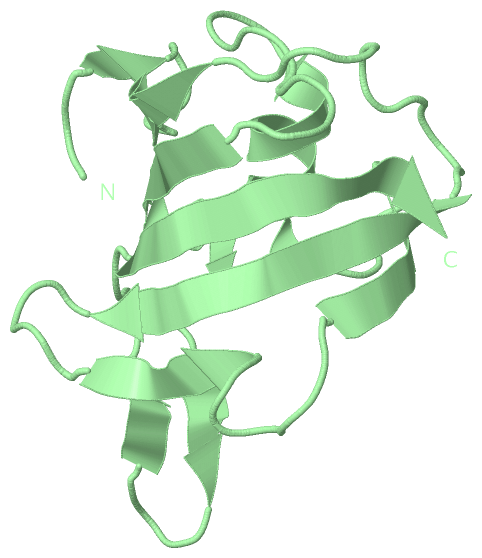

		Biological Unit 2	[ Jena3D ]

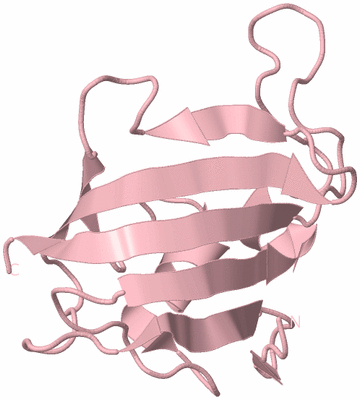

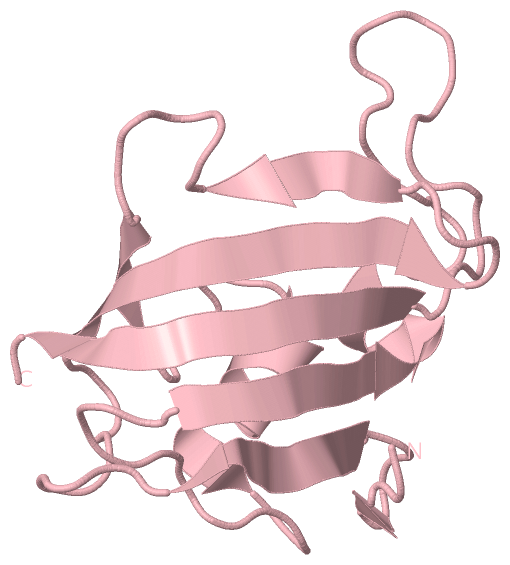

		Biological Unit 3	[ Jena3D ]

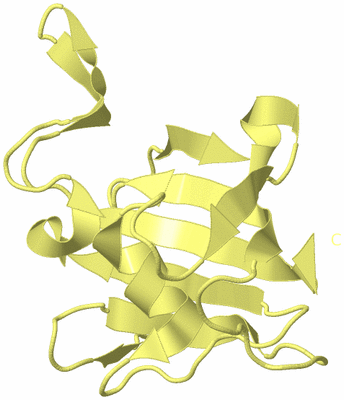

		Biological Unit 4	[ Jena3D ]
		Biological Unit 5	[ Jena3D ]
		Biological Unit 6	[ Jena3D ]

Jmol
	protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick [ Asym. Unit PNG format \| Biol. Unit 1 PNG format \| Biol. Unit 2 PNG format \| Biol. Unit 3 PNG format \| Biol. Unit 4 PNG format \| Biol. Unit 5 PNG format \| Biol. Unit 6 PNG format ](automatic orientation, automatically generated)
Molscript
	protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick [ mono PDF format \| stereo PDF format ](default orientation, automatically generated)

Access by PDB/NDB ID
	1y0o
		Family and Domain Information	:	ProDom \| SYSTERS
		General Structural Information	:	GlycoscienceDB \| MMDB \| NDB \| OCA \| PDB \| PDBe \| PDBj \| PDBsum \| PDBWiki \| PQS \| PROTEOPEDIA
		Orientation in Membranes	:	OPM
		Protein Surface	:	SURFACE
		Secondary Structure	:	DSSP (structure derived) \| HSSP (homology derived)
		Structural Genomics	:	GeneCensus
		Structural Neighbours	:	CE \| VAST
		Structure Classification	:	CATH \| Dali \| SCOP
		Validation and Original Data	:	BMRB Data View \| BMRB Restraints Grid \| EDS \| PROCHECK \| RECOORD \| WHAT_CHECK

Access by UniProt ID/Accession number
	FKB13_ARATH \| Q9SCY2
		Comparative Protein Structure Models	:	ModBase
		Genomic Information	:	Ensembl
		Protein-protein Interaction	:	DIP
		Sequence, Family and Domain Information	:	InterPro \| Pfam \| SMART \| UniProtKB/SwissProt

Access by Enzyme Classificator (EC Number)
	5.2.1.8
		General Enzyme Information	:	BRENDA \| EC-PDB \| Enzyme \| IntEnz
		Pathway	:	KEGG \| MetaCyc

Access by Disease Identifier (MIM ID)
	(no 'MIM ID' available)
		Disease Information	:	OMIM

Access by GenAge ID
	(no 'GenAge ID' available)
		Age Related Information	:	GenAge

Access by PDB/NDB ID
		Domain Information	:	XDom
		Interatomic Contacts of Structural Units	:	CSU
		Ligand-protein Contacts	:	LPC
		Protein Cavities	:	castP
		Sequence and Secondary Structure	:	PDBCartoon
		Structure Alignment	:	STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
		Structure and Sequence Browser	:	STING

Access by UniProt ID/Accession number
	FKB13_ARATH \| Q9SCY2
		Protein Disorder Prediction	:	DisEMBL \| FoldIndex \| GLOBPLOT (for more information see DisProt)

UniProtKB/Swiss-Prot
	FKB13_ARATH \| Q9SCY2	:	1u79

1u79	STRUCTURE OF OXIDIZED ATFKBP13

Description

Compounds

Structural Features

Chains, Units

Ligands, Modified Residues, Ions (0, 0)

Sites (0, 0)

SS Bonds (5, 5)

Cis Peptide Bonds (0, 0)

Sequence-Structure Mapping

SAPs(SNPs)/Variants (0, 0)

PROSITE Motifs (1, 5)

Exons (0, 0)

Sequences/Alignments

Classification and Annotation

SCOP Domains (1, 5)

CATH Domains (1, 5)

Pfam Domains (0, 0)

Gene Ontology (13, 13)

Visualization

Interactive Views

Still Images

Databases and Analysis Tools

Databases

Analysis Tools

Related Entries

Entries Sharing at Least One Protein Chain (UniProt ID)

Related Entries Specified in the PDB File
