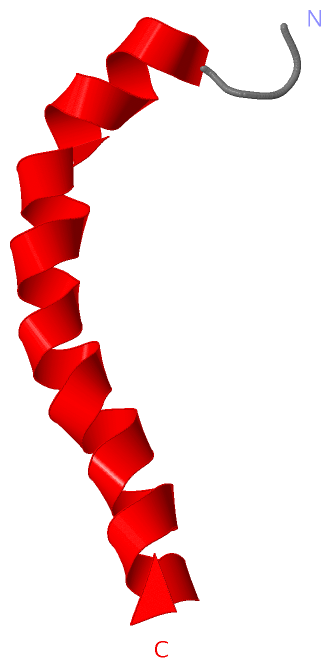

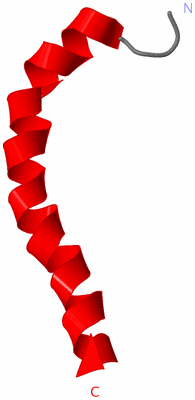

Image NMR Structure - model 1
NMR Structure - model 1  (Jmol Viewer)

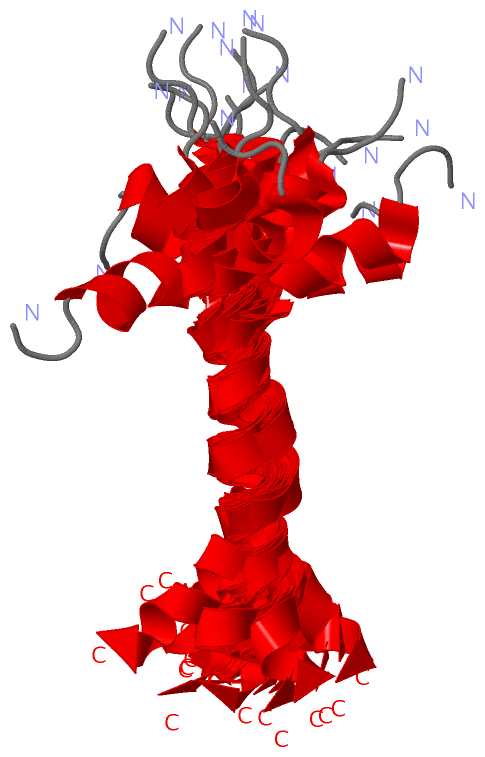

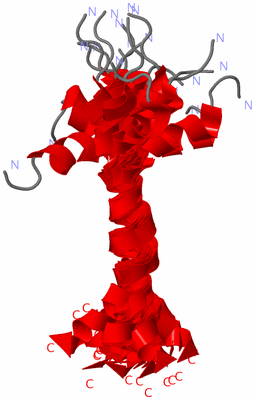

Image NMR Structure - all models
NMR Structure - all models  (Jmol Viewer)

(-) Description

Title :  SOLUTION STRUCTURE OF A RECOMBINANT TYPE I SCULPIN ANTIFREEZE PROTEIN

Authors :  A. H. Y. Kwan, K. Fairley, P. I. Anderberg, C. W. Liew, M. M. Harding, J. P. Mackay
Date :  14 Nov 04  (Deposition) - 15 Mar 05  (Release) - 24 Feb 09  (Revision)
Method :  SOLUTION NMR
Resolution :  NOT APPLICABLE
Chains :  NMR Structure  :  A  (20x)
Keywords :  Type I Antifreeze Protein, Sculpin, Nmr Spectroscopy, Solution Structure, A-Helix (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  A. H. Y. Kwan, K. Fairley, P. I. Anderberg, C. W. Liew, M. M. Harding, J. P. Mackay
Solution Structure Of A Recombinant Type I Sculpin Antifreeze Protein
Biochemistry V. 44 1980 2005
PubMed-ID: 15697223  |  Reference-DOI: 10.1021/BI047782J
(for further references see the PDB file header)

(-) Compounds

Molecule 1 - ANTIFREEZE PEPTIDE SS-3
    Chains: A
    Engineered: YES
    Expression System: ESCHERICHIA COLI BL21(DE3)
    Expression System Plasmid: PGEX-2T
    Expression System Strain: BL21(DE3)
    Expression System Taxid: 469008
    Expression System Vector Type: PLASMID
    Organism Common: SHORTHORN SCULPIN
    Organism Scientific: MYOXOCEPHALUS SCORPIUS
    Organism Taxid: 8097
    Synonym: RSS3

 Structural Features

(-) Chains, Units


NMR Structure (20x):

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (0, 0)

(no "Ligand,Modified Residues,Ions" information available for 1Y04)

(-) Sites  (0, 0)

(no "Site" information available for 1Y04)

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 1Y04)

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 1Y04)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 1Y04)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 1Y04)

(-) Exons   (0, 0)

(no "Exon" information available for 1Y04)

(-) Sequences/Alignments

NMR Structure
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:35
 aligned with ANP3_MYOSC | P04367 from UniProtKB/Swiss-Prot  Length:33

    Alignment length:35
                              1
                              |      8        18        28
            ANP3_MYOSC    - --MNAPARAAAKTAADALAAAKKTAADAAAAAAAA 33
               SCOP domains ----------------------------------- SCOP domains
               CATH domains ----------------------------------- CATH domains
               Pfam domains ----------------------------------- Pfam domains
         Sec.struct. author ...hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh. Sec.struct. author
                 SAPs(SNPs) ----------------------------------- SAPs(SNPs)
                    PROSITE ----------------------------------- PROSITE
                 Transcript ----------------------------------- Transcript
                  1y04 A  1 GSMNAPARAAAKTAADALAAAKKTAADAAAAAAAA 35
                                    10        20        30
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (0, 0)

(no "SCOP Domain" information available for 1Y04)

(-) CATH Domains  (0, 0)

(no "CATH Domain" information available for 1Y04)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 1Y04)

(-) Gene Ontology  (1, 1)

NMR Structure(hide GO term definitions)
Chain A   (ANP3_MYOSC | P04367)
biological process
    GO:0050826    response to freezing    Any process that results in a change in state or activity of a cell or an organism (in terms of movement, secretion, enzyme production, gene expression, etc.) as a result of a freezing stimulus, temperatures below 0 degrees Celsius.

 Visualization

(-) Interactive Views

NMR Structure
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
(no "Ligands, Modified Residues, Ions" information available for 1y04)

  Sites
(no "Sites" information available for 1y04)

  Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 1y04)


(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
[ NMR Structure - model 1 PNG format | NMR Structure - all models PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  1y04
    Family and Domain Information: ProDom | SYSTERS
    General Structural Information: GlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in Membranes: OPM
    Protein Surface: SURFACE
    Secondary Structure: DSSP (structure derived) | HSSP (homology derived)
    Structural Genomics: GeneCensus
    Structural Neighbours: CE | VAST
    Structure Classification: CATH | Dali | SCOP
    Validation and Original Data: BMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  ANP3_MYOSC | P04367
    Comparative Protein Structure Models: ModBase
    Genomic Information: Ensembl
    Protein-protein Interaction: DIP
    Sequence, Family and Domain Information: InterPro | Pfam | SMART | UniProtKB/SwissProt

Access by Enzyme Classificator   (EC Number)
  (no 'Enzyme Classificator' available)
    General Enzyme Information: BRENDA | EC-PDB | Enzyme | IntEnz
    Pathway: KEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease Information: OMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related Information: GenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain Information: XDom
    Interatomic Contacts of Structural Units: CSU
    Ligand-protein Contacts: LPC
    Protein Cavities: castP
    Sequence and Secondary Structure: PDBCartoon
    Structure Alignment: STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence Browser: STING

Access by UniProt ID/Accession number
  ANP3_MYOSC | P04367
    Protein Disorder Prediction: DisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)

 Related Entries

(-) Entries Sharing at Least One Protein Chain (UniProt ID)

UniProtKB/Swiss-Prot
        ANP3_MYOSC | P04367: 1y03

(-) Related Entries Specified in the PDB File

1wfa TYPE 1 ANTIFREEZE PROTEIN FROM WINTER FLOUNDER (4 DEGREES C)
1wfb TYPE 1 ANTIFREEZE PROTEIN FROM WINTER FLOUNDER (-180 DEGREES C)
1y03 THE SAME PROTEIN AT 278 K
