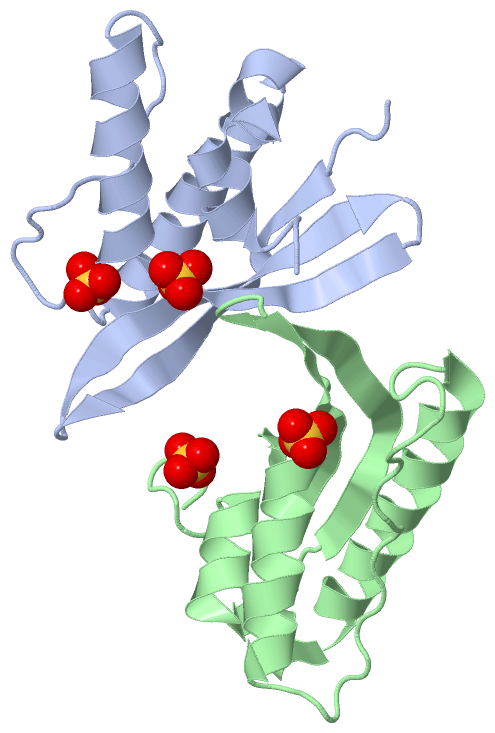

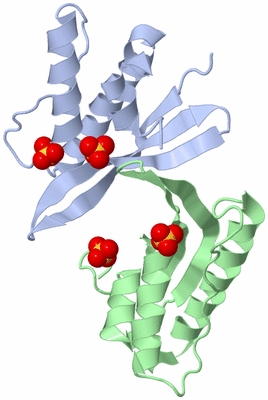

Image Asymmetric Unit
Asymmetric Unit  (Jmol Viewer)

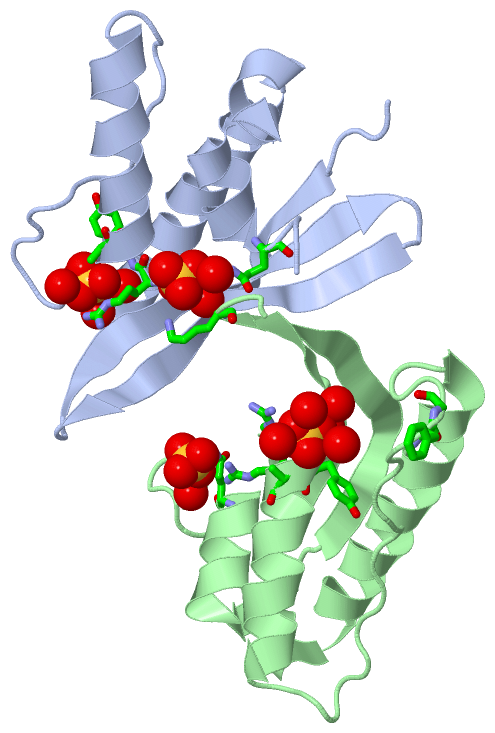

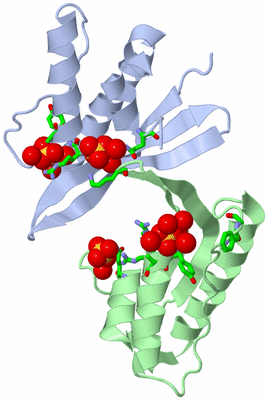

Image Asym. Unit - sites
Asym. Unit - sites  (Jmol Viewer)

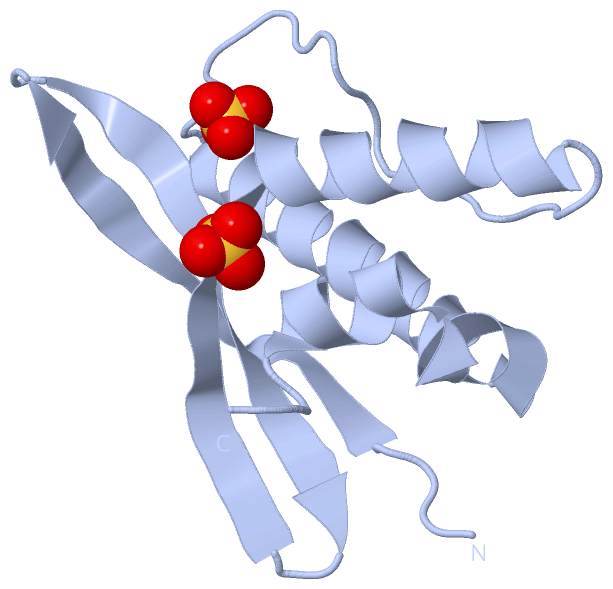

Image Biological Unit 1
Biological Unit 1  (Jmol Viewer)

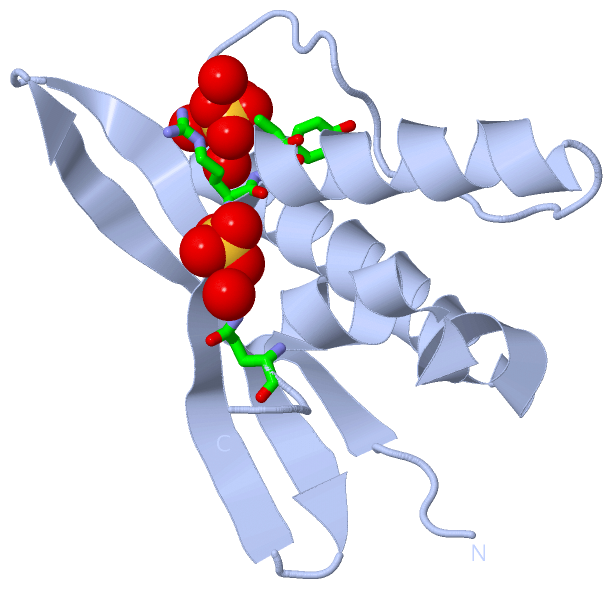

Image Biol. Unit 1 - sites
Biol. Unit 1 - sites  (Jmol Viewer)

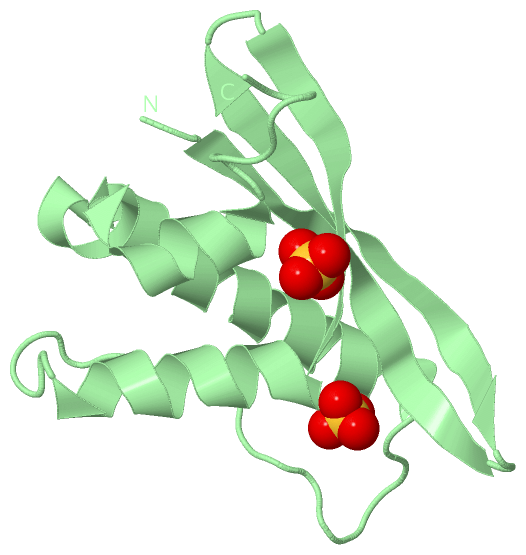

Image Biological Unit 2
Biological Unit 2  (Jmol Viewer)

(-) Description

Title :  CRYSTAL STRUCTURE OF CISK-PX DOMAIN WITH SULFATES

Authors :  Y. Xing, D Liu, R. Zhang, A. Joachimiak, Z. Songyang, W. Xu
Date :  22 Oct 04  (Deposition) - 02 Nov 04  (Release) - 24 Feb 09  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  2.20
Chains :  Asym. Unit :  A,B
Biol. Unit 1:  A  (1x)
Biol. Unit 2:  B  (1x)
Keywords :  Crystal Structure, Cisk, Px Domain, Transferase (Keyword Search: [Gene Ontology, PubMed, Web (Google))

Reference :  Y. Xing, D Liu, R. Zhang, A. Joachimiak, Z. Songyang, W. Xu
Structural Basis Of Membrane Targeting By The Phox Homology Domain Of Cytokine-Independent Survival Kinase (Cisk-Px)
J. Biol. Chem. V. 279 30662 2004
PubMed-ID: 15126499  |  Reference-DOI: 10.1074/JBC.M404107200
(for further references see the PDB file header)

(-) Compounds

Molecule 1 - SERINE/THREONINE-PROTEIN KINASE SGK3
    ChainsA, B
    EC Number2.7.1.37
    EngineeredYES
    Expression SystemESCHERICHIA COLI BL21
    Expression System PlasmidPGEX
    Expression System StrainBL21
    Expression System Taxid511693
    Expression System Vector TypePLASMID
    GeneSGKL, CISK, SGK3
    Organism CommonHOUSE MOUSE
    Organism ScientificMUS MUSCULUS
    Organism Taxid10090
    SynonymSERUM/GLUCOCORTICOID REGULATED KINASE 3, SERUM/GLUCOCORTICOID REGULATED KINASE-LIKE, CYTOKINE INDEPENDENT SURVIVAL KINASE

 Structural Features

(-) Chains, Units

  12
Asymmetric Unit AB
Biological Unit 1 (1x)A
Biological Unit 2 (1x) B

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (1, 4)

Asymmetric Unit (1, 4)
No.NameCountTypeFull Name
1SO44Ligand/IonSULFATE ION
Biological Unit 1 (1, 2)
No.NameCountTypeFull Name
1SO42Ligand/IonSULFATE ION
Biological Unit 2 (1, 2)
No.NameCountTypeFull Name
1SO42Ligand/IonSULFATE ION

(-) Sites  (4, 4)

Asymmetric Unit (4, 4)
No.NameEvidenceResiduesDescription
1AC1SOFTWAREARG A:44 , TYR A:45 , ALA A:46 , HOH A:205 , HOH A:207 , HOH A:210 , HOH A:241BINDING SITE FOR RESIDUE SO4 A 201
2AC2SOFTWAREARG A:43 , GLN A:112 , HOH A:230 , LYS B:21 , PHE B:72 , GLY B:73 , HOH B:263BINDING SITE FOR RESIDUE SO4 A 202
3AC3SOFTWAREARG B:44 , TYR B:45 , ALA B:46 , HOH B:205 , HOH B:208 , HOH B:212 , HOH B:243 , HOH B:267BINDING SITE FOR RESIDUE SO4 B 203
4AC4SOFTWAREARG B:43 , GLN B:112 , HOH B:239BINDING SITE FOR RESIDUE SO4 B 204

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 1XTN)

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 1XTN)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 1XTN)

(-) PROSITE Motifs  (1, 1)

Asymmetric Unit (1, 1)
 PROSITEUniProtKBPDB
No.IDACDescriptionIDLocationCountLocation
1PXPS50195 PX domain profile.SGK3_MOUSE12-124  1A:6-115
Biological Unit 1 (1, 1)
 PROSITEUniProtKBPDB
No.IDACDescriptionIDLocationCountLocation
1PXPS50195 PX domain profile.SGK3_MOUSE12-124  1A:6-115
Biological Unit 2 (, 0)
 PROSITEUniProtKBPDB
No.IDACDescriptionIDLocationCountLocation
1PXPS50195 PX domain profile.SGK3_MOUSE12-124  0-

(-) Exons   (0, 0)

(no "Exon" information available for 1XTN)

(-) Sequences/Alignments

Asymmetric Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:111
 aligned with SGK3_MOUSE | Q9ERE3 from UniProtKB/Swiss-Prot  Length:496

    Alignment length:111
                                    20        30        40        50        60        70        80        90       100       110       120
           SGK3_MOUSE    11 ESCPSVSIPSSDEHREKKKRFTVYKVLVSVGRSEWFVFRRYAEFDKLYNSLKKQFPAMALKIPAKRIFGDNFDPDFIKQRRAGLNEFIQNLVRYPELYNHPDVRAFLQMDS 121
               SCOP domains d1xtna_ A: Serine/threonine-protein kinase Sgk3, Cisk                                                           SCOP domains
               CATH domains 1xtnA00 A:5-115 PX Domain                                                                                       CATH domains
               Pfam domains --------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ....eeeeeeeeeeee..eeeeeeeeeeee..eeeeeeeehhhhhhhhhhhhhhh.................hhhhhhhhhhhhhhhhhhhh.hhhhhhhhhhhhhh.... Sec.struct. author
                 SAPs(SNPs) --------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -PX  PDB: A:6-115 UniProt: 12-124                                                                               PROSITE
                 Transcript --------------------------------------------------------------------------------------------------------------- Transcript
                 1xtn A   5 ESCPSVSIPSSDEHREKKKRFTVYKVLVSVGRSEWFVFRRYAEFDKLYNSLKKQFPAMALKIPAKRIFGDNFDPDFIKQRRAGLNEFIQNLVRYPELYNHPDVRAFLQMDS 115
                                    14        24        34        44        54        64        74        84        94       104       114

Chain B from PDB  Type:PROTEIN  Length:113
 aligned with SGK3_MOUSE | Q9ERE3 from UniProtKB/Swiss-Prot  Length:496

    Alignment length:113
                                    22        32        42        52        62        72        82        92       102       112       122
           SGK3_MOUSE    13 CPSVSIPSSDEHREKKKRFTVYKVLVSVGRSEWFVFRRYAEFDKLYNSLKKQFPAMALKIPAKRIFGDNFDPDFIKQRRAGLNEFIQNLVRYPELYNHPDVRAFLQMDSPRHQ 125
               SCOP domains d1xtnb_ B: Serine/threonine-protein kinase Sgk3, Cisk                                                             SCOP domains
               CATH domains 1xtnB00 B:7-119 PX Domain                                                                                         CATH domains
           Pfam domains (1) PX-1xtnB01 B:7-114                                                                                          ----- Pfam domains (1)
           Pfam domains (2) PX-1xtnB02 B:7-114                                                                                          ----- Pfam domains (2)
         Sec.struct. author ..eeeeeeeeeeee..eeeeeeeeeeee..eeeeeeeehhhhhhhhhhhhh...................hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh........ Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE PX  PDB: - UniProt: 12-124                                                                                      - PROSITE
                 Transcript ----------------------------------------------------------------------------------------------------------------- Transcript
                 1xtn B   7 CPSVSIPSSDEHREKKKRFTVYKVLVSVGRSEWFVFRRYAEFDKLYNSLKKQFPAMALKIPAKRIFGDNFDPDFIKQRRAGLNEFIQNLVRYPELYNHPDVRAFLQMDSPRHQ 119
                                    16        26        36        46        56        66        76        86        96       106       116

   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (1, 2)

Asymmetric Unit

(-) CATH Domains  (1, 2)

Asymmetric Unit
(-)
Class: Alpha Beta (26913)

(-) Pfam Domains  (1, 2)

Asymmetric Unit
(-)
Family: PX (17)

(-) Gene Ontology  (25, 25)

Asymmetric Unit(hide GO term definitions)
Chain A,B   (SGK3_MOUSE | Q9ERE3)
molecular function
    GO:0005524    ATP binding    Interacting selectively and non-covalently with ATP, adenosine 5'-triphosphate, a universally important coenzyme and enzyme regulator.
    GO:0005246    calcium channel regulator activity    Modulates the activity of a calcium channel.
    GO:0017081    chloride channel regulator activity    Modulates the activity of a chloride channel.
    GO:0016301    kinase activity    Catalysis of the transfer of a phosphate group, usually from ATP, to a substrate molecule.
    GO:0000166    nucleotide binding    Interacting selectively and non-covalently with a nucleotide, any compound consisting of a nucleoside that is esterified with (ortho)phosphate or an oligophosphate at any hydroxyl group on the ribose or deoxyribose.
    GO:0035091    phosphatidylinositol binding    Interacting selectively and non-covalently with any inositol-containing glycerophospholipid, i.e. phosphatidylinositol (PtdIns) and its phosphorylated derivatives.
    GO:0015459    potassium channel regulator activity    Modulates potassium channel activity via direct interaction interaction with a potassium channel (binding or modification).
    GO:0004672    protein kinase activity    Catalysis of the phosphorylation of an amino acid residue in a protein, usually according to the reaction: a protein + ATP = a phosphoprotein + ADP.
    GO:0004674    protein serine/threonine kinase activity    Catalysis of the reactions: ATP + protein serine = ADP + protein serine phosphate, and ATP + protein threonine = ADP + protein threonine phosphate.
    GO:0017080    sodium channel regulator activity    Modulates the activity of a sodium channel.
    GO:0016740    transferase activity    Catalysis of the transfer of a group, e.g. a methyl group, glycosyl group, acyl group, phosphorus-containing, or other groups, from one compound (generally regarded as the donor) to another compound (generally regarded as the acceptor). Transferase is the systematic name for any enzyme of EC class 2.
biological process
    GO:0006883    cellular sodium ion homeostasis    Any process involved in the maintenance of an internal steady state of sodium ions at the level of a cell.
    GO:0035556    intracellular signal transduction    The process in which a signal is passed on to downstream components within the cell, which become activated themselves to further propagate the signal and finally trigger a change in the function or state of the cell.
    GO:2001240    negative regulation of extrinsic apoptotic signaling pathway in absence of ligand    Any process that stops, prevents or reduces the frequency, rate or extent of extrinsic apoptotic signaling pathway in absence of ligand.
    GO:0018105    peptidyl-serine phosphorylation    The phosphorylation of peptidyl-serine to form peptidyl-O-phospho-L-serine.
    GO:0016310    phosphorylation    The process of introducing a phosphate group into a molecule, usually with the formation of a phosphoric ester, a phosphoric anhydride or a phosphoric amide.
    GO:0010765    positive regulation of sodium ion transport    Any process that increases the frequency, rate or extent of the directed movement of sodium ions (Na+) into, out of or within a cell, or between cells, by means of some agent such as a transporter or pore.
    GO:0032411    positive regulation of transporter activity    Any process that activates or increases the activity of a transporter.
    GO:0006468    protein phosphorylation    The process of introducing a phosphate group on to a protein.
    GO:0001558    regulation of cell growth    Any process that modulates the frequency, rate, extent or direction of cell growth.
    GO:0042127    regulation of cell proliferation    Any process that modulates the frequency, rate or extent of cell proliferation.
cellular component
    GO:0031410    cytoplasmic vesicle    A vesicle found in the cytoplasm of a cell.
    GO:0005769    early endosome    A membrane-bounded organelle that receives incoming material from primary endocytic vesicles that have been generated by clathrin-dependent and clathrin-independent endocytosis; vesicles fuse with the early endosome to deliver cargo for sorting into recycling or degradation pathways.
    GO:0005768    endosome    A vacuole to which materials ingested by endocytosis are delivered.
    GO:0055037    recycling endosome    An organelle consisting of a network of tubules that functions in targeting molecules, such as receptors transporters and lipids, to the plasma membrane.

 Visualization

(-) Interactive Views

Asymmetric Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
    SO4  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]

  Sites
    AC1  [ RasMol ]  +environment [ RasMol ]
    AC2  [ RasMol ]  +environment [ RasMol ]
    AC3  [ RasMol ]  +environment [ RasMol ]
    AC4  [ RasMol ]  +environment [ RasMol ]

  Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 1xtn)

Biological Units
  Complete Structure
    Biological Unit 1  [ Jena3D ]
    Biological Unit 2  [ Jena3D ]

(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  1xtn
    Family and Domain InformationProDom | SYSTERS
    General Structural InformationGlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in MembranesOPM
    Protein SurfaceSURFACE
    Secondary StructureDSSP (structure derived) | HSSP (homology derived)
    Structural GenomicsGeneCensus
    Structural NeighboursCE | VAST
    Structure ClassificationCATH | Dali | SCOP
    Validation and Original DataBMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  SGK3_MOUSE | Q9ERE3
    Comparative Protein Structure ModelsModBase
    Genomic InformationEnsembl
    Protein-protein InteractionDIP
    Sequence, Family and Domain InformationInterPro | Pfam | SMART | UniProtKB/SwissProt

Access by Enzyme Classificator   (EC Number)
  2.7.1.37
    General Enzyme InformationBRENDA | EC-PDB | Enzyme | IntEnz
    PathwayKEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease InformationOMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related InformationGenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain InformationXDom
    Interatomic Contacts of Structural UnitsCSU
    Ligand-protein ContactsLPC
    Protein CavitiescastP
    Sequence and Secondary StructurePDBCartoon
    Structure AlignmentSTRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence BrowserSTING

Access by UniProt ID/Accession number
  SGK3_MOUSE | Q9ERE3
    Protein Disorder PredictionDisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)

 Related Entries

(-) Entries Sharing at Least One Protein Chain (UniProt ID)

UniProtKB/Swiss-Prot
        SGK3_MOUSE | Q9ERE31xte

(-) Related Entries Specified in the PDB File

1xte
