1XSO - JenaLib

Title :   THREE-DIMENSIONAL STRUCTURE OF XENOPUS LAEVIS CU,ZN SUPEROXIDE DISMUTASE B DETERMINED BY X-RAY CRYSTALLOGRAPHY AT 1.5 ANGSTROMS RESOLUTION

Authors :   K. Djinovic Carugo, A. Coda, A. Battistoni, M. T. Carri, F. Polticelli, A. Desideri, G. Rotilio, K. S. Wilson, M. Bolognesi

Date :   14 Mar 95 (Deposition) - 10 Jul 95 (Release) - 24 Feb 09 (Revision)

Method :   X-RAY DIFFRACTION

Resolution :   1.49

Chains :   Asym./Biol. Unit : A,B

Keywords :   Oxidoreductase (Superoxide Acceptor) (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :   K. Djinovic Carugo, A. Battistoni, M. T. Carri, F. Polticelli, A. Desideri, G. Rotilio, A. Coda, K. S. Wilson, M. Bolognesi
Three-Dimensional Structure Of Xenopus Laevis Cu, Zn Superoxide Dismutase B Determined By X-Ray Crystallography At 1. 5 A Resolution.
Acta Crystallogr. , Sect. D V. 52 176 1996
PubMed-ID: 15299740 | Reference-DOI: 10.1107/S0907444995007608
(for further references see the PDB file header)

Compounds

Structural Features

Chains, Units

Ligands, Modified Residues, Ions (2, 4)

Sites (6, 6)

SS Bonds (2, 2)

Cis Peptide Bonds (0, 0)

Sequence-Structure Mapping

SAPs(SNPs)/Variants (0, 0)

PROSITE Motifs (2, 4)

Exons (0, 0)

Sequences/Alignments

Asymmetric/Biological Unit

Reformat:	Number of residues per line = ('0' or empty: single-line sequence representation)
	Number of residues per labelling interval =
	UniProt sequence: complete aligned part

Show mapping:	SCOP domains	CATH domains	Pfam domains	Secondary structure (by author)
	SAPs(SNPs)	PROSITE motifs	Exons
	(details for a mapped element are shown in a popup box when the mouse pointer rests over it)

Chain A from PDB  Type:PROTEIN  Length:150
 aligned with SOD1B_XENLA | P15107 from UniProtKB/Swiss-Prot  Length:151

    Alignment length:150
                                    11        21        31        41        51        61        71        81        91       101       111       121       131       141       151
          SOD1B_XENLA     2 VKAVCVLAGSGDVKGVVHFEQQDEGAVSVEGKIEGLTDGLHGFHIHVFGDNTNGCMSAGSHFNPENKNHGAPGDTDRHVGDLGNVTAEGGVAQFKITDSLISLKGPNSIIGRTAVVHEKADDLGKGGNDESLKTGNAGGRLACGVIGYSP 151
               SCOP domains d1xsoa_ A: Cu,Zn superoxide dismutase, SOD                                                                                                             SCOP domains
               CATH domains 1xsoA00 A:2-151  [code=2.60.40.200, no name defined]                                                                                                   CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------ Pfam domains
         Sec.struct. author .eeeeee......eeeeeeee.....eeeeeeee....eeeeeeee.......hhhhh.........................eeee...eeeeeeee..............eeeee............hhhhh.....eeeeee..... Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE -----------------------------------------SOD_CU_ZN_1----------------------------------------------------------------------------------SOD_CU_ZN_2 ---- PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------ Transcript
                 1xso A   2 VKAVCVLAGSGDVKGVVHFEQQDEGAVSVEGKIEGLTDGLHGFHIHVFGDNTNGCMSAGSHFNPENKNHGAPGDTDRHVGDLGNVTAEGGVAQFKITDSLISLKGPNSIIGRTAVVHEKADDLGKGGNDESLKTGNAGGRLACGVIGYSP 151
                                    11        21    |   30        40        50        60        70        80       |91       101       111       121       131       141       151
                                                  25A                                                             88|
                                                                                                                   90

Chain B from PDB  Type:PROTEIN  Length:150
 aligned with SOD1B_XENLA | P15107 from UniProtKB/Swiss-Prot  Length:151

    Alignment length:150
                                    11        21        31        41        51        61        71        81        91       101       111       121       131       141       151
          SOD1B_XENLA     2 VKAVCVLAGSGDVKGVVHFEQQDEGAVSVEGKIEGLTDGLHGFHIHVFGDNTNGCMSAGSHFNPENKNHGAPGDTDRHVGDLGNVTAEGGVAQFKITDSLISLKGPNSIIGRTAVVHEKADDLGKGGNDESLKTGNAGGRLACGVIGYSP 151
               SCOP domains d1xsob_ B: Cu,Zn superoxide dismutase, SOD                                                                                                             SCOP domains
               CATH domains 1xsoB00 B:2-151  [code=2.60.40.200, no name defined]                                                                                                   CATH domains
           Pfam domains (1) --Sod_Cu-1xsoB01 B:4-147                                                                                                                          ---- Pfam domains (1)
           Pfam domains (2) --Sod_Cu-1xsoB02 B:4-147                                                                                                                          ---- Pfam domains (2)
         Sec.struct. author .eeeeee......eeeeeee......eeeeeeee....eeeeeeee.......hhhh..........................eeee...eeeeeeee..............eeeee.............hhhh.....eeeeee..... Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE -----------------------------------------SOD_CU_ZN_1----------------------------------------------------------------------------------SOD_CU_ZN_2 ---- PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------ Transcript
                 1xso B   2 VKAVCVLAGSGDVKGVVHFEQQDEGAVSVEGKIEGLTDGLHGFHIHVFGDNTNGCMSAGSHFNPENKNHGAPGDTDRHVGDLGNVTAEGGVAQFKITDSLISLKGPNSIIGRTAVVHEKADDLGKGGNDESLKTGNAGGRLACGVIGYSP 151
                                    11        21    |   30        40        50        60        70        80       |91       101       111       121       131       141       151
                                                  25A                                                             88|
                                                                                                                   90

Legend:		→ Mismatch	(orange background)
	-	→ Gap	(green background, '-', border residues have a numbering label)
		→ Modified Residue	(blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
	x	→ Chemical Group	(purple background, 'x', labelled with number + name, e.g. ACE or NH2)
	extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '\|'

Classification and Annotation

SCOP Domains (1, 2)

CATH Domains (1, 2)

Pfam Domains (1, 2)

Gene Ontology (10, 10)

Asymmetric/Biological Unit(hide GO term definitions)

Chain A,B (SOD1B_XENLA | P15107)

molecular function
	GO:0016209	antioxidant activity	Inhibition of the reactions brought about by dioxygen (O2) or peroxides. Usually the antioxidant is effective because it can itself be more easily oxidized than the substance protected. The term is often applied to components that can trap free radicals, thereby breaking the chain reaction that normally leads to extensive biological damage.
	GO:0046872	metal ion binding	Interacting selectively and non-covalently with any metal ion.
	GO:0016491	oxidoreductase activity	Catalysis of an oxidation-reduction (redox) reaction, a reversible chemical reaction in which the oxidation state of an atom or atoms within a molecule is altered. One substrate acts as a hydrogen or electron donor and becomes oxidized, while the other acts as hydrogen or electron acceptor and becomes reduced.
	GO:0004784	superoxide dismutase activity	Catalysis of the reaction: 2 superoxide + 2 H+ = O2 + hydrogen peroxide.
biological process
	GO:0098869	cellular oxidant detoxification	Any process carried out at the cellular level that reduces or removes the toxicity superoxide radicals or hydrogen peroxide.
	GO:0055114	oxidation-reduction process	A metabolic process that results in the removal or addition of one or more electrons to or from a substance, with or without the concomitant removal or addition of a proton or protons.
	GO:0019430	removal of superoxide radicals	Any process, acting at the cellular level, involved in removing superoxide radicals (O2-) from a cell or organism, e.g. by conversion to dioxygen (O2) and hydrogen peroxide (H2O2).
	GO:0006801	superoxide metabolic process	The chemical reactions and pathways involving superoxide, the superoxide anion O2- (superoxide free radical), or any compound containing this species.
cellular component
	GO:0005737	cytoplasm	All of the contents of a cell excluding the plasma membrane and nucleus, but including other subcellular structures.
	GO:0005634	nucleus	A membrane-bounded organelle of eukaryotic cells in which chromosomes are housed and replicated. In most cells, the nucleus contains all of the cell's chromosomes except the organellar chromosomes, and is the site of RNA synthesis and processing. In some species, or in specialized cell types, RNA metabolism or DNA replication may be absent.

Visualization

Interactive Views

Asymmetric/Biological Unit
	Complete Structure
		Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
		WebMol \| AstexViewer[tm]@PDBe (Java Applets, require no local installation except for Java; loading may be slow)
		STRAP (Java WebStart application, automatic local installation, requires Java; full application with system access!)
		RasMol (require local installation)
		Molscript (VRML) (requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

	Ligands, Modified Residues, Ions
		CU	[ RasMol \| Jena3D ]	+environment [ RasMol \| Jena3D ]
		ZN	[ RasMol \| Jena3D ]	+environment [ RasMol \| Jena3D ]

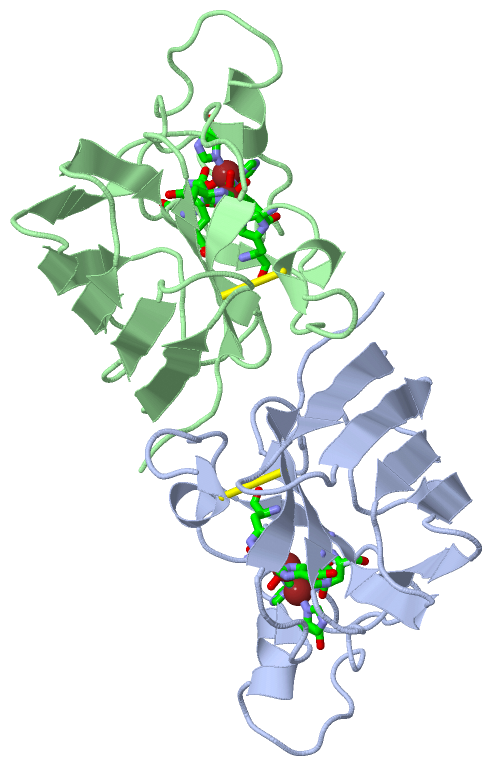

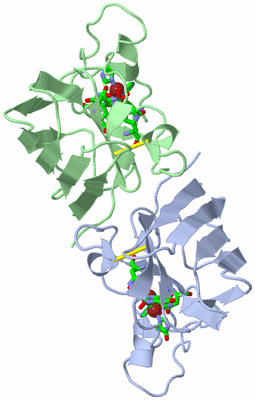

	Sites
		A	[ RasMol ]	+environment [ RasMol ]
		AC1	[ RasMol ]	+environment [ RasMol ]
		AC2	[ RasMol ]	+environment [ RasMol ]
		AC3	[ RasMol ]	+environment [ RasMol ]
		AC4	[ RasMol ]	+environment [ RasMol ]
		B	[ RasMol ]	+environment [ RasMol ]

	Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 1xso)

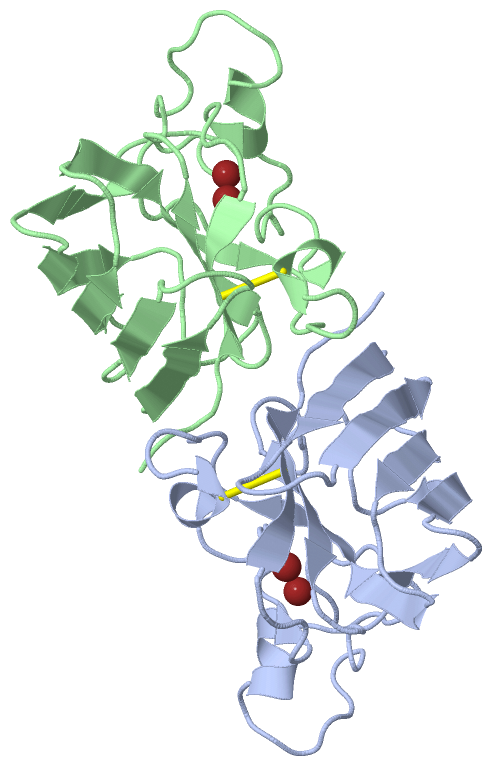

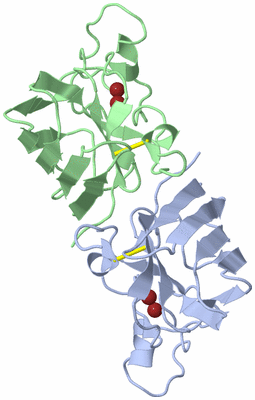

Still Images

Databases and Analysis Tools

Databases

Access by PDB/NDB ID
	1xso
		Family and Domain Information	:	ProDom \| SYSTERS
		General Structural Information	:	GlycoscienceDB \| MMDB \| NDB \| OCA \| PDB \| PDBe \| PDBj \| PDBsum \| PDBWiki \| PQS \| PROTEOPEDIA
		Orientation in Membranes	:	OPM
		Protein Surface	:	SURFACE
		Secondary Structure	:	DSSP (structure derived) \| HSSP (homology derived)
		Structural Genomics	:	GeneCensus
		Structural Neighbours	:	CE \| VAST
		Structure Classification	:	CATH \| Dali \| SCOP
		Validation and Original Data	:	BMRB Data View \| BMRB Restraints Grid \| EDS \| PROCHECK \| RECOORD \| WHAT_CHECK

Access by UniProt ID/Accession number
	SOD1B_XENLA \| P15107
		Comparative Protein Structure Models	:	ModBase
		Genomic Information	:	Ensembl
		Protein-protein Interaction	:	DIP
		Sequence, Family and Domain Information	:	InterPro \| Pfam \| SMART \| UniProtKB/SwissProt

Access by Enzyme Classificator (EC Number)
	1.15.1.1
		General Enzyme Information	:	BRENDA \| EC-PDB \| Enzyme \| IntEnz
		Pathway	:	KEGG \| MetaCyc

Access by Disease Identifier (MIM ID)
	(no 'MIM ID' available)
		Disease Information	:	OMIM

Access by GenAge ID
	(no 'GenAge ID' available)
		Age Related Information	:	GenAge

Description
