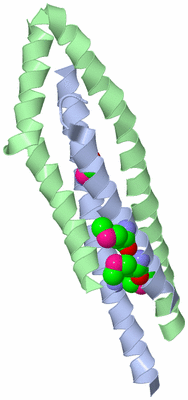

Image Asym./Biol. Unit
Asym./Biol. Unit  (Jmol Viewer)

(-) Description

Title :  CRYSTAL STRUCTURE OF THE CESA-ESPA COMPLEX

Authors :  C. K. Yip, B. B. Finlay, N. C. J. Strynadka
Date :  06 Oct 04  (Deposition) - 28 Dec 04  (Release) - 24 Feb 09  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  2.80
Chains :  Asym./Biol. Unit :  A,B
Keywords :  Coiled Coil, Helix Bundle, Heterodimer, Structural Protein/Chaperone Complex (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  C. K. Yip, B. B. Finlay, N. C. J. Strynadka
Structural Characterization Of A Type Iii Secretion System Filament Protein In Complex With Its Chaperone.
Nat. Struct. Mol. Biol. V. 12 75 2005
PubMed-ID: 15619638  |  Reference-DOI: 10.1038/NSMB879
(for further references see the PDB file header)

(-) Compounds

Molecule 1 - ESPA
    Chains: A
    Engineered: YES
    Expression System: ESCHERICHIA COLI BL21
    Expression System Plasmid: PET28A
    Expression System Strain: BL21
    Expression System Taxid: 511693
    Expression System Vector Type: PLASMID
    Gene: ESPA
    Organism Scientific: ESCHERICHIA COLI
    Organism Taxid: 562

Molecule 2 - Z5138 GENE PRODUCT
    Chains: B
    Engineered: YES
    Expression System: ESCHERICHIA COLI BL21
    Expression System Plasmid: PET28A
    Expression System Strain: BL21
    Expression System Taxid: 511693
    Expression System Vector Type: PLASMID
    Gene: ORF3
    Mutation: YES
    Organism Scientific: ESCHERICHIA COLI
    Organism Taxid: 562

 Structural Features

(-) Chains, Units

  12
Asymmetric/Biological Unit : AB

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (1, 4)

Asymmetric/Biological Unit (1, 4)
No.NameCountTypeFull Name
1MSE4Mod. Amino AcidSELENOMETHIONINE

(-) Sites  (0, 0)

(no "Site" information available for 1XOU)

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 1XOU)

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 1XOU)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 1XOU)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 1XOU)

(-) Exons   (0, 0)

(no "Exon" information available for 1XOU)

(-) Sequences/Alignments

Asymmetric/Biological Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:72
 aligned with Q47184_ECOLX | Q47184 from UniProtKB/TrEMBL  Length:192

    Alignment length:160
                                    40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190
         Q47184_ECOLX    31 DVIDLFNKLGVFQAAILMFAYMYQAQSDLSIAKFADMNEASKESTTAQKMANLVDAKIADVQSSSDKNAKAQLPDEVISYINDPRNDITISGIDNINAQLGAGDLQTVKAAISAKANNLTTTVNNSQLEIQQMSNTLNLLTSARSDMQSLQYRTISGISL 190
               SCOP domains d1xoua_ A: Secreted protein E                                                                                        spA                                         SCOP domains
               CATH domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains EspA-1xouA01 A:31-187                                                                                                                                        --- Pfam domains
         Sec.struct. author ...hhhhhhhhhhhhhhhhhhhhhhhhh.----------------------------------------------------------------------------------------hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh. Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ---------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ---------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1xou A  31 DVIDLFNKLGVFQAAILmFAYmYQAQSDL----------------------------------------------------------------------------------------NLTTTVNNSQLEIQQmSNTLNLLTSARSDmQSLQYRTISGISL 190
                                    40       |50 |      |-         -         -         -         -         -         -         -         -       150       160  |    170      |180       190
                                            48-MSE     59                                                                                      148            163-MSE       177-MSE
                                                52-MSE


Chain B from PDB  Type:PROTEIN  Length:84
 aligned with O52124_ECOLX | O52124 from UniProtKB/TrEMBL  Length:107

    Alignment length:84
                                    11        21        31        41        51        61        71        81
         O52124_ECOLX     2 SIVSQTRNKELLDKKIRSEIEAIKKIIAEFDVVKESVNELSEKAKTDPQAAEKLNKLIEGYTYGEERKLYDSALSKIEKLIETL  85
               SCOP domains d1xoub_ B: EspA chaperone CesA                                                       SCOP domains
               CATH domains ------------------------------------------------------------------------------------ CATH domains
               Pfam domains -CesA-1xouB01 B:3-85                                                                 Pfam domains
         Sec.struct. author hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh. Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------ PROSITE
                 Transcript ------------------------------------------------------------------------------------ Transcript
                 1xou B   2 GIVSQTRNKELLDKKIRSEIEAIKKIIAEFDVVKESVNELSEKAKTDPQAAEKLNKLIEGYTYGEERKLYDSALSKIEKLIETL  85
                                    11        21        31        41        51        61        71        81
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (2, 2)

Asymmetric/Biological Unit
(-)
Class: All alpha proteins (14657)

(-) CATH Domains  (0, 0)

(no "CATH Domain" information available for 1XOU)

(-) Pfam Domains  (2, 2)

Asymmetric/Biological Unit
(-)
Clan: no clan defined [family: CesA] (1)
(-)
Clan: no clan defined [family: EspA] (1)

(-) Gene Ontology  (0, 0)

Asymmetric/Biological Unit(hide GO term definitions)
    (no "Gene Ontology" information available for 1XOU)

 Visualization

(-) Interactive Views

Asymmetric/Biological Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
    MSE  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]

  Sites
(no "Sites" information available for 1xou)

  Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 1xou)


(-) Still Images

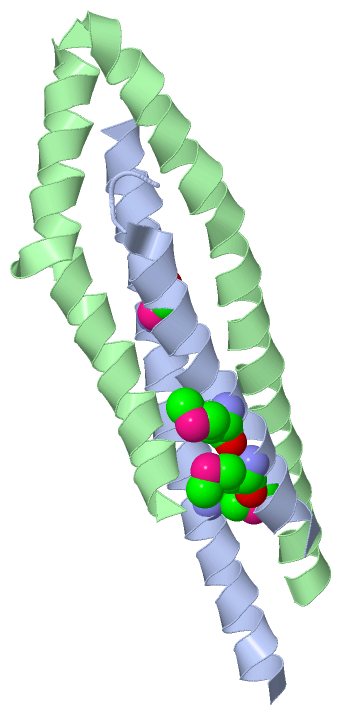

Jmol
