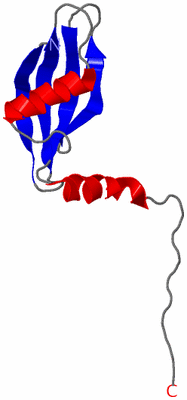

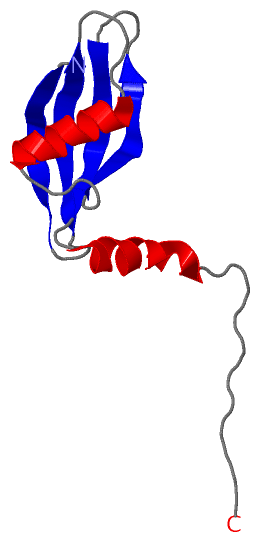

Image NMR Structure - model 1
NMR Structure - model 1  (Jmol Viewer)

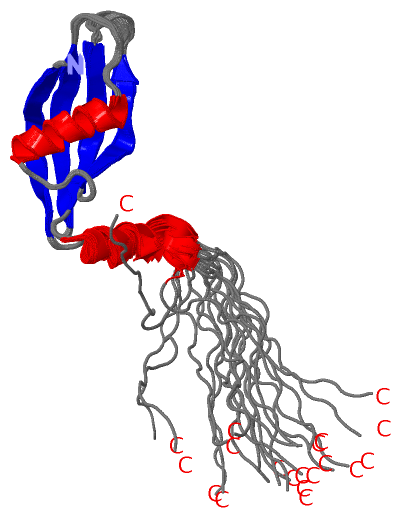

Image NMR Structure - all models
NMR Structure - all models  (Jmol Viewer)

(-) Description

Title :  SOLUTION STRUCTURE OF METHANOSARCINA MAZEI PROTEIN RPS24E: THE NORTHEAST STRUCTURAL GENOMICS CONSORTIUM TARGET MAR11

Authors :  G. Liu, R. Xiao, D. Parish, L. Ma, D. Sukumaran, T. Acton, G. T. Montelione, T. Szyperski, Northeast Structural Genomics Consortium (Nesg)
Date :  04 Oct 04  (Deposition) - 14 Dec 04  (Release) - 24 Feb 09  (Revision)
Method :  SOLUTION NMR
Resolution :  NOT APPLICABLE
Chains :  NMR Structure  :  A  (20x)
Keywords :  Beta+Alpha, Gft Nmr, Structural Genomics, Protein Structure Initiative, Psi, Nesg, Mar11, Northeast Structural Genomics Consortium, Ribosome (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  G. Liu, R. Xiao, D. Parish, L. Ma, D. Sukumaran, T. Acton, G. T. Montelione, T. Szyperski
Solution Structure Of Methanosarcina Mazei Protein Rps24E: The Northeast Structural Genomics Consortium Target Mar11
To Be Published
PubMed: search
(for further references see the PDB file header)

(-) Compounds

Molecule 1 - 30S RIBOSOMAL PROTEIN S24E
    Chains: A
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Taxid: 562
    Gene: RPS24E
    Organism Scientific: METHANOSARCINA MAZEI
    Organism Taxid: 2209

 Structural Features

(-) Chains, Units


NMR Structure (20x):

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (0, 0)

(no "Ligand,Modified Residues,Ions" information available for 1XN9)

(-) Sites  (0, 0)

(no "Site" information available for 1XN9)

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 1XN9)

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 1XN9)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 1XN9)

(-) PROSITE Motifs  (1, 1)

NMR Structure (1, 1)
 PROSITEUniProtKBPDB
No.IDACDescriptionIDLocationCountLocation
1RIBOSOMAL_S24EPS00529 Ribosomal protein S24e signature.RS24_METMA59-81  1A:59-81

(-) Exons   (0, 0)

(no "Exon" information available for 1XN9)

(-) Sequences/Alignments

NMR Structure
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:101
 aligned with RS24_METMA | Q8PZ95 from UniProtKB/Swiss-Prot  Length:101

    Alignment length:101
                                    10        20        30        40        50        60        70        80        90       100
           RS24_METMA     1 MDIKIIKDKKNPLLNRRELDFIVKYEGSTPSRNDVRNKLAAMLNAPLELLVIQRIKTEYGMQESKGYAKLYEDADRMKQVEQEYVLKRNAVPGSETEGEEA 101
               SCOP domains d1xn9a_ A: Ribosomal protein S24e                                                                     SCOP domains
               CATH domains 1xn9A00 A:1-101  [code=3.30.70.330, no name defined]                                                  CATH domains
               Pfam domains ------------------Ribosomal_S24e-1xn9A01 A:19-100                                                   - Pfam domains
         Sec.struct. author .eeeeeeeeee....eeeeeeeee......hhhhhhhhhhhhh......eeeeeeee.....eeeeeeee..hhhhhhhhhhhhhh............... Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ----------------------------------------------------------RIBOSOMAL_S24E         -------------------- PROSITE
                 Transcript ----------------------------------------------------------------------------------------------------- Transcript
                 1xn9 A   1 MDIKIIKDKKNPLLNRRELDFIVKYEGSTPSRNDVRNKLAAMLNAPLELLVIQRIKTEYGMQESKGYAKLYEDADRMKQVEQEYVLKRNAVPGSETEGEEA 101
                                    10        20        30        40        50        60        70        80        90       100
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (1, 1)

NMR Structure
(-)
Class: Alpha and beta proteins (a+b) (23004)

(-) CATH Domains  (1, 1)

NMR Structure
(-)
Class: Alpha Beta (26913)

(-) Pfam Domains  (1, 1)

NMR Structure
(-)
Clan: no clan defined [family: Ribosomal_S24e] (3)

(-) Gene Ontology  (6, 6)

NMR Structure(hide GO term definitions)
Chain A   (RS24_METMA | Q8PZ95)
molecular function
    GO:0000166    nucleotide binding    Interacting selectively and non-covalently with a nucleotide, any compound consisting of a nucleoside that is esterified with (ortho)phosphate or an oligophosphate at any hydroxyl group on the ribose or deoxyribose.
    GO:0003735    structural constituent of ribosome    The action of a molecule that contributes to the structural integrity of the ribosome.
biological process
    GO:0006412    translation    The cellular metabolic process in which a protein is formed, using the sequence of a mature mRNA or circRNA molecule to specify the sequence of amino acids in a polypeptide chain. Translation is mediated by the ribosome, and begins with the formation of a ternary complex between aminoacylated initiator methionine tRNA, GTP, and initiation factor 2, which subsequently associates with the small subunit of the ribosome and an mRNA or circRNA. Translation ends with the release of a polypeptide chain from the ribosome.
cellular component
    GO:0005622    intracellular    The living contents of a cell; the matter contained within (but not including) the plasma membrane, usually taken to exclude large vacuoles and masses of secretory or ingested material. In eukaryotes it includes the nucleus and cytoplasm.
    GO:0030529    intracellular ribonucleoprotein complex    An intracellular macromolecular complex containing both protein and RNA molecules.
    GO:0005840    ribosome    An intracellular organelle, about 200 A in diameter, consisting of RNA and protein. It is the site of protein biosynthesis resulting from translation of messenger RNA (mRNA). It consists of two subunits, one large and one small, each containing only protein and RNA. Both the ribosome and its subunits are characterized by their sedimentation coefficients, expressed in Svedberg units (symbol: S). Hence, the prokaryotic ribosome (70S) comprises a large (50S) subunit and a small (30S) subunit, while the eukaryotic ribosome (80S) comprises a large (60S) subunit and a small (40S) subunit. Two sites on the ribosomal large subunit are involved in translation, namely the aminoacyl site (A site) and peptidyl site (P site). Ribosomes from prokaryotes, eukaryotes, mitochondria, and chloroplasts have characteristically distinct ribosomal proteins.
