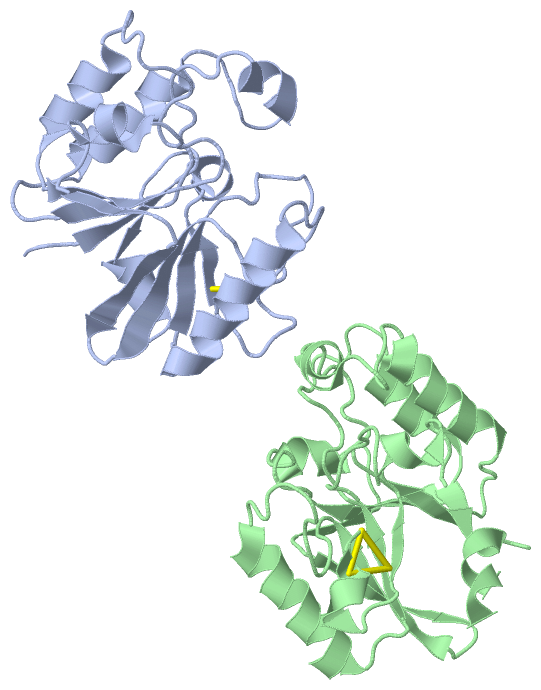

Image Asymmetric Unit
Asymmetric Unit  (Jmol Viewer)

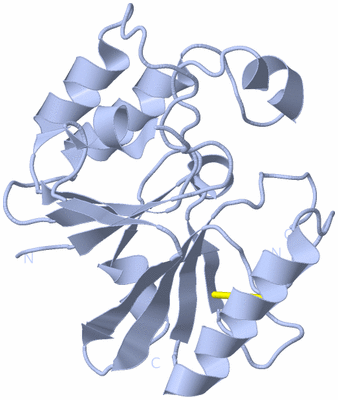

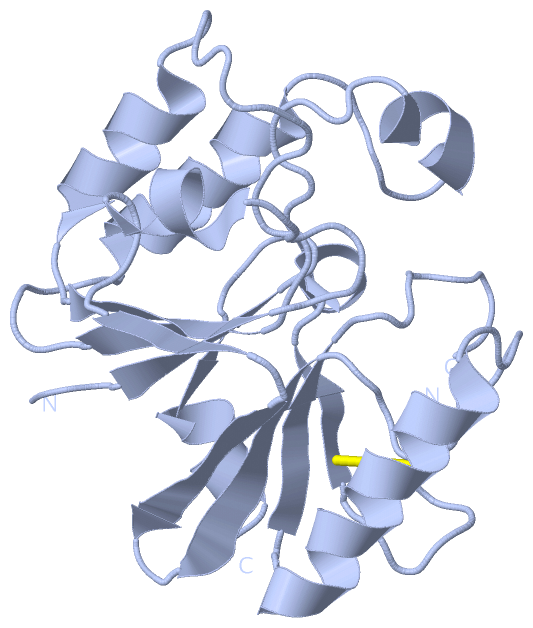

Image Biological Unit 1
Biological Unit 1  (Jmol Viewer)

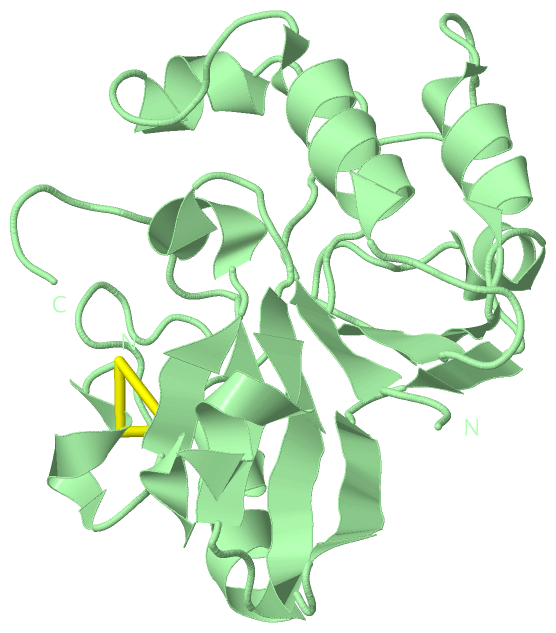

Image Biological Unit 2
Biological Unit 2  (Jmol Viewer)

(-) Description

Title :  THE CRYSTAL STRUCTURE OF THE PROTEIN OF UNKNOWN FUNCTION AQ665 FROM AQUIFEX AEOLICUS

Authors :  R. Zhang, M. Zhou, F. Collart, A. Joachimiak, Midwest Center For Str Genomics (Mcsg)
Date :  01 Oct 04  (Deposition) - 16 Nov 04  (Release) - 26 Sep 12  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  2.40
Chains :  Asym. Unit :  A,B
Biol. Unit 1:  A  (1x)
Biol. Unit 2:  B  (1x)
Keywords :  Structural Genomics, Protein_aq1665, Protein Structure Initiative, Midwest Center For Structural Genomics, Psi, Mcsg, Unknown Function (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  R. Zhang, M. Zhou, F. Collart, A. Joachimiak, Midwest Center For Structural Genomics (Mcsg)
The Crystal Structure Of The Hypothetical Protein Aq_1665 From Aquifex Aeolicus
To Be Published
PubMed: search

(-) Compounds

Molecule 1 - HYPOTHETICAL PROTEIN AQ_1665
    Chains: A, B
    Engineered: YES
    Expression System: ESCHERICHIA COLI BL21
    Expression System Plasmid: PDM68
    Expression System Strain: BL21
    Expression System Taxid: 511693
    Expression System Vector Type: PLASMID
    Organism Scientific: AQUIFEX AEOLICUS
    Organism Taxid: 224324
    Strain: VF5

 Structural Features

(-) Chains, Units

  12
Asymmetric Unit : AB
Biological Unit 1 (1x): A
Biological Unit 2 (1x):  B

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (0, 0)

(no "Ligand,Modified Residues,Ions" information available for 1XM7)

(-) Sites  (0, 0)

(no "Site" information available for 1XM7)

(-) SS Bonds  (5, 5)

Asymmetric Unit
No.Residues
1A:155 -A:157
2A:157 -A:164
3B:155 -B:164
4B:155 -B:157
5B:157 -B:164

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 1XM7)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 1XM7)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 1XM7)

(-) Exons   (0, 0)

(no "Exon" information available for 1XM7)

(-) Sequences/Alignments

Asymmetric Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:186
 aligned with O67582_AQUAE | O67582 from UniProtKB/TrEMBL  Length:193

    Alignment length:188
                              1
                              |      8        18        28        38        48        58        68        78        88        98       108       118       128       138       148       158       168       178
         O67582_AQUAE     - --MMYFISDTHFYHENIINLNPEVRFKGFEIVILTNLLKVLKPEDTLYHLGDFTWHFNDKNEYLRIWKALPGRKILVMGNHDKDKESLKEYFDEIYDFYKIIEHKGKRILLSHYPAKDPITERYPDRQEMVREIYFKENCDLLIHGHVHWNREGIKCACKDYRIECINANVEWNDYKPISEREIDKLI 186
               SCOP domains d1xm7a_ A: Hypothetical protein aq_1666                                                                                                                                                      SCOP domains
               CATH domains 1xm7A00 A:-1-186  [code=3.60.21.10, no name defined]                                                                                                                                         CATH domains
               Pfam domains -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ...eeee........hhhhhh......hhhhhhhhhhhh......eeee............hhhhhhhhh..eeeee......hhhhhh....eee..eeeeee..eeeeee...........hhhhhhhhhhhhhhh...eeee.........--.........eee.hhhhh....eehhhhhh.. Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1xm7 A  -1 NAMMYFISDTHFYHENIINLNPEVRFKGFEIVILTNLLKVLKPEDTLYHLGDFTWHFNDKNEYLRIWKALPGRKILVMGNHDKDKESLKEYFDEIYDFYKIIEHKGKRILLSHYPAKDPITERYPDRQEMVREIYFKENCDLLIHGHVHWNREG--CACKDYRIECINANVEWNDYKPISEREIDKLI 186
                                     8        18        28        38        48        58        68        78        88        98       108       118       128       138       148   |  |158       168       178
                                                                                                                                                                                   152  |
                                                                                                                                                                                      155


Chain B from PDB  Type:PROTEIN  Length:186
 aligned with O67582_AQUAE | O67582 from UniProtKB/TrEMBL  Length:193

    Alignment length:188
                              1
                              |      8        18        28        38        48        58        68        78        88        98       108       118       128       138       148       158       168       178
         O67582_AQUAE     - --MMYFISDTHFYHENIINLNPEVRFKGFEIVILTNLLKVLKPEDTLYHLGDFTWHFNDKNEYLRIWKALPGRKILVMGNHDKDKESLKEYFDEIYDFYKIIEHKGKRILLSHYPAKDPITERYPDRQEMVREIYFKENCDLLIHGHVHWNREGIKCACKDYRIECINANVEWNDYKPISEREIDKLI 186
               SCOP domains d1xm7b_ B: Hypothetical protein aq_1666                                                                                                                                                      SCOP domains
               CATH domains 1xm7B00 B:-1-186  [code=3.60.21.10, no name defined]                                                                                                                                         CATH domains
               Pfam domains -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ...eeee........hhhhhh......hhhhhhhhhhhh......eeee............hhhhhhhhh..eeeee......hhhhhh....eee..eeeeee..eeeeee...........hhhhhhhhhhhhhhh...eeee.........--.hhhhh...eee.hhhhh....eehhhhhhhh Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1xm7 B  -1 NAMMYFISDTHFYHENIINLNPEVRFKGFEIVILTNLLKVLKPEDTLYHLGDFTWHFNDKNEYLRIWKALPGRKILVMGNHDKDKESLKEYFDEIYDFYKIIEHKGKRILLSHYPAKDPITERYPDRQEMVREIYFKENCDLLIHGHVHWNREG--CACKDYRIECINANVEWNDYKPISEREIDKLI 186
                                     8        18        28        38        48        58        68        78        88        98       108       118       128       138       148   |  |158       168       178
                                                                                                                                                                                   152  |
                                                                                                                                                                                      155
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (1, 2)

Asymmetric Unit
(-)
Class: Alpha and beta proteins (a+b) (23004)

(-) CATH Domains  (1, 2)

Asymmetric Unit
(-)
Class: Alpha Beta (26913)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 1XM7)

(-) Gene Ontology  (0, 0)

Asymmetric Unit(hide GO term definitions)
    (no "Gene Ontology" information available for 1XM7)
