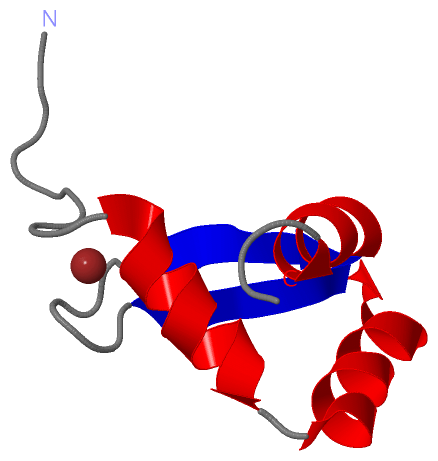

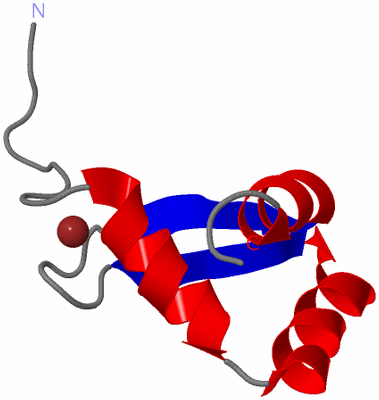

Image NMR Structure - model 1
NMR Structure - model 1  (Jmol Viewer)

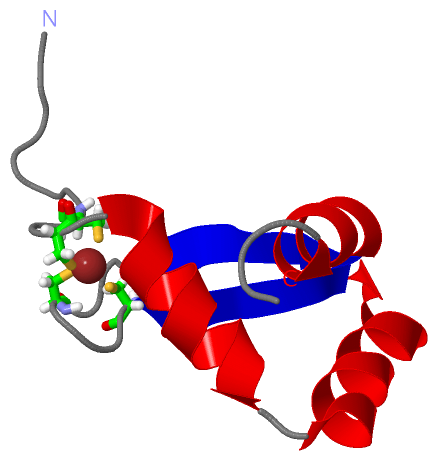

Image NMR Structure - model 1, sites
NMR Structure - model 1, sites  (Jmol Viewer)
Image NMR Structure - all models
NMR Structure - all models  (Jmol Viewer)

(-) Description

Title :  NMR STRUCTURE OF THE REDOX SWITCH DOMAIN OF THE E. COLI HSP33

Authors :  H. S. Won, L. Y. Low, R. N. De Guzman, M. A. Martinez-Yamout, U. Jakob, H. J. Dyson
Date :  23 Sep 04  (Deposition) - 05 Oct 04  (Release) - 24 Feb 09  (Revision)
Method :  SOLUTION NMR
Resolution :  NOT APPLICABLE
Chains :  NMR Structure  :  A  (20x)
Keywords :  Redox-Switch Domain, Zinc-Binding Domain, Four Cysteins Coordinating Zinc, Chaperone (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  H. S. Won, L. Y. Low, R. N. De Guzman, M. A. Martinez-Yamout, U. Jakob, H. J. Dyson
The Zinc-Dependent Redox Switch Domain Of The Chaperone Hsp33 Has A Novel Fold
J. Mol. Biol. V. 341 893 2004
PubMed-ID: 15328602  |  Reference-DOI: 10.1016/J.JMB.2004.06.046
(for further references see the PDB file header)

(-) Compounds

Molecule 1 - 33 KDA CHAPERONIN
    Chains: A
    Engineered: YES
    Expression System: ESCHERICHIA COLI BL21(DE3)
    Expression System Plasmid: PET21A
    Expression System Strain: BL21(DE3)
    Expression System Taxid: 469008
    Expression System Vector Type: PLASMID
    Fragment: C-TERMINAL REDOX-SWITCH DOMAIN
    Gene: HSLO
    Organism Scientific: ESCHERICHIA COLI
    Organism Taxid: 562
    Synonym: HEAT SHOCK PROTEIN 33, HSP33

 Structural Features

(-) Chains, Units


NMR Structure (20x):

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (1, 1)

NMR Structure (1, 1)
No.NameCountTypeFull Name
1ZN1Ligand/IonZINC ION

(-) Sites  (1, 1)

NMR Structure (1, 1)
No.NameEvidenceResiduesDescription
1AC1SOFTWARECYS A:7 , CYS A:9 , CYS A:40 , CYS A:43BINDING SITE FOR RESIDUE ZN A 63

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 1XJH)

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 1XJH)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 1XJH)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 1XJH)

(-) Exons   (0, 0)

(no "Exon" information available for 1XJH)

(-) Sequences/Alignments

NMR Structure
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:62
 aligned with HSLO_ECOLI | P0A6Y5 from UniProtKB/Swiss-Prot  Length:292

    Alignment length:62
                                   233       243       253       263       273       283
           HSLO_ECOLI   224 QDVEFKCTCSRERCADALKTLPDEEVDSILAEDGEIDMHCDYCGNHYLFNAMDIAEIRNNAS 285
               SCOP domains d1xjha_ A: HSP33, C-terminal domain                            SCOP domains
               CATH domains 1xjhA00 A:1-62 HSP33-like                                      CATH domains
               Pfam domains -HSP33-1xjhA01 A:2-51                              ----------- Pfam domains
         Sec.struct. author .........hhhhhhhhhhh.hhhhhhhhhhhhheeeee......eeeeehhhhhhhh.... Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -------------------------------------------------------------- PROSITE
                 Transcript -------------------------------------------------------------- Transcript
                 1xjh A   1 MDVEFKCTCSRERCADALKTLPDEEVDSILAEDGEIDMHCDYCGNHYLFNAMDIAEIRNNAS  62
                                    10        20        30        40        50        60
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (1, 1)

NMR Structure
(-)
Class: Small proteins (3458)

(-) CATH Domains  (1, 1)

NMR Structure
(-)
Class: Alpha Beta (26913)

(-) Pfam Domains  (1, 1)

NMR Structure
(-)
Clan: no clan defined [family: HSP33] (4)

(-) Gene Ontology  (7, 7)

NMR Structure(hide GO term definitions)
Chain A   (HSLO_ECOLI | P0A6Y5)
molecular function
    GO:0042802    identical protein binding    Interacting selectively and non-covalently with an identical protein or proteins.
    GO:0005515    protein binding    Interacting selectively and non-covalently with any protein or protein complex (a complex of two or more proteins that may include other nonprotein molecules).
    GO:0051082    unfolded protein binding    Interacting selectively and non-covalently with an unfolded protein.
biological process
    GO:0006457    protein folding    The process of assisting in the covalent and noncovalent assembly of single chain polypeptides or multisubunit complexes into the correct tertiary structure.
    GO:0009408    response to heat    Any process that results in a change in state or activity of a cell or an organism (in terms of movement, secretion, enzyme production, gene expression, etc.) as a result of a heat stimulus, a temperature stimulus above the optimal temperature for that organism.
cellular component
    GO:0005737    cytoplasm    All of the contents of a cell excluding the plasma membrane and nucleus, but including other subcellular structures.
    GO:0005829    cytosol    The part of the cytoplasm that does not contain organelles but which does contain other particulate matter, such as protein complexes.

 Visualization

(-) Interactive Views

NMR Structure
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
    ZN  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]

  Sites
    AC1  [ RasMol ]  +environment [ RasMol ]

  Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 1xjh)


(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
[ NMR Structure - model 1 PNG format | NMR Structure - model 1, sites PNG format | NMR Structure - all models PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  1xjh
    Family and Domain Information: ProDom | SYSTERS
    General Structural Information: GlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in Membranes: OPM
    Protein Surface: SURFACE
    Secondary Structure: DSSP (structure derived) | HSSP (homology derived)
    Structural Genomics: GeneCensus
    Structural Neighbours: CE | VAST
    Structure Classification: CATH | Dali | SCOP
    Validation and Original Data: BMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  HSLO_ECOLI | P0A6Y5
    Comparative Protein Structure Models: ModBase
    Genomic Information: Ensembl
    Protein-protein Interaction: DIP
    Sequence, Family and Domain Information: InterPro | Pfam | SMART | UniProtKB/SwissProt

Access by Enzyme Classificator   (EC Number)
  (no 'Enzyme Classificator' available)
    General Enzyme Information: BRENDA | EC-PDB | Enzyme | IntEnz
    Pathway: KEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease Information: OMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related Information: GenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain Information: XDom
    Interatomic Contacts of Structural Units: CSU
    Ligand-protein Contacts: LPC
    Protein Cavities: castP
    Sequence and Secondary Structure: PDBCartoon
    Structure Alignment: STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence Browser: STING

Access by UniProt ID/Accession number
  HSLO_ECOLI | P0A6Y5
    Protein Disorder Prediction: DisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)

 Related Entries

(-) Entries Sharing at Least One Protein Chain (UniProt ID)

UniProtKB/Swiss-Prot
        HSLO_ECOLI | P0A6Y5: 1hw7 1i7f 3m7m

(-) Related Entries Specified in the PDB File

1hw7 CRYSTAL STRUCTURE OF A TRUNCATED E. COLI HSP33
1i7f CRYSTAL STRUCTURE OF A TRUNCATED E. COLI HSP33
