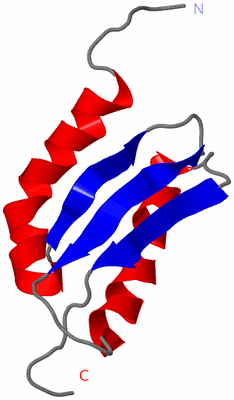

Image NMR Structure - model 1
NMR Structure - model 1  (Jmol Viewer)

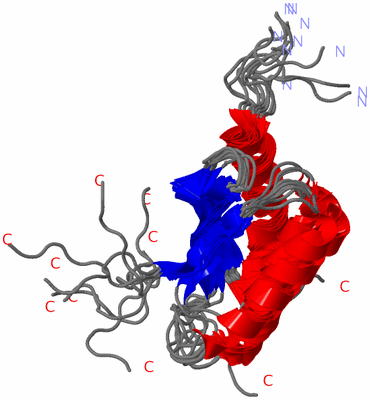

Image NMR Structure - all models
NMR Structure - all models  (Jmol Viewer)

(-) Description

Title :  SOLUTION STRUCTURE OF THE STAPHYLOCOCCUS EPIDERMIDIS PROTEIN SE0630. NORTHEST STRUCTURAL GENOMICS CONSORTIUM TARGET SER8.

Authors :  M. C. Baran, Y. P. Huang, T. Acton, R. Xiao, G. T. Montelione, Northeast Structural Genomics Consortium (Nesg)
Date :  20 Sep 04  (Deposition) - 07 Dec 04  (Release) - 13 Jul 11  (Revision)
Method :  SOLUTION NMR
Resolution :  NOT APPLICABLE
Chains :  NMR Structure  :  A  (10x)
NMR Structure *:  A  (1x)
Keywords :  Alpha-Beta, Nifu-Like, Structural Genomics, Protein Structure Initiative, Nesg, Psi, Northeast Structural Genomics Consortium, Metal Binding Protein (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  M. C. Baran, Y. P. Huang, T. Acton, R. Xiao, G. T. Montelione
Solution Structure Of The Staphylococcus Epidermidis Protei Se0630. Northest Strucutral Genomics Consortium Target Ser8
To Be Published
PubMed: search

(-) Compounds

Molecule 1 - NITROGEN FIXATION PROTEIN NIFU
    Chains: A
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Plasmid: SER8-21
    Expression System Strain: BL21MGK
    Expression System Taxid: 562
    Expression System Vector: PET21
    Expression System Vector Type: PLASMID
    Gene: SE0936
    Organism Scientific: STAPHYLOCOCCUS EPIDERMIDIS
    Organism Taxid: 176280
    Strain: ATCC 12228

 Structural Features

(-) Chains, Units

  1
NMR Structure (10x): A
NMR Structure * (1x): A

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (0, 0)

(no "Ligand,Modified Residues,Ions" information available for 1XHJ)

(-) Sites  (0, 0)

(no "Site" information available for 1XHJ)

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 1XHJ)

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 1XHJ)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 1XHJ)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 1XHJ)

(-) Exons   (0, 0)

(no "Exon" information available for 1XHJ)

(-) Sequences/Alignments

NMR Structure
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:88
 aligned with A0A0H2VHU6_S | A0A0H2VHU6 from UniProtKB/TrEMBL  Length:80

    Alignment length:88
                                                                                                          80
                                    10        20        30        40        50        60        70        80
          A0A0H2VHU6_S    1 MPTENPTMFDQVAEVIERLRPFLLRDGGDCTLVDVEDGIVKLQLHGACGTCPSSTITLKAGIERALHEEVPGVIEVEQVF--------  -
               SCOP domains d1xhja_ A: Nitrogen fixation protein NifU homolog SE0630                                 SCOP domains
               CATH domains ---------------------------------------------------------------------------------------- CATH domains
               Pfam domains ---------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ......hhhhhhhhhhhhhhhhhhhhh.eeeeee....eeeeeee......hhhhhhhhhhhhhhhhhhh....eeeeee........ Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ---------------------------------------------------------------------------------------- PROSITE
                 Transcript ---------------------------------------------------------------------------------------- Transcript
                  1xhj A  1 MPTENPTMFDQVAEVIERLRPFLLRDGGDCTLVDVEDGIVKLQLHGACGTCPSSTITLKAGIERALHEEVPGVIEVEQVFLEHHHHHH 88
                                    10        20        30        40        50        60        70        80
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (1, 1)

NMR Structure
(-)
Class: Alpha and beta proteins (a+b) (23004)

(-) CATH Domains  (0, 0)

(no "CATH Domain" information available for 1XHJ)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 1XHJ)

(-) Gene Ontology  (0, 0)

NMR Structure(hide GO term definitions)
    (no "Gene Ontology" information available for 1XHJ)

 Visualization

(-) Interactive Views

NMR Structure
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
(no "Ligands, Modified Residues, Ions" information available for 1xhj)

  Sites
(no "Sites" information available for 1xhj)

  Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 1xhj)


(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
[ NMR Structure - model 1 PNG format | NMR Structure - all models PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  1xhj
    Family and Domain Information: ProDom | SYSTERS
    General Structural Information: GlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in Membranes: OPM
    Protein Surface: SURFACE
    Secondary Structure: DSSP (structure derived) | HSSP (homology derived)
    Structural Genomics: GeneCensus
    Structural Neighbours: CE | VAST
    Structure Classification: CATH | Dali | SCOP
    Validation and Original Data: BMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  A0A0H2VHU6_S | A0A0H2VHU6
    Comparative Protein Structure Models: ModBase
    Genomic Information: Ensembl
    Protein-protein Interaction: DIP
    Sequence, Family and Domain Information: InterPro | Pfam | SMART | UniProtKB/TrEMBL

Access by Enzyme Classificator   (EC Number)
  (no 'Enzyme Classificator' available)
    General Enzyme Information: BRENDA | EC-PDB | Enzyme | IntEnz
    Pathway: KEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease Information: OMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related Information: GenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain Information: XDom
    Interatomic Contacts of Structural Units: CSU
    Ligand-protein Contacts: LPC
    Protein Cavities: castP
    Sequence and Secondary Structure: PDBCartoon
    Structure Alignment: STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence Browser: STING

Access by UniProt ID/Accession number
  A0A0H2VHU6_S | A0A0H2VHU6
    Protein Disorder Prediction: DisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)

 Related Entries

(-) Entries Sharing at Least One Protein Chain (UniProt ID)

(no "Entries Sharing at Least One Protein Chain" available for 1XHJ)

(-) Related Entries Specified in the PDB File

ser8
