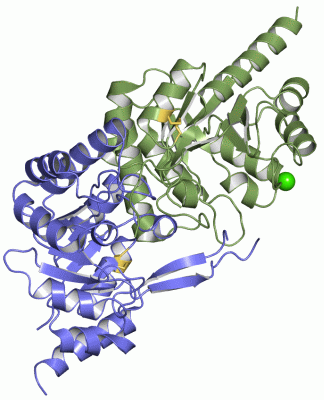

Image Asym./Biol. Unit - manually
Asym./Biol. Unit - manually  (Jmol Viewer)
Image Asym./Biol. Unit
Asym./Biol. Unit  (Jmol Viewer)

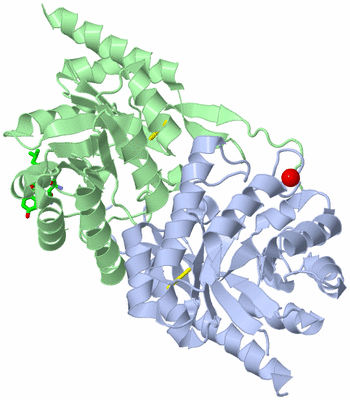

Image Asym./Biol. Unit - sites
Asym./Biol. Unit - sites  (Jmol Viewer)

(-) Description

Title :  CRYSTAL STRUCTURE OF THE NATIVE COPPER HOMEOSTASIS PROTEIN (CUTCM) WITH CALCIUM BINDING FROM SHIGELLA FLEXNERI 2A STR. 301

Authors :  D. Y. Zhu, Y. Q. Zhu, R. H. Huang, Y. Xiang, D. C. Wang
Date :  14 Aug 04  (Deposition) - 01 Mar 05  (Release) - 24 Feb 09  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  1.70
Chains :  Asym./Biol. Unit :  A,B
Keywords :  Cutc Family, Tim-Like Protein, Metal Binding Protein, Copper Homeostasis (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  D. Y. Zhu, Y. Q. Zhu, R. H. Huang, Y. Xiang, N. Yang, H. X. Lu, G. P. Li, Q. Jin, D. C. Wang
Crystal Structure Of The Copper Homeostasis Protein (Cutcm) From Shigella Flexneri At 1. 7 A Resolution: The First Structure Of A New Sequence Family Of Tim Barrels
Proteins V. 58 764 2004
PubMed-ID: 15624211  |  Reference-DOI: 10.1002/PROT.20362
(for further references see the PDB file header)

(-) Compounds

Molecule 1 - COPPER HOMEOSTASIS PROTEIN CUTC
    Chains: A, B
    Engineered: YES
    Expression System: ESCHERICHIA COLI BL21
    Expression System Plasmid: PET22B(+)
    Expression System Strain: BL21
    Expression System Taxid: 511693
    Expression System Vector Type: PLASMID
    Organism Scientific: SHIGELLA FLEXNERI 2A STR. 301
    Organism Taxid: 198214
    Strain: 301

 Structural Features

(-) Chains, Units

  12
Asymmetric/Biological Unit : AB

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (1, 1)

Asymmetric/Biological Unit (1, 1)
No.NameCountTypeFull Name
1CA1Ligand/IonCALCIUM ION

(-) Sites  (1, 1)

Asymmetric Unit (1, 1)
No.NameEvidenceResiduesDescription
1AC1SOFTWAREHOH A:293 , ASN B:129 , LEU B:131 , TYR B:132 , HOH B:1412BINDING SITE FOR RESIDUE CA B 1251

(-) SS Bonds  (2, 2)

Asymmetric/Biological Unit
No.Residues
1A:8 -A:13
2B:8 -B:13

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 1X7I)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 1X7I)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 1X7I)

(-) Exons   (0, 0)

(no "Exon" information available for 1X7I)

(-) Sequences/Alignments

Asymmetric/Biological Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:236
 aligned with CUTC_SHIFL | P67825 from UniProtKB/Swiss-Prot  Length:248

    Alignment length:248
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210       220       230       240
           CUTC_SHIFL     1 MALLEICCYSMECALTAQQNGADRVELCAAPKEGGLTPSLGVLKSVRQRVTIPVHPIIRPRGGDFCYSDGEFAAILEDVRTVRELGFPGLVTGVLDVDGNVDMPRMEKIMAAAGPLAVTFHRAFDMCANPLYTLNNLAELGIARVLTSGQKSDALQGLSKIMELIAHRDAPIIMAGAGVRAENLHHFLDAGVLEVHSSAGAWQASPMRYRNQGLSMSSDEHADEYSRYIVDGAAVAEMKGIIERHQAK 248
               SCOP domains d1x7ia_ A: automated matches                                                                                                                                                                                                                             SCOP domains
               CATH domains 1x7iA00 A:1-248 CutC-like (Pfam 03932)                                                                                                                                                                                                                   CATH domains
               Pfam domains -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ..eeeeee.hhhhhhhhhhh...eeee..hhhhh....hhhhhhhhhhhh...eee...........hhhhhhhhhhhhhhhhhh...eeee.........hhhhhhhhhhhhh..eeee.hhhhhh.hhhhhhhhhhhhh..eeee.........hhhhhhhhhh.....eeeee...hhhhhhhhhhhh..eeee..eeeee......------------...eeeeehhhhhhhhhhhhhhhh.. Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1x7i A   1 MALLEICCYSMECALTAQQNGADRVELCAAPKEGGLTPSLGVLKSVRQRVTIPVHPIIRPRGGDFCYSDGEFAAILEDVRTVRELGFPGLVTGVLDVDGNVDMPRMEKIMAAAGPLAVTFHRAFDMCANPLYTLNNLAELGIARVLTSGQKSDALQGLSKIMELIAHRDAPIIMAGAGVRAENLHHFLDAGVLEVHSSAGAWQASPMRYR------------DEYSRYIVDGAAVAEMKGIIERHQAK 248
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210         -  |    230       240
                                                                                                                                                                                                                                           210          223


Chain B from PDB  Type:PROTEIN  Length:238
 aligned with CUTC_SHIFL | P67825 from UniProtKB/Swiss-Prot  Length:248

    Alignment length:250
                                                                                                                                                                                                                                                                                 248
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210       220       230       240       | -
           CUTC_SHIFL     1 MALLEICCYSMECALTAQQNGADRVELCAAPKEGGLTPSLGVLKSVRQRVTIPVHPIIRPRGGDFCYSDGEFAAILEDVRTVRELGFPGLVTGVLDVDGNVDMPRMEKIMAAAGPLAVTFHRAFDMCANPLYTLNNLAELGIARVLTSGQKSDALQGLSKIMELIAHRDAPIIMAGAGVRAENLHHFLDAGVLEVHSSAGAWQASPMRYRNQGLSMSSDEHADEYSRYIVDGAAVAEMKGIIERHQAK--   -
               SCOP domains d1x7ib_ B: automated matches                                                                                                                                                                                                                               SCOP domains
               CATH domains 1x7iB00 B:1-250 CutC-like (Pfam 03932)                                                                                                                                                                                                                     CATH domains
           Pfam domains (1) -CutC-1x7iB01 B:2-201                                                                                                                                                                                    ------------------------------------------------- Pfam domains (1)
           Pfam domains (2) -CutC-1x7iB02 B:2-201                                                                                                                                                                                    ------------------------------------------------- Pfam domains (2)
         Sec.struct. author ..eeeeee.hhhhhhhhhhh...eeee..hhhhh....hhhhhhhhhhhh...eee...........hhhhhhhhhhhhhhhhhh...eeee.........hhhhhhhhhhhhh..eeee.hhhhhh.hhhhhhhhhhhhh..eeee.........hhhhhhhhhhh....eeeee......hhhhhhhh...eeee..eeee........------------...eeeehhhhhhhhhhhhhhhhhhh. Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1x7i B   1 MALLEICCYSMECALTAQQNGADRVELCAAPKEGGLTPSLGVLKSVRQRVTIPVHPIIRPRGGDFCYSDGEFAAILEDVRTVRELGFPGLVTGVLDVDGNVDMPRMEKIMAAAGPLAVTFHRAFDMCANPLYTLNNLAELGIARVLTSGQKSDALQGLSKIMELIAHRDAPIIMAGAGVRAENLHHFLDAGVLEVHSSAGAWQASPMRYRN------------EYSRYIVDGAAVAEMKGIIERHQAKLE 250
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210|        -   |   230       240       250
                                                                                                                                                                                                                                            211          224
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (1, 2)

Asymmetric/Biological Unit
(-)
Class: Alpha and beta proteins (a/b) (23833)

(-) CATH Domains  (1, 2)

Asymmetric/Biological Unit
(-)
Class: Alpha Beta (26913)

(-) Pfam Domains  (1, 2)

Asymmetric/Biological Unit
(-)
Clan: TIM_barrel (694)

(-) Gene Ontology  (4, 4)

Asymmetric/Biological Unit(hide GO term definitions)
Chain A,B   (CUTC_SHIFL | P67825)
molecular function
    GO:0005507    copper ion binding    Interacting selectively and non-covalently with copper (Cu) ions.
biological process
    GO:0006878    cellular copper ion homeostasis    Any process involved in the maintenance of an internal steady state of copper ions at the level of a cell.
    GO:0055070    copper ion homeostasis    Any process involved in the maintenance of an internal steady state of copper ions within an organism or cell.
cellular component
    GO:0005737    cytoplasm    All of the contents of a cell excluding the plasma membrane and nucleus, but including other subcellular structures.

 Visualization

(-) Interactive Views

Asymmetric/Biological Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
    CA  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]

  Sites
    AC1  [ RasMol ]  +environment [ RasMol ]

  Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 1x7i)


(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick

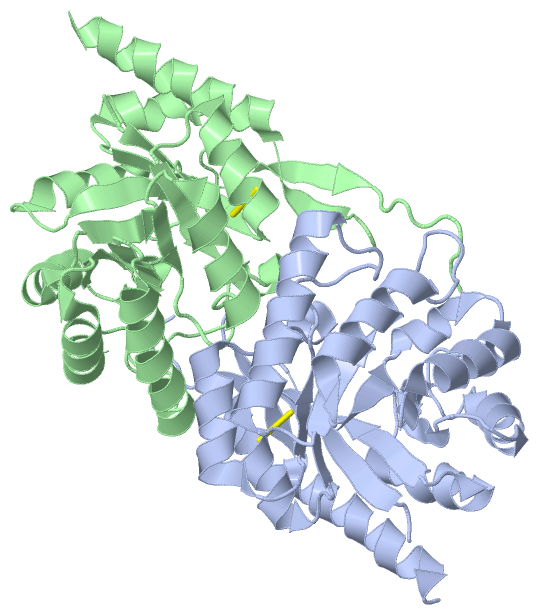

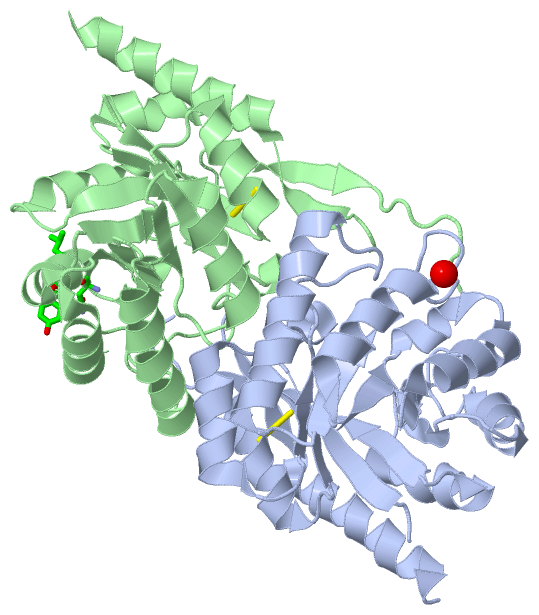

[ Asym./Biol. Unit PNG format | Asym./Biol. Unit - sites PNG format ](automatic orientation, automatically generated)
