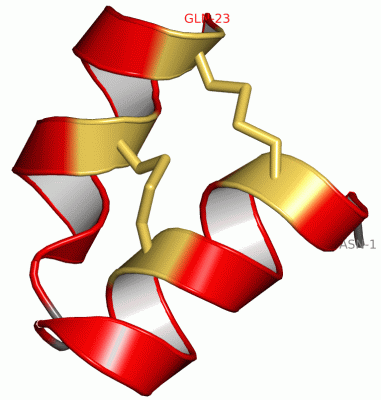

Image NMR Structure - manually
NMR Structure - manually  (Jmol Viewer)

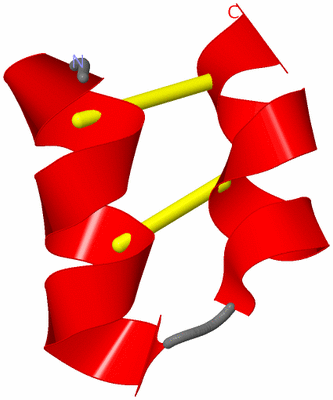

Image NMR Structure - model 1
NMR Structure - model 1  (Jmol Viewer)

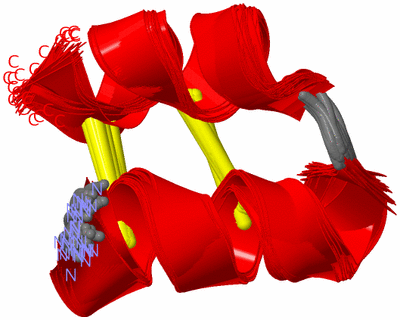

Image NMR Structure - all models
NMR Structure - all models  (Jmol Viewer)

(-) Description

Title :  AN UNUSUAL FOLD FOR POTASSIUM CHANNEL BLOCKERS: NMR STRUCTURE OF THREE TOXINS FROM THE SCORPION OPISTHACANTHUS MADAGASCARIENSIS

Authors :  B. Chagot, C. Pimentel, L. Dai, J. Pil, J. Tytgat, T. Nakajima, G. Corzo, H. Darbon, G. Ferrat
Date :  28 Sep 04  (Deposition) - 18 Jan 05  (Release) - 24 Feb 09  (Revision)
Method :  SOLUTION NMR
Resolution :  NOT APPLICABLE
Chains :  NMR Structure  :  A  (30x)
Keywords :  Nmr, Structure, Scorpion Toxin, Cystine-Stabilized Helix- Turn-Helix (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  B. Chagot, C. Pimentel, L. Dai, J. Pil, J. Tytgat, T. Nakajima, G. Corzo, H. Darbon, G. Ferrat
An Unusual Fold For Potassium Channel Blockers: Nmr Structure Of Three Toxins From The Scorpion Opisthacanthus Madagascariensis
Biochem. J. V. 388 263 2005
PubMed-ID: 15631621  |  Reference-DOI: 10.1042/BJ20041705
(for further references see the PDB file header)

(-) Compounds

Molecule 1 - OMTX3
    Chains: A
    Organism Scientific: OPISTHACANTHUS MADAGASCARIENSIS
    Organism Taxid: 167108

 Structural Features

(-) Chains, Units


NMR Structure (30x):

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (0, 0)

(no "Ligand,Modified Residues,Ions" information available for 1WQE)

(-) Sites  (0, 0)

(no "Site" information available for 1WQE)

(-) SS Bonds  (2, 2)

NMR Structure
No.Residues
1A:4 -A:22
2A:8 -A:18

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 1WQE)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 1WQE)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 1WQE)

(-) Exons   (0, 0)

(no "Exon" information available for 1WQE)

(-) Sequences/Alignments

NMR Structure
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:23
 aligned with KKX23_OPIMA | P0C1Z4 from UniProtKB/Swiss-Prot  Length:23

    Alignment length:23
                                    10        20
           KKX23_OPIMA    1 NDPCEEVCLQHTGNVKACEEACQ 23
               SCOP domains ----------------------- SCOP domains
               CATH domains ----------------------- CATH domains
               Pfam domains ----------------------- Pfam domains
         Sec.struct. author .hhhhhhhhhhh.hhhhhhhhhh Sec.struct. author
                 SAPs(SNPs) ----------------------- SAPs(SNPs)
                    PROSITE ----------------------- PROSITE
                 Transcript ----------------------- Transcript
                  1wqe A  1 NDPCEEVCIQHTGDVKACEEACQ 23
                                    10        20
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (0, 0)

(no "SCOP Domain" information available for 1WQE)

(-) CATH Domains  (0, 0)

(no "CATH Domain" information available for 1WQE)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 1WQE)

(-) Gene Ontology  (1, 1)

NMR Structure(hide GO term definitions)
Chain A   (KKX23_OPIMA | P0C1Z4)
cellular component
    GO:0005576    extracellular region    The space external to the outermost structure of a cell. For cells without external protective or external encapsulating structures this refers to space outside of the plasma membrane. This term covers the host cell environment outside an intracellular parasite.

 Visualization

(-) Interactive Views

NMR Structure
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
(no "Ligands, Modified Residues, Ions" information available for 1wqe)

  Sites
(no "Sites" information available for 1wqe)

  Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 1wqe)


(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick

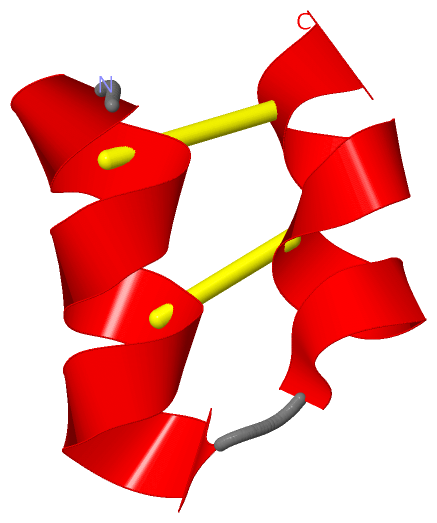

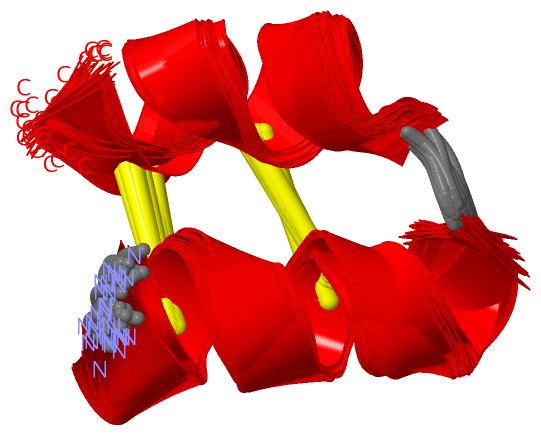

[ NMR Structure - model 1 PNG format | NMR Structure - all models PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  1wqe
    Family and Domain Information: ProDom | SYSTERS
    General Structural Information: GlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in Membranes: OPM
    Protein Surface: SURFACE
    Secondary Structure: DSSP (structure derived) | HSSP (homology derived)
    Structural Genomics: GeneCensus
    Structural Neighbours: CE | VAST
    Structure Classification: CATH | Dali | SCOP
    Validation and Original Data: BMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  KKX23_OPIMA | P0C1Z4
    Comparative Protein Structure Models: ModBase
    Genomic Information: Ensembl
    Protein-protein Interaction: DIP
    Sequence, Family and Domain Information: InterPro | Pfam | SMART | UniProtKB/SwissProt

Access by Enzyme Classificator   (EC Number)
  (no 'Enzyme Classificator' available)
    General Enzyme Information: BRENDA | EC-PDB | Enzyme | IntEnz
    Pathway: KEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease Information: OMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related Information: GenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain Information: XDom
    Interatomic Contacts of Structural Units: CSU
    Ligand-protein Contacts: LPC
    Protein Cavities: castP
    Sequence and Secondary Structure: PDBCartoon
    Structure Alignment: STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence Browser: STING

Access by UniProt ID/Accession number
  KKX23_OPIMA | P0C1Z4
    Protein Disorder Prediction: DisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)

 Related Entries

(-) Entries Sharing at Least One Protein Chain (UniProt ID)

(no "Entries Sharing at Least One Protein Chain" available for 1WQE)

(-) Related Entries Specified in the PDB File

1wqc OMTX1
1wqd OMTX2
