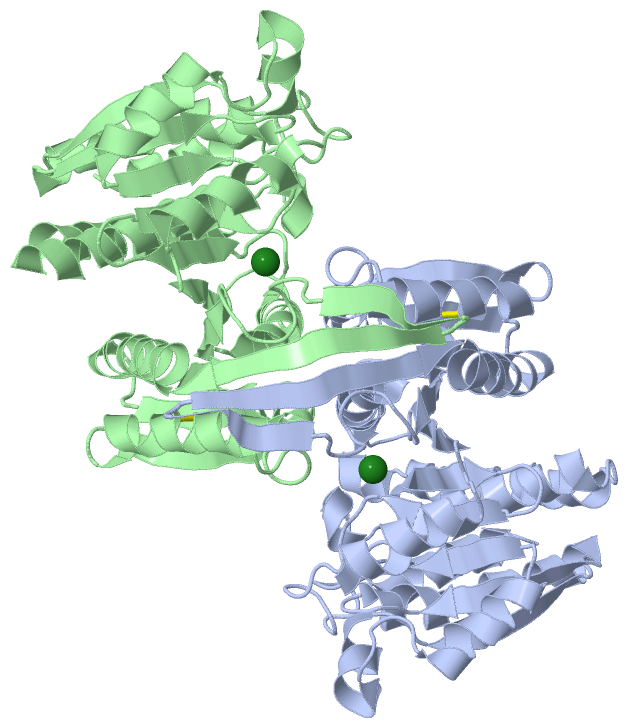

Asymmetric Unit (Jmol Viewer)

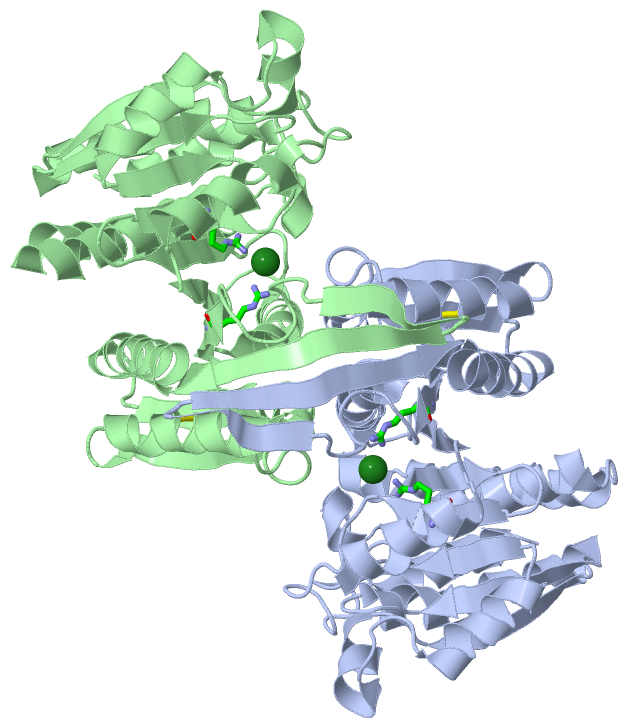

Asym. Unit - sites (Jmol Viewer)

Biological Unit 1 (Jmol Viewer)

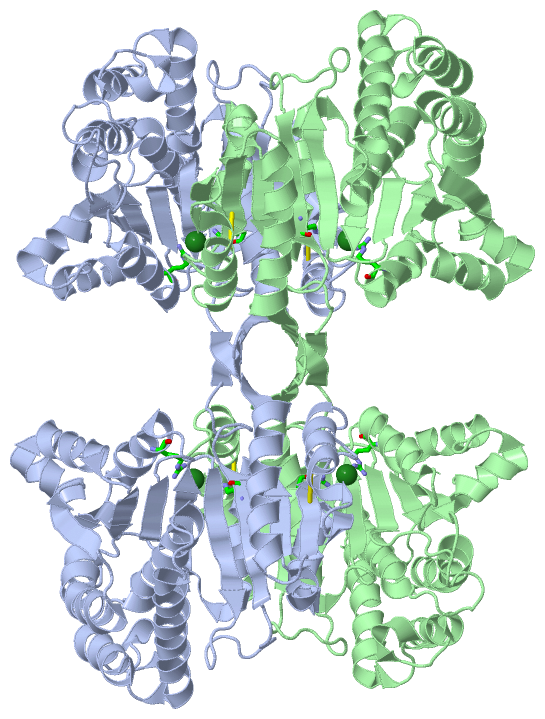

Biol. Unit 1 - sites (Jmol Viewer)

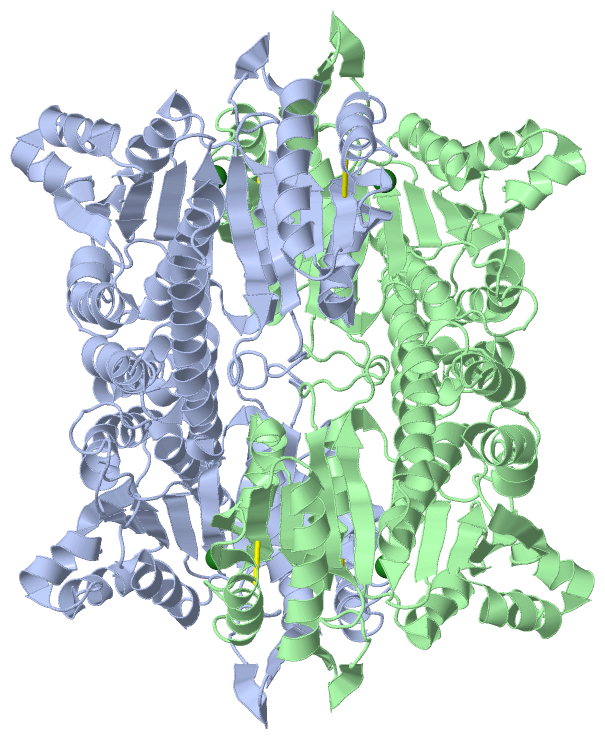

Biological Unit 2 (Jmol Viewer)

Title :   CRYSTAL STRUCTURE OF IPMDH FROM SULFOLOBUS TOKODAII

Authors :   R. Hirose, M. Sakurai, T. Suzuki, H. Moriyama, T. Sato, A. Yamagishi, T. N. Tanaka

Date :   14 Sep 04 (Deposition) - 05 Oct 04 (Release) - 13 Jul 11 (Revision)

Method :   X-RAY DIFFRACTION

Resolution :   2.80

Chains :   Asym. Unit : A,B
Biol. Unit 1: A,B  (2x)
Biol. Unit 2: A,B  (2x)

Keywords :   Oxidoreductase (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :   R. Hirose, M. Sakurai, T. Suzuki, H. Moriyama, T. Sato, A. Yamagishi, T. Oshima, N. Tanaka
Crystal Structure Of Ipmdh From Sulfolobus Tokodaii
To Be Published
PubMed: search

Molecule 1 - 3-ISOPROPYLMALATE DEHYDROGENASE
	Chains	:	A, B
	EC Number	:	1.1.1.85
	Engineered	:	YES
	Expression System	:	ESCHERICHIA COLI
	Expression System Plasmid	:	PET17B
	Expression System Taxid	:	562
	Expression System Vector Type	:	PLASMID
	Organism Scientific	:	SULFOLOBUS TOKODAII
	Organism Taxid	:	111955
	Synonym	:	BETA-IPM DEHYDROGENASE, IMDH, 3-IPM-DH

		1	2
Asymmetric Unit	:	A	B
Biological Unit 1 (2x)	:	A	B
Biological Unit 2 (2x)	:	A	B

Summary Information (see also Sequences/Alignments below)

Asymmetric Unit (1, 2)

No.	Name	Count	Type	Full Name
1	MG	2	Ligand/Ion	MAGNESIUM ION

Biological Unit 1 (0, 0)

No.	Name	Count	Type	Full Name
1	MG	-1	Ligand/Ion	MAGNESIUM ION

Biological Unit 2 (0, 0)

No.	Name	Count	Type	Full Name
1	MG	-1	Ligand/Ion	MAGNESIUM ION

Asymmetric Unit (2, 2)

No.	Name	Evidence	Residues	Description
1	AC1	SOFTWARE	ARG A:85 , ARG A:116	BINDING SITE FOR RESIDUE MG A 401
2	AC2	SOFTWARE	ARG B:85 , ARG B:116	BINDING SITE FOR RESIDUE MG B 402

Asymmetric Unit

No.	Residues
1	A:166	-	A:184
2	B:166	-	B:184

(no "Cis Peptide Bond" information available for 1WPW)

(no "SAP(SNP)/Variant" information available for 1WPW)

Asymmetric Unit (1, 2)

	PROSITE			UniProtKB		PDB
No.	ID	AC	Description	ID	Location	Count	Location
1	IDH_IMDH	PS00470	Isocitrate and isopropylmalate dehydrogenases signature.	LEU3_SULTO	221-240	2	A:220-239 B:220-239

Biological Unit 1 (1, 4)

	PROSITE			UniProtKB		PDB
No.	ID	AC	Description	ID	Location	Count	Location
1	IDH_IMDH	PS00470	Isocitrate and isopropylmalate dehydrogenases signature.	LEU3_SULTO	221-240	4	A:220-239 B:220-239

Biological Unit 2 (1, 4)

	PROSITE			UniProtKB		PDB
No.	ID	AC	Description	ID	Location	Count	Location
1	IDH_IMDH	PS00470	Isocitrate and isopropylmalate dehydrogenases signature.	LEU3_SULTO	221-240	4	A:220-239 B:220-239

(no "Exon" information available for 1WPW)

Asymmetric Unit

Reformat:	Number of residues per line = ('0' or empty: single-line sequence representation)
	Number of residues per labelling interval =
	UniProt sequence: complete aligned part

Show mapping:	SCOP domains	CATH domains	Pfam domains	Secondary structure (by author)
	SAPs(SNPs)	PROSITE motifs	Exons
	(details for a mapped element are shown in a popup box when the mouse pointer rests over it)

Chain A from PDB  Type:PROTEIN  Length:336
 aligned with LEU3_SULTO | P50455 from UniProtKB/Swiss-Prot  Length:337

    Alignment length:336
                                    11        21        31        41        51        61        71        81        91       101       111       121       131       141       151       161       171       181       191       201       211       221       231       241       251       261       271       281       291       301       311       321       331
           LEU3_SULTO     2 GFTVALIQGDGIGPEIVSKSKRILAKINELYSLPIEYIEVEAGDRALARYGEALPKDSLKIIDKADIILKGPVGESAADVVVKLRQIYDMYANIRPAKSIPGIDTKYGNVDILIVRENTEDLYKGFEHIVSDGVAVGMKIITRFASERIAKVGLNFALRRRKKVTCVHKANVMRITDGLFAEACRSVLKGKVEYSEMYVDAAAANLVRNPQMFDVIVTENVYGDILSDEASQIAGSLGIAPSANIGDKKALFEPVHGAAFDIAGKNIGNPTAFLLSVSMMYERMYELSNDDRYIKASRALENAIYLVYKERKALTPDVGGNATTDDLINEIYNKLG 337
               SCOP domains d1wpwa_ A: 3-isopropylmalate dehydrogenase, IPMDH                                                                                                                                                                                                                                                                                                SCOP domains
               CATH domains 1wpwA00 A:1-336 Isopropylmalate Dehydrogenase                                                                                                                                                                                                                                                                                                    CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Pfam domains
         Sec.struct. author .eeeeee....hhhhhhhhhhhhhhhhhhhh...eeeeee..hhhhhhhh....hhhhhhhhhh..eeee.....hhhhhhhhhhhh....eeeeeee............eeeeeee.........eeeee..eeeeeeeeehhhhhhhhhhhhhhhhh...eeeeee......hhhhhhhhhhhhhhh...eeeeeehhhhhhhhhhhhhhh.eeeehhhhhhhhhhhhhhhhhhhhh.eeeee....eeeee...............hhhhhhhhhhhhhhhhhh...hhhhhhhhhhhhhhhhhhhhh...hhhhh...hhhhhhhhhhhh.. Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------IDH_IMDH            ------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Transcript
                 1wpw A   1 GFTVALIQGDGIGPEIVSKSKRILAKINELYSLPIEYIEVEAGDRALARYGEALPKDSLKIIDKADIILKGPVGESAADVVVKLRQIYDMYANIRPAKSIPGIDTKYGNVDILIVRENTEDLYKGFEHIVSDGVAVGMKIITRFASERIAKVGLNFALRRRKKVTCVHKANVMRITDGLFAEACRSVLKGKVEYSEMYVDAAAANLVRNPQMFDVIVTENVYGDILSDEASQIAGSLGIAPSANIGDKKALFEPVHGAAFDIAGKNIGNPTAFLLSVSMMYERMYELSNDDRYIKASRALENAIYLVYKERKALTPDVGGNATTDDLINEIYNKLG 336
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210       220       230       240       250       260       270       280       290       300       310       320       330

Chain B from PDB  Type:PROTEIN  Length:336
 aligned with LEU3_SULTO | P50455 from UniProtKB/Swiss-Prot  Length:337

    Alignment length:336
                                    11        21        31        41        51        61        71        81        91       101       111       121       131       141       151       161       171       181       191       201       211       221       231       241       251       261       271       281       291       301       311       321       331
           LEU3_SULTO     2 GFTVALIQGDGIGPEIVSKSKRILAKINELYSLPIEYIEVEAGDRALARYGEALPKDSLKIIDKADIILKGPVGESAADVVVKLRQIYDMYANIRPAKSIPGIDTKYGNVDILIVRENTEDLYKGFEHIVSDGVAVGMKIITRFASERIAKVGLNFALRRRKKVTCVHKANVMRITDGLFAEACRSVLKGKVEYSEMYVDAAAANLVRNPQMFDVIVTENVYGDILSDEASQIAGSLGIAPSANIGDKKALFEPVHGAAFDIAGKNIGNPTAFLLSVSMMYERMYELSNDDRYIKASRALENAIYLVYKERKALTPDVGGNATTDDLINEIYNKLG 337
               SCOP domains d1wpwb_ B: 3-isopropylmalate dehydrogenase, IPMDH                                                                                                                                                                                                                                                                                                SCOP domains
               CATH domains 1wpwB00 B:1-336 Isopropylmalate Dehydrogenase                                                                                                                                                                                                                                                                                                    CATH domains
           Pfam domains (1) --Iso_dh-1wpwB01 B:3-331                                                                                                                                                                                                                                                                                                                   ----- Pfam domains (1)
           Pfam domains (2) --Iso_dh-1wpwB02 B:3-331                                                                                                                                                                                                                                                                                                                   ----- Pfam domains (2)
         Sec.struct. author .eeeeee....hhhhhhhhhhhhhhhhhhhh...eeeeee..hhhhhhhh....hhhhhhhhhhh.eeee.....hhhhhhhhhhhhh...eeeeeee............eeeeeee.........eeeee..eeeeeeeeehhhhhhhhhhhhhhhhh...eeeeee......hhhhhhhhhhhhhhh...eeeeeehhhhhhhhhhhhhhh.eeeehhhhhhhhhhhhhhhhh.....eeeee....eeeee...............hhhhhhhhhhhhhhhhhhhh.hhhhhhhhhhhhhhhhhhhhh...hhhhh...hhhhhhhhhhhh.. Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------IDH_IMDH            ------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Transcript
                 1wpw B   1 GFTVALIQGDGIGPEIVSKSKRILAKINELYSLPIEYIEVEAGDRALARYGEALPKDSLKIIDKADIILKGPVGESAADVVVKLRQIYDMYANIRPAKSIPGIDTKYGNVDILIVRENTEDLYKGFEHIVSDGVAVGMKIITRFASERIAKVGLNFALRRRKKVTCVHKANVMRITDGLFAEACRSVLKGKVEYSEMYVDAAAANLVRNPQMFDVIVTENVYGDILSDEASQIAGSLGIAPSANIGDKKALFEPVHGAAFDIAGKNIGNPTAFLLSVSMMYERMYELSNDDRYIKASRALENAIYLVYKERKALTPDVGGNATTDDLINEIYNKLG 336
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210       220       230       240       250       260       270       280       290       300       310       320       330

Legend:		→ Mismatch	(orange background)
	-	→ Gap	(green background, '-', border residues have a numbering label)
		→ Modified Residue	(blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
	x	→ Chemical Group	(purple background, 'x', labelled with number + name, e.g. ACE or NH2)
	extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '\|'

Asymmetric Unit

Classes(

)

Architectures( (-)

)

Topologies( (-)

)

Homologous Superfamilies( (-)

)

Organisms( (-)

)

Class: Alpha Beta (26913)

Architecture: 3-Layer(aba) Sandwich (12045)

Topology: Isopropylmalate Dehydrogenase (91)

Homologous Superfamily: Isopropylmalate Dehydrogenase (91)

Sulfolobus tokodaii. Organism_taxid: 111955. (1)

1a	1wpwA00	A:1-336
1b	1wpwB00	B:1-336

Asymmetric Unit

Clans(

)

Families(

)

Organisms( (-)

)

Clan: Iso_DH (49)

Family: Iso_dh (38)

Sulfolobus tokodaii (strain DSM 16993 / JCM 10545 / NBRC 100140 / 7) (1)

1a	Iso_dh-1wpwB01	B:3-331
1b	Iso_dh-1wpwB02	B:3-331

Asymmetric Unit(hide GO term definitions)

Chain A,B (LEU3_SULTO | P50455)

molecular function
	GO:0003862	3-isopropylmalate dehydrogenase activity	Catalysis of the reaction: 3-carboxy-2-hydroxy-4-methylpentanoate + NAD+ = 3-carboxy-4-methyl-2-oxopentanoate + NADH + H+.
	GO:0051287	NAD binding	Interacting selectively and non-covalently with nicotinamide adenine dinucleotide, a coenzyme involved in many redox and biosynthetic reactions; binding may be to either the oxidized form, NAD+, or the reduced form, NADH.
	GO:0000287	magnesium ion binding	Interacting selectively and non-covalently with magnesium (Mg) ions.
	GO:0046872	metal ion binding	Interacting selectively and non-covalently with any metal ion.
	GO:0016491	oxidoreductase activity	Catalysis of an oxidation-reduction (redox) reaction, a reversible chemical reaction in which the oxidation state of an atom or atoms within a molecule is altered. One substrate acts as a hydrogen or electron donor and becomes oxidized, while the other acts as hydrogen or electron acceptor and becomes reduced.
	GO:0016616	oxidoreductase activity, acting on the CH-OH group of donors, NAD or NADP as acceptor	Catalysis of an oxidation-reduction (redox) reaction in which a CH-OH group acts as a hydrogen or electron donor and reduces NAD+ or NADP.
biological process
	GO:0009082	branched-chain amino acid biosynthetic process	The chemical reactions and pathways resulting in the formation of amino acids containing a branched carbon skeleton, comprising isoleucine, leucine and valine.
	GO:0008652	cellular amino acid biosynthetic process	The chemical reactions and pathways resulting in the formation of amino acids, organic acids containing one or more amino substituents.
	GO:0009098	leucine biosynthetic process	The chemical reactions and pathways resulting in the formation of leucine, 2-amino-4-methylpentanoic acid.
	GO:0055114	oxidation-reduction process	A metabolic process that results in the removal or addition of one or more electrons to or from a substance, with or without the concomitant removal or addition of a proton or protons.
cellular component
	GO:0005737	cytoplasm	All of the contents of a cell excluding the plasma membrane and nucleus, but including other subcellular structures.

Asymmetric Unit
	Complete Structure
		Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
		WebMol \| AstexViewer[tm]@PDBe (Java Applets, require no local installation except for Java; loading may be slow)
		STRAP (Java WebStart application, automatic local installation, requires Java; full application with system access!)
		RasMol (require local installation)
		Molscript (VRML) (requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

	Ligands, Modified Residues, Ions
		MG	[ RasMol \| Jena3D ]	+environment [ RasMol \| Jena3D ]

	Sites
		AC1	[ RasMol ]	+environment [ RasMol ]
		AC2	[ RasMol ]	+environment [ RasMol ]

	Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 1wpw)

Biological Units
	Complete Structure
		Biological Unit 1	[ Jena3D ]
		Biological Unit 2	[ Jena3D ]

Jmol
	protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick [ Asym. Unit PNG format \| Asym. Unit - sites PNG format \| Biol. Unit 1 PNG format \| Biol. Unit 1 - sites PNG format \| Biol. Unit 2 PNG format ](automatic orientation, automatically generated)
Molscript
	protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick [ mono PDF format \| stereo PDF format ](default orientation, automatically generated)

Access by PDB/NDB ID
	1wpw
		Family and Domain Information	:	ProDom \| SYSTERS
		General Structural Information	:	GlycoscienceDB \| MMDB \| NDB \| OCA \| PDB \| PDBe \| PDBj \| PDBsum \| PDBWiki \| PQS \| PROTEOPEDIA
		Orientation in Membranes	:	OPM
		Protein Surface	:	SURFACE
		Secondary Structure	:	DSSP (structure derived) \| HSSP (homology derived)
		Structural Genomics	:	GeneCensus
		Structural Neighbours	:	CE \| VAST
		Structure Classification	:	CATH \| Dali \| SCOP
		Validation and Original Data	:	BMRB Data View \| BMRB Restraints Grid \| EDS \| PROCHECK \| RECOORD \| WHAT_CHECK

Access by UniProt ID/Accession number
	LEU3_SULTO \| P50455
		Comparative Protein Structure Models	:	ModBase
		Genomic Information	:	Ensembl
		Protein-protein Interaction	:	DIP
		Sequence, Family and Domain Information	:	InterPro \| Pfam \| SMART \| UniProtKB/SwissProt

Access by Enzyme Classificator (EC Number)
	1.1.1.85
		General Enzyme Information	:	BRENDA \| EC-PDB \| Enzyme \| IntEnz
		Pathway	:	KEGG \| MetaCyc

Access by Disease Identifier (MIM ID)
	(no 'MIM ID' available)
		Disease Information	:	OMIM

Access by GenAge ID
	(no 'GenAge ID' available)
		Age Related Information	:	GenAge

Access by PDB/NDB ID
		Domain Information	:	XDom
		Interatomic Contacts of Structural Units	:	CSU
		Ligand-protein Contacts	:	LPC
		Protein Cavities	:	castP
		Sequence and Secondary Structure	:	PDBCartoon
		Structure Alignment	:	STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
		Structure and Sequence Browser	:	STING

Access by UniProt ID/Accession number
	LEU3_SULTO \| P50455
		Protein Disorder Prediction	:	DisEMBL \| FoldIndex \| GLOBPLOT (for more information see DisProt)

(no "Entries Sharing at Least One Protein Chain" available for 1WPW)

(no "Related Entries Specified in the PDB File" available for 1WPW)
