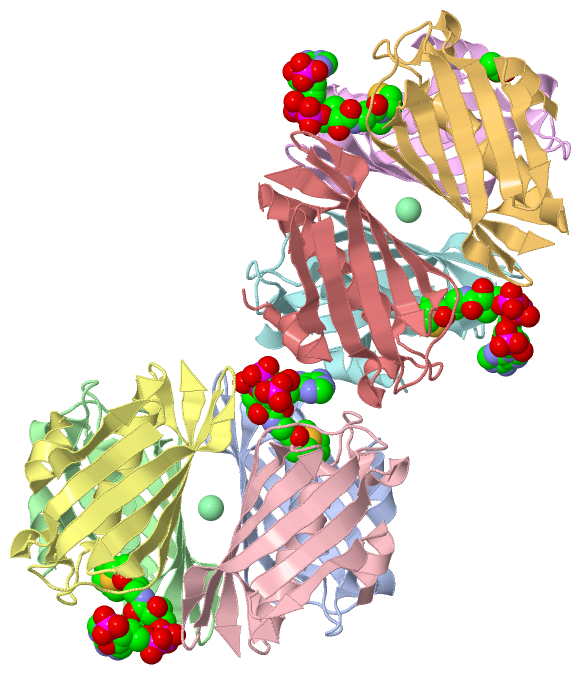

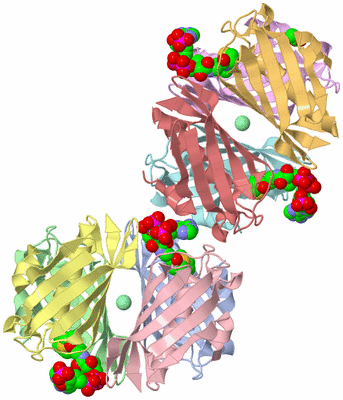

Asymmetric Unit (Jmol Viewer)

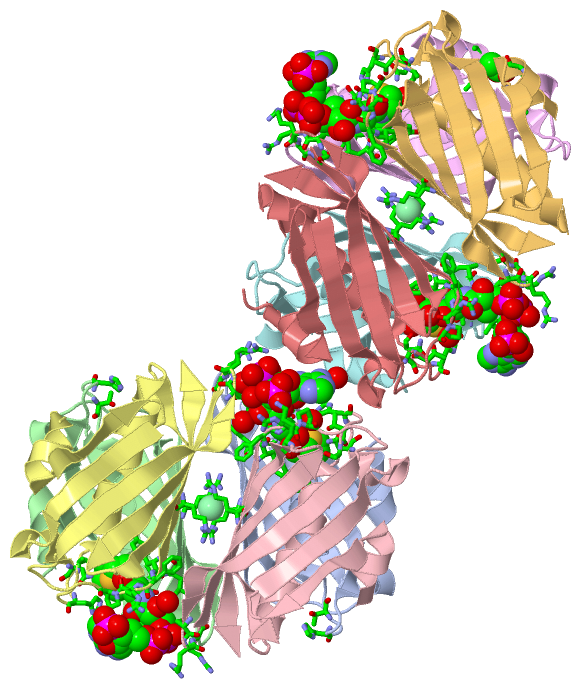

Asym. Unit - sites (Jmol Viewer)

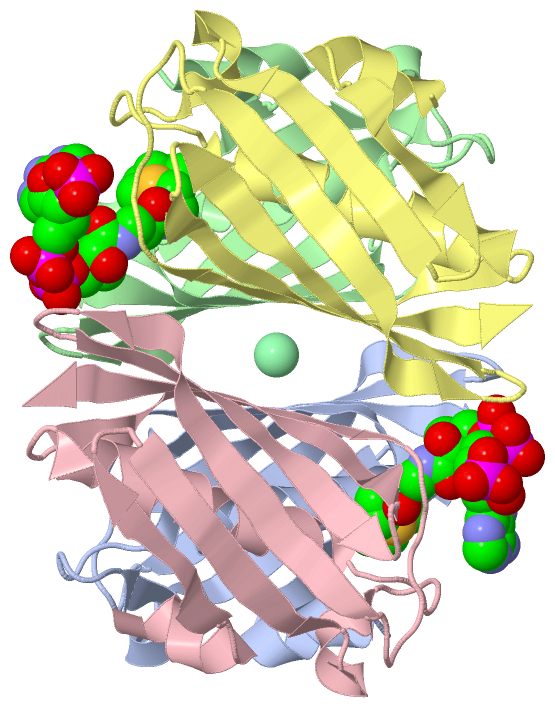

Biological Unit 1 (Jmol Viewer)

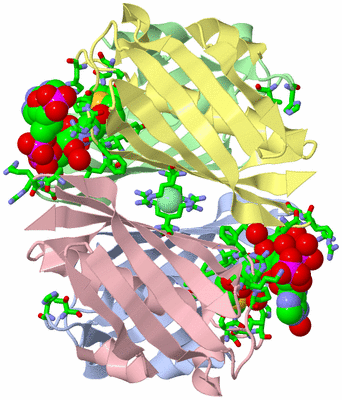

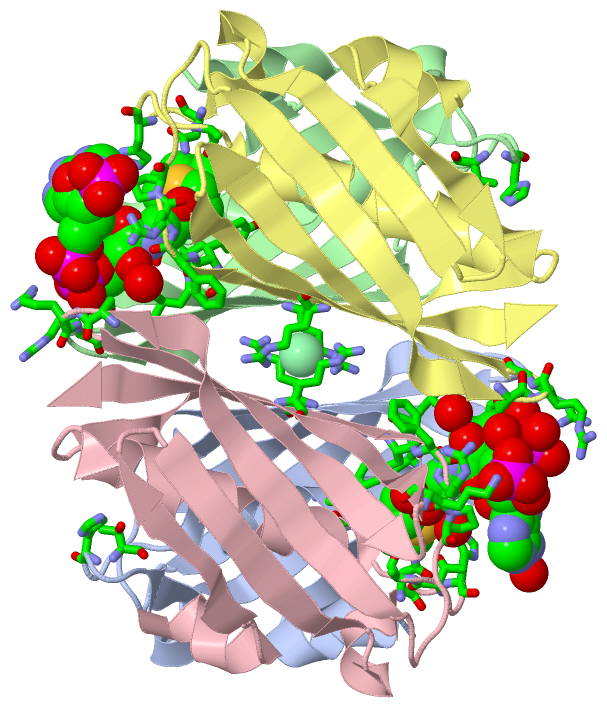

Biol. Unit 1 - sites (Jmol Viewer)

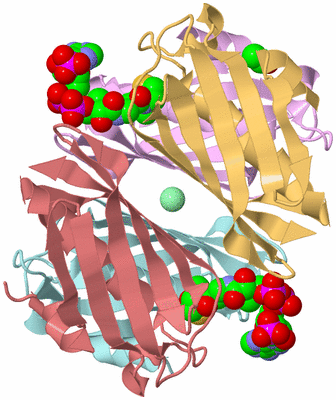

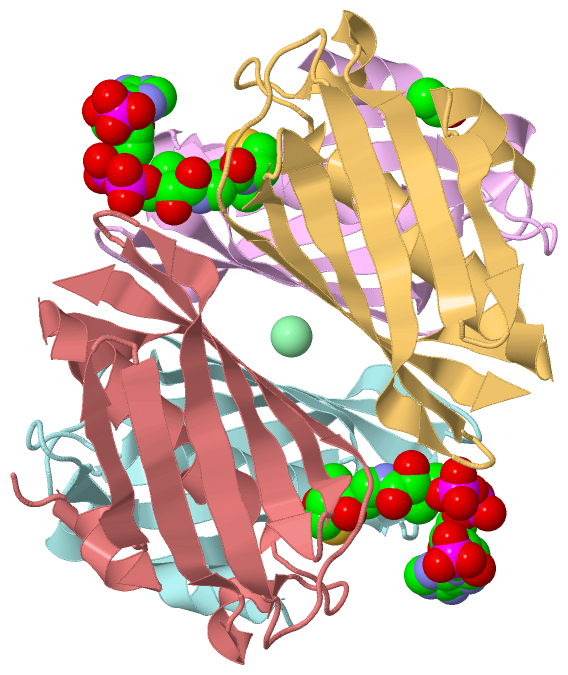

Biological Unit 2 (Jmol Viewer)

Title :   CRYSTAL STRUCTURE OF TT0310 PROTEIN FROM THERMUS THERMOPHILUS HB8

Authors :   N. Kunishima, M. Sugahara, M. Miyano, Riken Structural Genomics/Proteomics Initiative (Rsgi)

Date :   27 Jul 04 (Deposition) - 05 Jul 05 (Release) - 24 Feb 09 (Revision)

Method :   X-RAY DIFFRACTION

Resolution :   2.10

Chains :   Asym. Unit : A,B,C,D,E,F,G,H
Biol. Unit 1: A,B,C,D  (1x)
Biol. Unit 2: E,F,G,H  (1x)

Keywords :   Thioesterase, Hot Dog Fold, Phenylacetic Acid Degradation, Structural Genomics, Riken Structural Genomics/Proteomics Initiative, Rsgi, Unknown Function (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :   N. Kunishima, Y. Asada, M. Sugahara, J. Ishijima, Y. Nodake, M. Sugahara, M. Miyano, S. Kuramitsu, S. Yokoyama, M. Sugahara
A Novel Induced-Fit Reaction Mechanism Of Asymmetric Hot Dog Thioesterase Paai
J. Mol. Biol. V. 352 212 2005
PubMed-ID: 16061252 | Reference-DOI: 10.1016/J.JMB.2005.07.008
(for further references see the PDB file header)

Molecule 1 - PHENYLACETIC ACID DEGRADATION PROTEIN PAAI
	Chains	:	A, B, C, D, E, F, G, H
	Engineered	:	YES
	Expression System	:	ESCHERICHIA COLI
	Expression System Plasmid	:	PET11A
	Expression System Taxid	:	562
	Expression System Vector Type	:	PLASMID
	Organism Scientific	:	THERMUS THERMOPHILUS HB8
	Organism Taxid	:	300852
	Strain	:	HB8 / ATCC 27634 / DSM 579
	Synonym	:	PAAI PROTEIN

		1	2	3	4	5	6	7	8
Asymmetric Unit	:	A	B	C	D	E	F	G	H
Biological Unit 1 (1x)	:	A	B	C	D
Biological Unit 2 (1x)	:					E	F	G	H

Summary Information (see also Sequences/Alignments below)

Asymmetric Unit (3, 7)

No.	Name	Count	Type	Full Name
1	ACT	1	Ligand/Ion	ACETATE ION
2	CL	2	Ligand/Ion	CHLORIDE ION
3	HXC	4	Ligand/Ion	HEXANOYL-COENZYME A

Biological Unit 1 (1, 2)

No.	Name	Count	Type	Full Name
1	ACT	-1	Ligand/Ion	ACETATE ION
2	CL	-1	Ligand/Ion	CHLORIDE ION
3	HXC	2	Ligand/Ion	HEXANOYL-COENZYME A

Biological Unit 2 (2, 3)

No.	Name	Count	Type	Full Name
1	ACT	1	Ligand/Ion	ACETATE ION
2	CL	-1	Ligand/Ion	CHLORIDE ION
3	HXC	2	Ligand/Ion	HEXANOYL-COENZYME A

Asymmetric Unit (7, 7)

No.	Name	Evidence	Residues	Description
1	AC1	SOFTWARE	ARG A:67 , ARG B:67 , ARG C:67 , ARG D:67	BINDING SITE FOR RESIDUE CL B 2001
2	AC2	SOFTWARE	ARG E:67 , ARG F:67 , ARG G:67 , ARG H:67	BINDING SITE FOR RESIDUE CL F 2002
3	AC3	SOFTWARE	ALA E:8 , LEU E:9 , ARG E:28 , ASP E:30 , HIS E:31 , ALA G:8	BINDING SITE FOR RESIDUE ACT E 2007
4	AC4	SOFTWARE	ASP A:48 , ALA A:52 , ALA A:61 , VAL A:62 , ALA A:63 , LEU A:64 , PHE A:115 , ASN C:33 , HIS C:35 , THR C:37 , ALA C:38 , GLY C:40 , TYR C:70 , PHE C:71 , ARG C:72 , PRO C:73 , LYS C:105 , HOH C:2010 , HOH C:2025 , HOH C:2026 , HOH C:2027 , HOH C:2029 , HOH C:2073 , HOH C:2075 , SER D:90 , ARG D:91 , ARG D:92 , HOH D:2030	BINDING SITE FOR RESIDUE HXC C 2003
5	AC5	SOFTWARE	ALA B:52 , ALA B:61 , VAL B:62 , ALA B:63 , LEU B:64 , SER C:90 , ARG C:91 , ARG C:92 , ASN D:33 , HIS D:35 , ALA D:38 , GLY D:40 , TYR D:70 , PHE D:71 , ARG D:72 , PRO D:73 , HOH D:2035 , HOH D:2037	BINDING SITE FOR RESIDUE HXC D 2004
6	AC6	SOFTWARE	HIS A:35 , THR A:37 , PHE E:51 , ALA E:52 , SER E:55 , ASN E:56 , ALA E:61 , VAL E:62 , ALA E:63 , LEU E:64 , VAL E:114 , PHE E:115 , LEU E:117 , HOH E:2015 , HOH E:2027 , HOH E:2030 , ASN G:33 , HIS G:35 , THR G:37 , ALA G:38 , TYR G:70 , PHE G:71 , ARG G:72 , PRO G:73 , SER H:90 , ARG H:91 , ARG H:92 , THR H:93	BINDING SITE FOR RESIDUE HXC E 2005
7	AC7	SOFTWARE	HIS B:35 , THR B:37 , PHE F:51 , ALA F:52 , SER F:55 , ASN F:56 , ALA F:61 , VAL F:62 , ALA F:63 , LEU F:64 , VAL F:114 , PHE F:115 , LEU F:117 , HOH F:2030 , HOH F:2031 , SER G:90 , ARG G:91 , ARG G:92 , THR G:93 , ASN H:33 , HIS H:35 , THR H:37 , ALA H:38 , TYR H:70 , PHE H:71 , ARG H:72 , PRO H:73 , HOH H:141 , HOH H:161	BINDING SITE FOR RESIDUE HXC F 2006

(no "SS Bond" information available for 1WN3)

(no "Cis Peptide Bond" information available for 1WN3)

(no "SAP(SNP)/Variant" information available for 1WN3)

(no "PROSITE Motif" information available for 1WN3)

(no "Exon" information available for 1WN3)

Asymmetric Unit

Reformat:	Number of residues per line = ('0' or empty: single-line sequence representation)
	Number of residues per labelling interval =
	UniProt sequence: complete aligned part

Show mapping:	SCOP domains	CATH domains	Pfam domains	Secondary structure (by author)
	SAPs(SNPs)	PROSITE motifs	Exons
	(details for a mapped element are shown in a popup box when the mouse pointer rests over it)

Chain A from PDB  Type:PROTEIN  Length:116
 aligned with Q5SJP3_THET8 | Q5SJP3 from UniProtKB/TrEMBL  Length:136

    Alignment length:116
                                    11        21        31        41        51        61        71        81        91       101       111
         Q5SJP3_THET8     2 RDPFMEALGLKVLHLAPGEAVVAGEVRADHLNLHGTAHGGFLYALADSAFALASNTRGPAVALSCRMDYFRPLGAGARVEARAVEVNLSRRTATYRVEVVSEGKLVALFTGTVFRL 117
               SCOP domains d1wn3a_ A: automated matches                                                                                         SCOP domains
               CATH domains 1wn3A00 A:2-117  [code=3.10.129.10, no name defined]                                                                 CATH domains
               Pfam domains -------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .hhhhhhh..eeeeee..eeeeeee.hhhhh......hhhhhhhhhhhhhhhhhhhhh.eeeeeeeeee........eeeeeeeeeee...eeeeeeeeee..eeeeeeeeeeee. Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript -------------------------------------------------------------------------------------------------------------------- Transcript
                 1wn3 A   2 RDPFMEALGLKVLHLAPGEAVVAGEVRADHLNLHGTAHGGFLYALADSAFALASNTRGPAVALSCRMDYFRPLGAGARVEARAVEVNLSRRTATYRVEVVSEGKLVALFTGTVFRL 117
                                    11        21        31        41        51        61        71        81        91       101       111

Chain B from PDB  Type:PROTEIN  Length:116
 aligned with Q5SJP3_THET8 | Q5SJP3 from UniProtKB/TrEMBL  Length:136

    Alignment length:116
                                    11        21        31        41        51        61        71        81        91       101       111
         Q5SJP3_THET8     2 RDPFMEALGLKVLHLAPGEAVVAGEVRADHLNLHGTAHGGFLYALADSAFALASNTRGPAVALSCRMDYFRPLGAGARVEARAVEVNLSRRTATYRVEVVSEGKLVALFTGTVFRL 117
               SCOP domains d1wn3b_ B: automated matches                                                                                         SCOP domains
               CATH domains 1wn3B00 B:2-117  [code=3.10.129.10, no name defined]                                                                 CATH domains
               Pfam domains -------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .hhhhhhh..eeeeee..eeeeeee.hhhhh......hhhhhhhhhhhhhhhhhhh...eeeeeeeeee........eeeeeeeeeee...eeeeeeeeee..eeeeeeeeeeee. Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript -------------------------------------------------------------------------------------------------------------------- Transcript
                 1wn3 B   2 RDPFMEALGLKVLHLAPGEAVVAGEVRADHLNLHGTAHGGFLYALADSAFALASNTRGPAVALSCRMDYFRPLGAGARVEARAVEVNLSRRTATYRVEVVSEGKLVALFTGTVFRL 117
                                    11        21        31        41        51        61        71        81        91       101       111

Chain C from PDB  Type:PROTEIN  Length:115
 aligned with Q5SJP3_THET8 | Q5SJP3 from UniProtKB/TrEMBL  Length:136

    Alignment length:115
                                    12        22        32        42        52        62        72        82        92       102       112
         Q5SJP3_THET8     3 DPFMEALGLKVLHLAPGEAVVAGEVRADHLNLHGTAHGGFLYALADSAFALASNTRGPAVALSCRMDYFRPLGAGARVEARAVEVNLSRRTATYRVEVVSEGKLVALFTGTVFRL 117
               SCOP domains d1wn3c_ C: automated matches                                                                                        SCOP domains
               CATH domains 1wn3C00 C:3-117  [code=3.10.129.10, no name defined]                                                                CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author hhhhhhh..eeeeee..eeeeeee.hhhhh......hhhhhhhhhhhhhhhhhhh...eeeeeeeeee........eeeeeeeeeee...eeeeeeeeee..eeeeeeeeeeee. Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------- Transcript
                 1wn3 C   3 DPFMEALGLKVLHLAPGEAVVAGEVRADHLNLHGTAHGGFLYALADSAFALASNTRGPAVALSCRMDYFRPLGAGARVEARAVEVNLSRRTATYRVEVVSEGKLVALFTGTVFRL 117
                                    12        22        32        42        52        62        72        82        92       102       112

Chain D from PDB  Type:PROTEIN  Length:116
 aligned with Q5SJP3_THET8 | Q5SJP3 from UniProtKB/TrEMBL  Length:136

    Alignment length:116
                                    11        21        31        41        51        61        71        81        91       101       111
         Q5SJP3_THET8     2 RDPFMEALGLKVLHLAPGEAVVAGEVRADHLNLHGTAHGGFLYALADSAFALASNTRGPAVALSCRMDYFRPLGAGARVEARAVEVNLSRRTATYRVEVVSEGKLVALFTGTVFRL 117
               SCOP domains d1wn3d_ D: automated matches                                                                                         SCOP domains
               CATH domains 1wn3D00 D:2-117  [code=3.10.129.10, no name defined]                                                                 CATH domains
               Pfam domains -------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .hhhhhhh..eeeeee..eeeeeee.hhhhh......hhhhhhhhhhhhhhhhhhh...eeeeeeeeee........eeeeeeeeeee...eeeeeeeeee..eeeeeeeeeeee. Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript -------------------------------------------------------------------------------------------------------------------- Transcript
                 1wn3 D   2 RDPFMEALGLKVLHLAPGEAVVAGEVRADHLNLHGTAHGGFLYALADSAFALASNTRGPAVALSCRMDYFRPLGAGARVEARAVEVNLSRRTATYRVEVVSEGKLVALFTGTVFRL 117
                                    11        21        31        41        51        61        71        81        91       101       111

Chain E from PDB  Type:PROTEIN  Length:115
 aligned with Q5SJP3_THET8 | Q5SJP3 from UniProtKB/TrEMBL  Length:136

    Alignment length:115
                                    12        22        32        42        52        62        72        82        92       102       112
         Q5SJP3_THET8     3 DPFMEALGLKVLHLAPGEAVVAGEVRADHLNLHGTAHGGFLYALADSAFALASNTRGPAVALSCRMDYFRPLGAGARVEARAVEVNLSRRTATYRVEVVSEGKLVALFTGTVFRL 117
               SCOP domains d1wn3e_ E: automated matches                                                                                        SCOP domains
               CATH domains 1wn3E00 E:3-117  [code=3.10.129.10, no name defined]                                                                CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author hhhhhhhh.eeeeee..eeeeeee.hhhhh......hhhhhhhhhhhhhhhhhhhhh.eeeeeeeeee........eeeeeeeeeee...eeeeeeeeee..eeeeeeeeeeee. Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------- Transcript
                 1wn3 E   3 DPFMEALGLKVLHLAPGEAVVAGEVRADHLNLHGTAHGGFLYALADSAFALASNTRGPAVALSCRMDYFRPLGAGARVEARAVEVNLSRRTATYRVEVVSEGKLVALFTGTVFRL 117
                                    12        22        32        42        52        62        72        82        92       102       112

Chain F from PDB  Type:PROTEIN  Length:116
 aligned with Q5SJP3_THET8 | Q5SJP3 from UniProtKB/TrEMBL  Length:136

    Alignment length:116
                                    11        21        31        41        51        61        71        81        91       101       111
         Q5SJP3_THET8     2 RDPFMEALGLKVLHLAPGEAVVAGEVRADHLNLHGTAHGGFLYALADSAFALASNTRGPAVALSCRMDYFRPLGAGARVEARAVEVNLSRRTATYRVEVVSEGKLVALFTGTVFRL 117
               SCOP domains d1wn3f_ F: automated matches                                                                                         SCOP domains
               CATH domains 1wn3F00 F:2-117  [code=3.10.129.10, no name defined]                                                                 CATH domains
               Pfam domains -------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .hhhhhhhh.eeeeee..eeeeeee.hhhhh......hhhhhhhhhhhhhhhhhhh...eeeeeeeeee........eeeeeeeeeee...eeeeeeeeee..eeeeeeeeeeee. Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript -------------------------------------------------------------------------------------------------------------------- Transcript
                 1wn3 F   2 RDPFMEALGLKVLHLAPGEAVVAGEVRADHLNLHGTAHGGFLYALADSAFALASNTRGPAVALSCRMDYFRPLGAGARVEARAVEVNLSRRTATYRVEVVSEGKLVALFTGTVFRL 117
                                    11        21        31        41        51        61        71        81        91       101       111

Chain G from PDB  Type:PROTEIN  Length:115
 aligned with Q5SJP3_THET8 | Q5SJP3 from UniProtKB/TrEMBL  Length:136

    Alignment length:115
                                    12        22        32        42        52        62        72        82        92       102       112
         Q5SJP3_THET8     3 DPFMEALGLKVLHLAPGEAVVAGEVRADHLNLHGTAHGGFLYALADSAFALASNTRGPAVALSCRMDYFRPLGAGARVEARAVEVNLSRRTATYRVEVVSEGKLVALFTGTVFRL 117
               SCOP domains d1wn3g_ G: automated matches                                                                                        SCOP domains
               CATH domains 1wn3G00 G:3-117  [code=3.10.129.10, no name defined]                                                                CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author hhhhhhh..eeeeee..eeeeeee.hhhhh......hhhhhhhhhhhhhhhhhhhhh.eeeeeeeeee........eeeeeeeeeee...eeeeeeeeee..eeeeeeeeeeee. Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------- Transcript
                 1wn3 G   3 DPFMEALGLKVLHLAPGEAVVAGEVRADHLNLHGTAHGGFLYALADSAFALASNTRGPAVALSCRMDYFRPLGAGARVEARAVEVNLSRRTATYRVEVVSEGKLVALFTGTVFRL 117
                                    12        22        32        42        52        62        72        82        92       102       112

Chain H from PDB  Type:PROTEIN  Length:117
 aligned with Q5SJP3_THET8 | Q5SJP3 from UniProtKB/TrEMBL  Length:136

    Alignment length:117
                                    10        20        30        40        50        60        70        80        90       100       110
         Q5SJP3_THET8     1 MRDPFMEALGLKVLHLAPGEAVVAGEVRADHLNLHGTAHGGFLYALADSAFALASNTRGPAVALSCRMDYFRPLGAGARVEARAVEVNLSRRTATYRVEVVSEGKLVALFTGTVFRL 117
               SCOP domains d1wn3h_ H: automated matches                                                                                          SCOP domains
               CATH domains 1wn3H00 H:1-117  [code=3.10.129.10, no name defined]                                                                  CATH domains
           Pfam domains (1) ----------------------------------4HBT-1wn3H01 H:35-109                                                      -------- Pfam domains (1)
           Pfam domains (2) ----------------------------------4HBT-1wn3H02 H:35-109                                                      -------- Pfam domains (2)
           Pfam domains (3) ----------------------------------4HBT-1wn3H03 H:35-109                                                      -------- Pfam domains (3)
           Pfam domains (4) ----------------------------------4HBT-1wn3H04 H:35-109                                                      -------- Pfam domains (4)
           Pfam domains (5) ----------------------------------4HBT-1wn3H05 H:35-109                                                      -------- Pfam domains (5)
           Pfam domains (6) ----------------------------------4HBT-1wn3H06 H:35-109                                                      -------- Pfam domains (6)
           Pfam domains (7) ----------------------------------4HBT-1wn3H07 H:35-109                                                      -------- Pfam domains (7)
           Pfam domains (8) ----------------------------------4HBT-1wn3H08 H:35-109                                                      -------- Pfam domains (8)
         Sec.struct. author ..hhhhhhhh.eeeeee..eeeeeee.hhhhh......hhhhhhhhhhhhhhhhhhhhh.eeeeeeeeee........eeeeeeeeeee...eeeeeeeeee..eeeeeeeeeeee. Sec.struct. author
                 SAPs(SNPs) --------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE --------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript --------------------------------------------------------------------------------------------------------------------- Transcript
                 1wn3 H   1 MRDPFMEALGLKVLHLAPGEAVVAGEVRADHLNLHGTAHGGFLYALADSAFALASNTRGPAVALSCRMDYFRPLGAGARVEARAVEVNLSRRTATYRVEVVSEGKLVALFTGTVFRL 117
                                    10        20        30        40        50        60        70        80        90       100       110

Legend:		→ Mismatch	(orange background)
	-	→ Gap	(green background, '-', border residues have a numbering label)
		→ Modified Residue	(blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
	x	→ Chemical Group	(purple background, 'x', labelled with number + name, e.g. ACE or NH2)
	extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '\|'

Asymmetric Unit

Classes(

)

Folds(

)

Superfamilies( (-)

)

Families(

)

Protein Domains( (-)

)

Organisms( (-)

)

Class: Alpha and beta proteins (a+b) (23004)

Fold: Thioesterase/thiol ester dehydrase-isomerase (151)

Superfamily: Thioesterase/thiol ester dehydrase-isomerase (151)

Family: PaaI/YdiI-like (44)

Protein domain: automated matches (20)

Thermus thermophilus HB8 [TaxId: 300852] (5)

1a	d1wn3a_	A:
1b	d1wn3b_	B:
1c	d1wn3c_	C:
1d	d1wn3d_	D:
1e	d1wn3e_	E:
1f	d1wn3f_	F:
1g	d1wn3g_	G:
1h	d1wn3h_	H:

Asymmetric Unit

Classes(

)

Architectures( (-)

)

Topologies( (-)

)

Homologous Superfamilies( (-)

)

Organisms( (-)

)

Class: Alpha Beta (26913)

Architecture: Roll (3276)

Topology: Thiol Ester Dehydrase; Chain A (90)

Homologous Superfamily: [code=3.10.129.10, no name defined] (90)

Thermus thermophilus hb8. Organism_taxid: 300852. Strain: hb8 / atcc 27634 / dsm 579. (4)

1a	1wn3H00	H:1-117
1b	1wn3A00	A:2-117
1c	1wn3B00	B:2-117
1d	1wn3D00	D:2-117
1e	1wn3F00	F:2-117
1f	1wn3C00	C:3-117
1g	1wn3E00	E:3-117
1h	1wn3G00	G:3-117

Asymmetric Unit

Clans(

)

Families(

)

Organisms( (-)

)

Clan: HotDog (52)

Family: 4HBT (31)

Thermus thermophilus (strain HB8 / ATCC 27634 / DSM 579) (4)

1a	4HBT-1wn3H01	H:35-109
1b	4HBT-1wn3H02	H:35-109
1c	4HBT-1wn3H03	H:35-109
1d	4HBT-1wn3H04	H:35-109
1e	4HBT-1wn3H05	H:35-109
1f	4HBT-1wn3H06	H:35-109
1g	4HBT-1wn3H07	H:35-109
1h	4HBT-1wn3H08	H:35-109

Asymmetric Unit(hide GO term definitions)

Chain A,B,C,D,E,F,G,H (Q5SJP3_THET8 | Q5SJP3)

molecular function
	GO:0016790		thiolester hydrolase activity		Catalysis of the reaction: RCO-SR' + H2O = RCOOH + HSR'. This reaction is the hydrolysis of a thiolester bond, an ester formed from a carboxylic acid and a thiol (i.e., RCO-SR'), such as that found in acetyl-coenzyme A.

Asymmetric Unit
	Complete Structure
		Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
		WebMol \| AstexViewer[tm]@PDBe (Java Applets, require no local installation except for Java; loading may be slow)
		STRAP (Java WebStart application, automatic local installation, requires Java; full application with system access!)
		RasMol (require local installation)
		Molscript (VRML) (requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

	Ligands, Modified Residues, Ions
		ACT	[ RasMol \| Jena3D ]	+environment [ RasMol \| Jena3D ]
		CL	[ RasMol \| Jena3D ]	+environment [ RasMol \| Jena3D ]
		HXC	[ RasMol \| Jena3D ]	+environment [ RasMol \| Jena3D ]

	Sites
		AC1	[ RasMol ]	+environment [ RasMol ]
		AC2	[ RasMol ]	+environment [ RasMol ]
		AC3	[ RasMol ]	+environment [ RasMol ]
		AC4	[ RasMol ]	+environment [ RasMol ]
		AC5	[ RasMol ]	+environment [ RasMol ]
		AC6	[ RasMol ]	+environment [ RasMol ]
		AC7	[ RasMol ]	+environment [ RasMol ]

	Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 1wn3)

Biological Units
	Complete Structure
		Biological Unit 1	[ Jena3D ]
		Biological Unit 2	[ Jena3D ]

Jmol
	protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick [ Asym. Unit PNG format \| Asym. Unit - sites PNG format \| Biol. Unit 1 PNG format \| Biol. Unit 1 - sites PNG format \| Biol. Unit 2 PNG format ](automatic orientation, automatically generated)
Molscript
	protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick [ mono PDF format \| stereo PDF format ](default orientation, automatically generated)

Access by PDB/NDB ID
	1wn3
		Family and Domain Information	:	ProDom \| SYSTERS
		General Structural Information	:	GlycoscienceDB \| MMDB \| NDB \| OCA \| PDB \| PDBe \| PDBj \| PDBsum \| PDBWiki \| PQS \| PROTEOPEDIA
		Orientation in Membranes	:	OPM
		Protein Surface	:	SURFACE
		Secondary Structure	:	DSSP (structure derived) \| HSSP (homology derived)
		Structural Genomics	:	GeneCensus
		Structural Neighbours	:	CE \| VAST
		Structure Classification	:	CATH \| Dali \| SCOP
		Validation and Original Data	:	BMRB Data View \| BMRB Restraints Grid \| EDS \| PROCHECK \| RECOORD \| WHAT_CHECK

Access by UniProt ID/Accession number
	Q5SJP3_THET8 \| Q5SJP3
		Comparative Protein Structure Models	:	ModBase
		Genomic Information	:	Ensembl
		Protein-protein Interaction	:	DIP
		Sequence, Family and Domain Information	:	InterPro \| Pfam \| SMART \| UniProtKB/TrEMBL

Access by Enzyme Classificator (EC Number)
	(no 'Enzyme Classificator' available)
		General Enzyme Information	:	BRENDA \| EC-PDB \| Enzyme \| IntEnz
		Pathway	:	KEGG \| MetaCyc

Access by Disease Identifier (MIM ID)
	(no 'MIM ID' available)
		Disease Information	:	OMIM

Access by GenAge ID
	(no 'GenAge ID' available)
		Age Related Information	:	GenAge

Access by PDB/NDB ID
		Domain Information	:	XDom
		Interatomic Contacts of Structural Units	:	CSU
		Ligand-protein Contacts	:	LPC
		Protein Cavities	:	castP
		Sequence and Secondary Structure	:	PDBCartoon
		Structure Alignment	:	STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
		Structure and Sequence Browser	:	STING

Access by UniProt ID/Accession number
	Q5SJP3_THET8 \| Q5SJP3
		Protein Disorder Prediction	:	DisEMBL \| FoldIndex \| GLOBPLOT (for more information see DisProt)

UniProtKB/TrEMBL
	Q5SJP3_THET8 \| Q5SJP3	:	1j1y 1wlu 1wlv 1wm6 2dsl

1wlu	UNLIGANDED FORM IN SPACE GROUP I4122
1wlv	COA-SH LIGANDED FORM RELATED ID: TTK003000310.5 RELATED DB: TARGETDB

Description

Compounds

Structural Features

Chains, Units

Ligands, Modified Residues, Ions (3, 7)

Sites (7, 7)

SS Bonds (0, 0)

Cis Peptide Bonds (0, 0)

Sequence-Structure Mapping

SAPs(SNPs)/Variants (0, 0)

PROSITE Motifs (0, 0)

Exons (0, 0)

Sequences/Alignments

Classification and Annotation

SCOP Domains (1, 8)

CATH Domains (1, 8)

Pfam Domains (1, 8)

Gene Ontology (1, 1)

Visualization

Interactive Views

Still Images

Databases and Analysis Tools

Databases

Analysis Tools

Related Entries

Entries Sharing at Least One Protein Chain (UniProt ID)

Related Entries Specified in the PDB File
