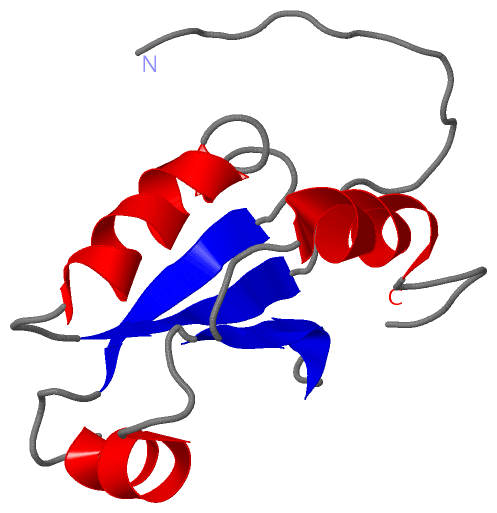

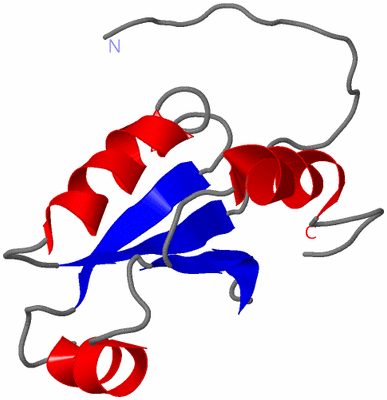

Image NMR Structure - model 1
NMR Structure - model 1  (Jmol Viewer)

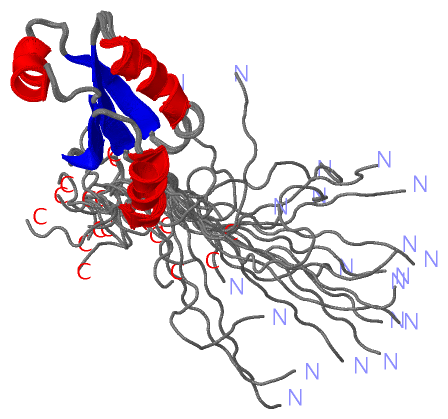

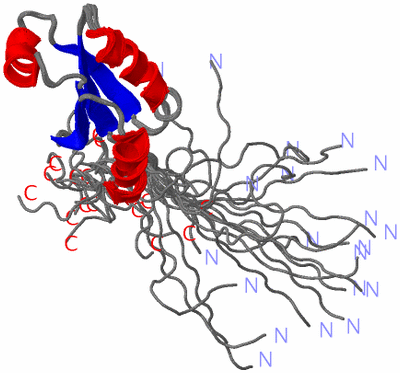

Image NMR Structure - all models
NMR Structure - all models  (Jmol Viewer)

(-) Description

Title :  SOLUTION STRUCTURE OF HYPOTHETICAL PROTEIN C330018D20RIK FROM MUS MUSCULUS

Authors :  M. Sato, S. Koshiba, M. Inoue, T. Kigawa, S. Yokoyama, Riken Structural Genomics/Proteomics Initiative (Rsgi)
Date :  29 May 04  (Deposition) - 29 Nov 04  (Release) - 24 Feb 09  (Revision)
Method :  SOLUTION NMR
Resolution :  NOT APPLICABLE
Chains :  NMR Structure  :  A  (20x)
Keywords :  Glutaredoxin, Thioredoxin Fold, Structural Genomics, Riken Structural Genomics/Proteomics Initiative, Rsgi, Unknown Function (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  M. Sato, S. Koshiba, M. Inoue, T. Kigawa, S. Yokoyama
Solution Structure Of Hypothetical Protein C330018D20Rik From Mus Musculus
To Be Published
PubMed: search
(for further references see the PDB file header)

(-) Compounds

Molecule 1 - C330018D20RIK PROTEIN
    Chains: A
    Engineered: YES
    Expression System Plasmid: P031125-30
    Expression System Vector Type: PLASMID
    Fragment: GLUTAREDOXIN DOMAIN
    Gene: RIKEN CDNA C330018D20
    Organism Common: HOUSE MOUSE
    Organism Scientific: MUS MUSCULUS
    Organism Taxid: 10090
    Other Details: CELL-FREE PROTEIN SYNTHESIS

 Structural Features

(-) Chains, Units


NMR Structure (20x):

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (0, 0)

(no "Ligand,Modified Residues,Ions" information available for 1WJK)

(-) Sites  (0, 0)

(no "Site" information available for 1WJK)

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 1WJK)

(-) Cis Peptide Bonds  (2, 40)

NMR Structure
No.ModelResidues
11, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 20Ala A:25 -Pro A:26
21, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 20Ile A:67 -Pro A:68

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 1WJK)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 1WJK)

(-) Exons   (0, 0)

(no "Exon" information available for 1WJK)

(-) Sequences/Alignments

NMR Structure
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:100
 aligned with YD286_MOUSE | Q9CWB7 from UniProtKB/Swiss-Prot  Length:115

    Alignment length:100
                                    23        33        43        53        63        73        83        93       103       113
          YD286_MOUSE    14 SSFGLLRNLSASNRALPVLTLFTKAPCPLCDEAKEVLQPYKDRFILQEVDITLPENSTWYERYKFDIPVFHLNGQFLMMHRVNTSKLEKQLRKLEQQVLA 113
               SCOP domains d1wjka_ A: Thioredoxin-like structure containing protein C330018D20Rik                               SCOP domains
               CATH domains ---------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains -----------------DUF836-1wjkA01 A:18-92                                                     -------- Pfam domains
         Sec.struct. author .................eeeeee...hhhhhhhhhhh.......eeeeee.....hhhhhhhh.....eeee...eeee...hhhhhhhhhhh....... Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ---------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ---------------------------------------------------------------------------------------------------- Transcript
                 1wjk A   1 GSSGSSGNLSASNRALPVLTLFTKAPCPLCDEAKEVLQPYKDRFILQEVDITLPENSTWYERYKFDIPVFHLNGQFLMMHRVNTSKLEKQLRKLSGPSSG 100
                                    10        20        30        40        50        60        70        80        90       100
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (1, 1)

NMR Structure
(-)
Class: Alpha and beta proteins (a/b) (23833)

(-) CATH Domains  (0, 0)

(no "CATH Domain" information available for 1WJK)

(-) Pfam Domains  (1, 1)

NMR Structure
(-)
Clan: Thioredoxin (367)

(-) Gene Ontology  (4, 4)

NMR Structure(hide GO term definitions)
Chain A   (YD286_MOUSE | Q9CWB7)
molecular function
    GO:0003674    molecular_function    Elemental activities, such as catalysis or binding, describing the actions of a gene product at the molecular level. A given gene product may exhibit one or more molecular functions.
biological process
    GO:0008150    biological_process    Any process specifically pertinent to the functioning of integrated living units: cells, tissues, organs, and organisms. A process is a collection of molecular events with a defined beginning and end.
    GO:0055114    oxidation-reduction process    A metabolic process that results in the removal or addition of one or more electrons to or from a substance, with or without the concomitant removal or addition of a proton or protons.
cellular component
    GO:0005739    mitochondrion    A semiautonomous, self replicating organelle that occurs in varying numbers, shapes, and sizes in the cytoplasm of virtually all eukaryotic cells. It is notably the site of tissue respiration.

 Visualization

(-) Interactive Views

NMR Structure
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
(no "Ligands, Modified Residues, Ions" information available for 1wjk)

  Sites
(no "Sites" information available for 1wjk)

  Cis Peptide Bonds
    Ala A:25 - Pro A:26   [ RasMol ]
    Ile A:67 - Pro A:68   [ RasMol ]


(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
[ NMR Structure - model 1 PNG format | NMR Structure - all models PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)
