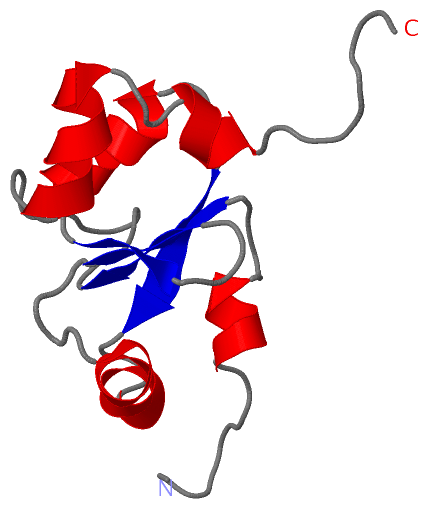

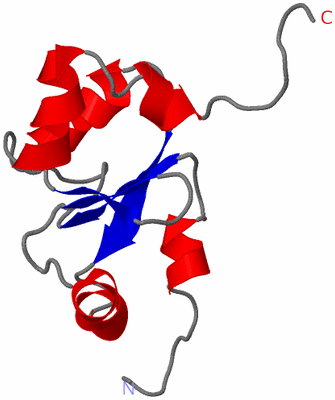

Image NMR Structure - model 1
NMR Structure - model 1  (Jmol Viewer)

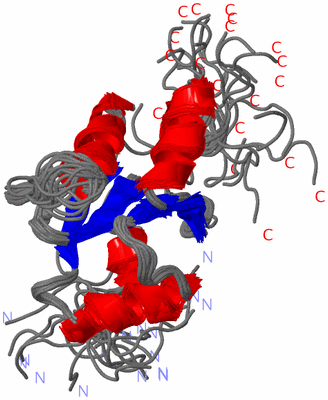

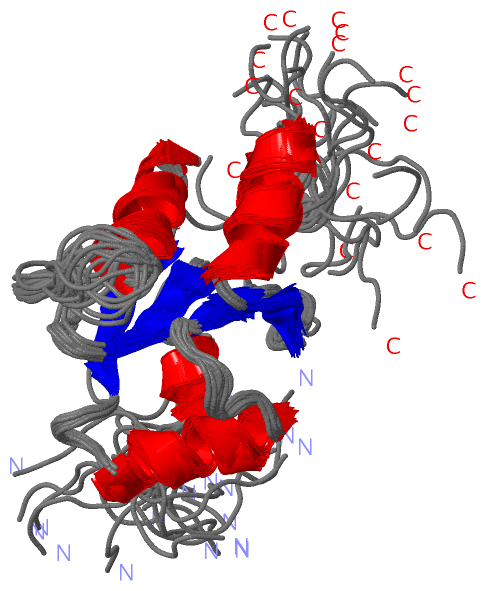

Image NMR Structure - all models
NMR Structure - all models  (Jmol Viewer)

(-) Description

Title :  SOLUTION STRUCTURE OF THE PICOT HOMOLOGY 2 DOMAIN OF THE MOUSE PKC-INTERACTING COUSIN OF THIOREDOXIN PROTEIN

Authors :  K. Miyamoto, T. Tomizawa, S. Koshiba, M. Inoue, T. Kigawa, S. Yokoyama, Riken Structural Genomics/Proteomics Initiative (Rsgi)
Date :  28 May 04  (Deposition) - 28 Nov 04  (Release) - 24 Feb 09  (Revision)
Method :  SOLUTION NMR
Resolution :  NOT APPLICABLE
Chains :  NMR Structure  :  A  (20x)
Keywords :  Picot Homology 2 Domain, Picot Protein, Thioredoxin Like 2, Structural Genomics, Riken Structural Genomics/Proteomics Initiative, Rsgi, Electron Transport (Keyword Search: [Gene Ontology, PubMed, Web (Google))

Reference :  K. Miyamoto, T. Tomizawa, S. Koshiba, M. Inoue, T. Kigawa, S. Yokoyama
Solution Structure Of The Picot Homology 2 Domain Of The Mouse Pkc-Interacting Cousin Of Thioredoxin Protein
To Be Published
PubMed: search
(for further references see the PDB file header)

(-) Compounds

Molecule 1 - THIOREDOXIN-LIKE PROTEIN 2
    ChainsA
    EngineeredYES
    Expression System PlasmidP030421-03
    Expression System Vector TypePLASMID
    FragmentPICOT HOMOLOGY 2 DOMAIN
    GeneRIKEN CDNA 2410003E11
    Organism CommonHOUSE MOUSE
    Organism ScientificMUS MUSCULUS
    Organism Taxid10090
    Other DetailsCELL-FREE PROTEIN SYNTHESIS
    SynonymPKC-INTERACTING COUSIN OF THIOREDOXIN, PKC-THETA- INTERACTING PROTEIN, PKCQ-INTERACTING PROTEIN

 Structural Features

(-) Chains, Units


NMR Structure (20x)

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (0, 0)

(no "Ligand,Modified Residues,Ions" information available for 1WIK)

(-) Sites  (0, 0)

(no "Site" information available for 1WIK)

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 1WIK)

(-) Cis Peptide Bonds  (1, 20)

NMR Structure
No.ModelResidues
11, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 20Tyr A:71 -Pro A:72

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 1WIK)

(-) PROSITE Motifs  (1, 1)

NMR Structure (1, 1)
 PROSITEUniProtKBPDB
No.IDACDescriptionIDLocationCountLocation
1GLUTAREDOXIN_2PS51354 Glutaredoxin domain profile.GLRX3_MOUSE136-238
238-337
  1-
A:8-103

(-) Exons   (0, 0)

(no "Exon" information available for 1WIK)

(-) Sequences/Alignments

NMR Structure
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:109
 aligned with GLRX3_MOUSE | Q9CQM9 from UniProtKB/Swiss-Prot  Length:337

    Alignment length:151
                                                                                                                                                                           337
                                   201       211       221       231       241       251       261       271       281       291       301       311       321       331     |   -
          GLRX3_MOUSE   192 GLKTYSNWPTYPQLYVSGELIGGLDIIKELEASEELDTICPKAPKLEERLKVLTNKASVMLFMKGNKQEAKCGFSKQILEILNSTGVEYETFDILEDEEVRQGLKTFSNWPTYPQLYVRGDLVGGLDIVKELKDNGELLPILKGEN-----   -
               SCOP domains d1wika               _                            A: Thioredoxin-like protein 2                                                                         SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ......---------------.---------------------------hhhhh....eeeee...........hhhhhhhhhh....eeeee....hhhhhhhhhhh......eee....eee.hhhhhhhhhh...hhhhh........ Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                PROSITE (1) GLUTAREDOXIN_2  PDB: - UniProt: 136-238        -------------------------------------------------------------------------------------------------------- PROSITE (1)
                PROSITE (2) ----------------------------------------------GLUTAREDOXIN_2  PDB: A:8-103 UniProt: 238-337                                                       ----- PROSITE (2)
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1wik A   1 GSSGSS---------------G---------------------------LKVLTNKASVMLFMKGNKQEAKCGFSKQILEILNSTGVEYETFDILEDEEVRQGLKTFSNWPTYPQLYVRGDLVGGLDIVKELKDNGELLPILKGESGPSSG 109
                                 |   -         - |       -         -         8        18        28        38        48        58        68        78        88        98       108
                                 6               7                           8

   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (1, 1)

NMR Structure

(-) CATH Domains  (0, 0)

(no "CATH Domain" information available for 1WIK)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 1WIK)

(-) Gene Ontology  (16, 16)

NMR Structure(hide GO term definitions)
Chain A   (GLRX3_MOUSE | Q9CQM9)
molecular function
    GO:0009055    electron carrier activity    Any molecular entity that serves as an electron acceptor and electron donor in an electron transport chain. An electron transport chain is a process in which a series of electron carriers operate together to transfer electrons from donors to any of several different terminal electron acceptors to generate a transmembrane electrochemical gradient.
    GO:0051536    iron-sulfur cluster binding    Interacting selectively and non-covalently with an iron-sulfur cluster, a combination of iron and sulfur atoms.
    GO:0046872    metal ion binding    Interacting selectively and non-covalently with any metal ion.
    GO:0005515    protein binding    Interacting selectively and non-covalently with any protein or protein complex (a complex of two or more proteins that may include other nonprotein molecules).
    GO:0015035    protein disulfide oxidoreductase activity    Catalysis of the reaction: a protein with reduced sulfide groups = a protein with oxidized disulfide bonds.
    GO:0005080    protein kinase C binding    Interacting selectively and non-covalently with protein kinase C.
biological process
    GO:0045454    cell redox homeostasis    Any process that maintains the redox environment of a cell or compartment within a cell.
    GO:0010614    negative regulation of cardiac muscle hypertrophy    Any process that decreases the rate, frequency or extent of the enlargement or overgrowth of all or part of the heart due to an increase in size (not length) of individual cardiac muscle fibers, without cell division.
    GO:0055114    oxidation-reduction process    A metabolic process that results in the removal or addition of one or more electrons to or from a substance, with or without the concomitant removal or addition of a proton or protons.
    GO:0002026    regulation of the force of heart contraction    Any process that modulates the extent of heart contraction, changing the force with which blood is propelled.
cellular component
    GO:0030018    Z disc    Platelike region of a muscle sarcomere to which the plus ends of actin filaments are attached.
    GO:0005938    cell cortex    The region of a cell that lies just beneath the plasma membrane and often, but not always, contains a network of actin filaments and associated proteins.
    GO:0005737    cytoplasm    All of the contents of a cell excluding the plasma membrane and nucleus, but including other subcellular structures.
    GO:0030425    dendrite    A neuron projection that has a short, tapering, often branched, morphology, receives and integrates signals from other neurons or from sensory stimuli, and conducts a nerve impulse towards the axon or the cell body. In most neurons, the impulse is conveyed from dendrites to axon via the cell body, but in some types of unipolar neuron, the impulse does not travel via the cell body.
    GO:0070062    extracellular exosome    A vesicle that is released into the extracellular region by fusion of the limiting endosomal membrane of a multivesicular body with the plasma membrane. Extracellular exosomes, also simply called exosomes, have a diameter of about 40-100 nm.
    GO:0005634    nucleus    A membrane-bounded organelle of eukaryotic cells in which chromosomes are housed and replicated. In most cells, the nucleus contains all of the cell's chromosomes except the organellar chromosomes, and is the site of RNA synthesis and processing. In some species, or in specialized cell types, RNA metabolism or DNA replication may be absent.

 Visualization

(-) Interactive Views

NMR Structure
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
(no "Ligands, Modified Residues, Ions" information available for 1wik)

  Sites
(no "Sites" information available for 1wik)

  Cis Peptide Bonds
    Tyr A:71 - Pro A:72   [ RasMol ]


(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  1wik
    Family and Domain InformationProDom | SYSTERS
    General Structural InformationGlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in MembranesOPM
    Protein SurfaceSURFACE
    Secondary StructureDSSP (structure derived) | HSSP (homology derived)
    Structural GenomicsGeneCensus
    Structural NeighboursCE | VAST
    Structure ClassificationCATH | Dali | SCOP
    Validation and Original DataBMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  GLRX3_MOUSE | Q9CQM9
    Comparative Protein Structure ModelsModBase
    Genomic InformationEnsembl
    Protein-protein InteractionDIP
    Sequence, Family and Domain InformationInterPro | Pfam | SMART | UniProtKB/SwissProt

Access by Enzyme Classificator   (EC Number)
  (no 'Enzyme Classificator' available)
    General Enzyme InformationBRENDA | EC-PDB | Enzyme | IntEnz
    PathwayKEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease InformationOMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related InformationGenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain InformationXDom
    Interatomic Contacts of Structural UnitsCSU
    Ligand-protein ContactsLPC
    Protein CavitiescastP
    Sequence and Secondary StructurePDBCartoon
    Structure AlignmentSTRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence BrowserSTING

Access by UniProt ID/Accession number
  GLRX3_MOUSE | Q9CQM9
    Protein Disorder PredictionDisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)
